DIY: Upgrade your ugly FOB to a nicer Infiniti Smartkey

[redlude97]

Originally Posted by Ferrarimanic360

hey redlude want to do this mod for me!! haha

Not really, its more work than most people are probably willing to pay. I don't really like doing work for other people at a rate less than $30/hr and it takes 2-4 hours to get the mod perfect. That means with parts you are looking at least $150+shipping

[Strtsk8r321]

Originally Posted by redlude97

What did you do? I have one of those and I was just going to put it back up on ebay, but if you found a relatively easy fix maybe I'll keep it

I already ruined the circuit board so I couldnt sell it. Kinda funny...I took thumb tacks, like the one pictured below and cut the top off and then filed it to the right diameter and height to make a spacer so that the Exterior button touches the functional one.

[ugaexploder]

i have a extra FOB without a key...PM me ifanyone wants it

[tiguy99]

UGA, how much shipped to 60640??

[Red_G35]

I just bought mine, cost 38 bucks, but oh well.
I hope its easy. I'm going to start the project this Sunday.
redlude97, did you get around to posting a DIY? Also, what kind of wire did you use to solder with?

[redlude97]

Originally Posted by Red_G35

I just bought mine, cost 38 bucks, but oh well.
I hope its easy. I'm going to start the project this Sunday.
redlude97, did you get around to posting a DIY? Also, what kind of wire did you use to solder with?

I just followed the DIY here. Just pulled a copper wire from from 12 guage I had laying around.

[Red_G35]

Did you guys tape the front of the board off then poke the copper wire though the tape and into the holes on the board and then solder them on the backside?

[redlude97]

Originally Posted by Red_G35

Did you guys tape the front of the board off then poke the copper wire though the tape and into the holes on the board and then solder them on the backside?

yep.

[cruze1209]

Give us some updates when you r done Red_G35, hope u go well with it

[Red_G35]

I actually did this assuming the pics the OP posted were his final product. I soldered and wired everything exactly like he did. I even taped everything down and had the battery in place... as soon as the fob arrived today I swaped out internals and everything actually worked without adjustment. Piece of cake!!

[officerdbag]

Originally Posted by Red_G35

I actually did this assuming the pics the OP posted were his final product. I soldered and wired everything exactly like he did. I even taped everything down and had the battery in place... as soon as the fob arrived today I swaped out internals and everything actually worked without adjustment. Piece of cake!!

Nice! While at work a hottie came in today that had that exact same keyfob.. She was driving an M35

I gotta do this mod too.

[cruze1209]

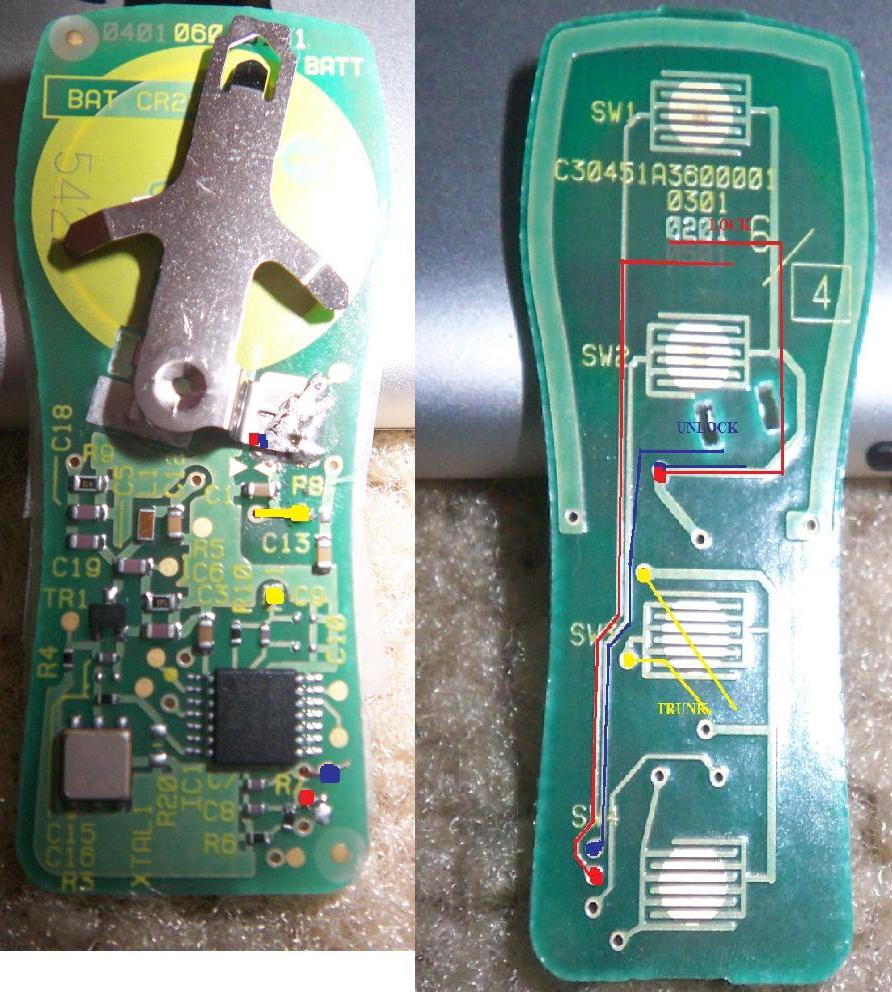

[quote=parklife]7.This is the hardest part. Soldering.
Attachment 86064
Make sure you layer it with tape to prevent the copper to move around.
The panic button remains in the same place. No need for soldering.
Attachment 86065

I need to ask a noob question. Do I need to solder the whole cooper to the board. Or just the blacken part shown on the picture? and for the truck button, do I only solder the copper to the hole?

[Red_G35]

just poke the copper through the appropriate holes and solder them on the backside of the pcb board

[gwhizz35]

so it is possible to just buy this key fob off ebay, take it to the dealership and have them program it for my Coupe yes?..or is this only available for the 05/06 Coupes?

If so, I'm assuming they charge an arm/leg to do this?

[Red_G35]

AFAIK, you cannot use the 06/07 fob on your 03-05 coupe, period.
