Pics of my Wilwood BBK installation
My neighbor and I installed the 6-pot Wilwood BBK by ArizonaZCar yesterday.

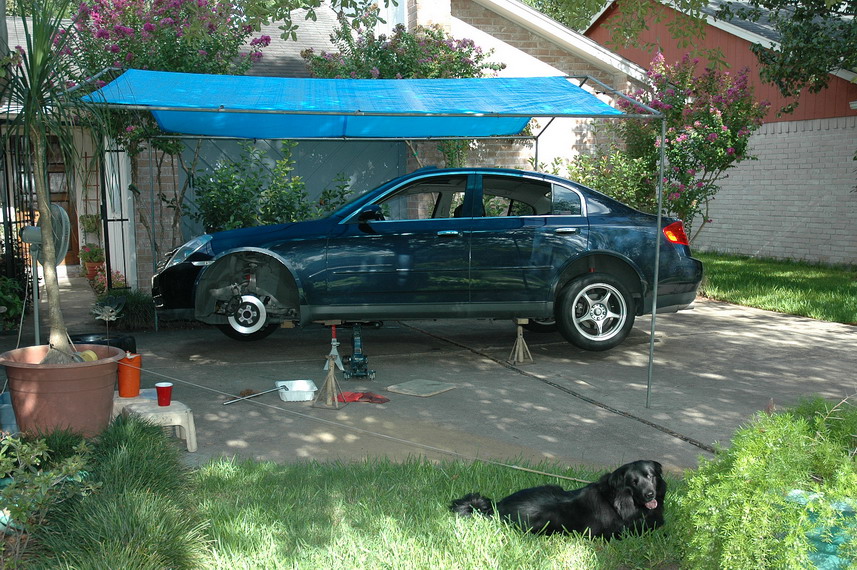

We started setting up for the install around 8:00 am. We erected a covered work area to save us from the Texas sun.
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines.
|
|
#2
08-13-2006, 01:11 PM
|
||||
|
||||
|

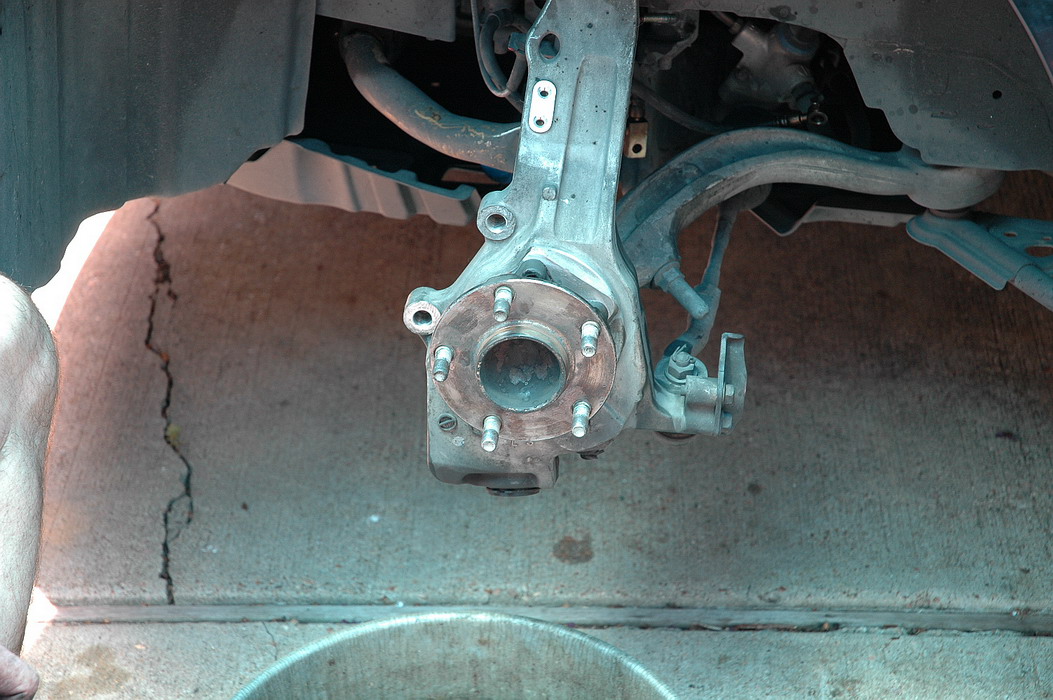

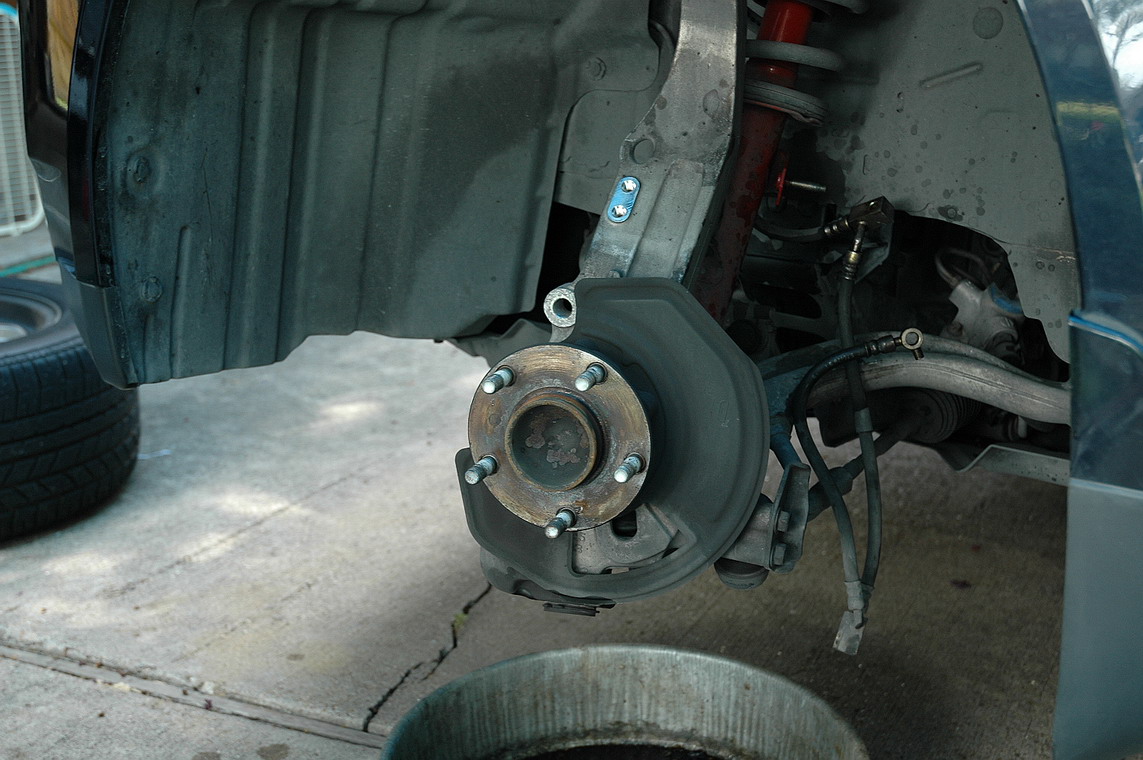

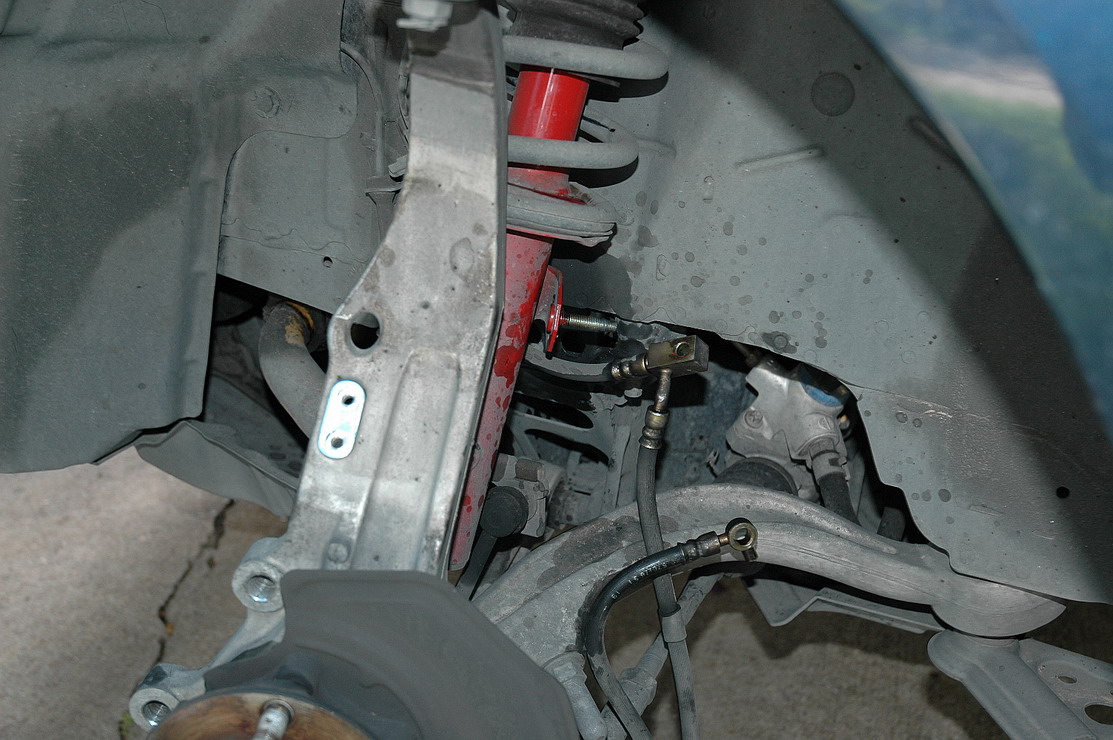

The instructions were very straightforward. They said, 1) Remove the 4 bolts attaching the hub to the spindle. Remove the hub and backing plate, discard

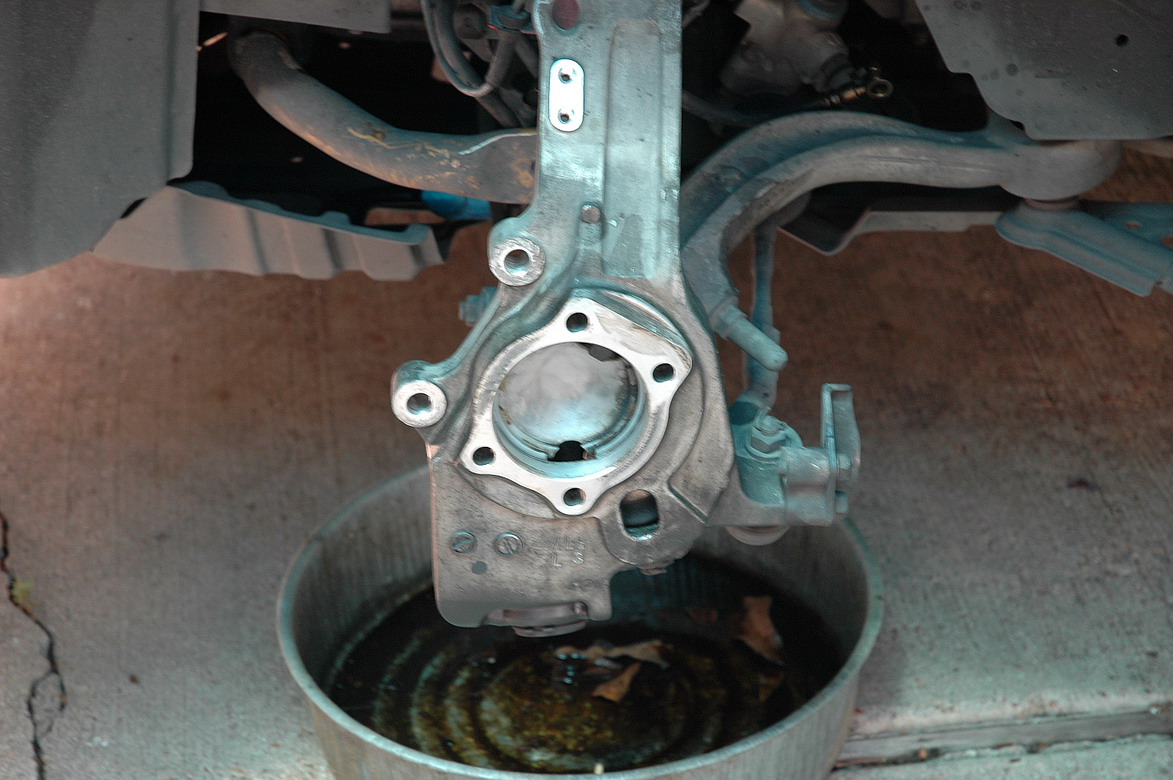

the backing plate and reattach the hub. Well...  .....the damn hub was corroded onto the spindle! Would not budge...After several phone calls to Dave at ArizonaZCar, and after 1 and a half hours, we were able to get the hub off. Cleand up all the corroded area and gave a light coat of greese to everything.  The other wheel was worse! But from what we had learned from the first go-around with the corroded hub, we managed to get this one off in about 45 min- 1 hour,
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines. Last edited by cato : 08-13-2006 at 05:15 PM.
|
|
#3
08-13-2006, 01:20 PM
|
||||
|
||||
|

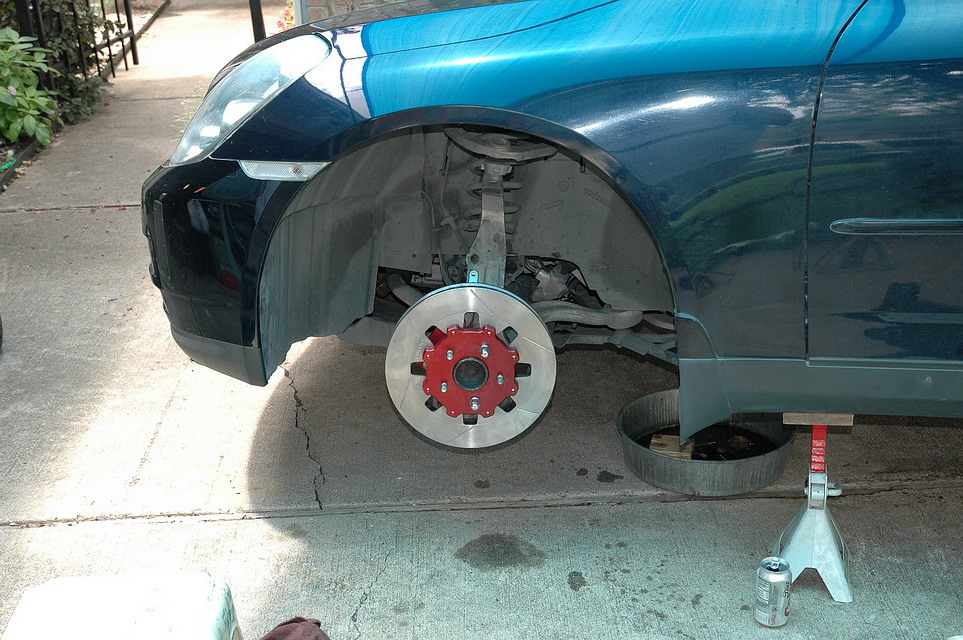

We spent all day on the install. Dave at ArizonaZCar says it takes him about 1 hour to do the front BBK install. It took us more than 11 hours.
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines.
|
|
#4
08-13-2006, 01:25 PM
|
||||
|
||||
|

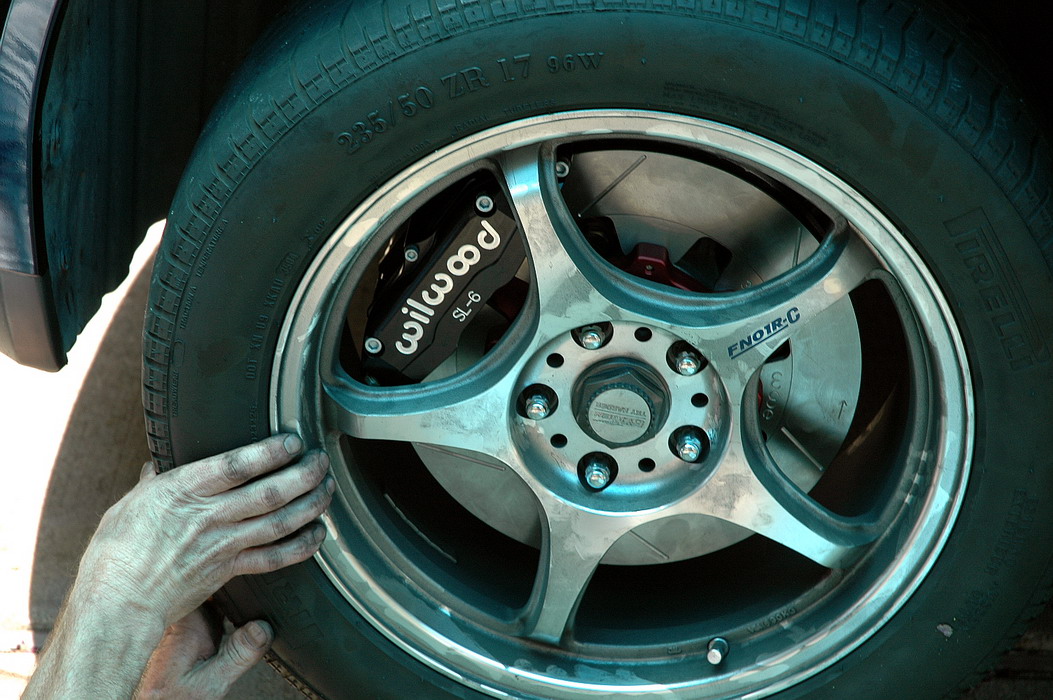

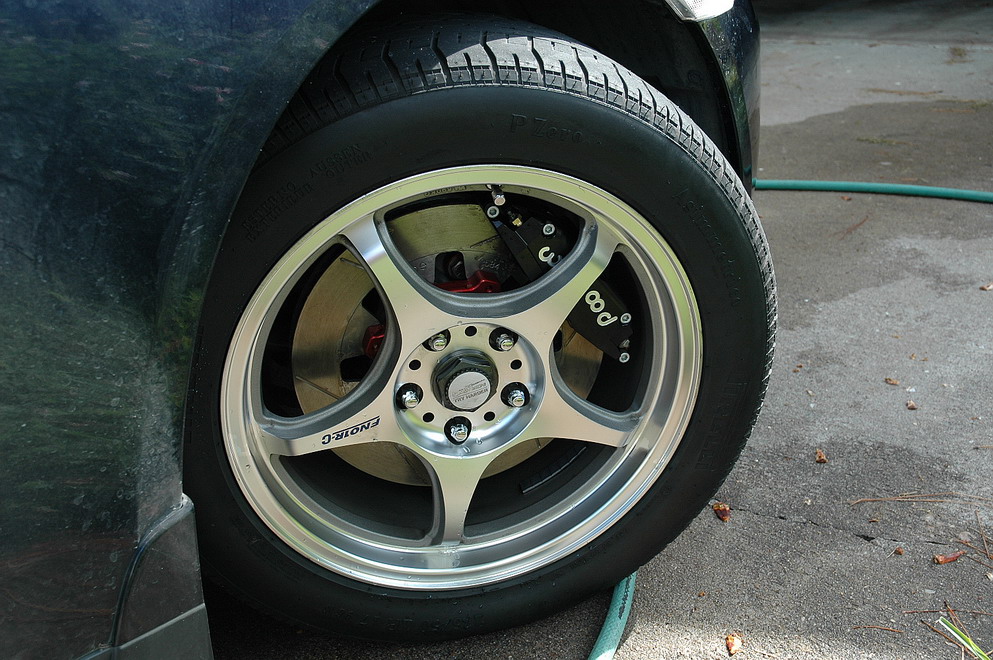

But well worth the work. I was expecting more room with the 5Zigen 17X8 wheels. There is less than a 1/4 millimeter room between the spokes and the Wilwoods. I have ordered a 3 mm spacer.

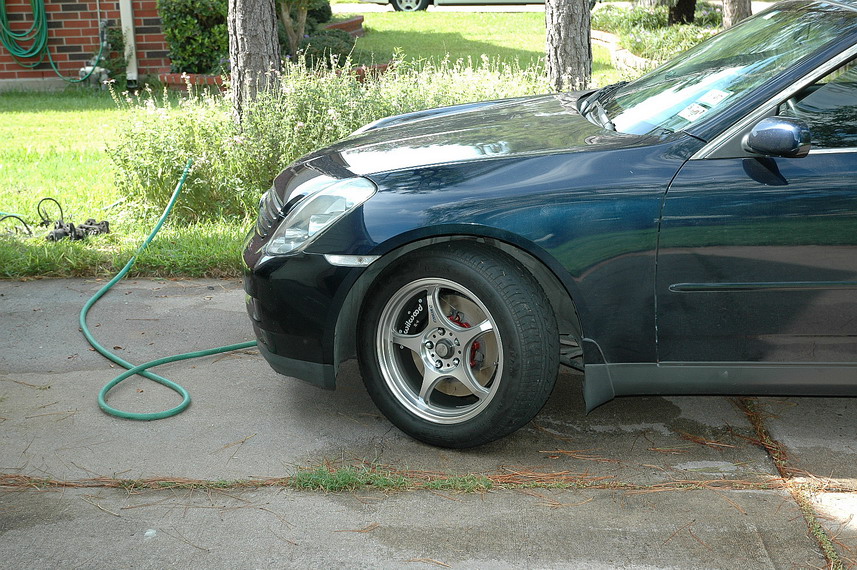

But.. They DO fit within the wheels.  The 5Zigen wheels are 18 pounds/wheel, 5 pounds less than the 23 pound stock 6 spokes. The Wilwood BBK is 10 pounds ligher than the crappy stock brakes. 5+5 is 10 pounds less unsprung weight per front corner. The sedan seems to accelerate much faster and brake much better!
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines. Last edited by cato : 08-16-2006 at 09:21 AM.
|
|
#5
08-13-2006, 01:35 PM
|
||||
|
||||
|

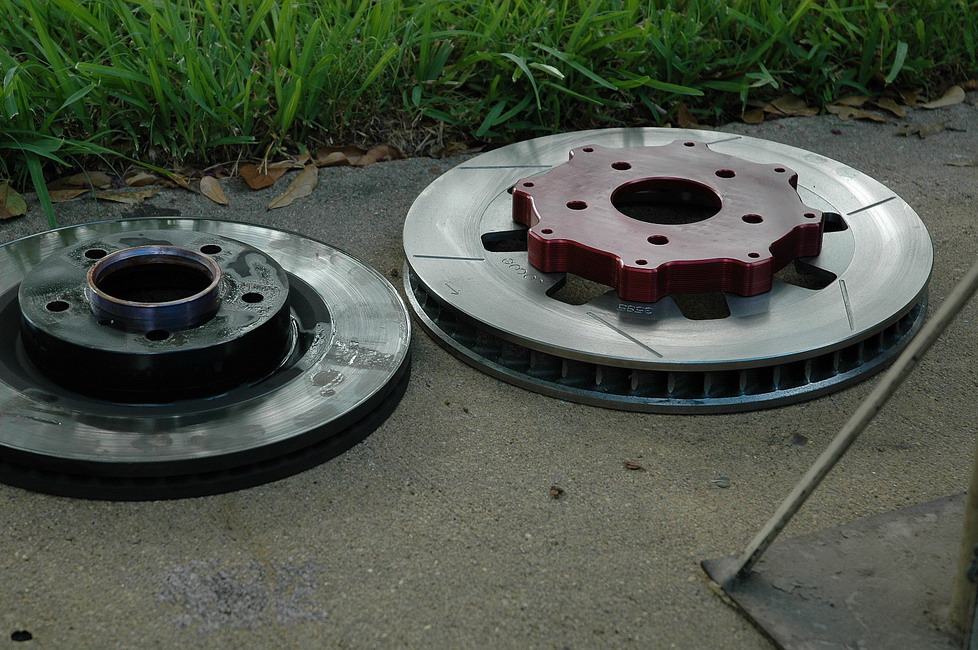

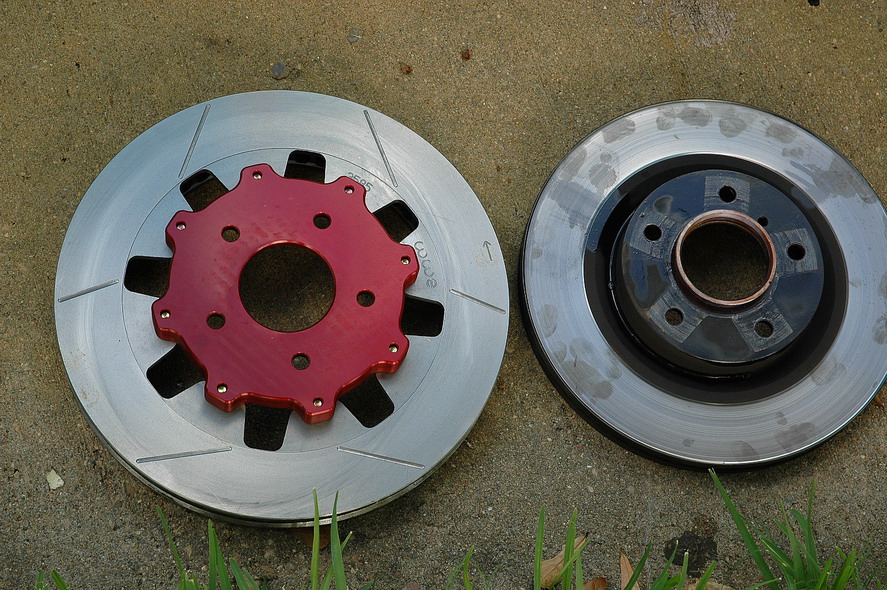

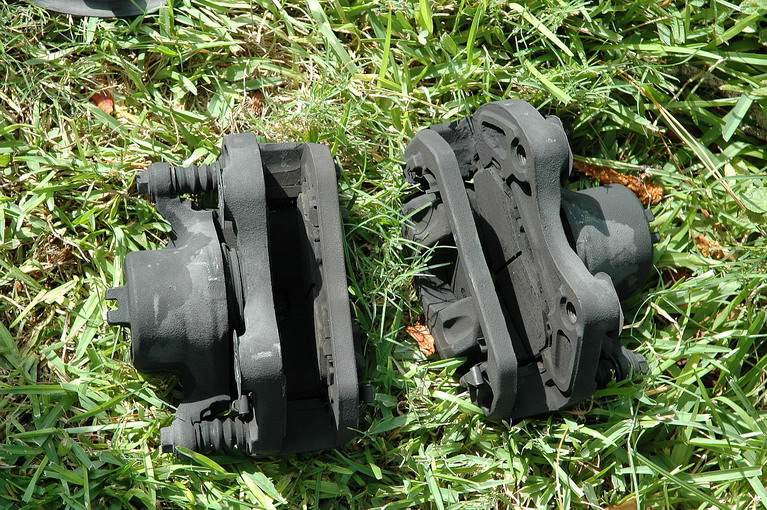

Does anyone need some old brakes for a 2003 G35? Or are these guys destined for tomorrow's trash?

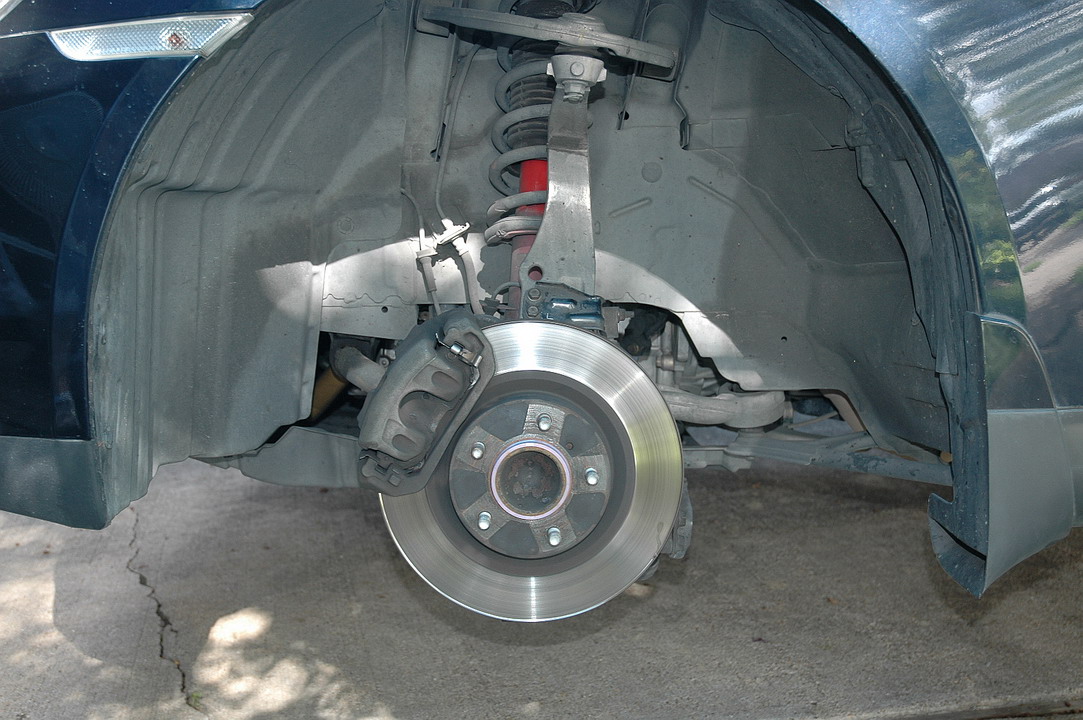

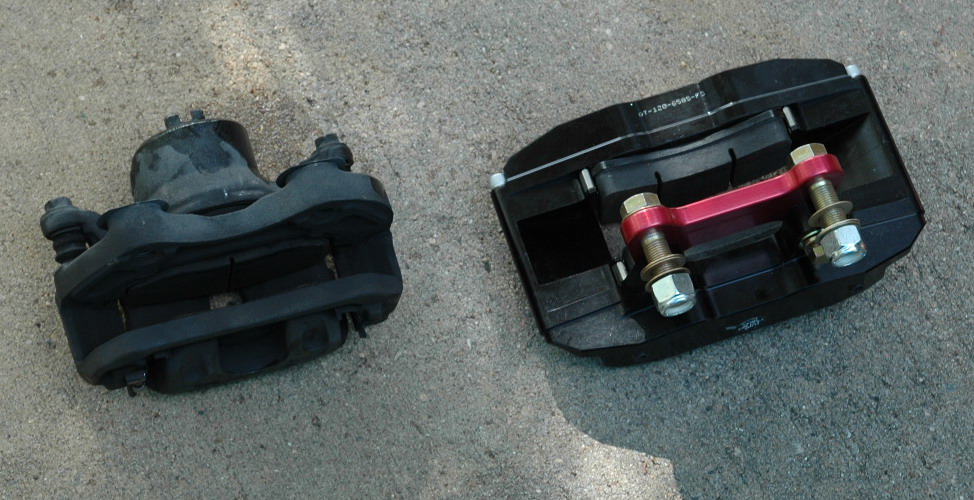

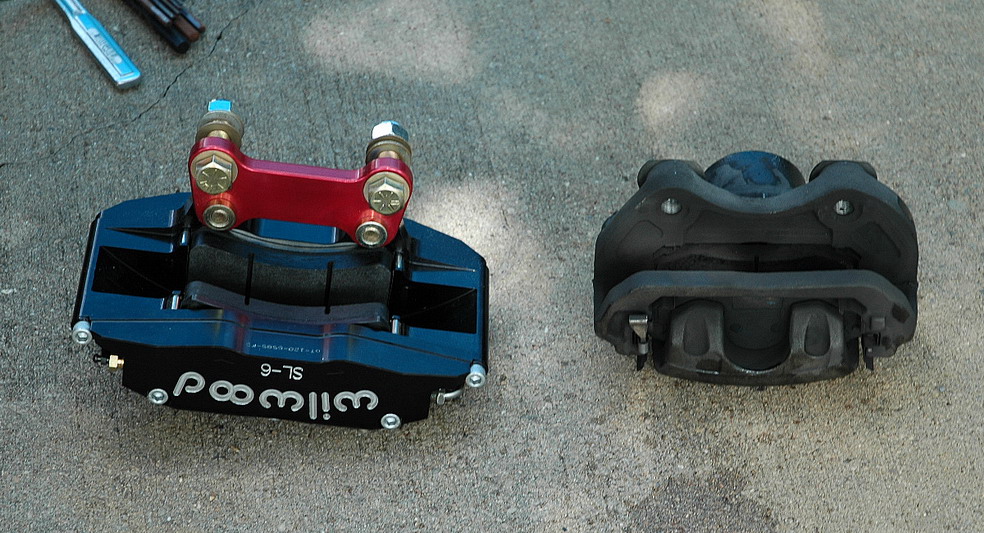

 The OEM calipers weigh a ton! The are at least 4-5 times heaver than the Wilwoods. What a bunch of crap! And I have spent several thousand bucks keeping these guys on my car for 82,000 miles. Good rittance!
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines. Last edited by cato : 08-13-2006 at 01:38 PM.
|
|
#6
08-13-2006, 02:00 PM
|
|||
|
|||
|
Well Cato I do have to say they really do stand out they look awesome. I love the BBK on this car. Good job with the DIY as well.
__________________
06 6MT Diamond Graphite Coupe, planning on HKS Dual exhaust, Spacer, MREV, TT at least.
|
|
#8
08-13-2006, 03:13 PM
|
||||
|
||||
|
Of course I will post my impressions of it after they have been properly broken in. Dave at AZCar told me to grandma the brakes for the first few days. So I am pretty easy on them. I still have yet to install my Stillen rear slotted sport rotors and metal matrix pads, plus the StopTech rear SS braided brake lines.
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines.
|
|
#10
08-13-2006, 04:55 PM
|
||||
|
||||
|
Nice work. I understand how the rotors, spondle, and hub are all mated, which I'm going to need to know soon.
They look nice on the car.
__________________
Sean Florida G Club '03.5 Caribbean Blue 5at Sedan w/ a few mods, '04 Laser Red 6mt Coupe slowly being demodded
|
|
#11
08-13-2006, 05:09 PM
|
||||
|
||||
|
Quote:
__________________
03 TB 5ATS: Stillen: sway bars, STB. Intake: K&N+ZTube. 3/8" MD Iso Thermal Plenum Spacer. Coupe Mid-pipe+HKS sport muffler. 12 wire GG kit. GTSPEC stuff: Front & rear lower tie braces. 235/50 ZR17 Mich. Pilot Sport/AS 17X8 +43 18lb 5Zigens wheels with 6-pot Wilwood front BBK, SS lines.
|
|
#13
08-13-2006, 05:25 PM
|
||||
|
||||
|
I always keep the stock parts just in case you need to put them back on.
For instance (heaven forbid), you get rearended by dumptruck tomorrow (you're OK) and the car is totaled. You want to be able to put the stock calipers and rotors back on before they haul it away for scrap because you're likely not going to get any more money for the car whether the BBK is on it or not. You don't want to scrounge around for replacement stock calipers and rotors at a time like that.
__________________
Sean Florida G Club '03.5 Caribbean Blue 5at Sedan w/ a few mods, '04 Laser Red 6mt Coupe slowly being demodded
|
|
#14
08-13-2006, 06:23 PM
|
||||
|
||||
|
wow good job..........looks great.......def keep the old calipers
