A/C Fan not blowing
#31
In pictures
The relay is BEHIND the the panel of fuses where your pedals are..you have to take off the panel that's next to your left foot when sitting in car. And it exposes the panel and two screw on top part of it..unscrew these and panel should slide off rail guide and the two relays are on the back looks like a blue box with prongs
open fuse area
unscrew this, remove plastic covering
un-clip white fuse block. Unscrew this nut so you can turn teh fuse block around enough to pull out the top relay (no clips, just gently and consistently pull relay)
This top one

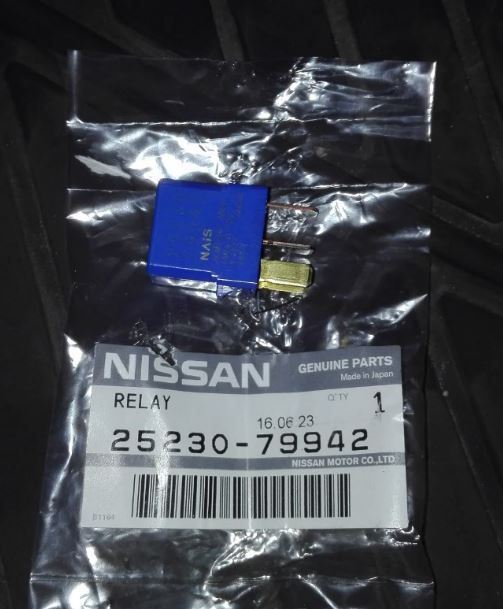

replace with 25230-79942
#32
Relay Replacement Fix
First post to this site, so big thank you to all in helping fix my problem. Had the same issues as everyone on my 07 G35X sedan. Worked the same fix by replacing blower relay. I do have a few points of feedback for my fix on my vehicle. The fuse box is on the left side. After removing the plastic covers to gain access to the fuse box, removing the box itself, only requires pressing down on the plastic tabs to slide off. Based on the FSM, the blower relay is the top relay; however, removing/replacing did not fix. As others pointed out, try removing/replacing the bottom relay. Did that and got the blower running instantly. Based on the FSM, the bottom relay is the ignition relay, so I’m not sure that I read the FSM correctly but in any case it fixed it. Big save in the fix as I just dropped $1400 on my 06 Pathfinder for a bad auxiliary catalytic converter.
#33
Join Date: May 2017
Location: Washington State
Posts: 14,792
Received 2,456 Likes
on
2,150 Posts
Coupe 6MT Premium RAS
#34
Thanks cleric670. The full drawing in the FSM above does indicate which side is up. If you orient to that then it would appears the blower relay that you circled is up. Either way, was able to get a fix though the help of the folks on this site.
#35
Hello guys,
I'm having the same issue with my car except my ac/heat won't blow at all, it just gave out.
check the little fuses had both 10amp blown, replaced-nothing still
I swapped the blue box fuses around all 4 I might add and still nothing, I'd figure if i swapped the accessory box with the blower and test before buying the fuse but it didn't turn on?
is it safe to say it's my blower?
I'm having the same issue with my car except my ac/heat won't blow at all, it just gave out.
check the little fuses had both 10amp blown, replaced-nothing still
I swapped the blue box fuses around all 4 I might add and still nothing, I'd figure if i swapped the accessory box with the blower and test before buying the fuse but it didn't turn on?
is it safe to say it's my blower?
#37
The relay is BEHIND the the panel of fuses where your pedals are..you have to take off the panel that's next to your left foot when sitting in car. And it exposes the panel and two screw on top part of it..unscrew these and panel should slide off rail guide and the two relays are on the back looks like a blue box with prongs
Mine is a 2006 Infiniti G35 Coupe. Thank you for any help you can shed.
#38
I'm having the same issue with my m35x 06.. shes an old girl and I've been having electrical problems lately but repairing myself as they occur. The air thing just started happening day before yesterday and its 1 million degrees in Louisiana 🥵
#39
Ac
I took off the two screws to the fuse box, but it won't budge off the rails? Is there some hidden screw I'm missing? Or do you have a tip how to get it off ACE420? My kid wants to drive it, but I don't want her to suffer without AC.
Mine is a 2006 Infiniti G35 Coupe. Thank you for any help you can shed.
Mine is a 2006 Infiniti G35 Coupe. Thank you for any help you can shed.
