P0057 Fuse location?
#1
P0057 Fuse location?
Hi,
I am getting codes P0057 01/02 and P0057 P 02/02. From my research it seems that means Heated O2 sensor bank 1, sensor 2 and Heated O2 sensor bank 2, sensor 2. I found a diagram showing where these two sensors are. Before I change them I also read it could be the fuse for O2 sensor. Can anyone tell me where this fuse is, or provide a diagram? Thanks so much in advance!
I am getting codes P0057 01/02 and P0057 P 02/02. From my research it seems that means Heated O2 sensor bank 1, sensor 2 and Heated O2 sensor bank 2, sensor 2. I found a diagram showing where these two sensors are. Before I change them I also read it could be the fuse for O2 sensor. Can anyone tell me where this fuse is, or provide a diagram? Thanks so much in advance!
#2
Hi,
I am getting codes P0057 01/02 and P0057 P 02/02. From my research it seems that means Heated O2 sensor bank 1, sensor 2 and Heated O2 sensor bank 2, sensor 2. I found a diagram showing where these two sensors are. Before I change them I also read it could be the fuse for O2 sensor. Can anyone tell me where this fuse is, or provide a diagram? Thanks so much in advance!
I am getting codes P0057 01/02 and P0057 P 02/02. From my research it seems that means Heated O2 sensor bank 1, sensor 2 and Heated O2 sensor bank 2, sensor 2. I found a diagram showing where these two sensors are. Before I change them I also read it could be the fuse for O2 sensor. Can anyone tell me where this fuse is, or provide a diagram? Thanks so much in advance!
http://www.nicoclub.com/archives/inf...e-manuals.html
fuse blocks are under the hood and on the left side of the dash (driver's side). I think there's also a fuse map in the car's user manual.
#3
#5
#6

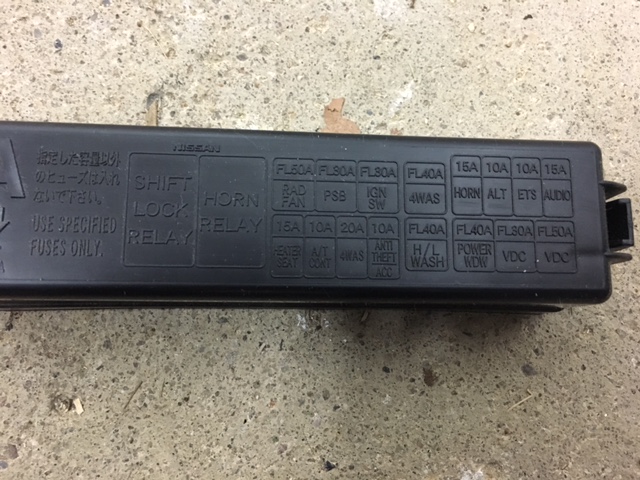

Fuse box behind battery
Really, I didn't see anything in the service manual regarding this. I also didn't remember seeing anything back there when I replaced the battery but that was a few years back. If I remember there is not much space behind the battery before you are into the firewall, and that little plastic cover you remove to access the battery doesn't give you much room either. I can double check though. Do you have anything that shows this second fuse box?
Thanks
Thanks
#7
Join Date: Mar 2011
Location: Central NJ
Posts: 2,605
Received 196 Likes
on
177 Posts
Front and rear cameras, tire pressure for all four tires can display on screen,folding side view mir
Hi,
I am getting codes P0057 01/02 and P0057 P 02/02. From my research it seems that means Heated O2 sensor bank 1, sensor 2 and Heated O2 sensor bank 2, sensor 2. I found a diagram showing where these two sensors are. Before I change them I also read it could be the fuse for O2 sensor. Can anyone tell me where this fuse is, or provide a diagram? Thanks so much in advance!
I am getting codes P0057 01/02 and P0057 P 02/02. From my research it seems that means Heated O2 sensor bank 1, sensor 2 and Heated O2 sensor bank 2, sensor 2. I found a diagram showing where these two sensors are. Before I change them I also read it could be the fuse for O2 sensor. Can anyone tell me where this fuse is, or provide a diagram? Thanks so much in advance!
http://www.nicoclub.com/service-manu.../Sedan/2008/PG
Telcoman
Trending Topics
#10
Found it
Sorry, I found the third fuse box location. I was able to just loosen the battery hold down bracket and slide the battery over a little after removing the windshield cowl cover.
The O2 fuse was not blown, but I replaced it with a spare 15a just to be safe. Same issue, so I will inspect the O2 sensor wires, and if they are good replace the two O2 sensors, then then hopefully that will be it.
Thanks again guys
The O2 fuse was not blown, but I replaced it with a spare 15a just to be safe. Same issue, so I will inspect the O2 sensor wires, and if they are good replace the two O2 sensors, then then hopefully that will be it.
Thanks again guys
