Custom Audio System Gallery
#32
09-29-2010, 10:38 PM
setup

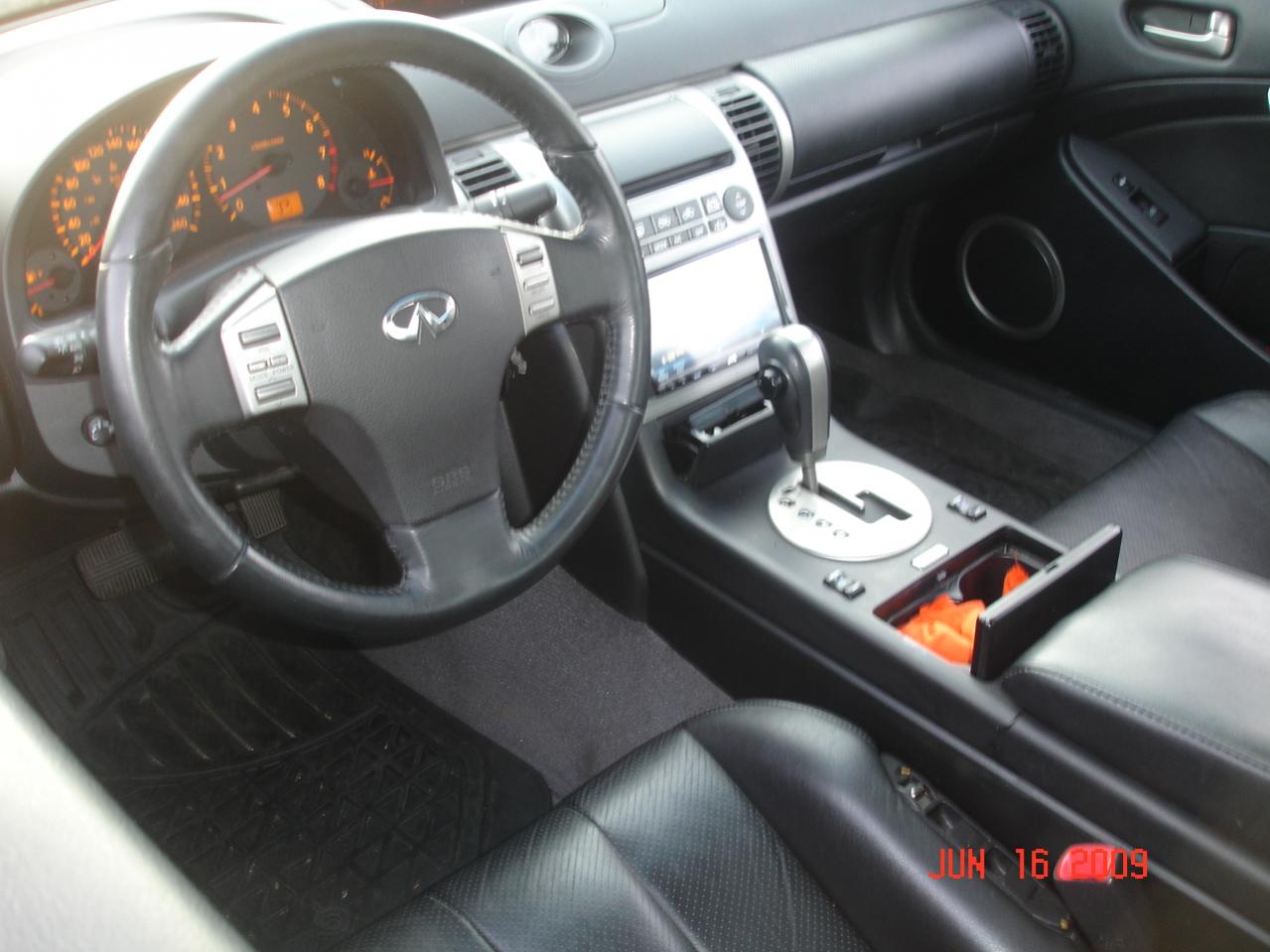

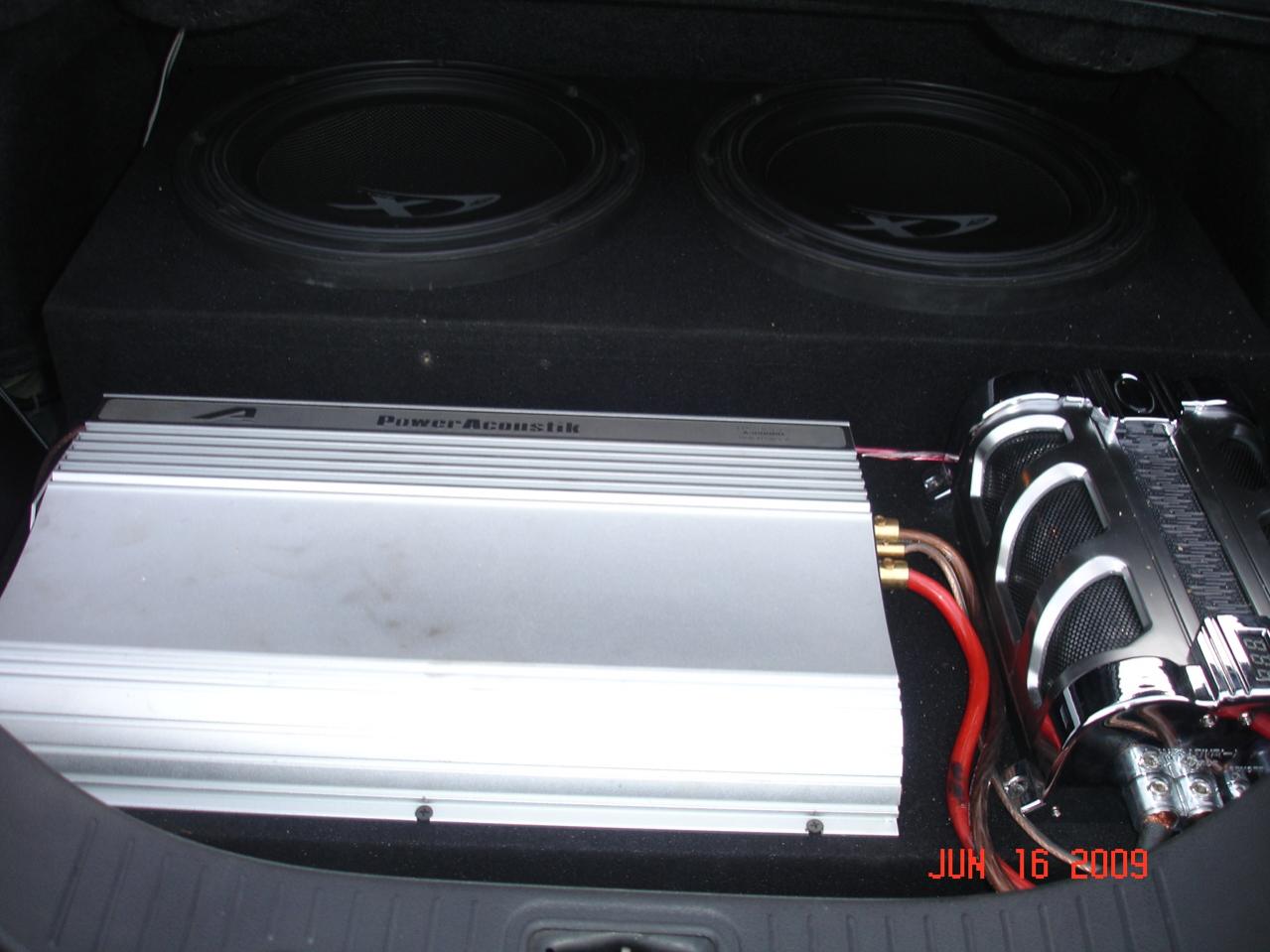

This is from my previous coupe i had originally 2 alpine type x's then i switched to 2 12" kicker L7's in a custom enclosure built by 20hz car audio (was originally built for 2 alpine type x's... used them a few months sold them then bought L7's and cut out the square holes) .. jvc deck/metra dash kit, 0 gauge wiring, 250amp fuse,gravity hybrid 50.0 farad cap, first amp was a power acoustik a3000db then had a temporary legacy amp for the L7's. Just simple setups..
Last edited by gtoor1990; 09-29-2010 at 10:41 PM. Reason: wrong pic
#34
11-17-2010, 08:09 PM
Alpine IVA-W205 Head Unit
JL Audio Slash 300/4
JL Audio Slash 500/1 v2
Alpine Type-X 6.5 Components
Alpine Type-R 6x9s
Alpine Type-R 12" Sub
As you can tell by the pics I was trying to keep it pretty stealth to look as stock as possible except the head unit.
JL Audio Slash 300/4
JL Audio Slash 500/1 v2
Alpine Type-X 6.5 Components
Alpine Type-R 6x9s
Alpine Type-R 12" Sub
As you can tell by the pics I was trying to keep it pretty stealth to look as stock as possible except the head unit.
Last edited by TigerWoodsIV; 11-17-2010 at 08:55 PM.
#36
01-18-2011, 09:48 AM
Registered User
Join Date: Jan 2011
Location: Central FL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Couple pics of my install in progress which should be done by end of January. The factory Bose system is so friggin weak. Unacceptable at this level of ownership.

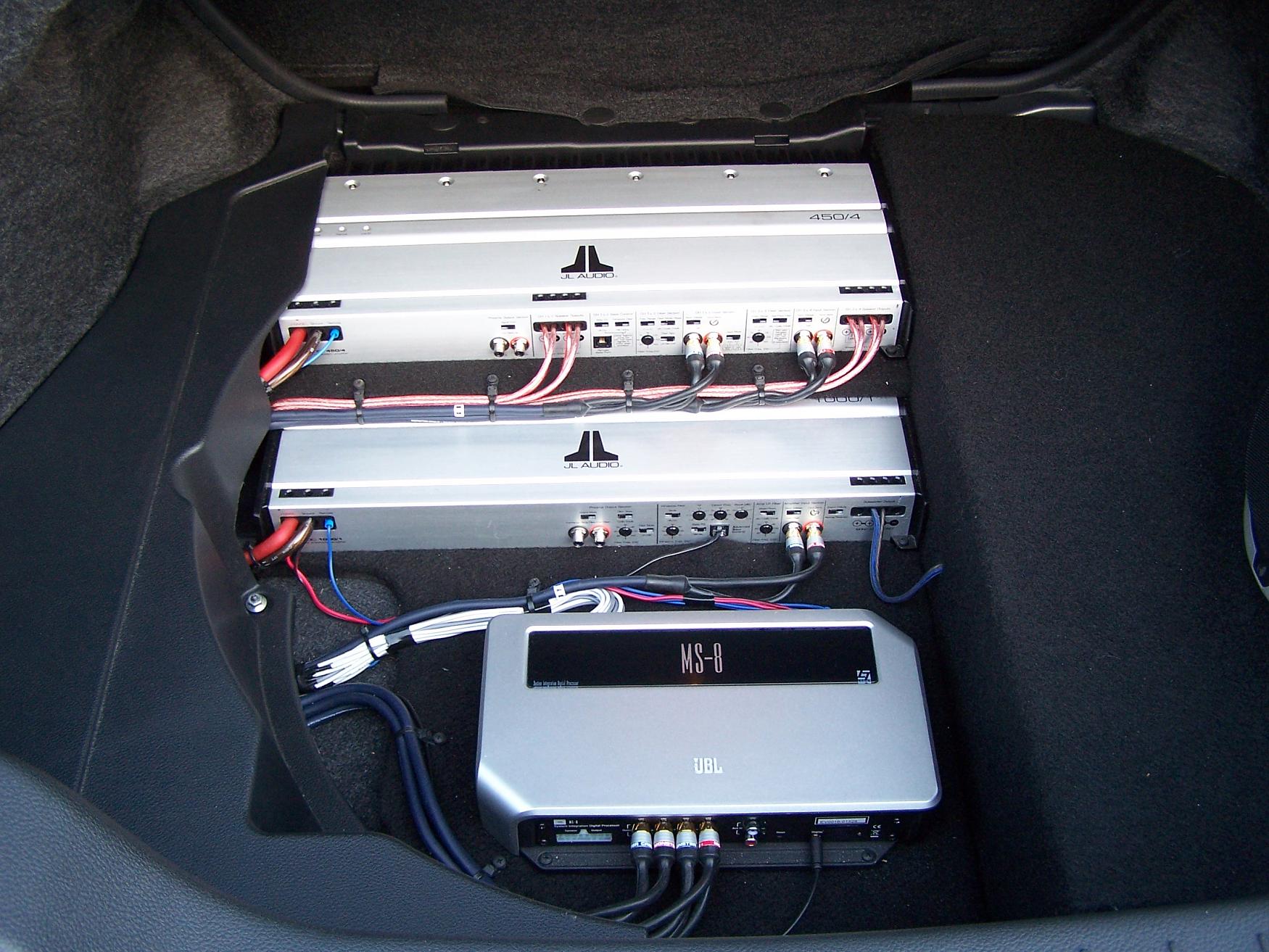

JL Audio 1000/1 and 12w6 Sub

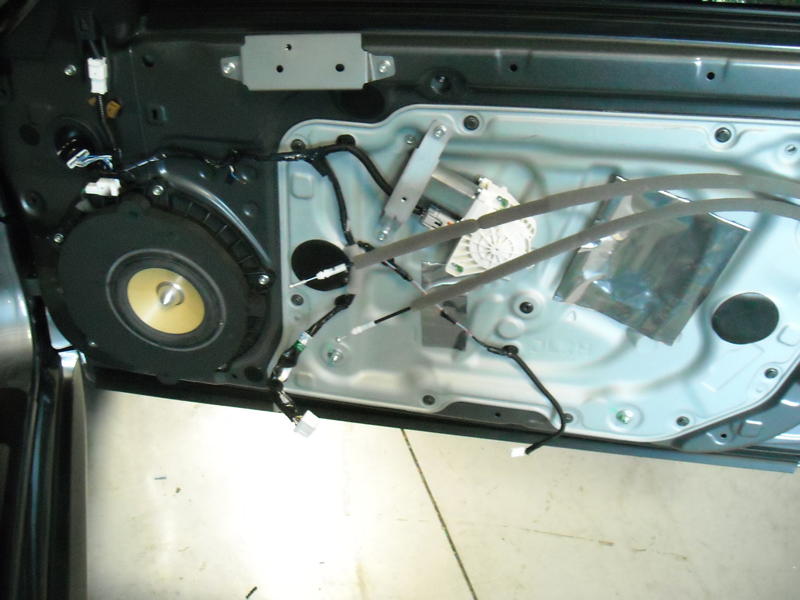

JL Audio 450/4 And Focal 165 K2Power Components
JBL MS-8 Digital Processor
20% Tint, Valentine 1
MORE TO COME
JL Audio 1000/1 and 12w6 Sub
JL Audio 450/4 And Focal 165 K2Power Components
JBL MS-8 Digital Processor
20% Tint, Valentine 1
MORE TO COME
#37
01-18-2011, 09:54 AM
Registered User
Join Date: Jan 2011
Location: Central FL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Couple more pics. Damn there's some CRAZY systems here! I'm not going too crazy custom, door components are all in factory locations and the JBL Processor makes the factory head unit more than adequate for my needs. Just a lil 'glass enclosure for some low end enhancement. More mods to come...
Last edited by Opposite_Lock; 01-18-2011 at 10:00 AM.
#38
01-30-2011, 07:00 PM
Registered User
Join Date: Jan 2011
Location: Central FL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Finally finished!!!

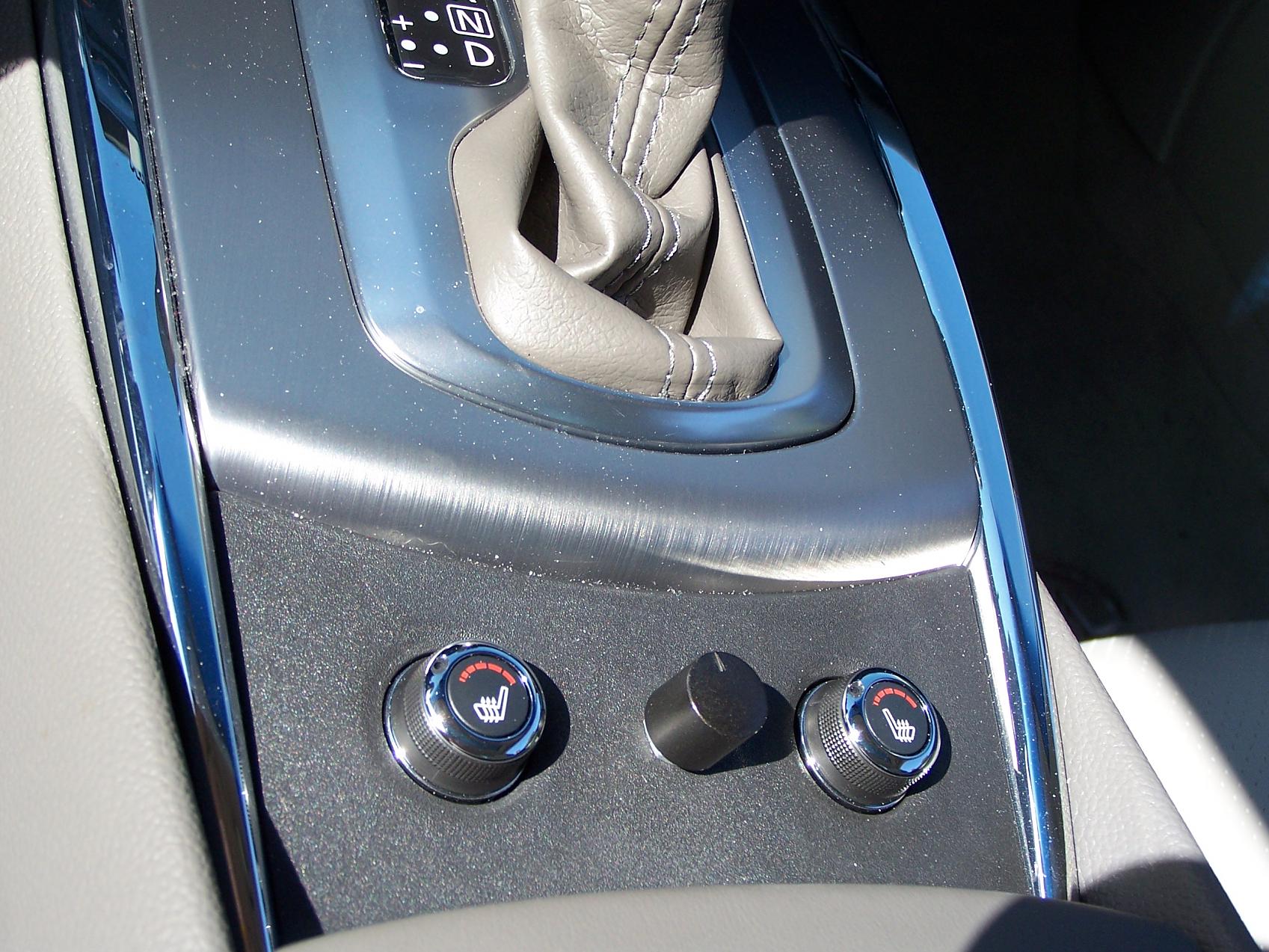

Just got my G37S back from the shop so I had to take pics and post. Sound quality is AMAZING and enough bass to make ears bleed. All Focal mids/tweeters are in factory locations and maximum trunk space is still maintained. The only hole drillled in the entire interior of my car was this 1/8" hole for my sub gain **** between the seat heater controls! It's getting a full detail soon so pardon the dust
Last edited by Opposite_Lock; 02-03-2011 at 09:31 PM.
#39
01-30-2011, 07:20 PM
Registered User
Join Date: Jan 2011
Location: Central FL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Its a Coupe, I adjusted my sig to show that. Thanks.

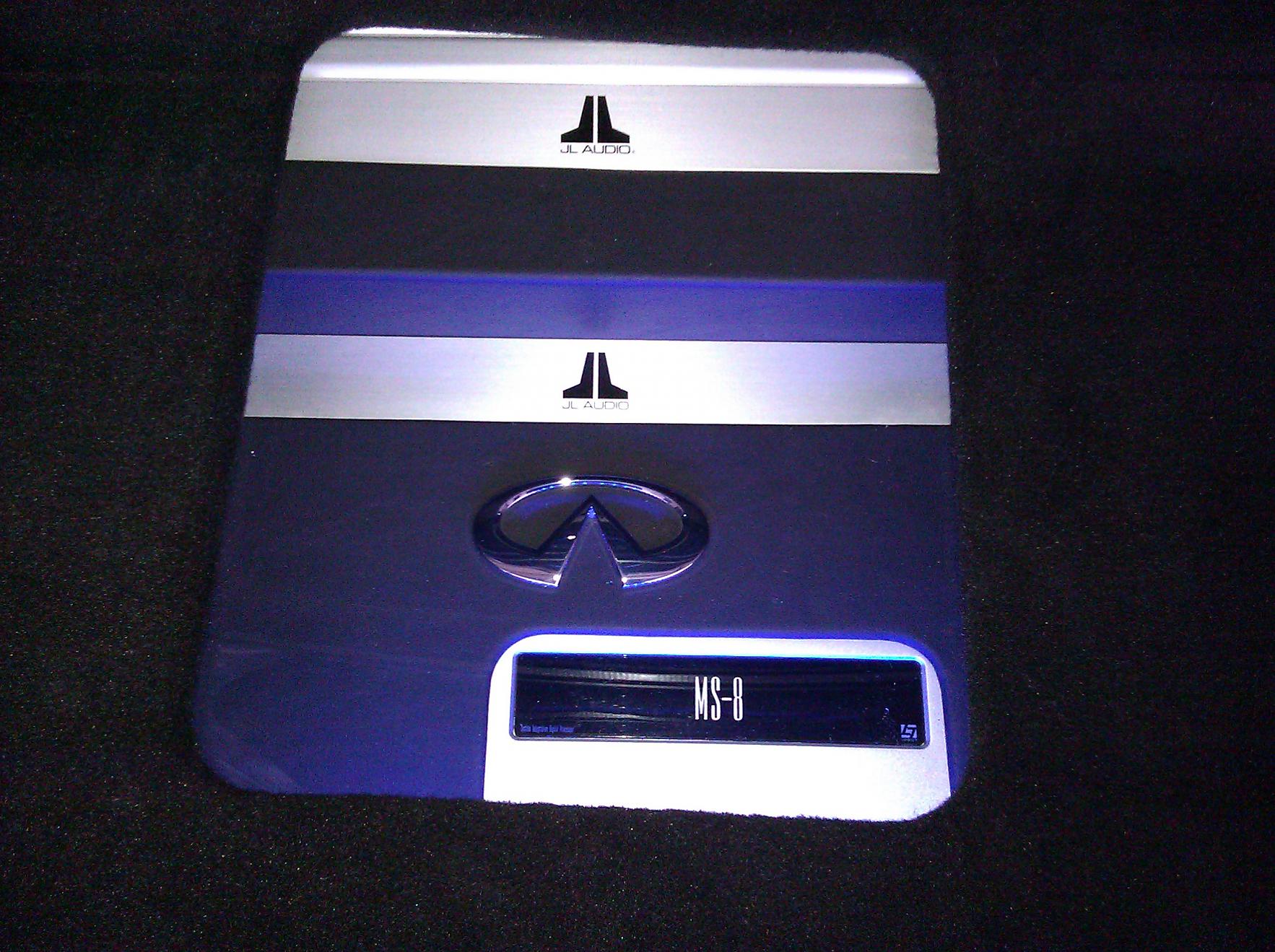

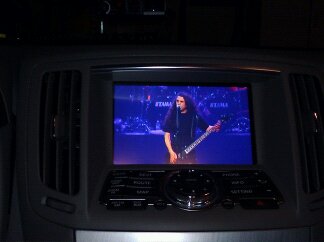

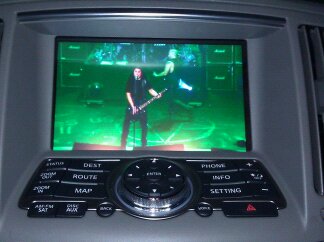

JBL MS-8 Processor ties all my shiz to the factory head unit and the display tucks away in glove box for infinite digital adjustment of sound. This is a new piece that just came to market and if you want to make your system sound high end without ripping out your factory head unit this is ESSENTIAL!
http://ms8.jbl.com/?utm_source=JBL&u...ampaign=launch
JBL MS-8 Processor ties all my shiz to the factory head unit and the display tucks away in glove box for infinite digital adjustment of sound. This is a new piece that just came to market and if you want to make your system sound high end without ripping out your factory head unit this is ESSENTIAL!
http://ms8.jbl.com/?utm_source=JBL&u...ampaign=launch
Last edited by Opposite_Lock; 01-30-2011 at 07:26 PM.
#40
01-30-2011, 07:31 PM
Registered User
Join Date: Jan 2011
Location: Central FL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
#41
01-30-2011, 07:43 PM
Registered User
Join Date: Jan 2011
Location: Central FL
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
#42
08-19-2011, 10:20 PM
Registered User
#43
09-21-2011, 11:10 PM
Here's my setup.
Alpine IVA-W205
Alpine PXA-H701
Peerless Exclusive 7" in front door
Seas Lotus Tweeter molded into A pillar
Image Dynamics IDMAX 10 in custom modified 4080 box
Rear shelf and doors sound deadened
DLS RA10 powering sub
DLS RA20 powering Peerless
DLS RA25 powering Seas Lotus
Alpine IVA-W205
Alpine PXA-H701
Peerless Exclusive 7" in front door
Seas Lotus Tweeter molded into A pillar
Image Dynamics IDMAX 10 in custom modified 4080 box
Rear shelf and doors sound deadened
DLS RA10 powering sub
DLS RA20 powering Peerless
DLS RA25 powering Seas Lotus
#45
12-09-2011, 02:31 PM
The shop just got done with my car today and this is the only picture that I have. D: Memphis front to back and JL in the trunk. I'll get into specifics when I have the pictures to post. I'm deployed so I don't even get to enjoy this for 5 more months :'(
Last edited by AdvancedG35; 12-09-2011 at 02:35 PM.
