Detailer's Domain: BMW Z8 - Full Correction/Engine/Interior

Subject: BMW Z8
Requirements: Remove swirls and imperfections from over the years.

This was a car that was in great shape, not much needed on the inside at all. This Z8 had tons of gloss. However upon closer inspection we found the paint imperfections. Take a look at how we fixed them.

Exterior

- Wheels were prepped with Sonax Wheel Cleaner and cleaned up with various brushes
- Tires were spritzed down with Adam’s All Purpose Cleaner and washed down
- Wheel wells were cleaned up
- Washed with 1Z einszett W99
- Aquartz Iron Cut
- Wash down and rinsed
- Door jambs were cleaned up
- Nano Scrub AutoScrub
- Dried
- Tires dressed
- Masking
- Paint Measurement
- Meg's M105 with Surbuf and Griots Orbital
- Sonax 5/5 Fine Abrasive Paste - Microfiber DA Cut Pad - Griots Orbital
- Sonax 3/6 Nano Polish - Uber Green Pad - Griots Orbital
- Lusso Oro was used as a last step
- Inspection with Fenix, 3m Sun Gun, Infratech, and natural sunlight
- Wheel wells were cleaned and dressed
- Rubber and Plastics Treated
- Exterior windows and mirrors cleaned and sealed
- Exhaust tips cleaned
- Windows were autoscrubed, cleaned, and sealed

Products used

Links to products used -

1Z einszett W99
Aquartz Iron Cut
Sonax Full Effect Wheel Cleaner
NanoSkin AutoScrub System
Meg's M105
Sonax Compound 5/5 - Coming Soon
Lusso Oro
Adam's Super VRT
Optimum Metal Polish
Wolf's Rim Shield

Interior
1Z Cockpit
1Z Plastic Deep Cleaner
1Z Leathercare
Griot's 3 inch Random Orbital Polisher
Uber Ultra Interior Brush for Orbital Polishers

Engine
Adam's APC
Adam's In and Out Spray

Tools used
Uber Wool Wash Mitt
Uber No Name MF Towels
Griot's 6 inch Random Orbital Polisher
Griot's 3 inch Random Orbital Polisher
Uber Buffing Pads
Defelsko Paint Meter
Fenix TK35
Brinkmann
Kranzle Pressure Washer
Cam Spray Foam Canon
2 Grit Guard Buckets with Caddies
Uber Firehose Nozzle
Metro Air Force Blaster

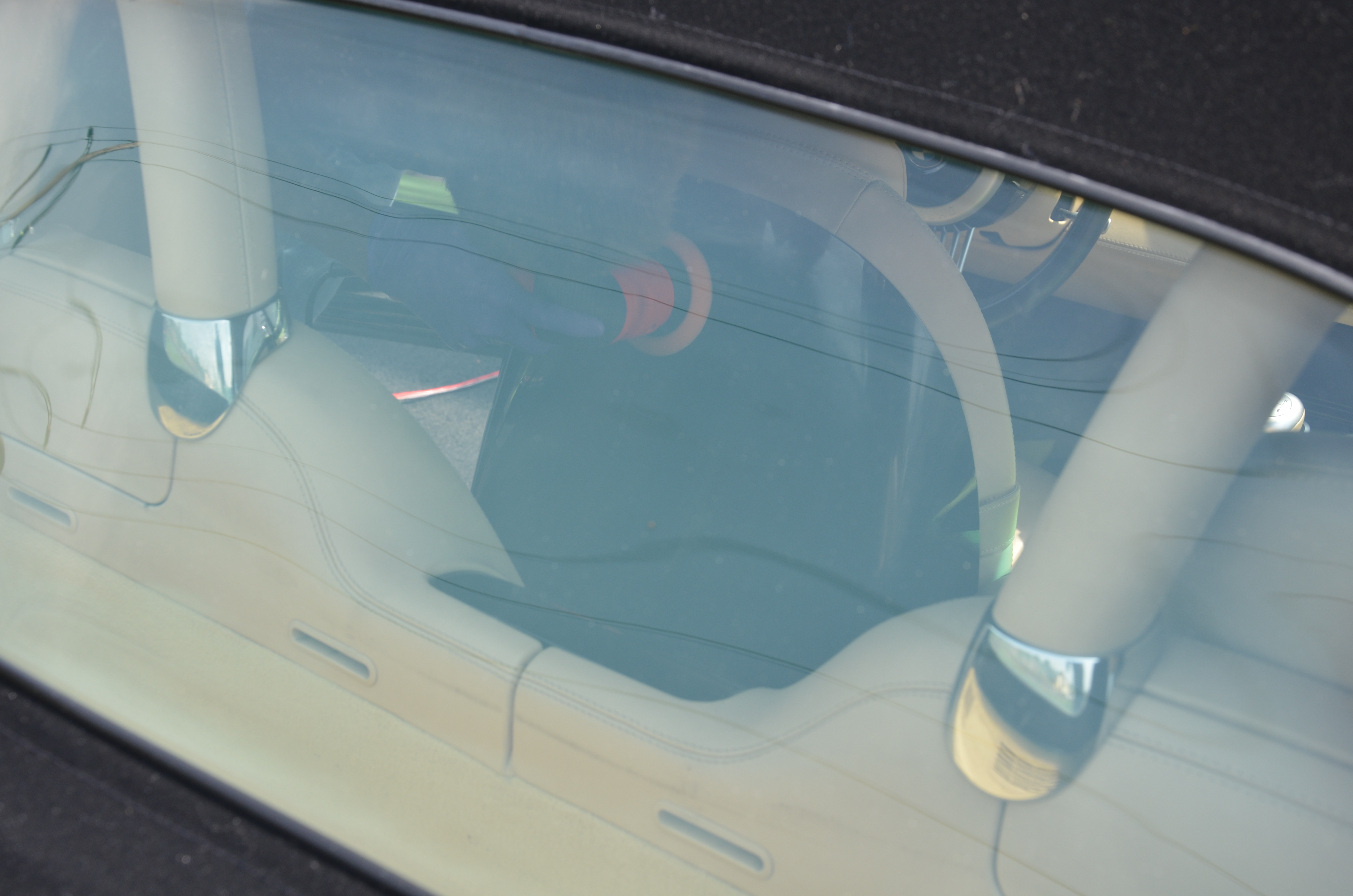

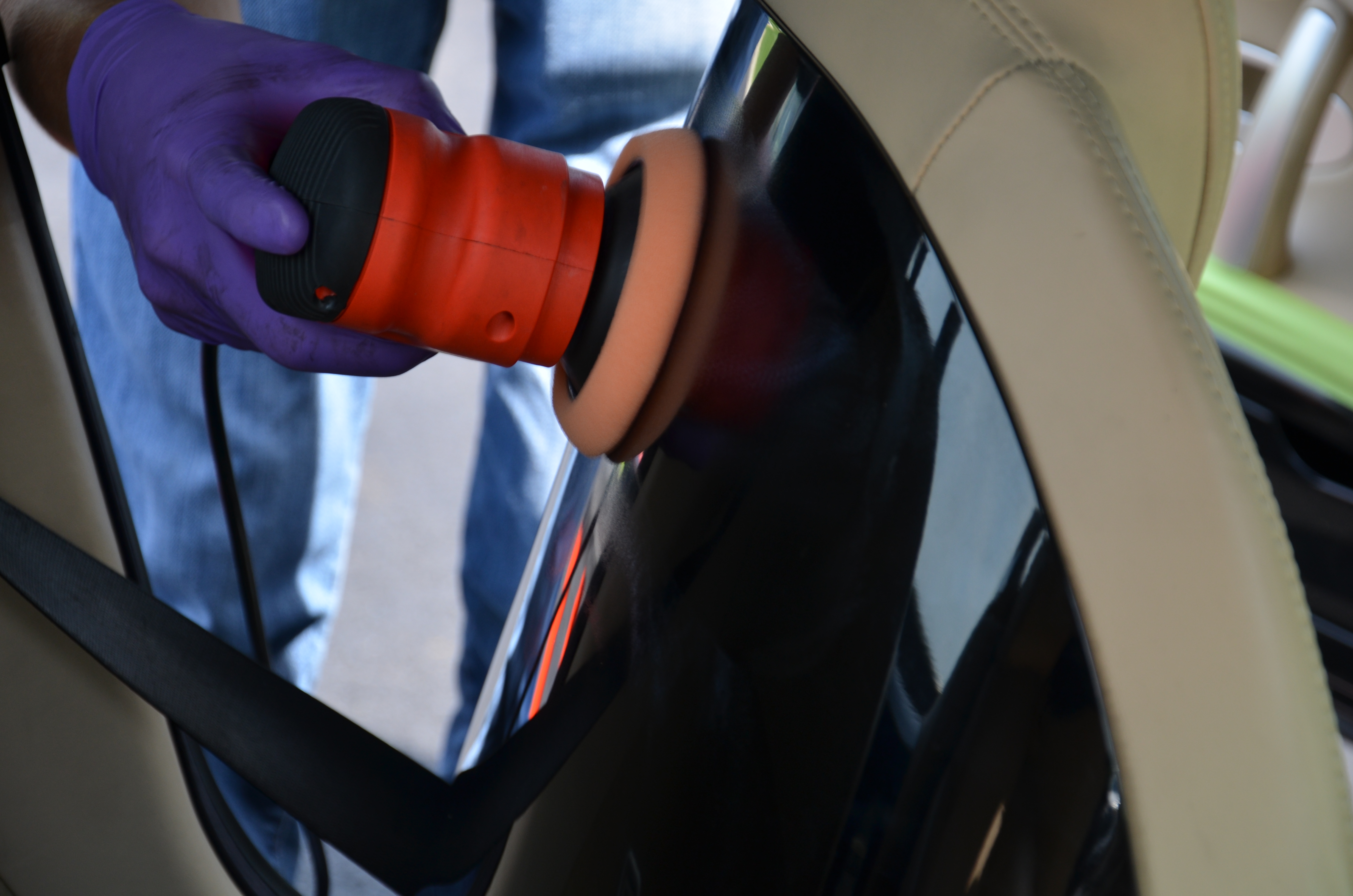

Polishing the seat backs with the Griots and Adam's 4 inch Focus Pads
Name:  DSC_7600.jpg
Views: 40
Size:  4.70 MB
Name:  DSC_7597.jpg
Views: 46
Size:  5.04 MB

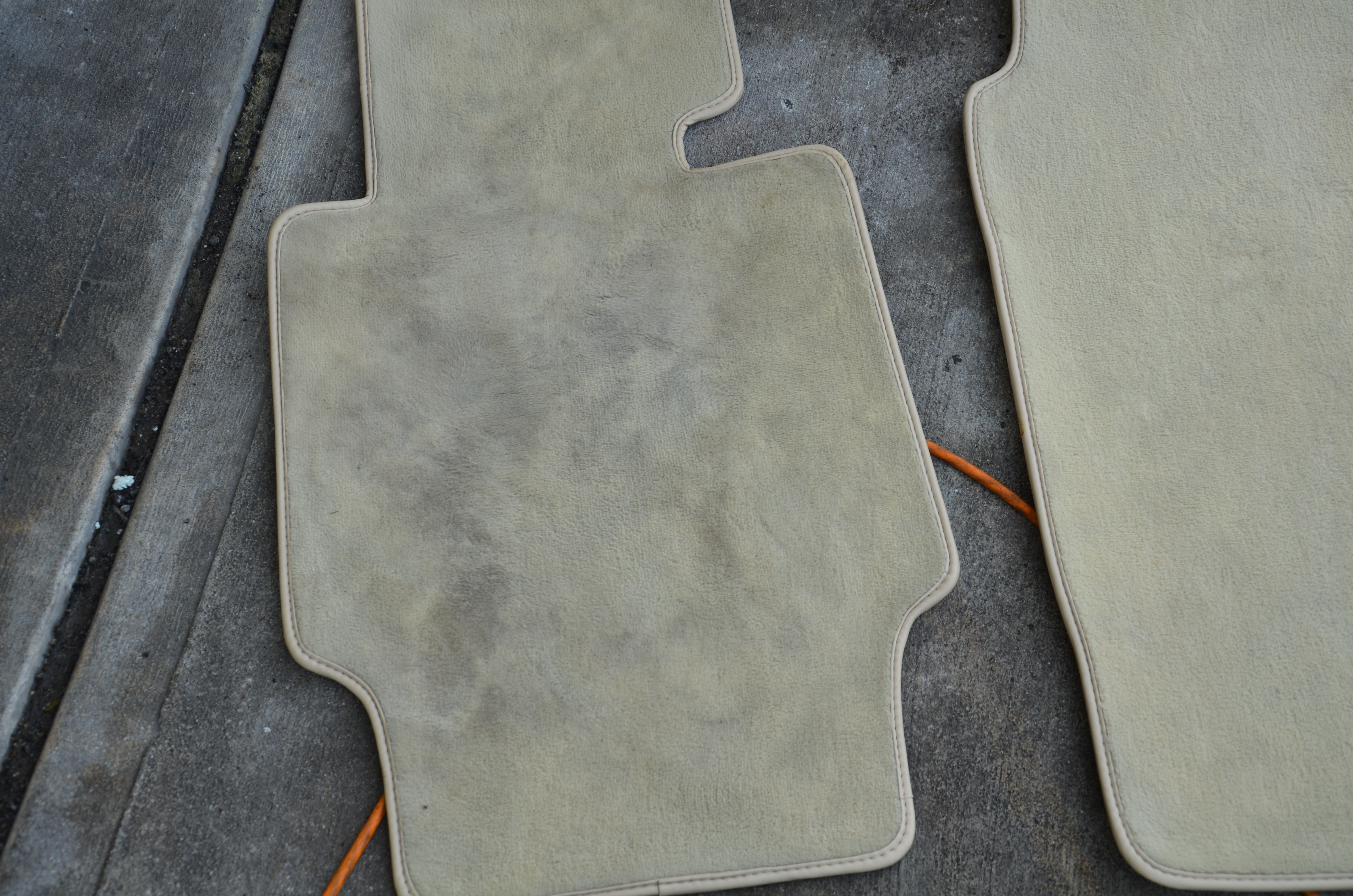

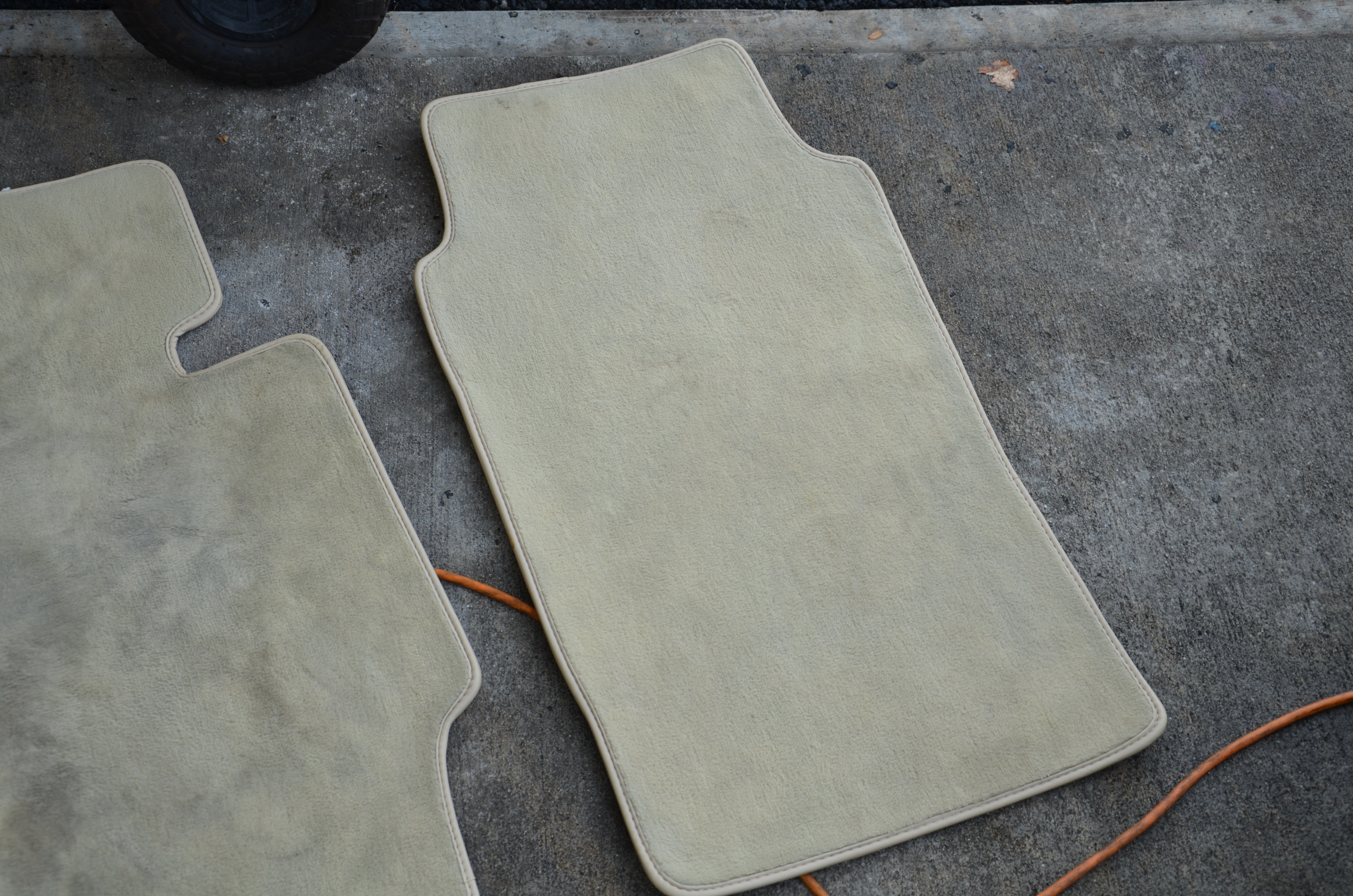

Not a great shot but as you can see the mat on the left was not cleaned up and the one on the right has been cleaned with the Griots 3 inch polisher w/Uber Ultra Interior Brush and 1Z einszett Deep Cleaner
Name:  DSC_7523.jpg
Views: 38
Size:  7.99 MB
Name:  DSC_7524.jpg
Views: 35
Size:  7.68 MB

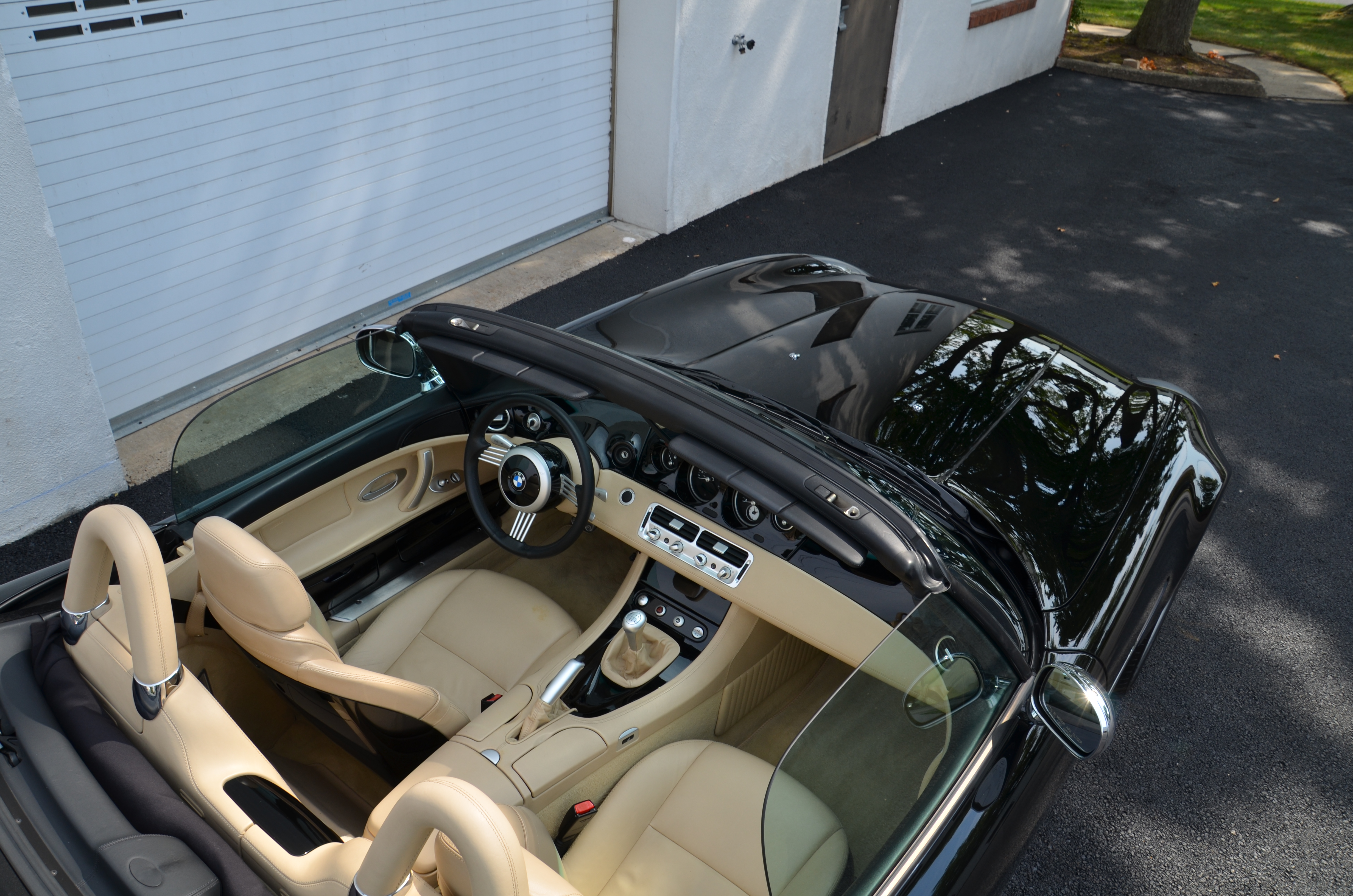

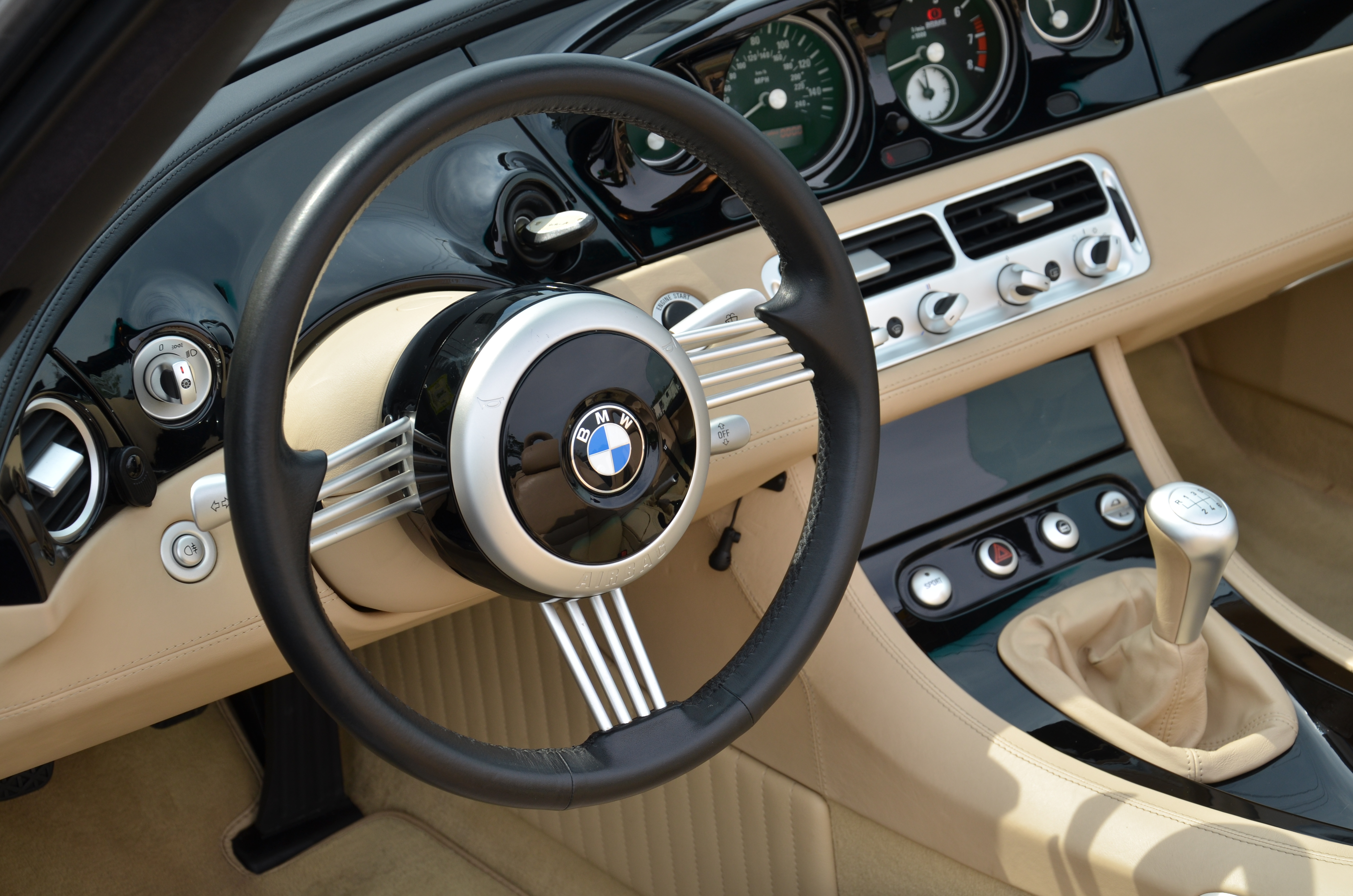

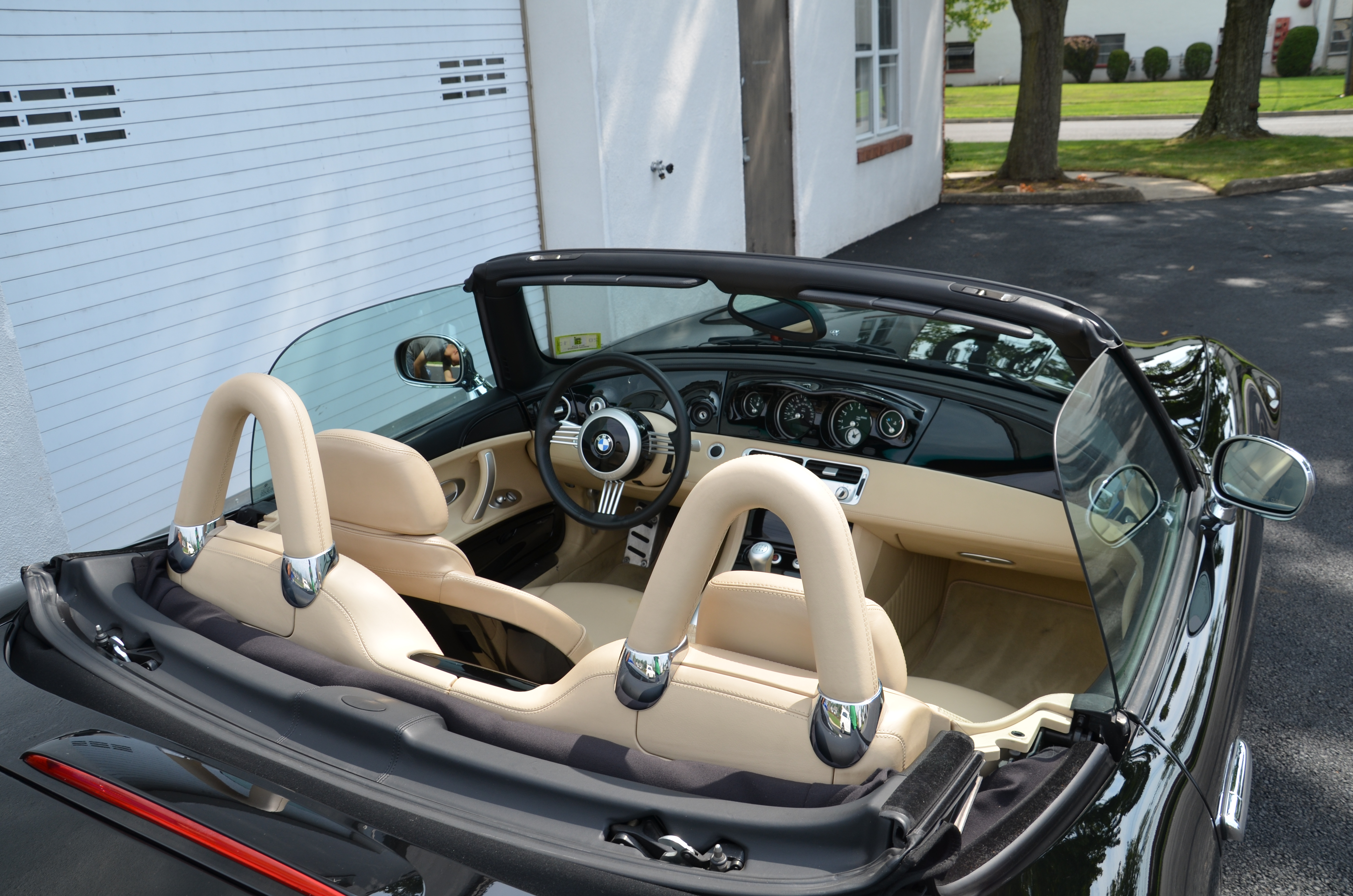

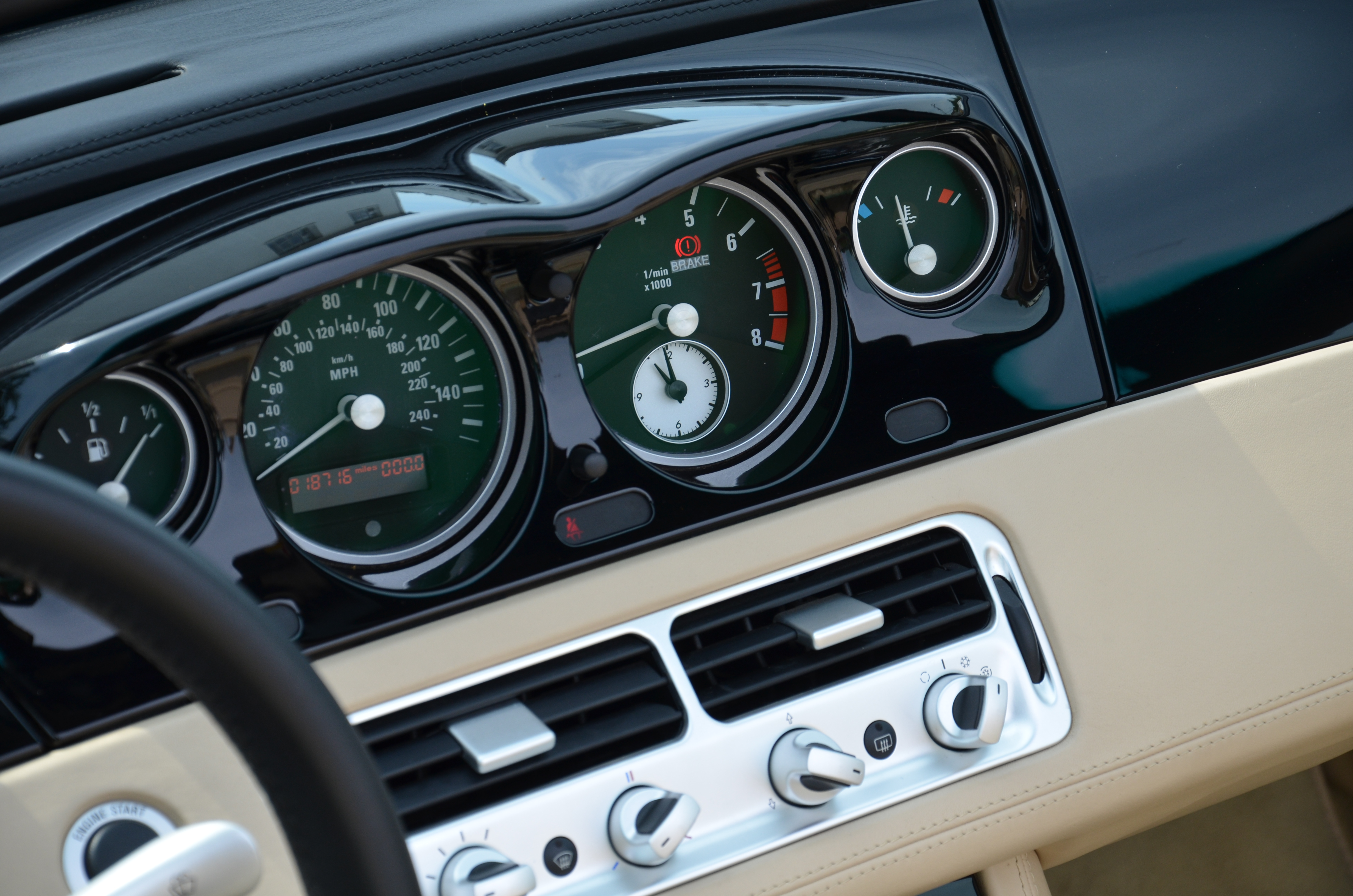

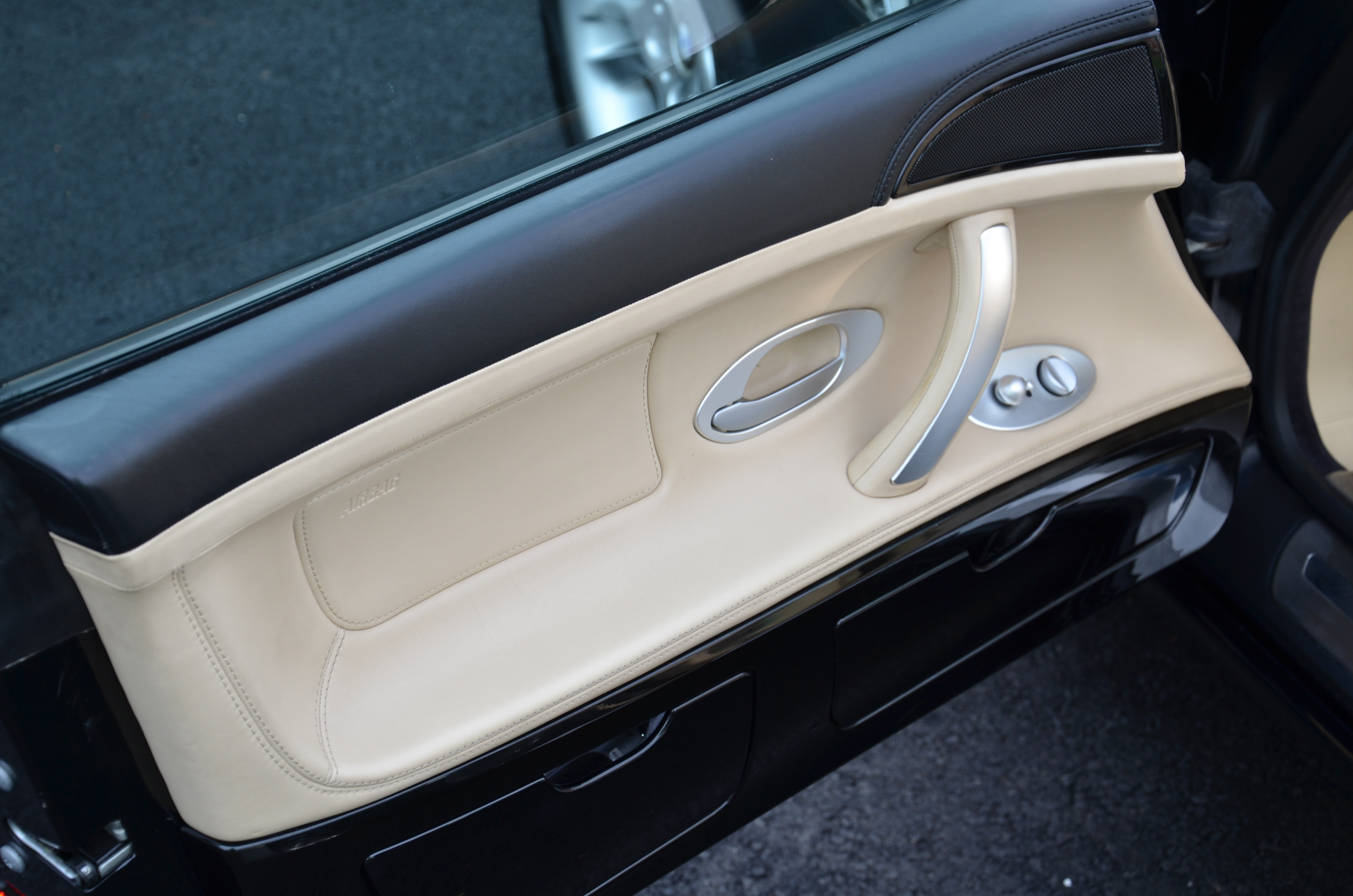

After Interior
Name:  DSC_7673.jpg
Views: 39
Size:  5.39 MB
Name:  DSC_7718.jpg
Views: 46
Size:  5.98 MB
Name:  DSC_7715.jpg
Views: 47
Size:  6.29 MB
Name:  DSC_7672.jpg
Views: 33
Size:  5.76 MB

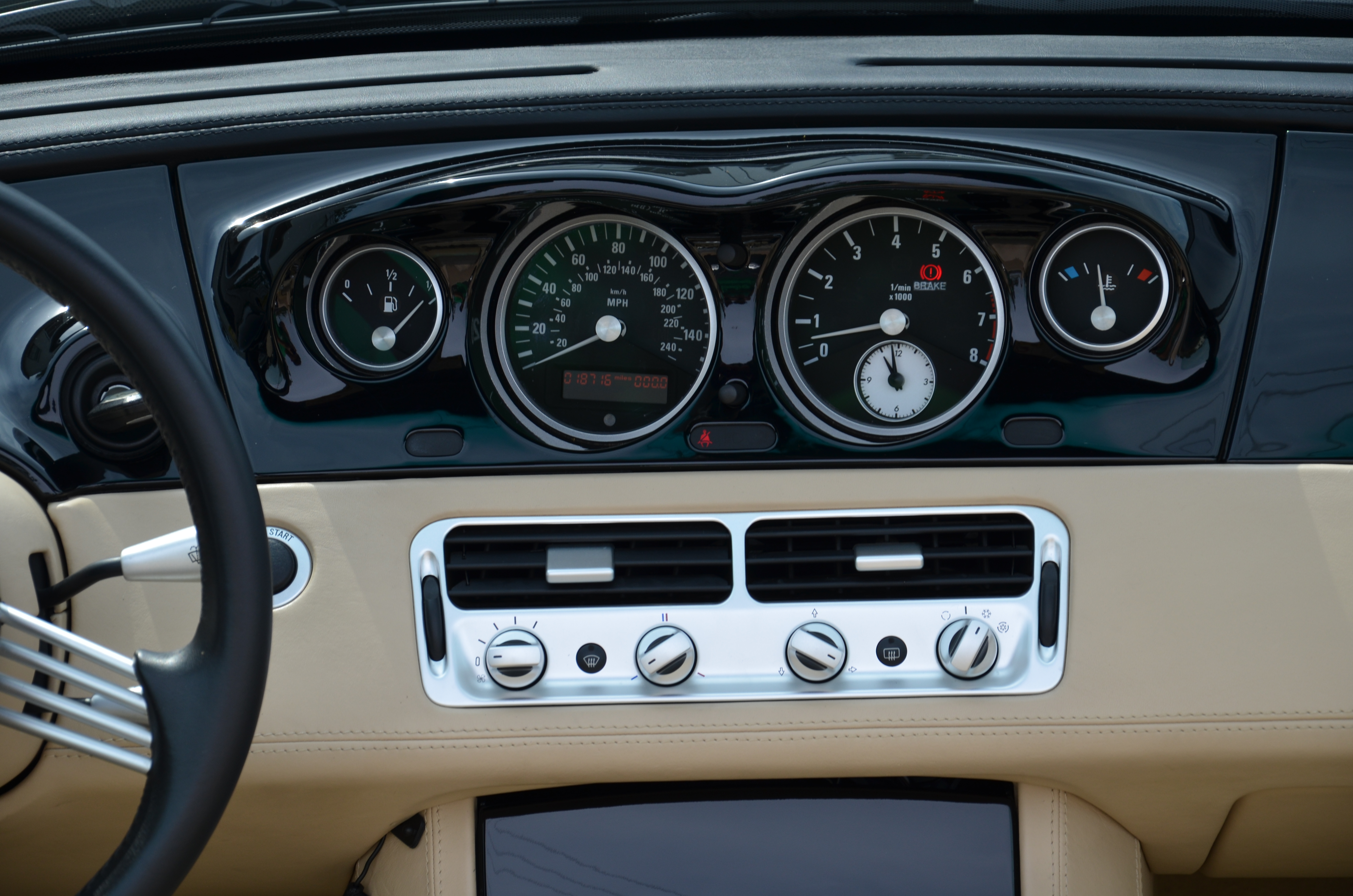

Name:  DSC_7664.jpg
Views: 35
Size:  5.40 MB
Name:  DSC_7663.jpg
Views: 57
Size:  5.51 MB

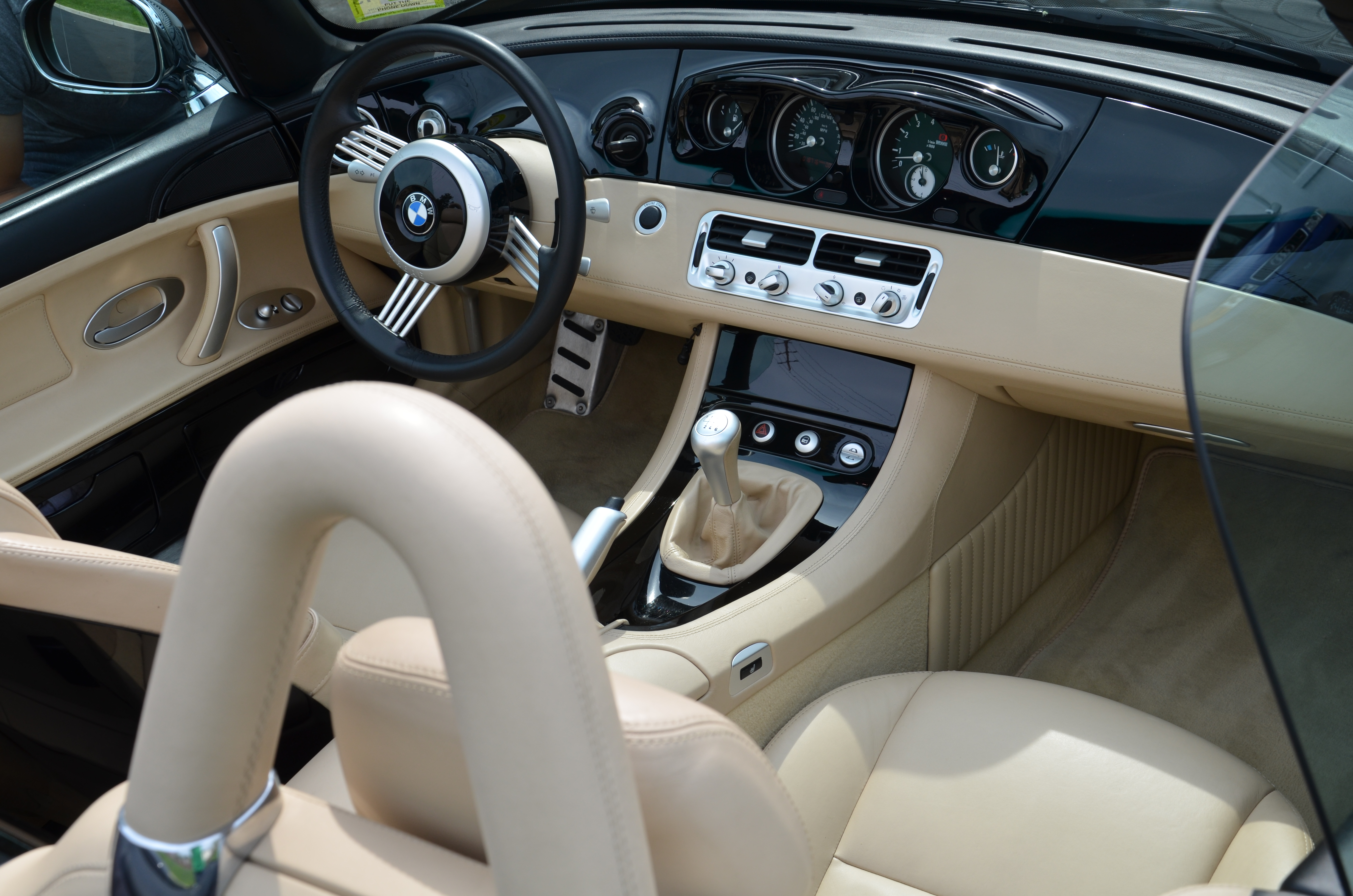

Name:  DSC_7661.jpg
Views: 31
Size:  5.58 MB

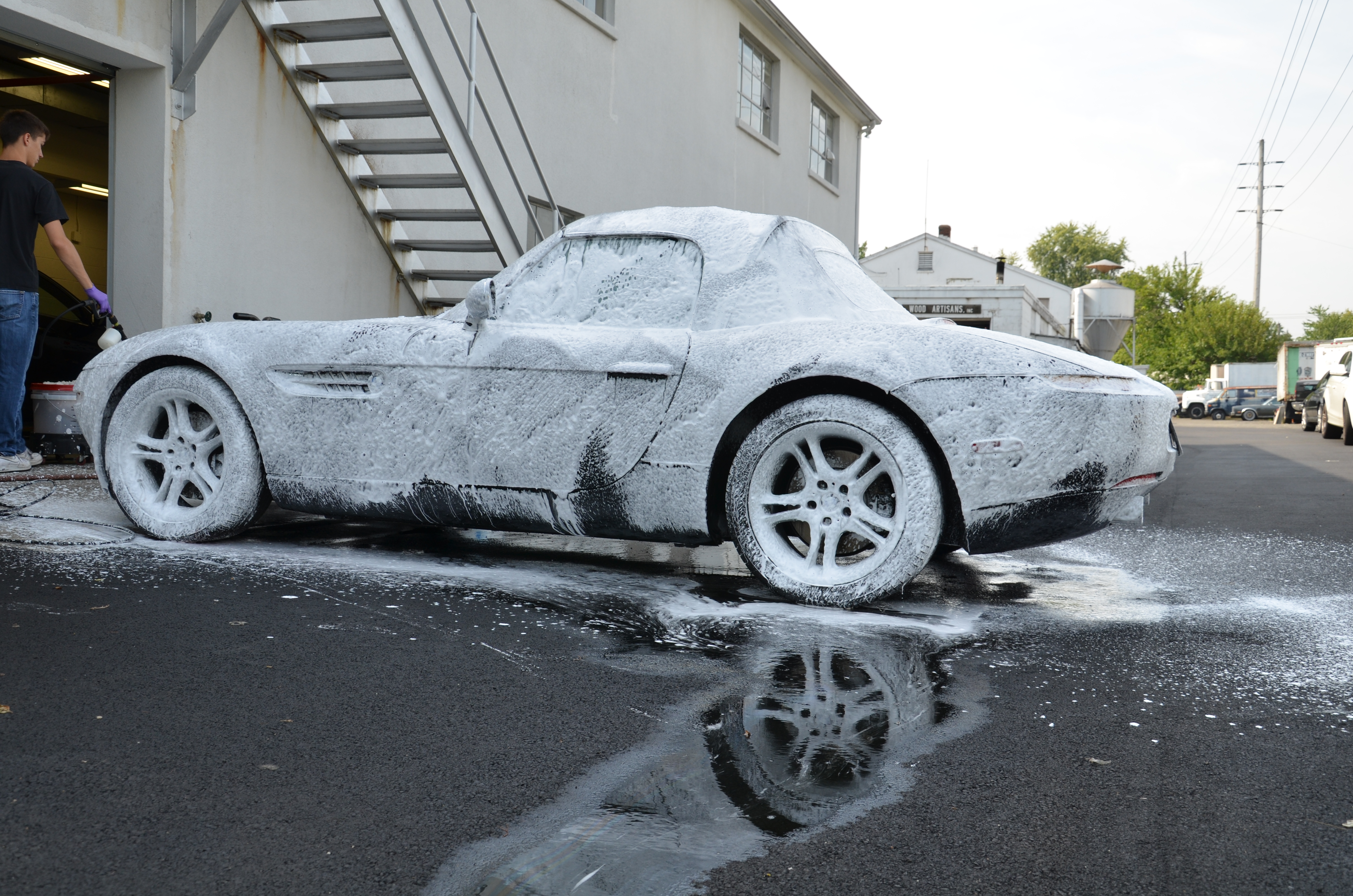

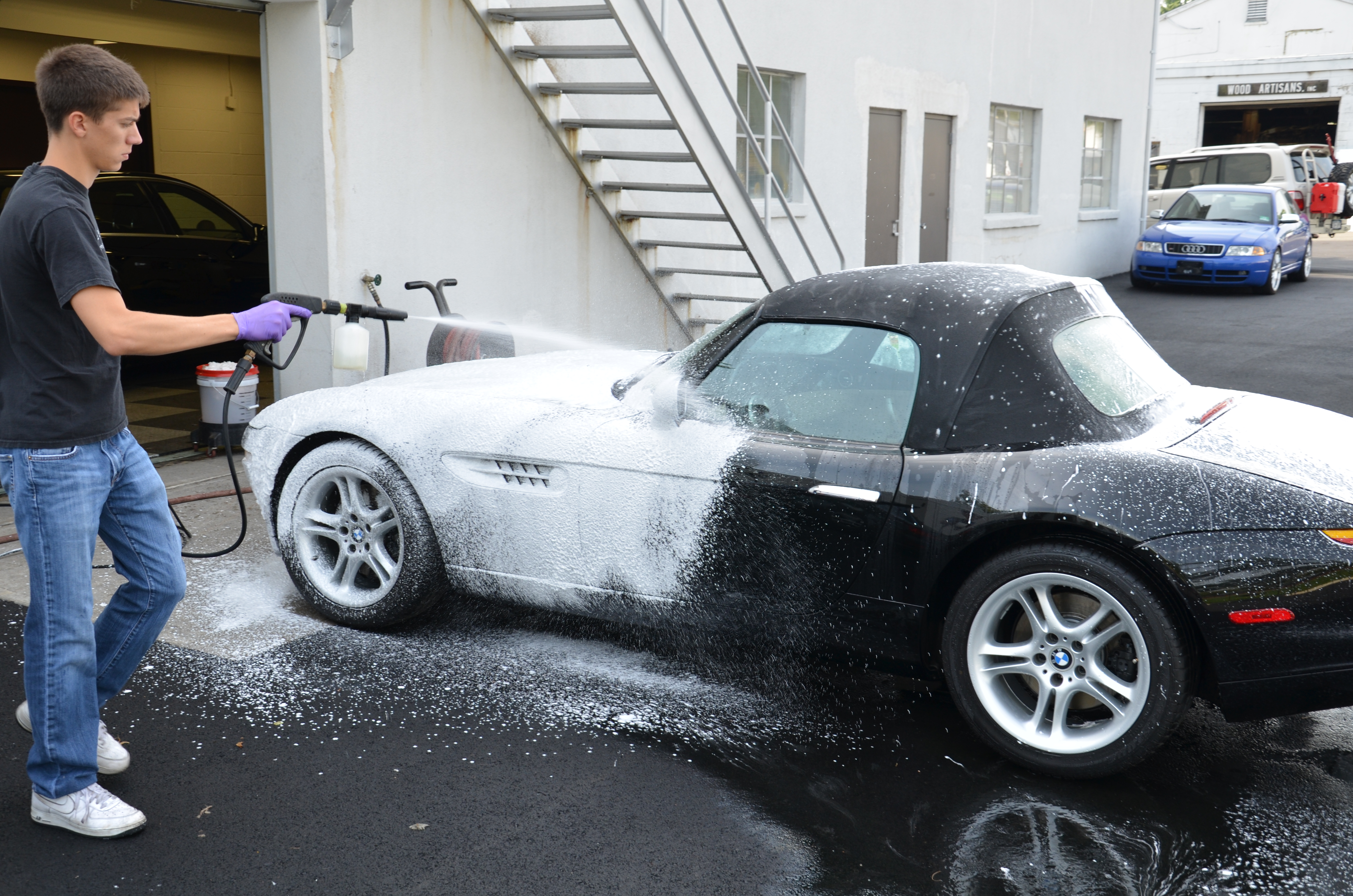

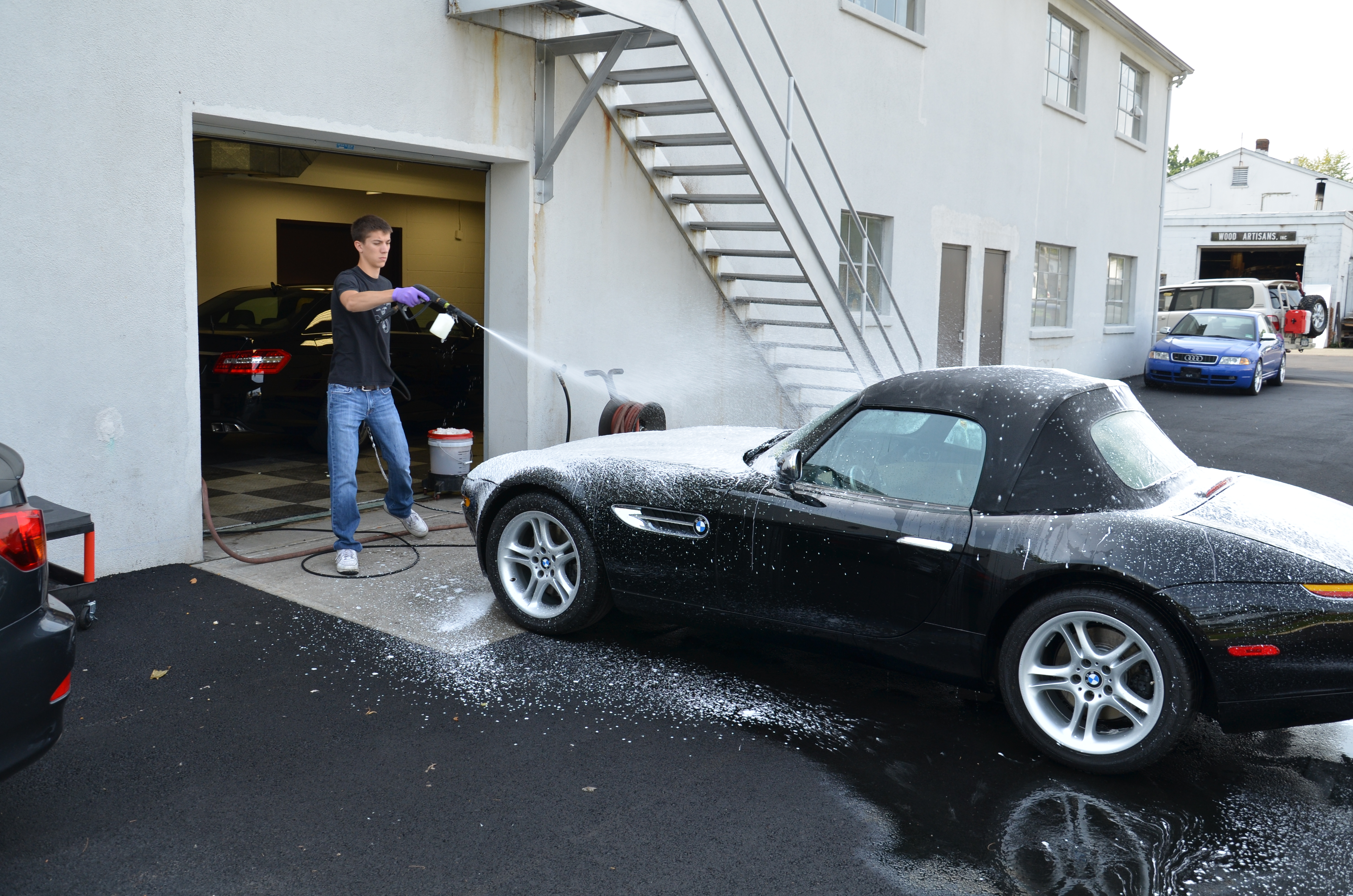

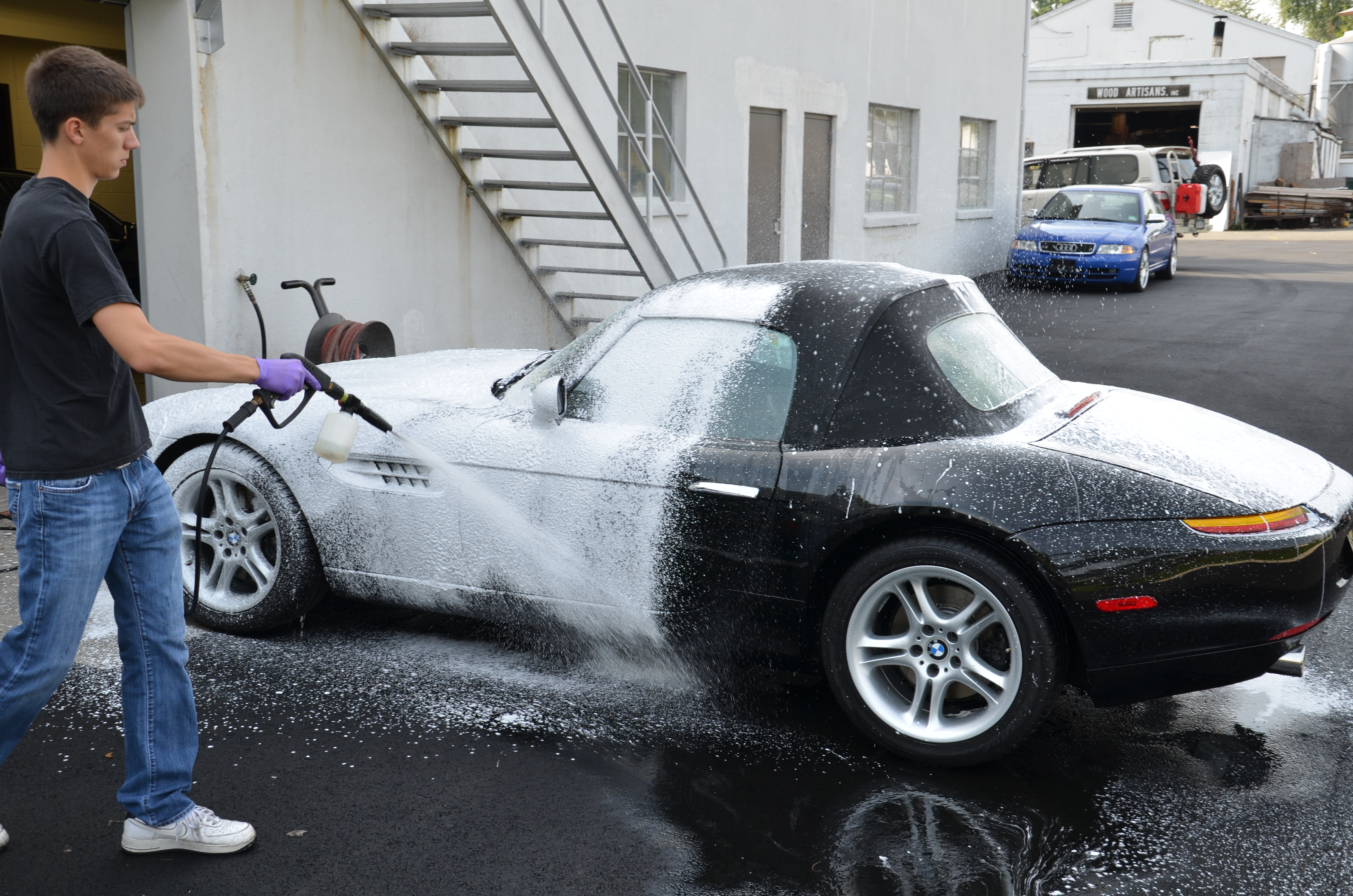

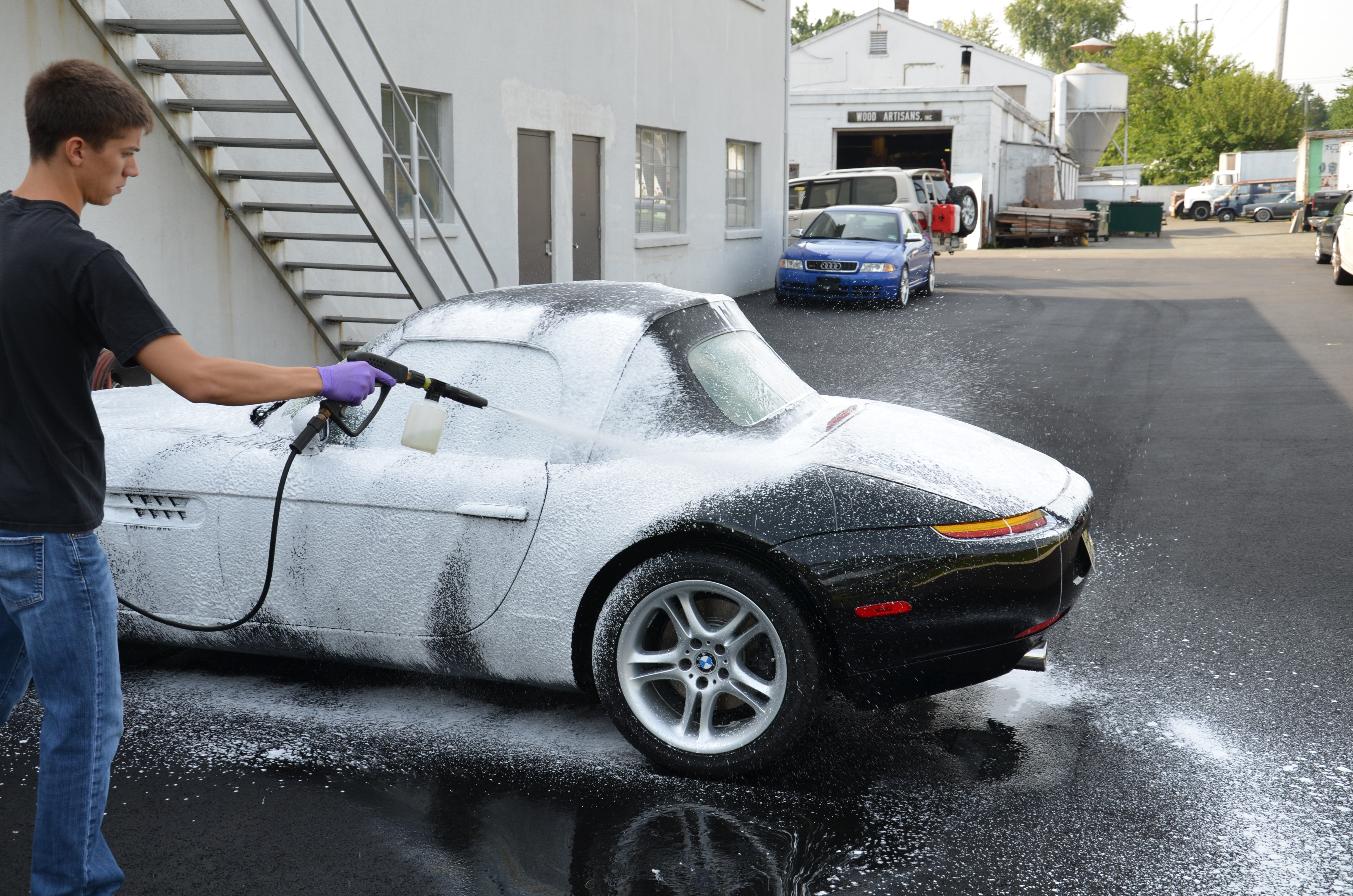

Prep - Car Wash/Decon/NanoSkin/Wheels/Tires/Engine
Name:  DSC_7488.jpg
Views: 26
Size:  7.83 MB

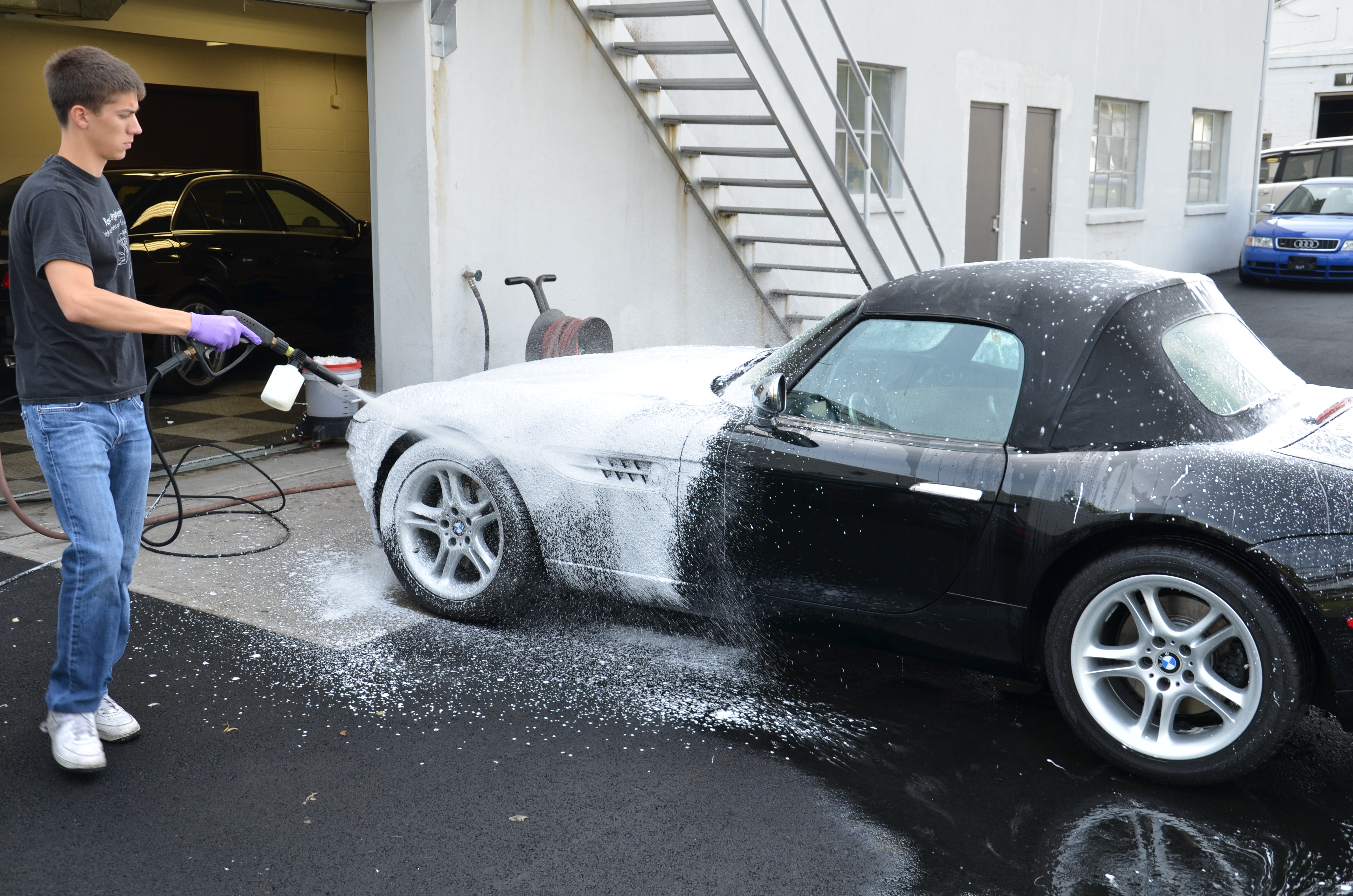

Name:  DSC_7489.jpg
Views: 28
Size:  7.58 MB
Name:  DSC_7490.jpg
Views: 35
Size:  7.30 MB
Name:  DSC_7491.jpg
Views: 32
Size:  7.84 MB
Name:  DSC_7493.jpg
Views: 46
Size:  8.30 MB

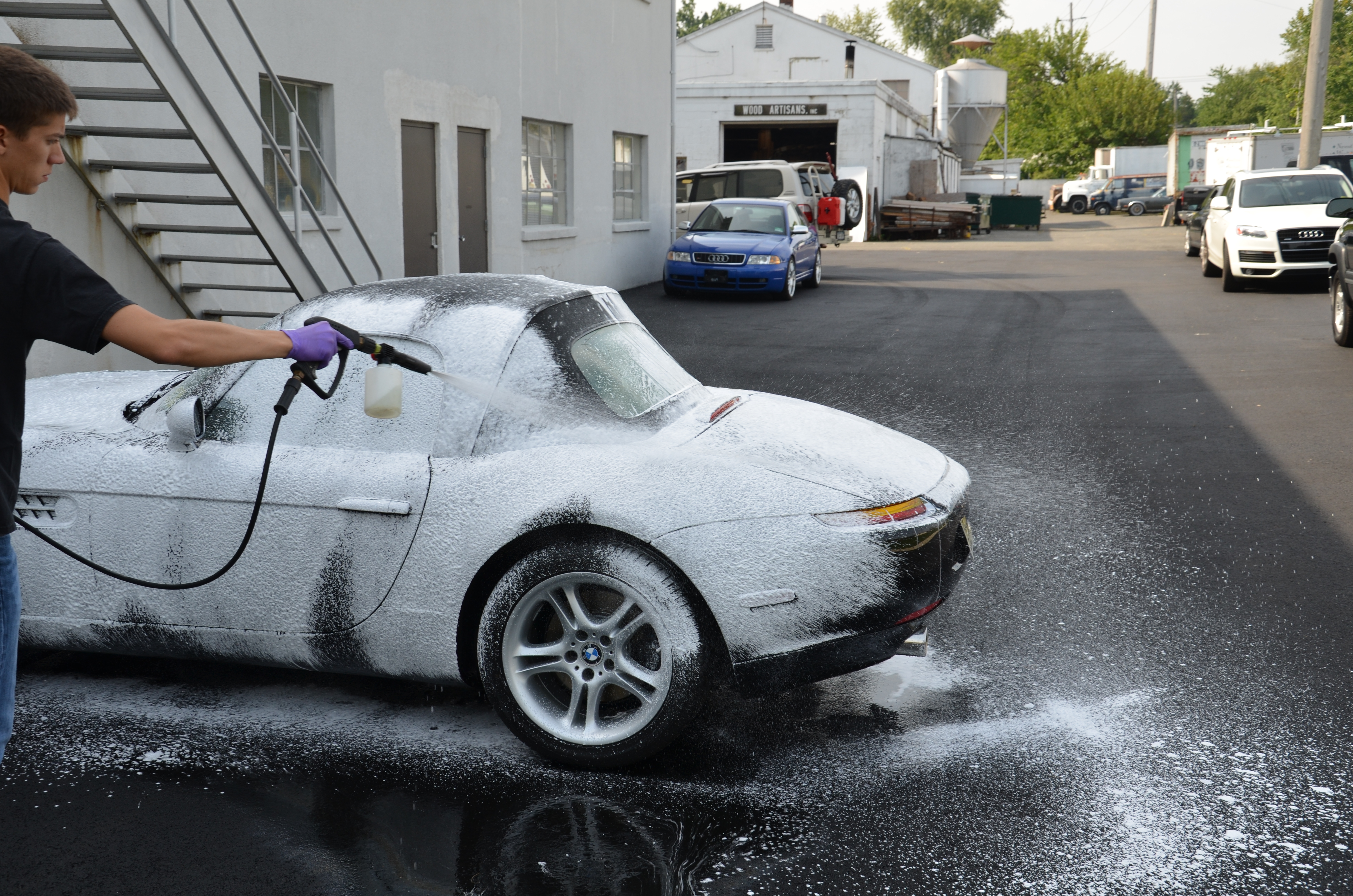

Name:  DSC_7494.jpg
Views: 43
Size:  8.10 MB
Name:  DSC_7498.jpg
Views: 38
Size:  7.51 MB

Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
Reply
Old Sep 17, 2012 | 06:42 PM
  #2
DetailersDomain's Avatar
Thread Starter
|
Former G35driver Vendor
Joined: Jul 2010
Posts: 464
Likes: 8

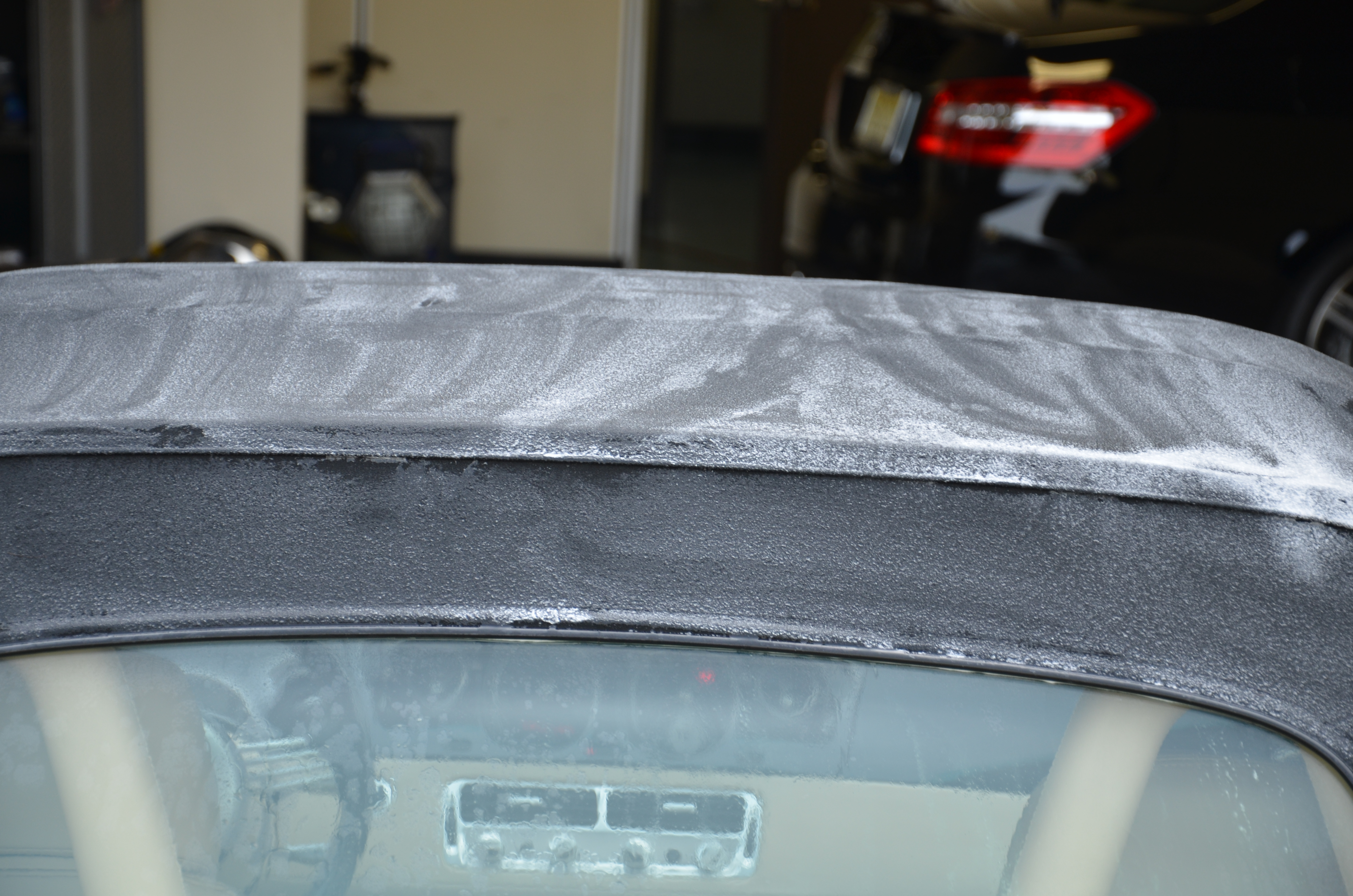

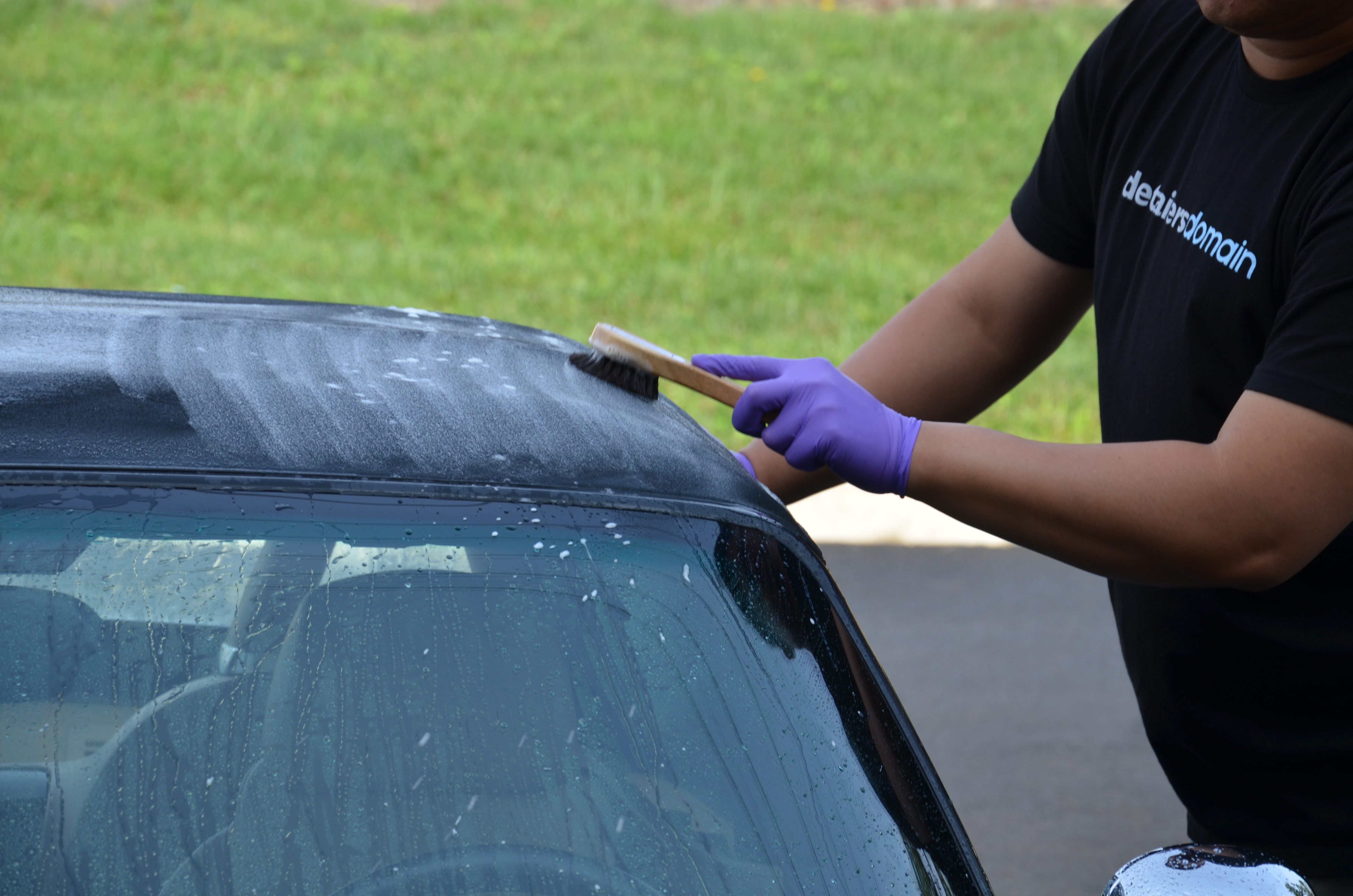

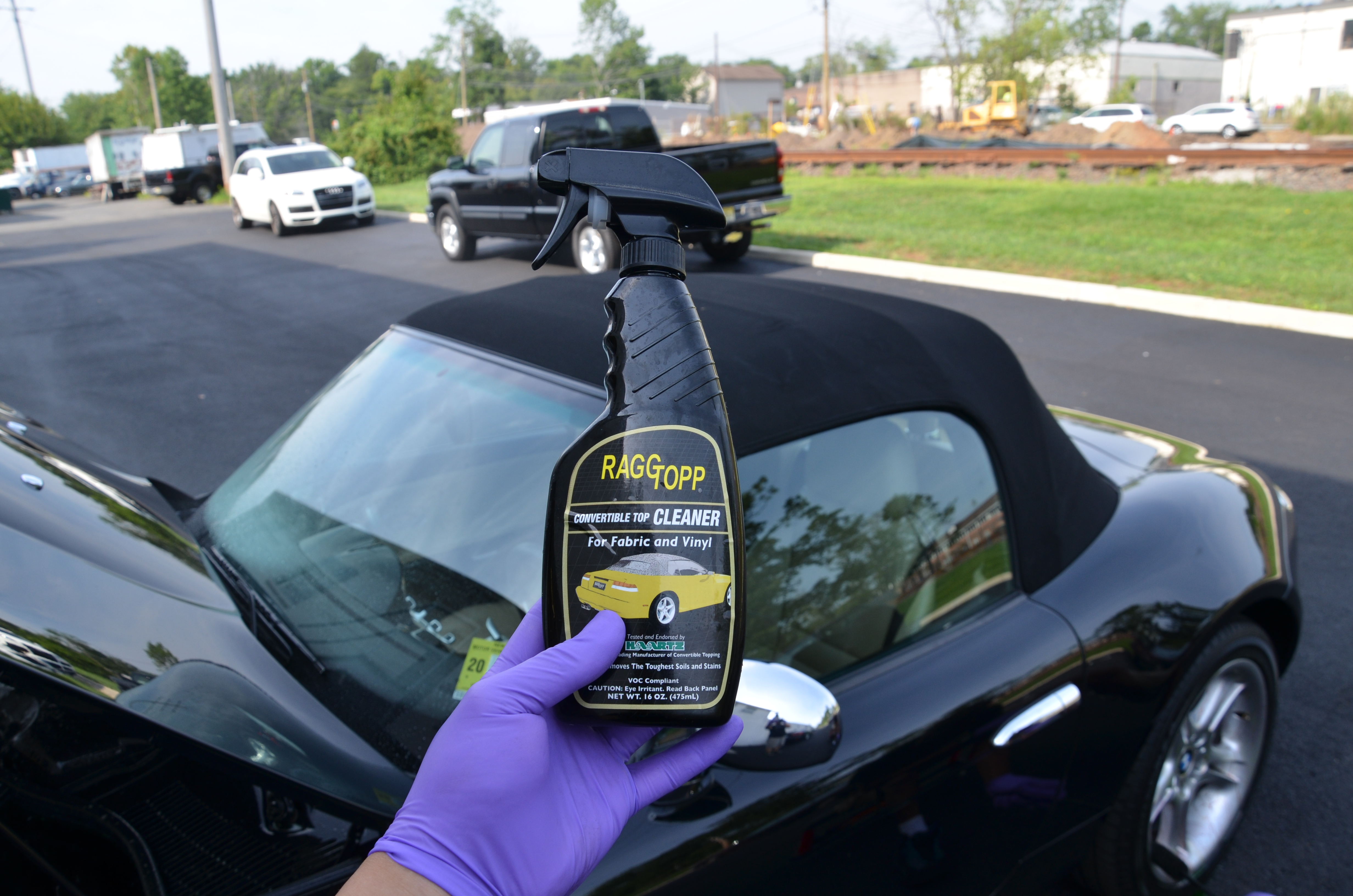

Convertible Top Cleaned
Name:  DSC_7451.jpg
Views: 31
Size:  5.56 MB
Name:  DSC_7462.jpg
Views: 32
Size:  5.76 MB
Name:  DSC_7463.jpg
Views: 52
Size:  5.58 MB
Name:  DSC_7475.jpg
Views: 35
Size:  6.59 MB

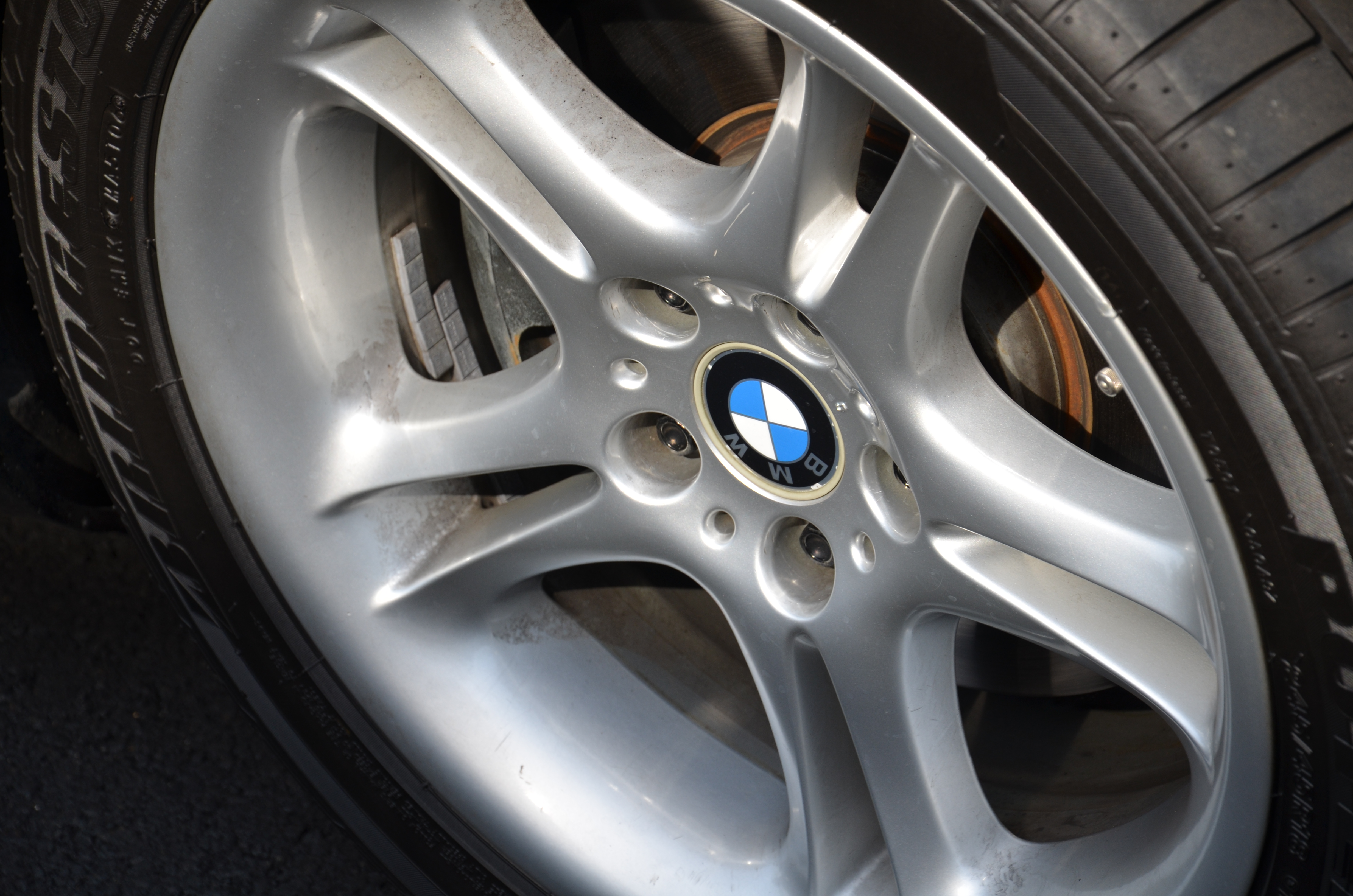

Wheels were not too bad
Name:  DSC_7423.jpg
Views: 25
Size:  5.26 MB

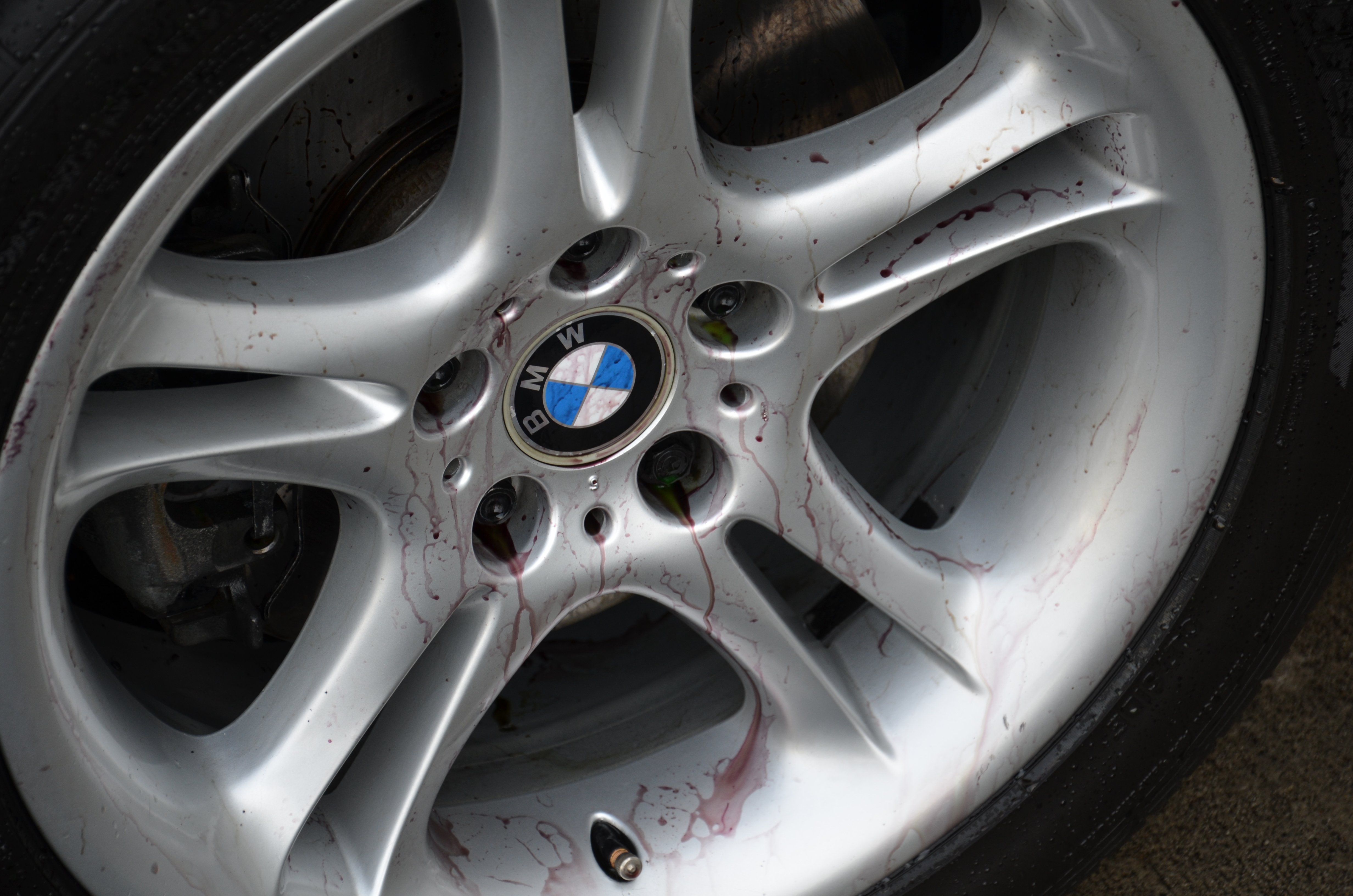

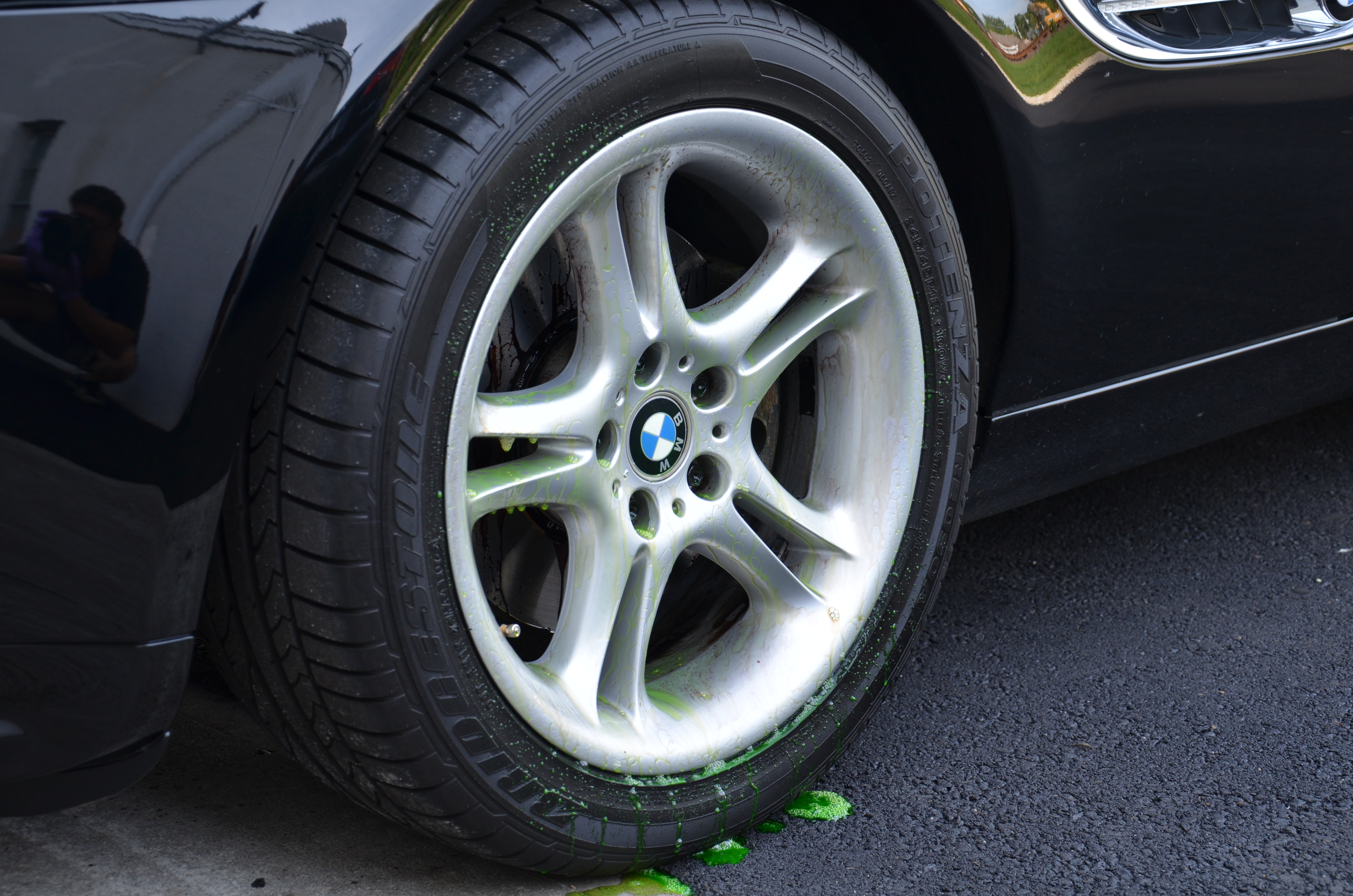

Sonax Full Effect Wheel Cleaner in action
Name:  DSC_7464.jpg
Views: 45
Size:  5.11 MB
Name:  DSC_7444.jpg
Views: 34
Size:  6.85 MB

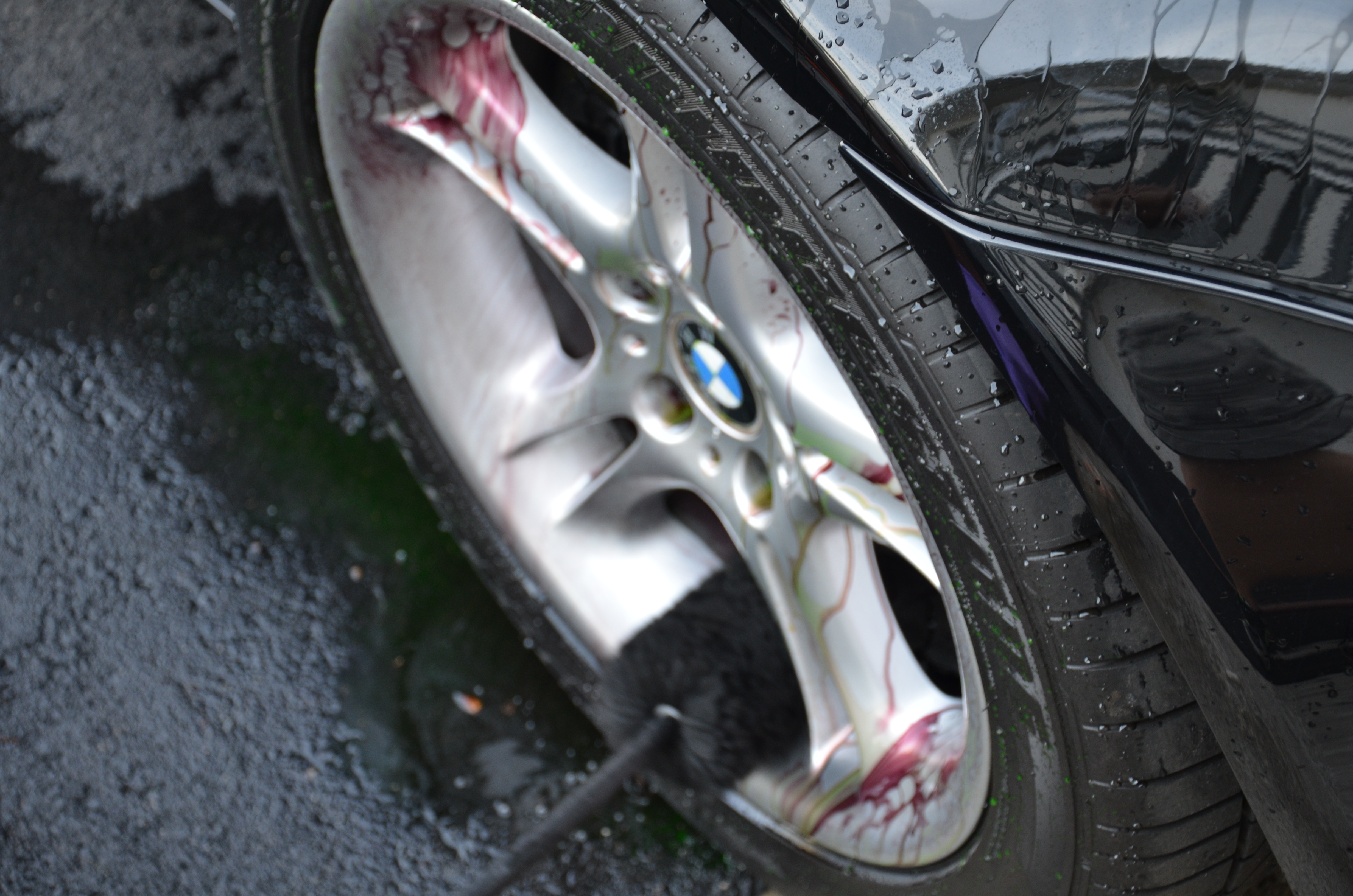

Wheel Woolies used to clean the barrels out
Name:  DSC_7448.jpg
Views: 29
Size:  6.40 MB

Wheels cleaned
Name:  DSC_7468.jpg
Views: 27
Size:  4.64 MB

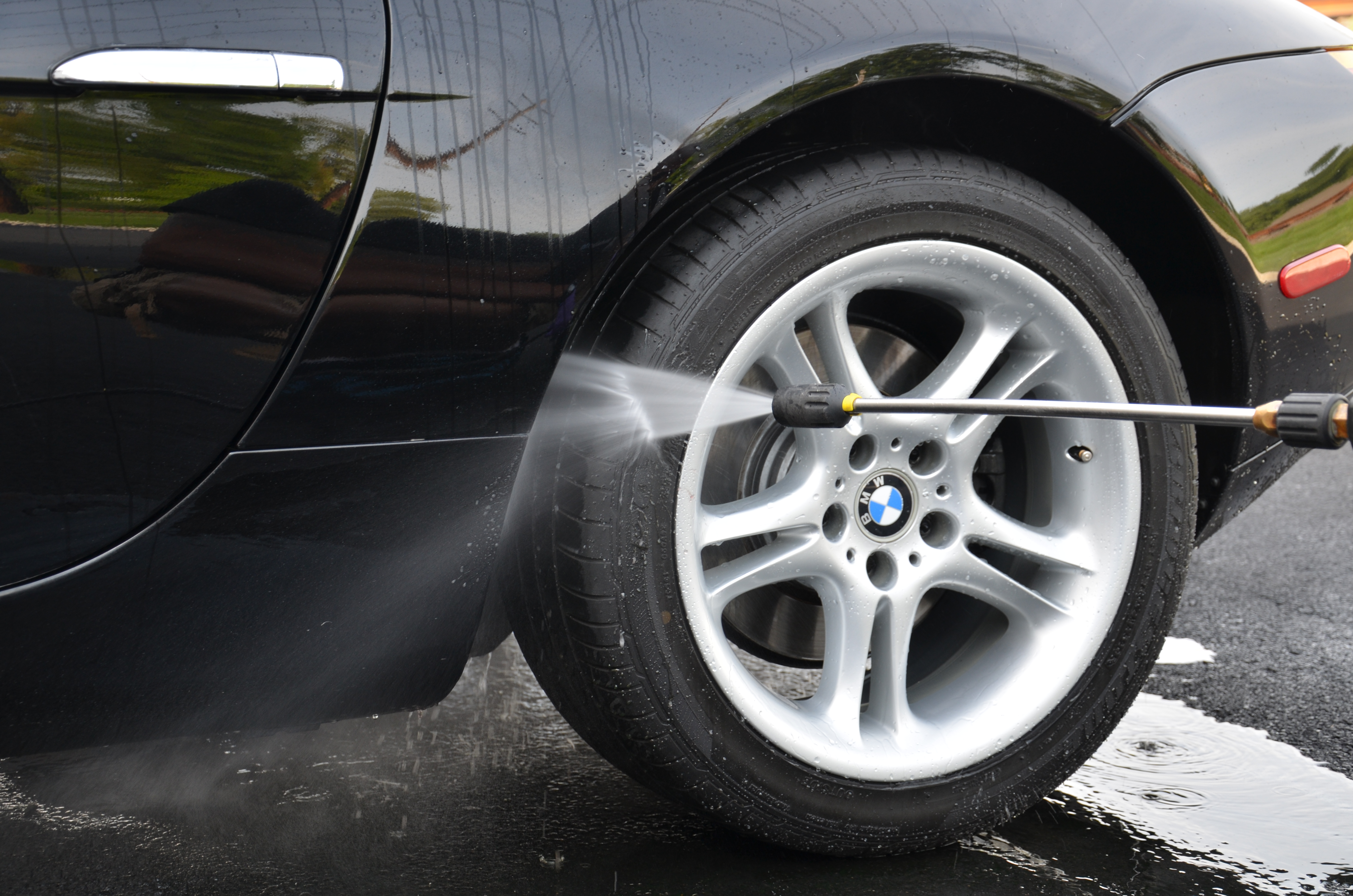

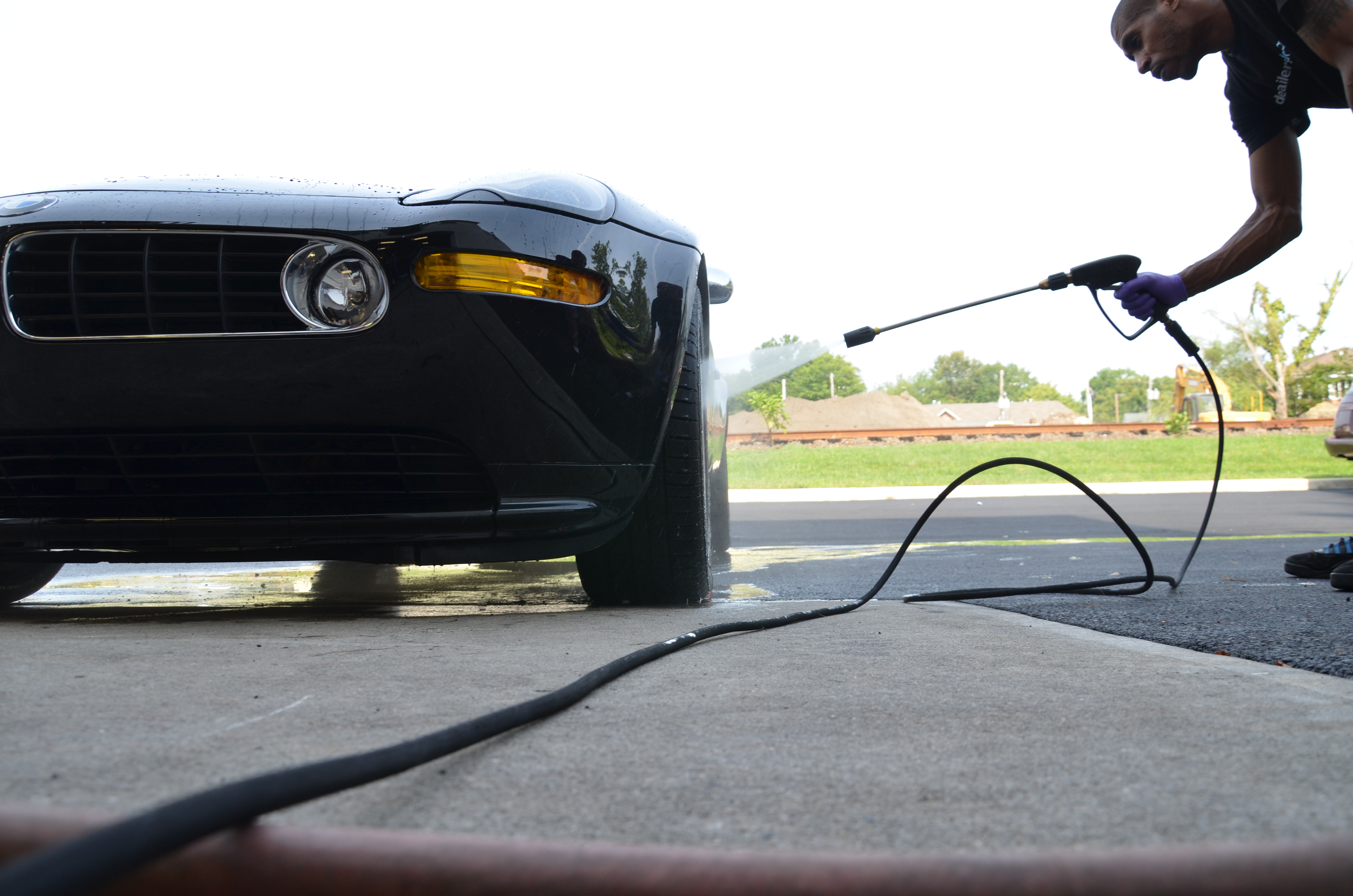

Wheel wells power washed
Name:  DSC_7473.jpg
Views: 39
Size:  5.93 MB

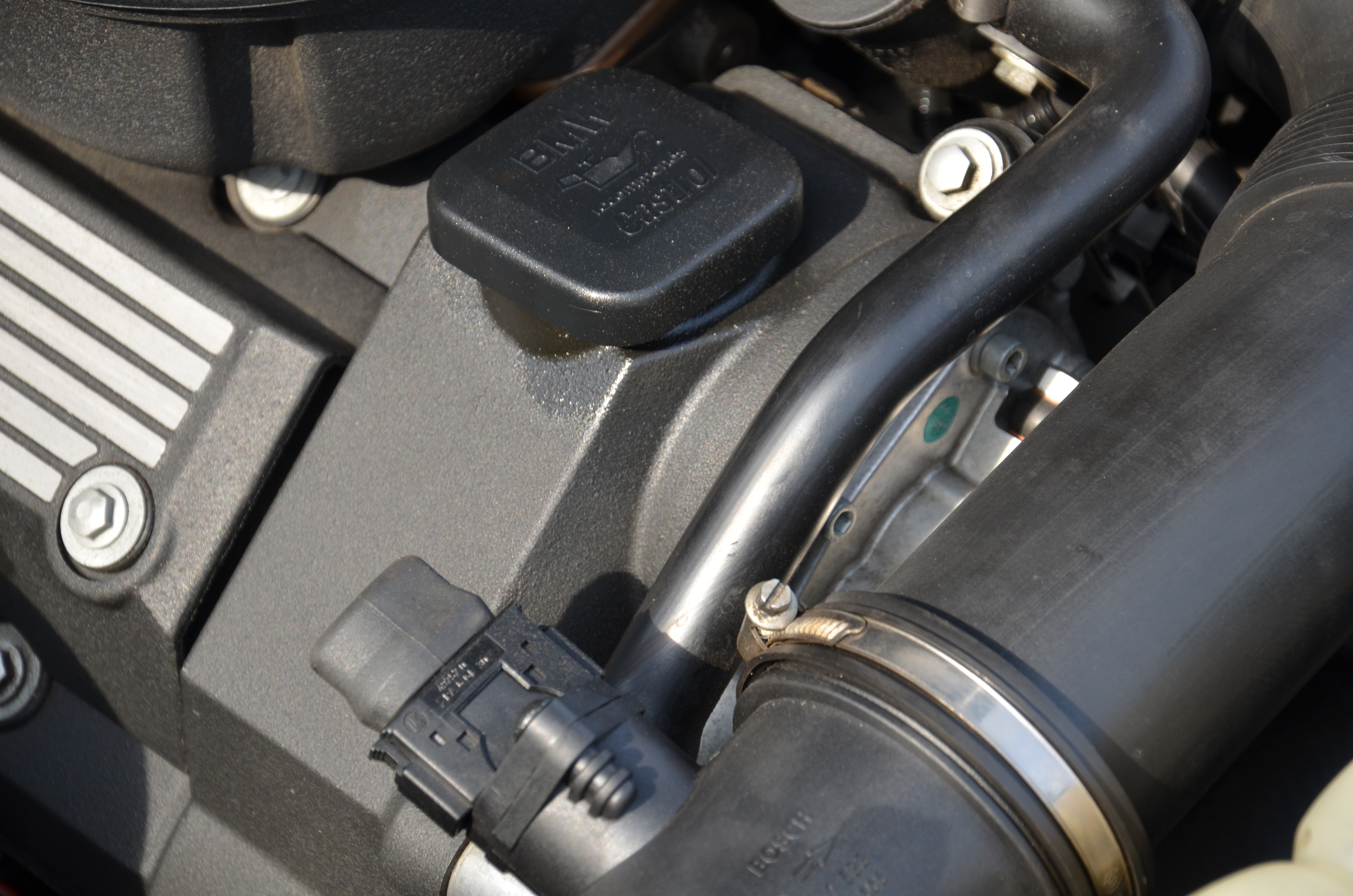

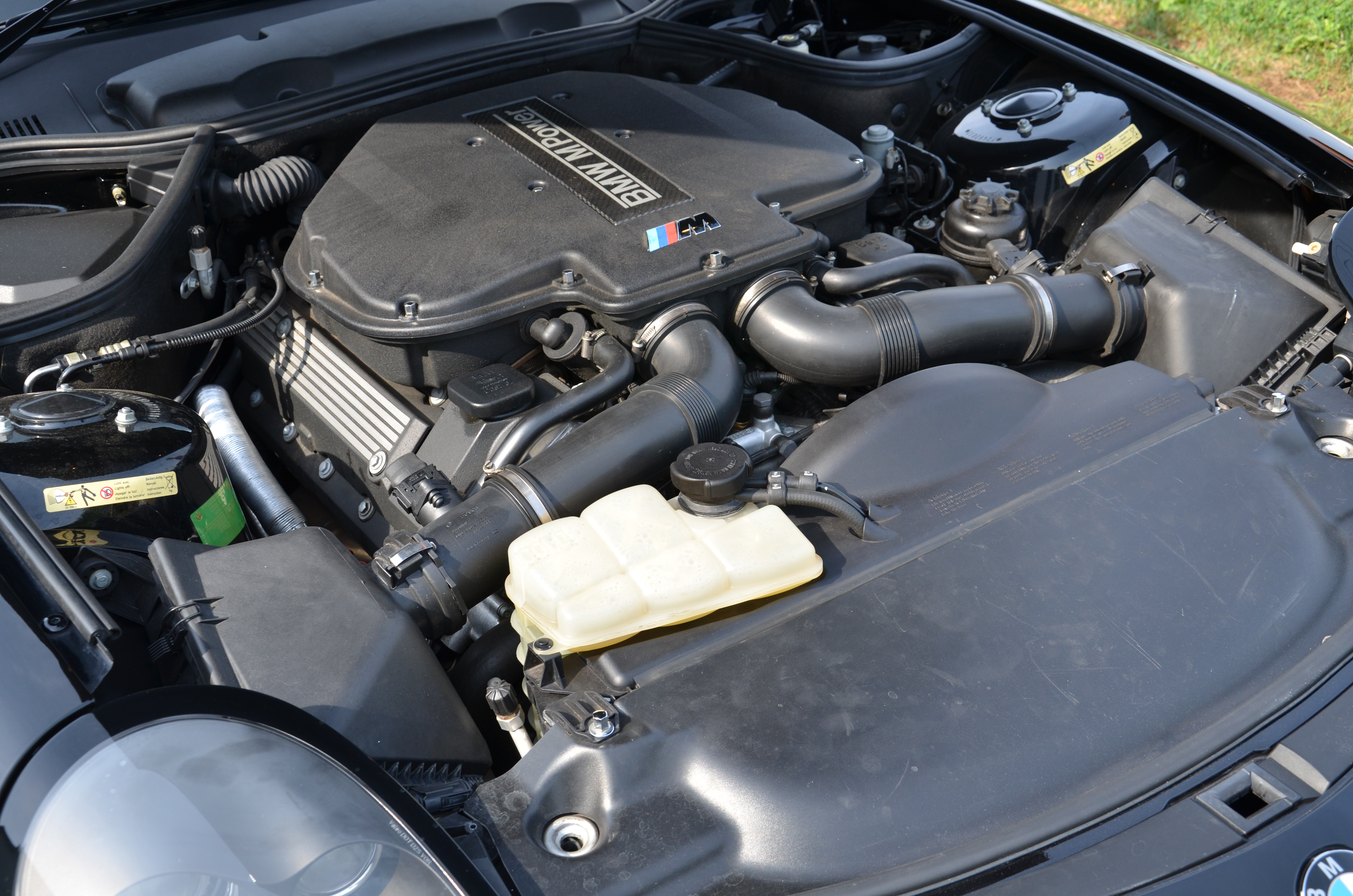

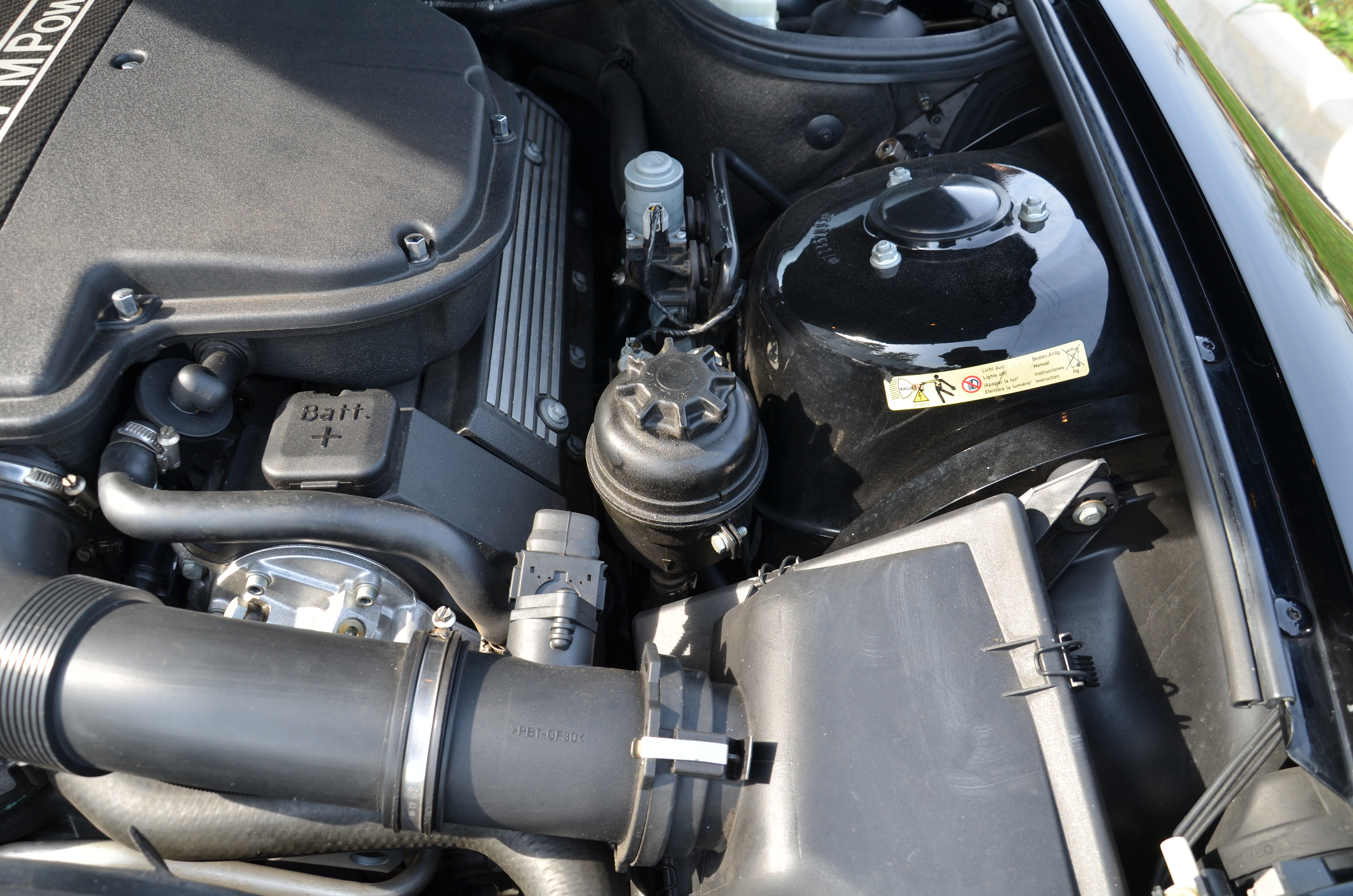

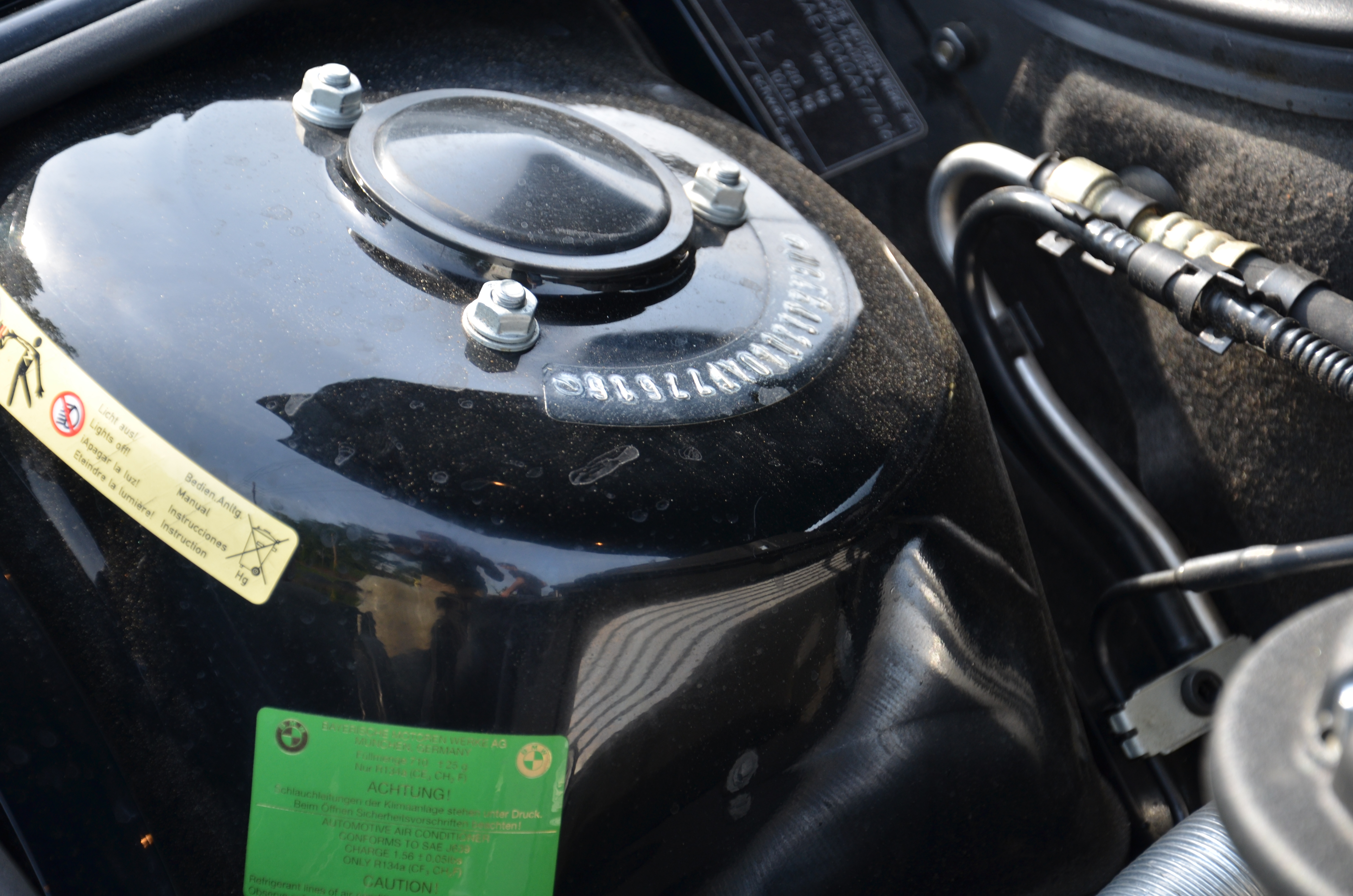

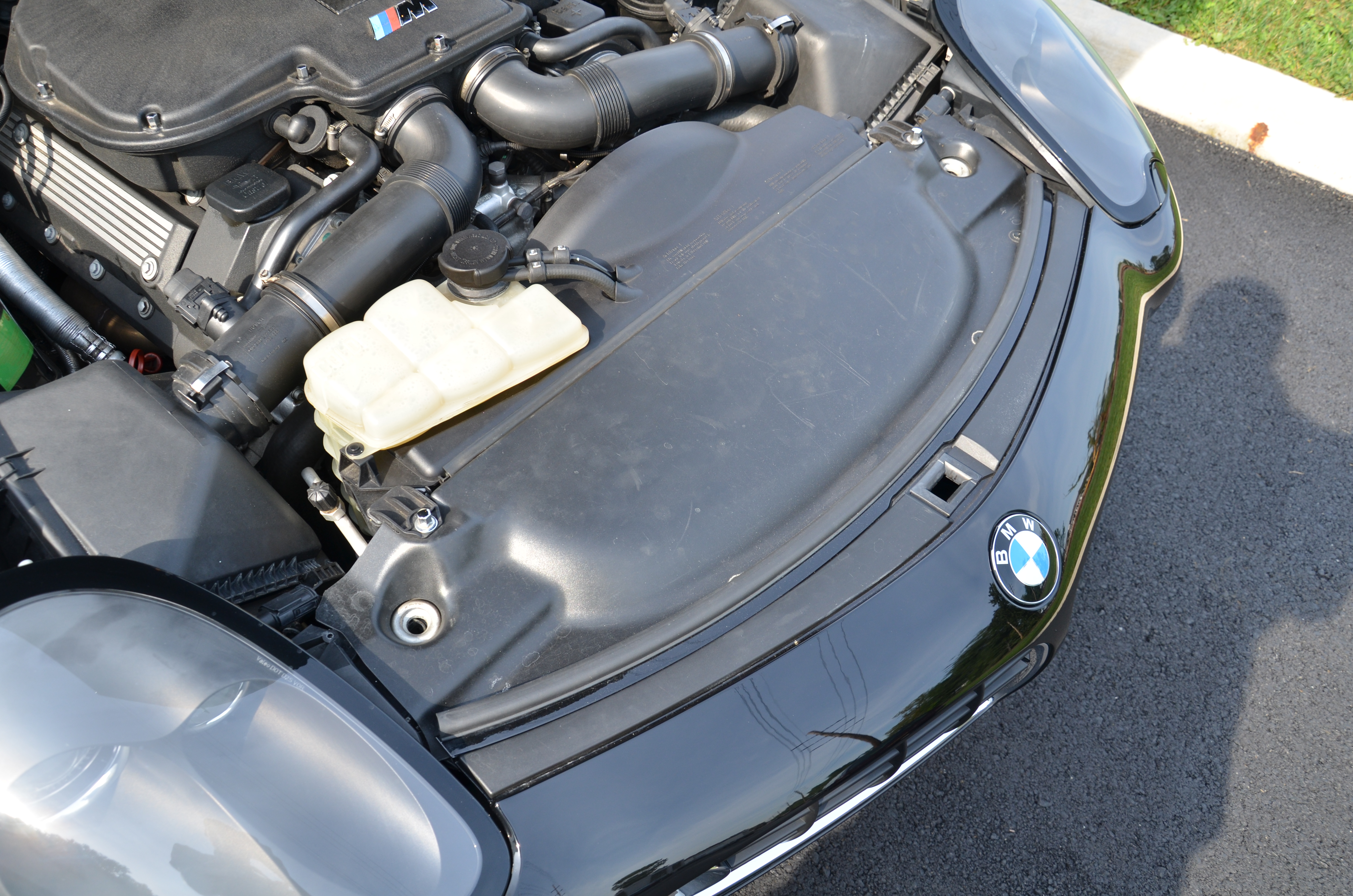

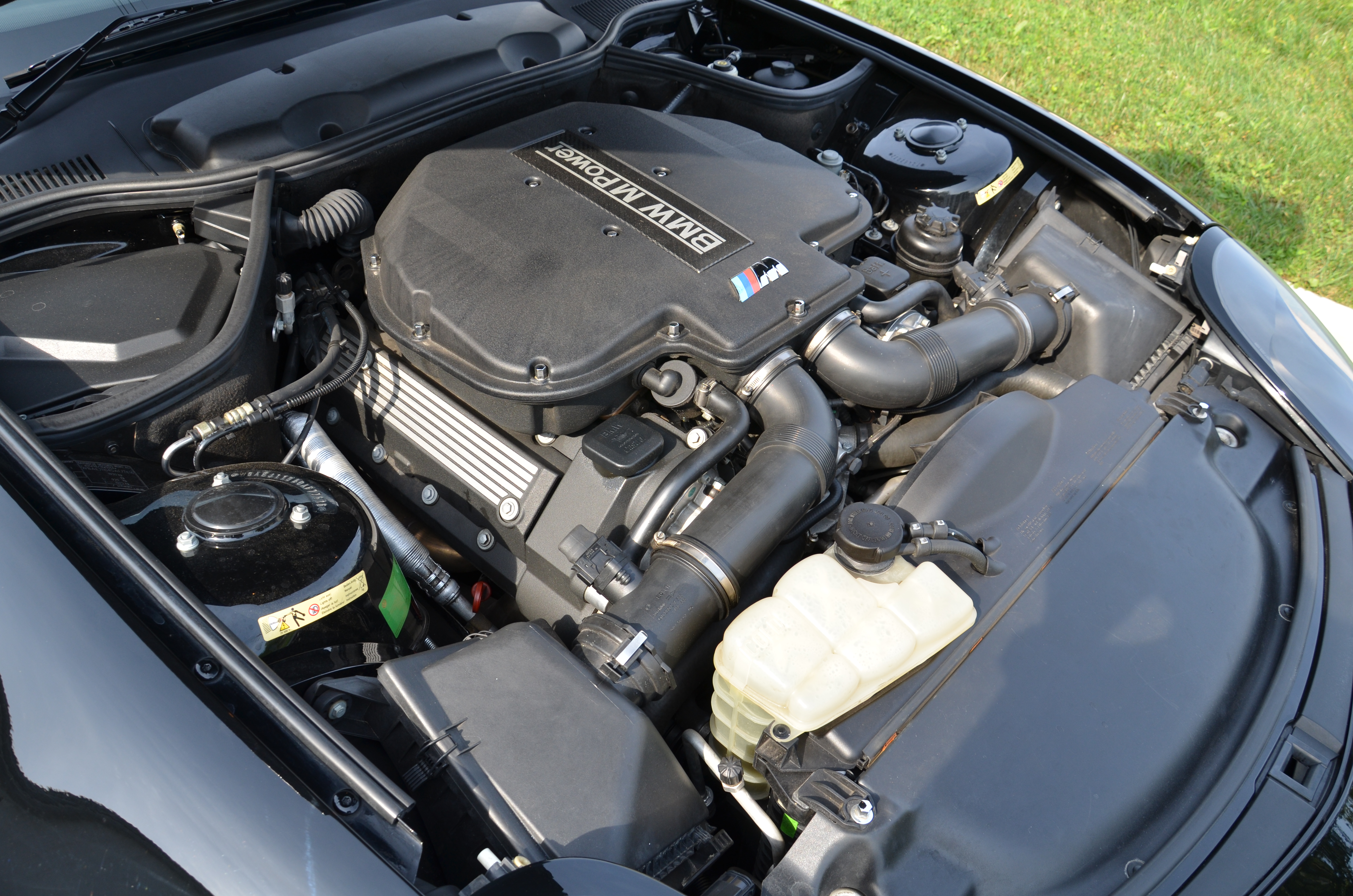

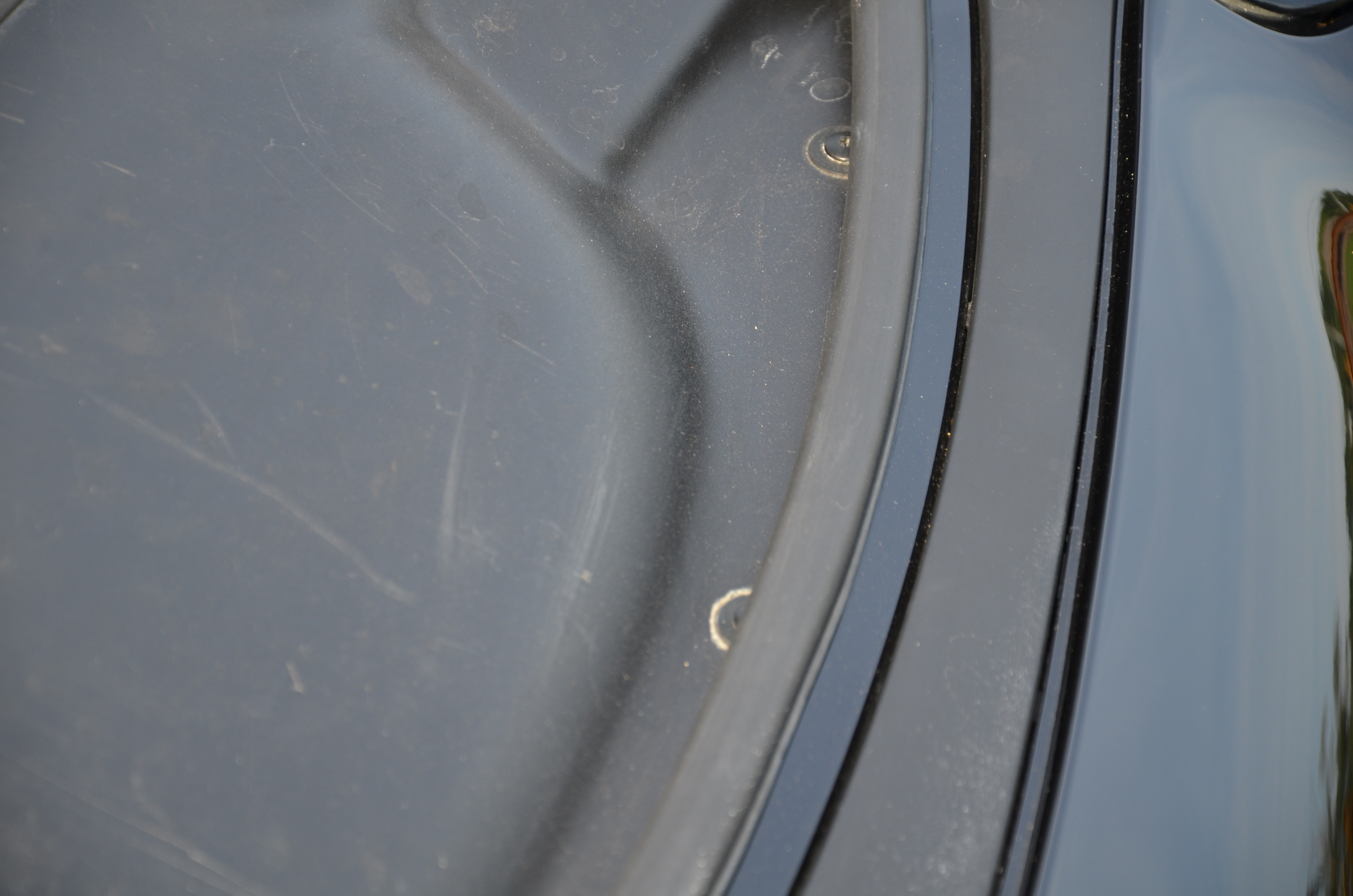

Before engine
Name:  DSC_7413.jpg
Views: 46
Size:  7.22 MB
Name:  DSC_7428.jpg
Views: 44
Size:  6.80 MB
Name:  DSC_7422.jpg
Views: 37
Size:  5.75 MB
Name:  DSC_7417.jpg
Views: 36
Size:  5.30 MB
Name:  DSC_7414.jpg
Views: 28
Size:  6.30 MB
Name:  DSC_7415.jpg
Views: 27
Size:  7.09 MB
Name:  DSC_7421.jpg
Views: 29
Size:  7.35 MB

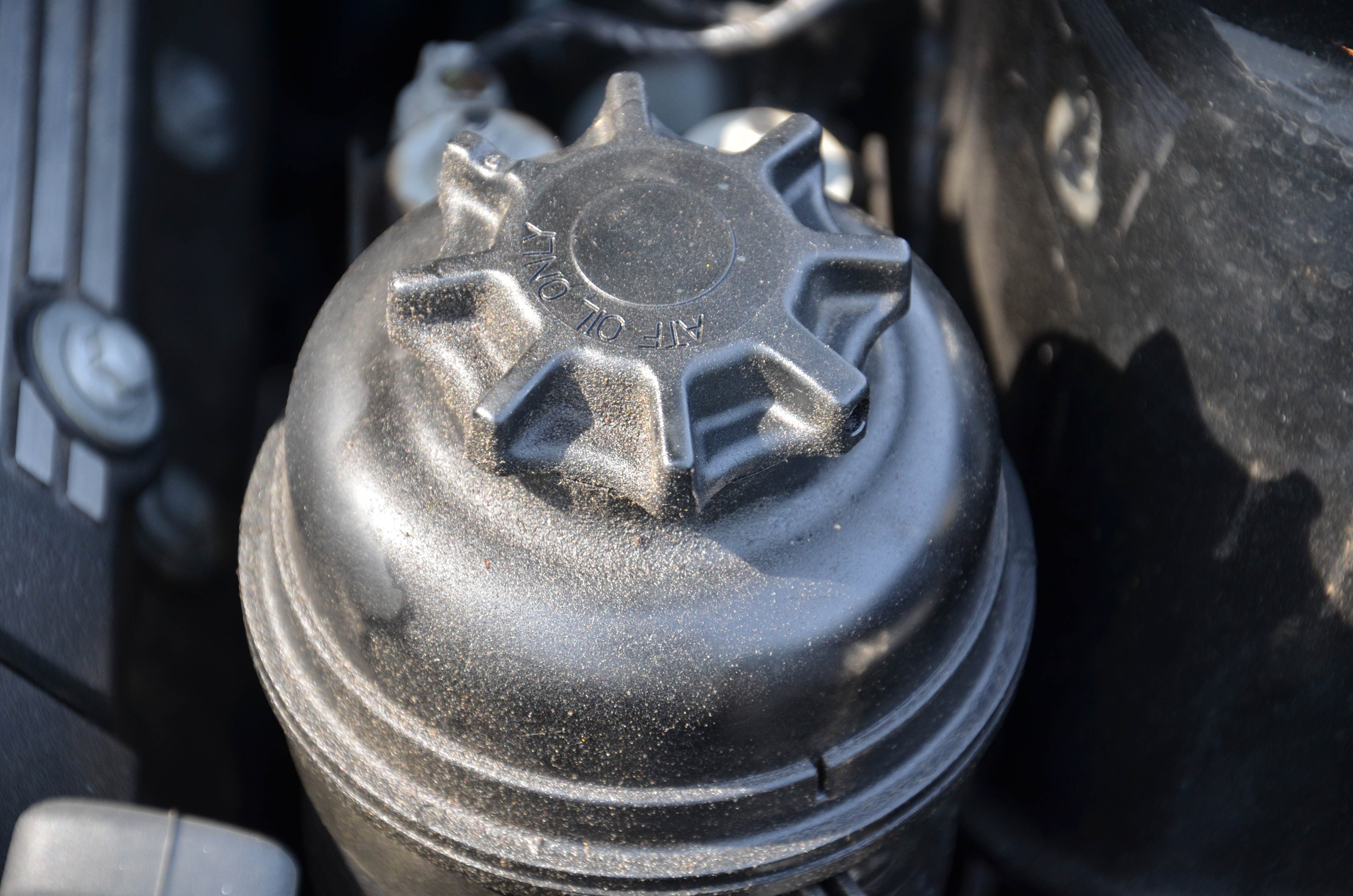

Name:  DSC_7420.jpg
Views: 38
Size:  7.10 MB

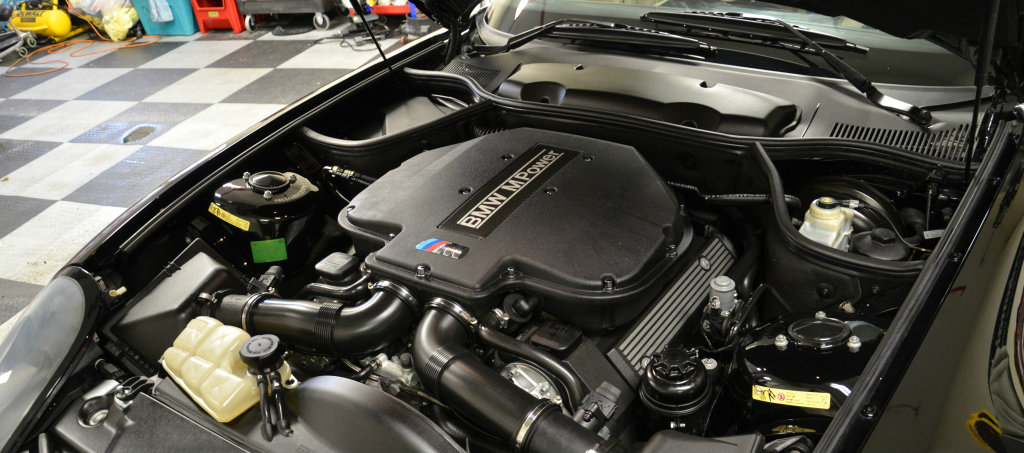

After engine
Name:  DSC_7646-1.jpg
Views: 24
Size:  130.3 KB

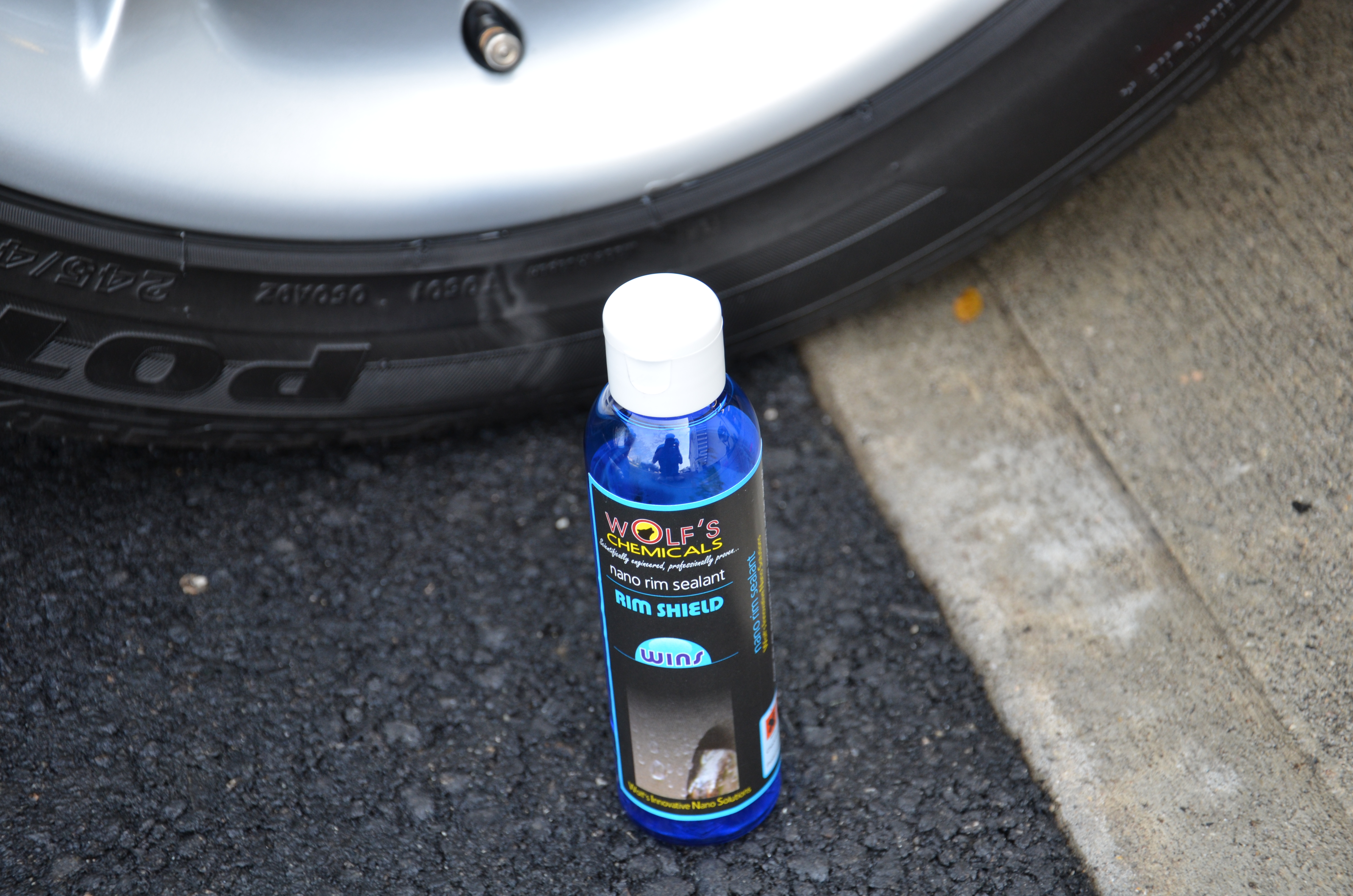

Wolf's Rim Shield used on the wheels
Name:  DSC_7519.jpg
Views: 34
Size:  6.02 MB

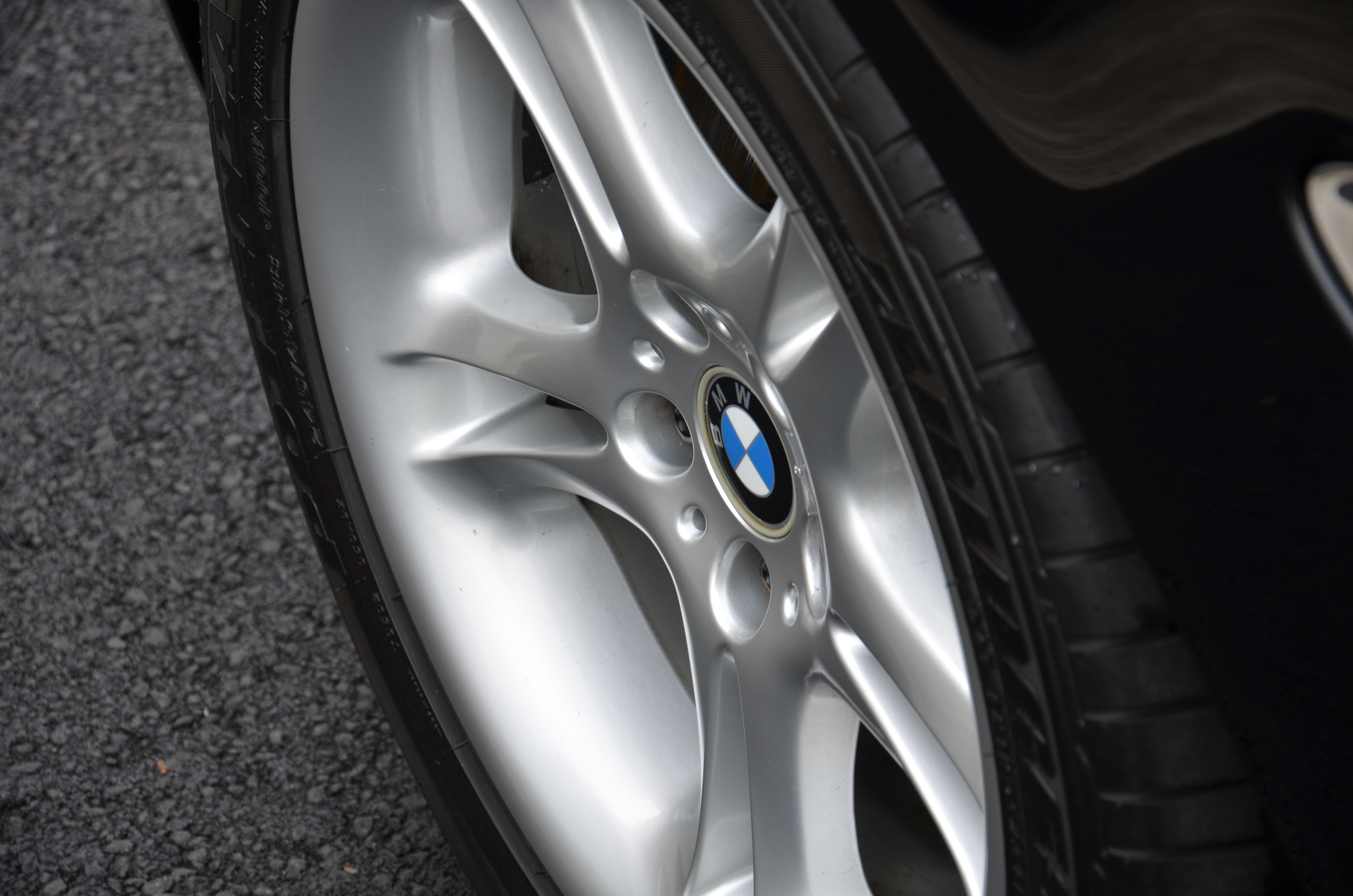

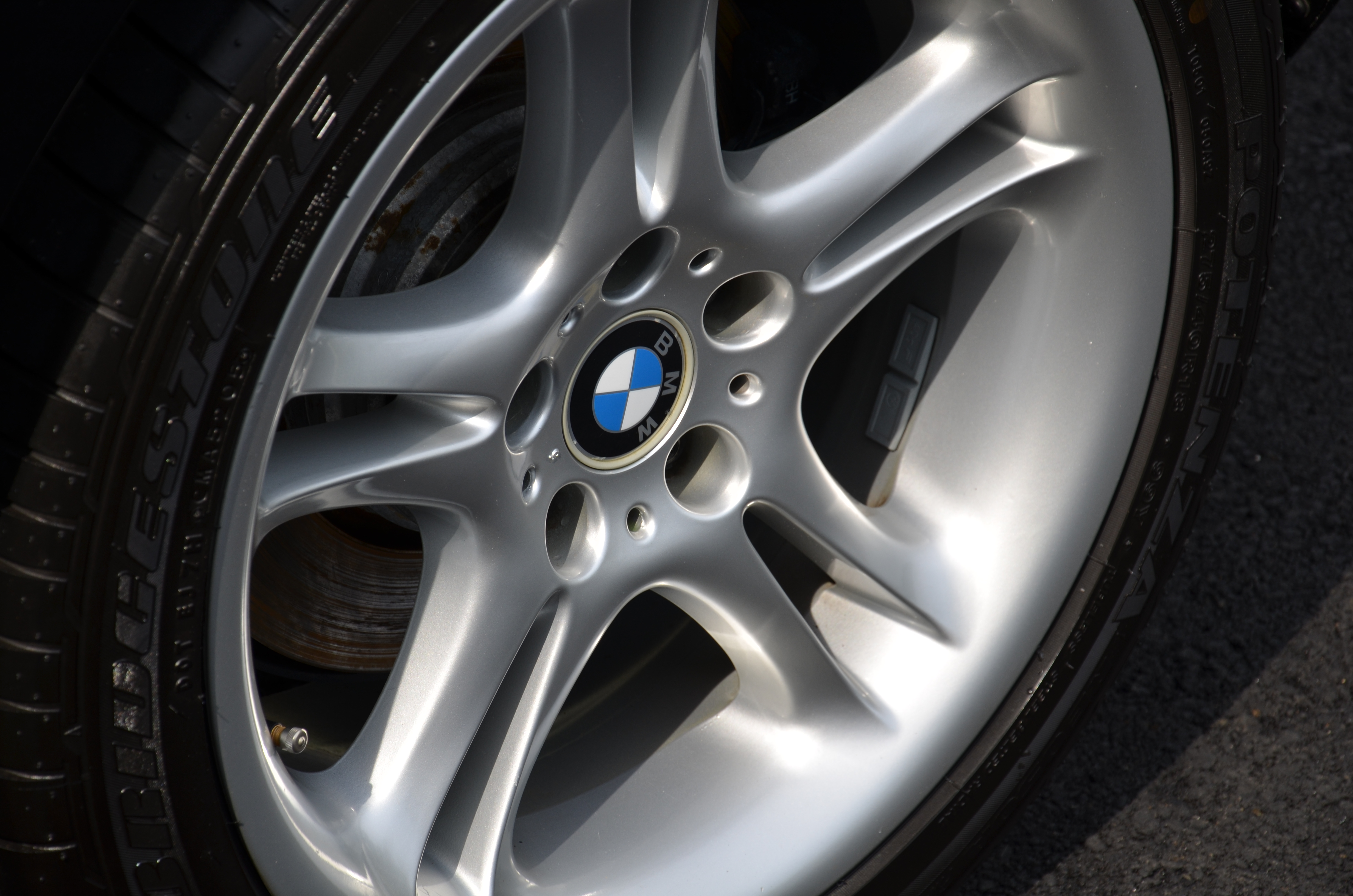

Wheels and Tires all done
Name:  DSC_7670.jpg
Views: 36
Size:  4.66 MB
Name:  DSC_7669.jpg
Views: 27
Size:  5.39 MB

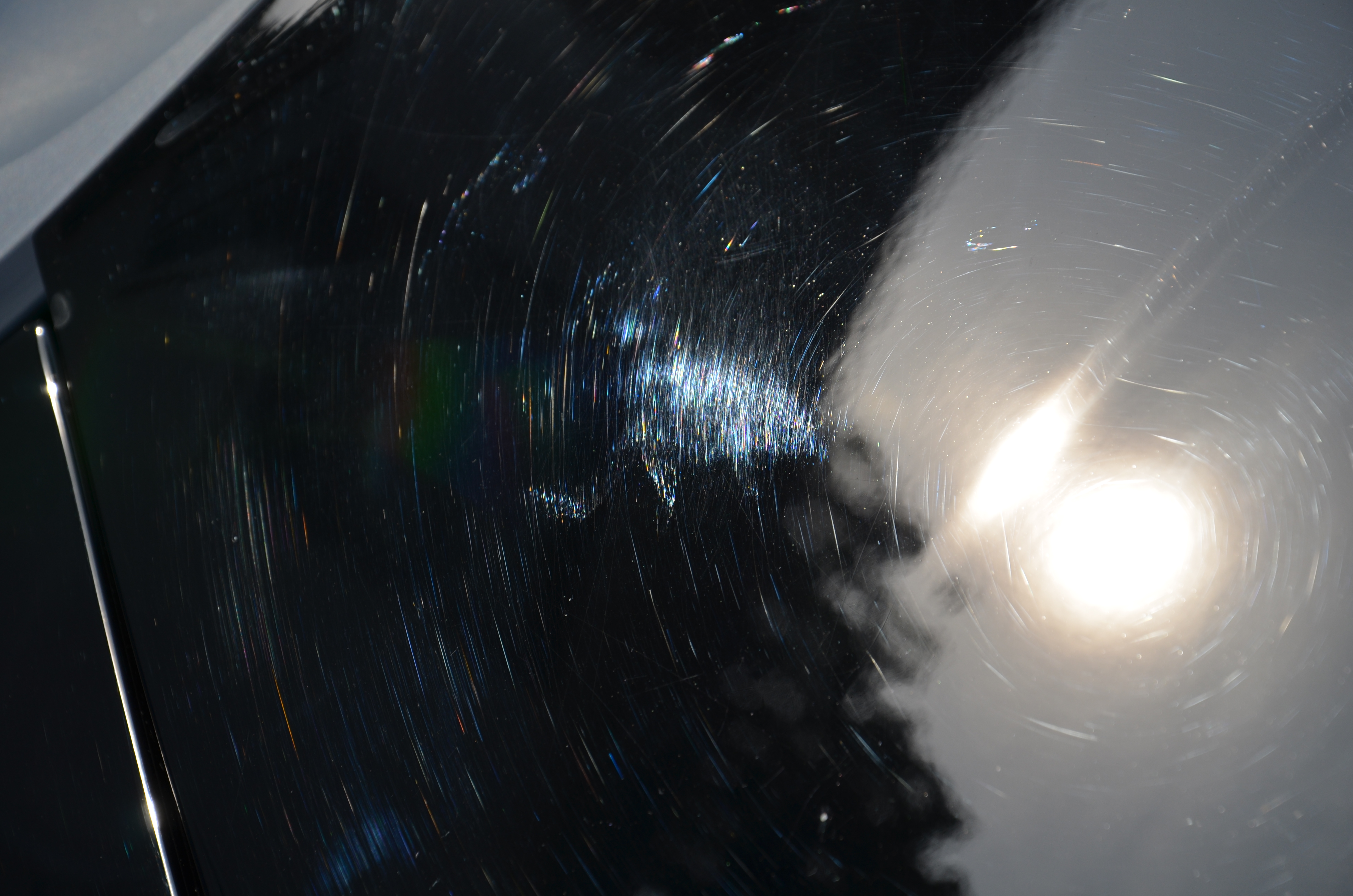

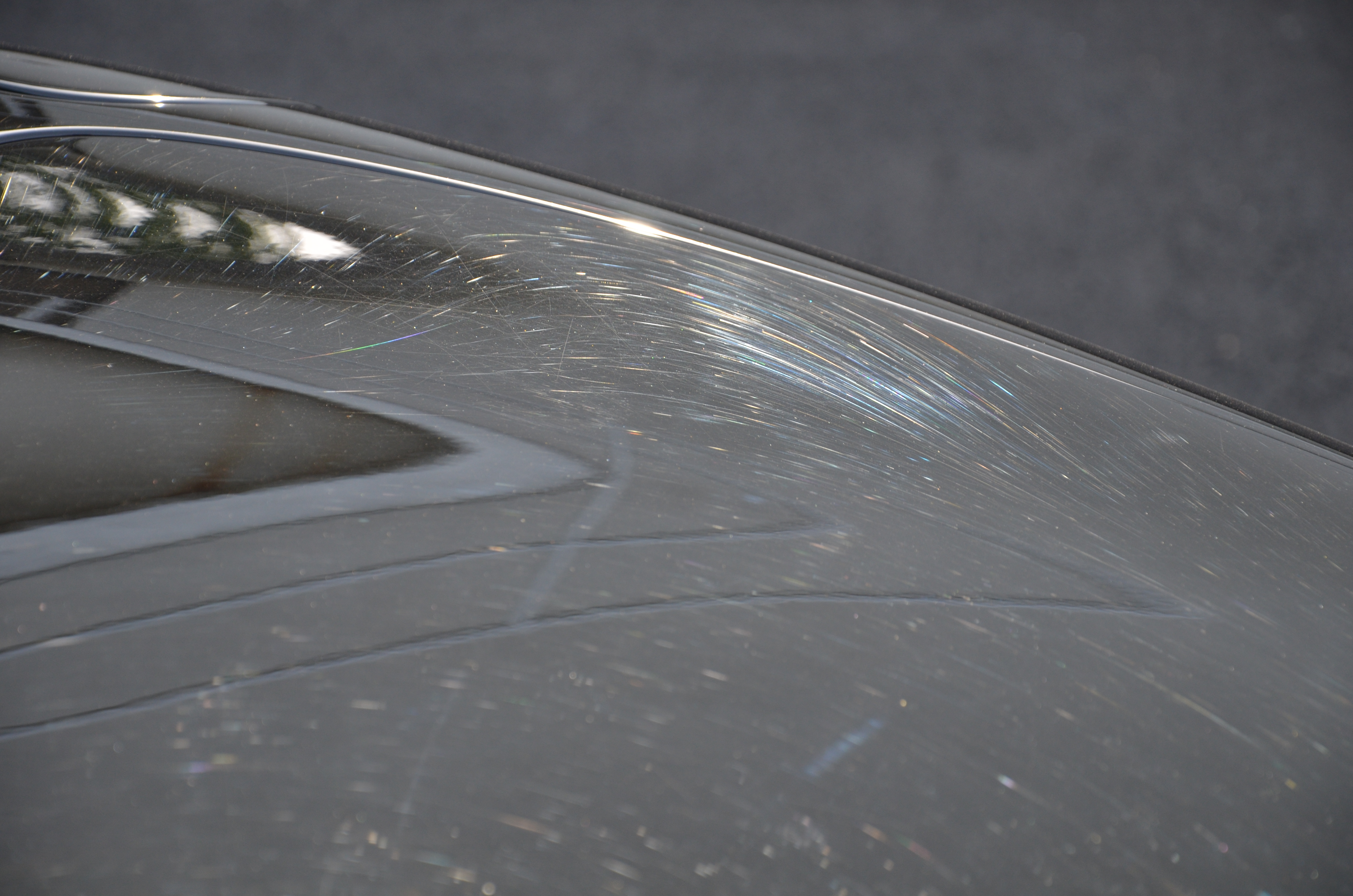

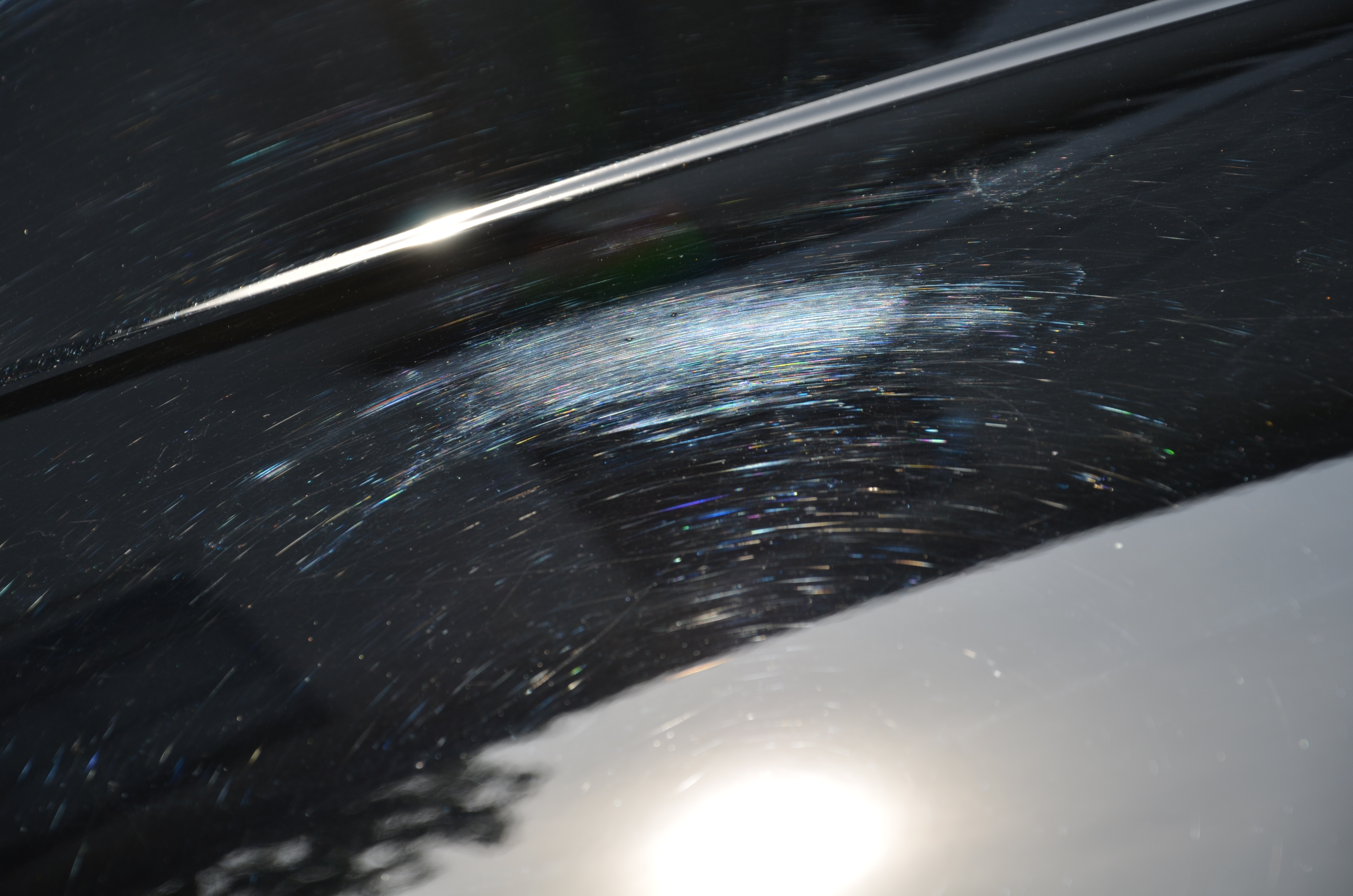

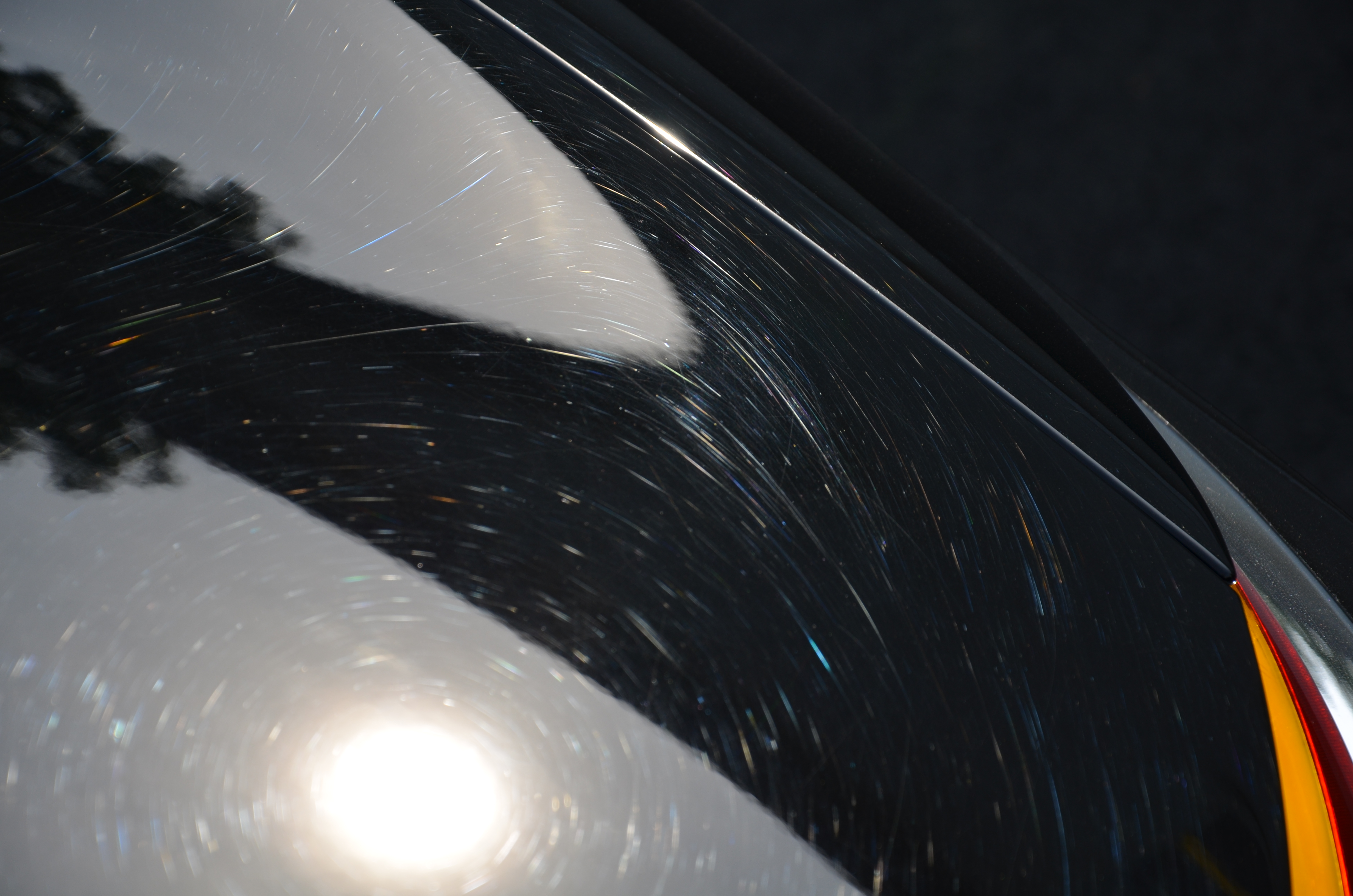

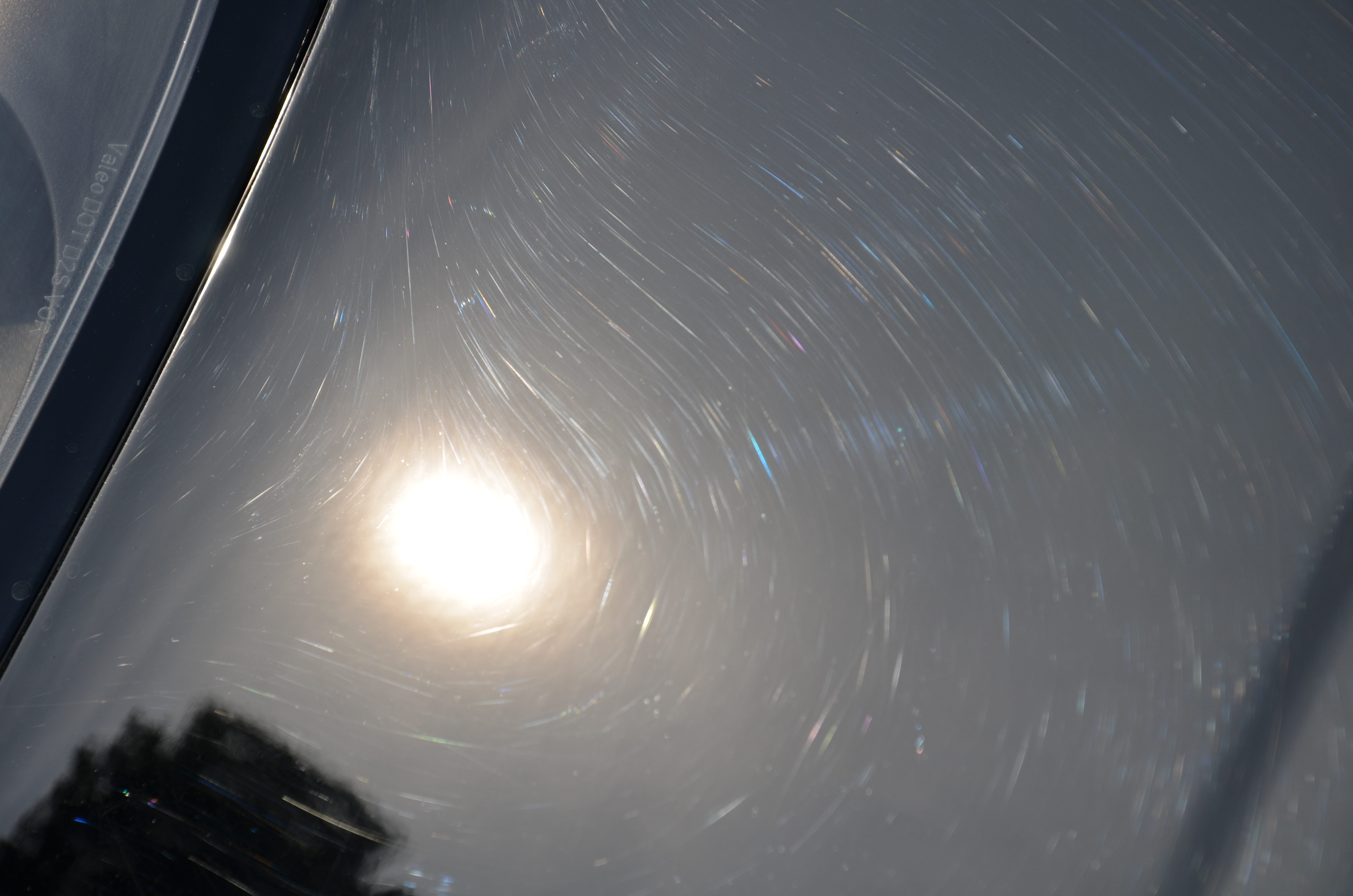

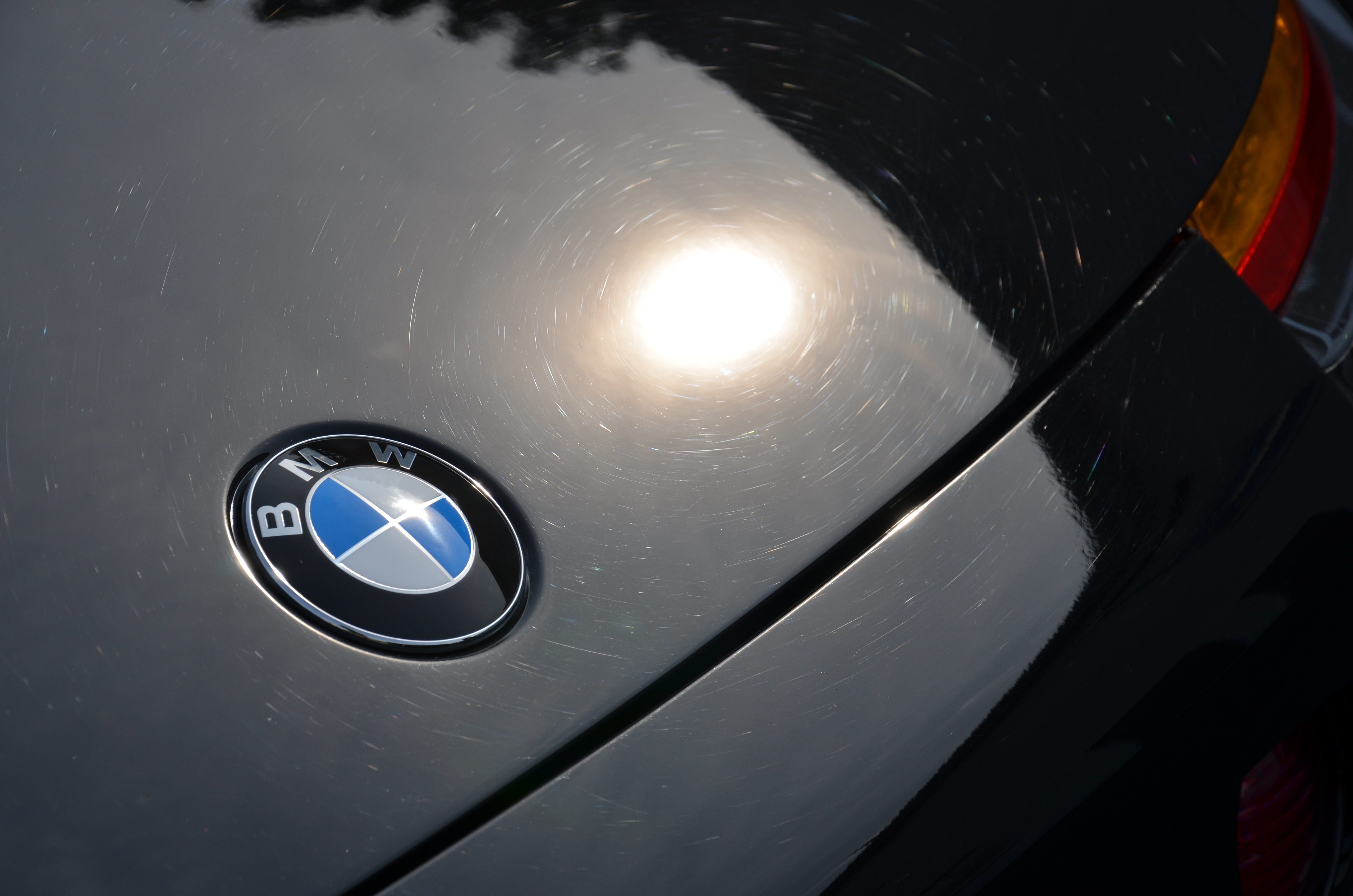

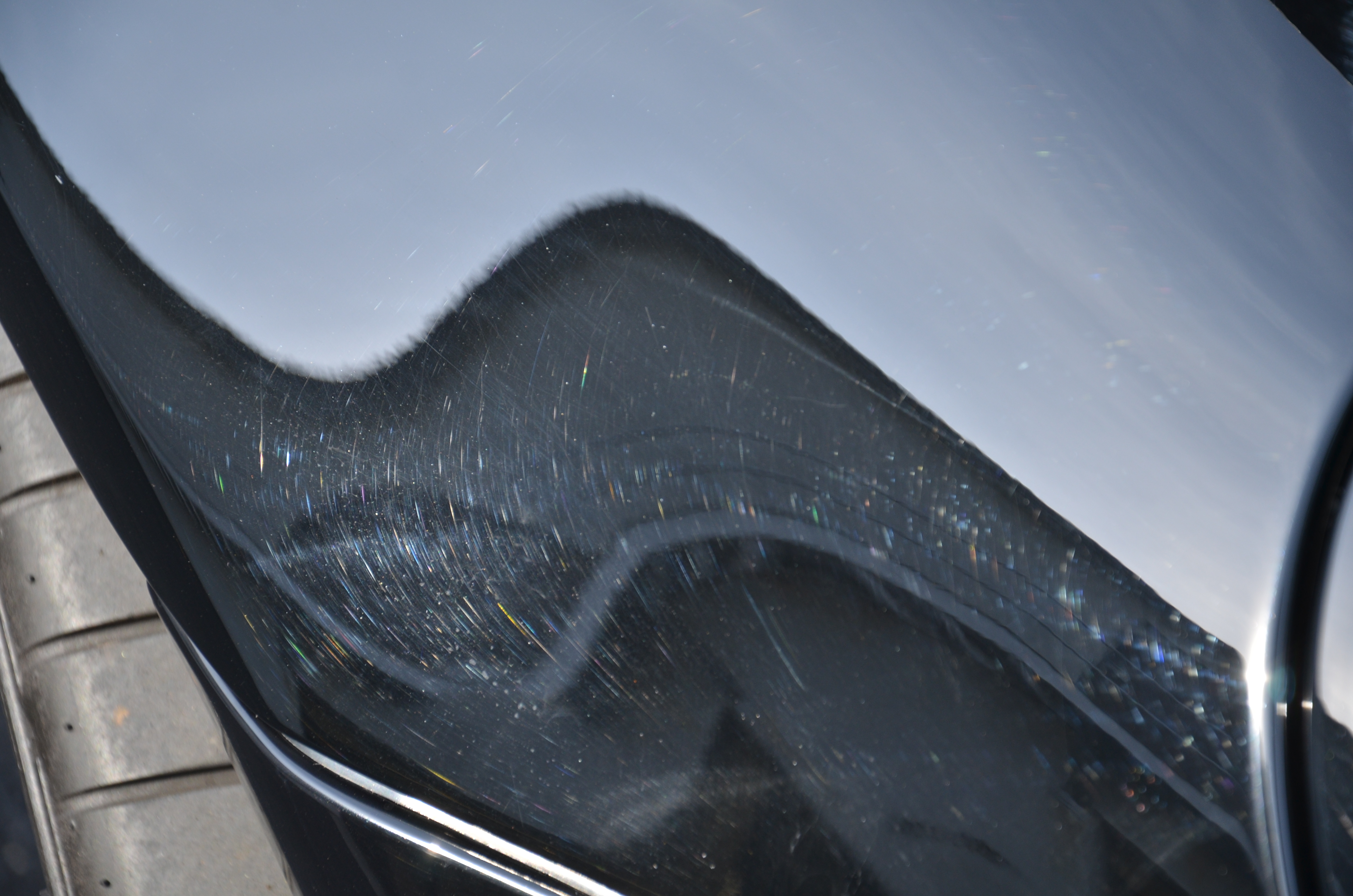

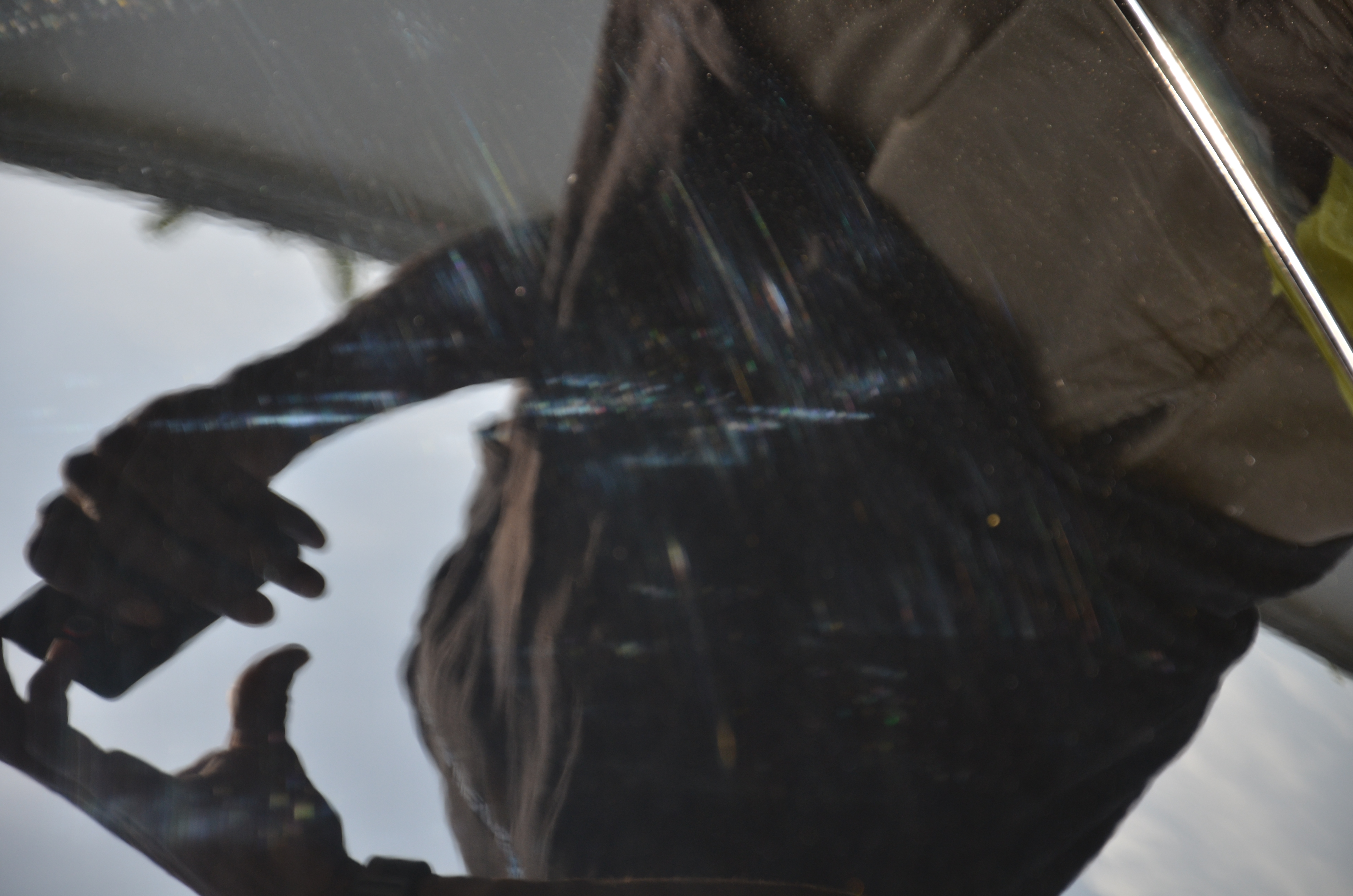

Imperfections that we were up against
Name:  DSC_7406.jpg
Views: 36
Size:  4.64 MB
Name:  DSC_7426.jpg
Views: 28
Size:  4.93 MB
Name:  DSC_7427.jpg
Views: 44
Size:  4.82 MB
Name:  DSC_7429.jpg
Views: 31
Size:  5.73 MB
Name:  DSC_7431.jpg
Views: 44
Size:  6.28 MB
Name:  DSC_7432.jpg
Views: 27
Size:  4.48 MB
Name:  DSC_7433.jpg
Views: 37
Size:  5.21 MB
Name:  DSC_7436.jpg
Views: 35
Size:  5.00 MB

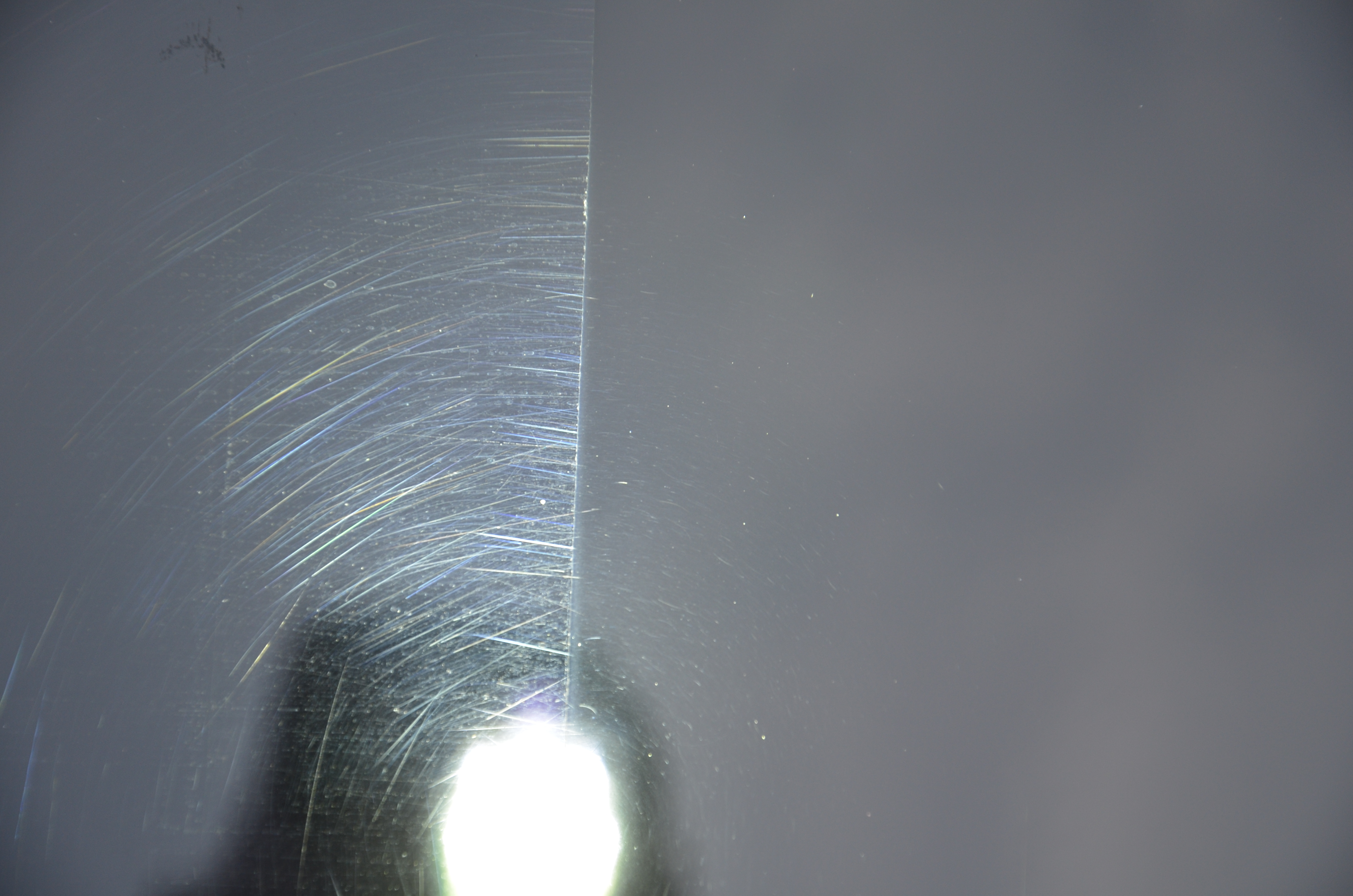

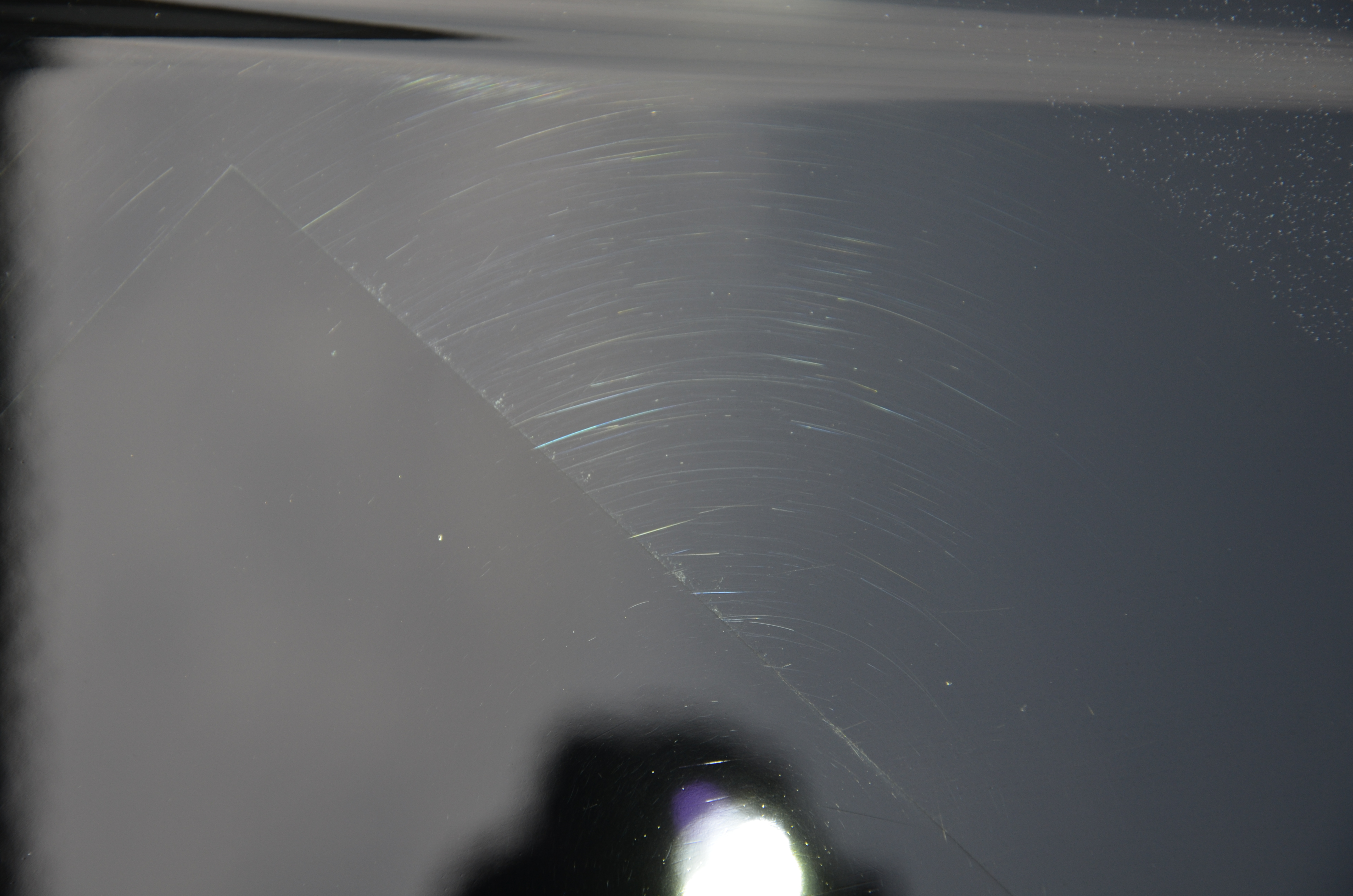

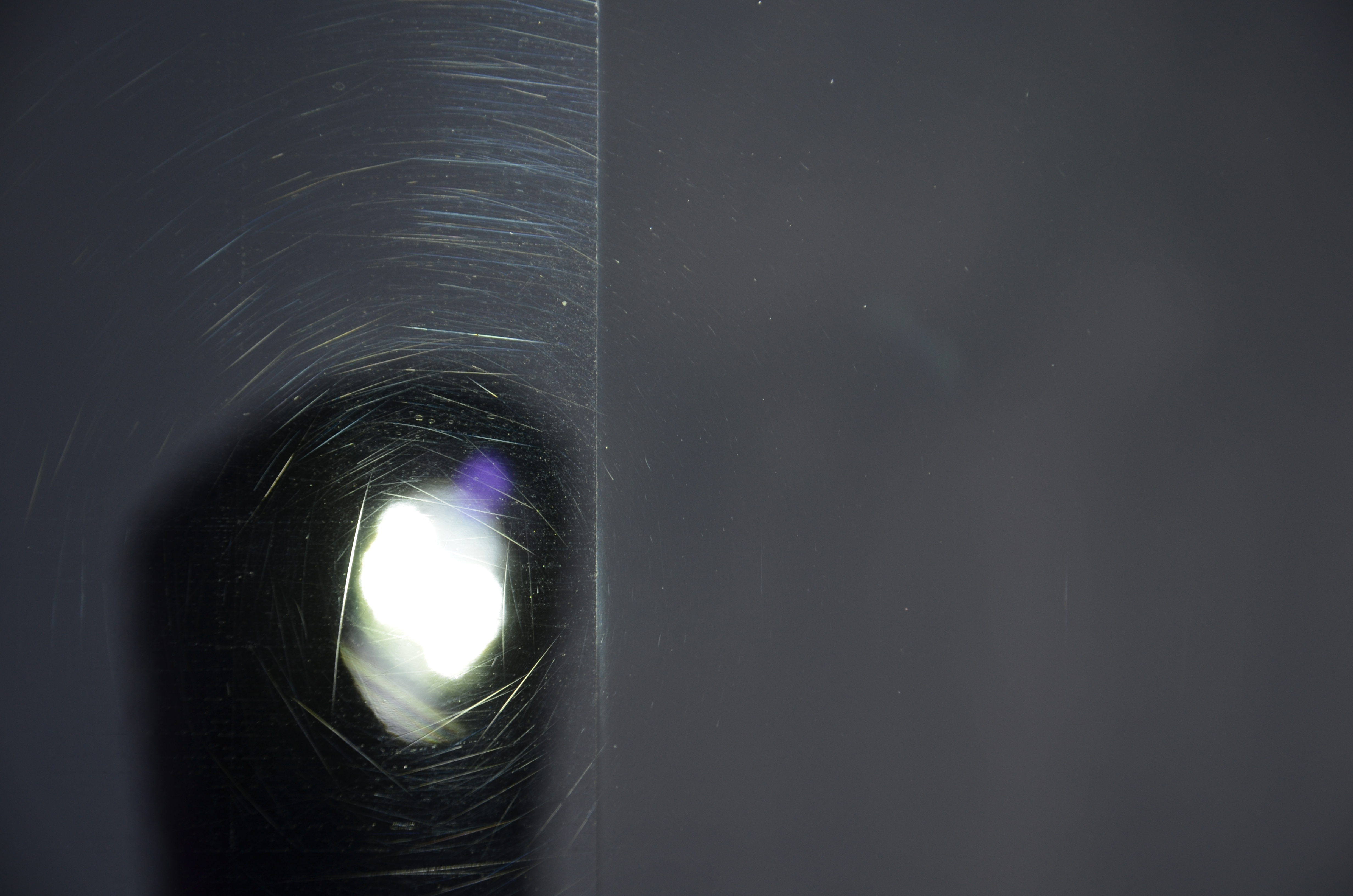

Compound and Polish -

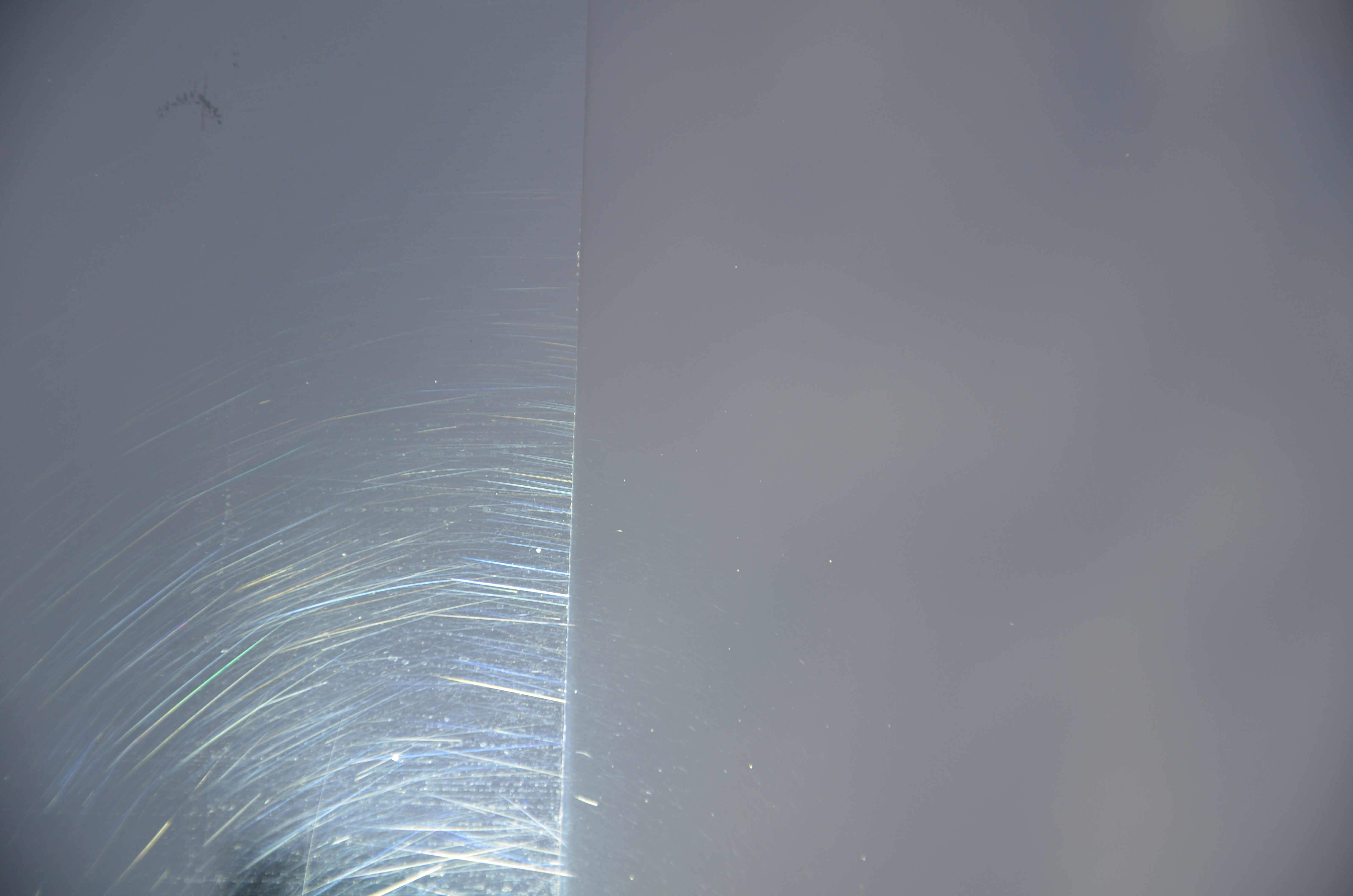

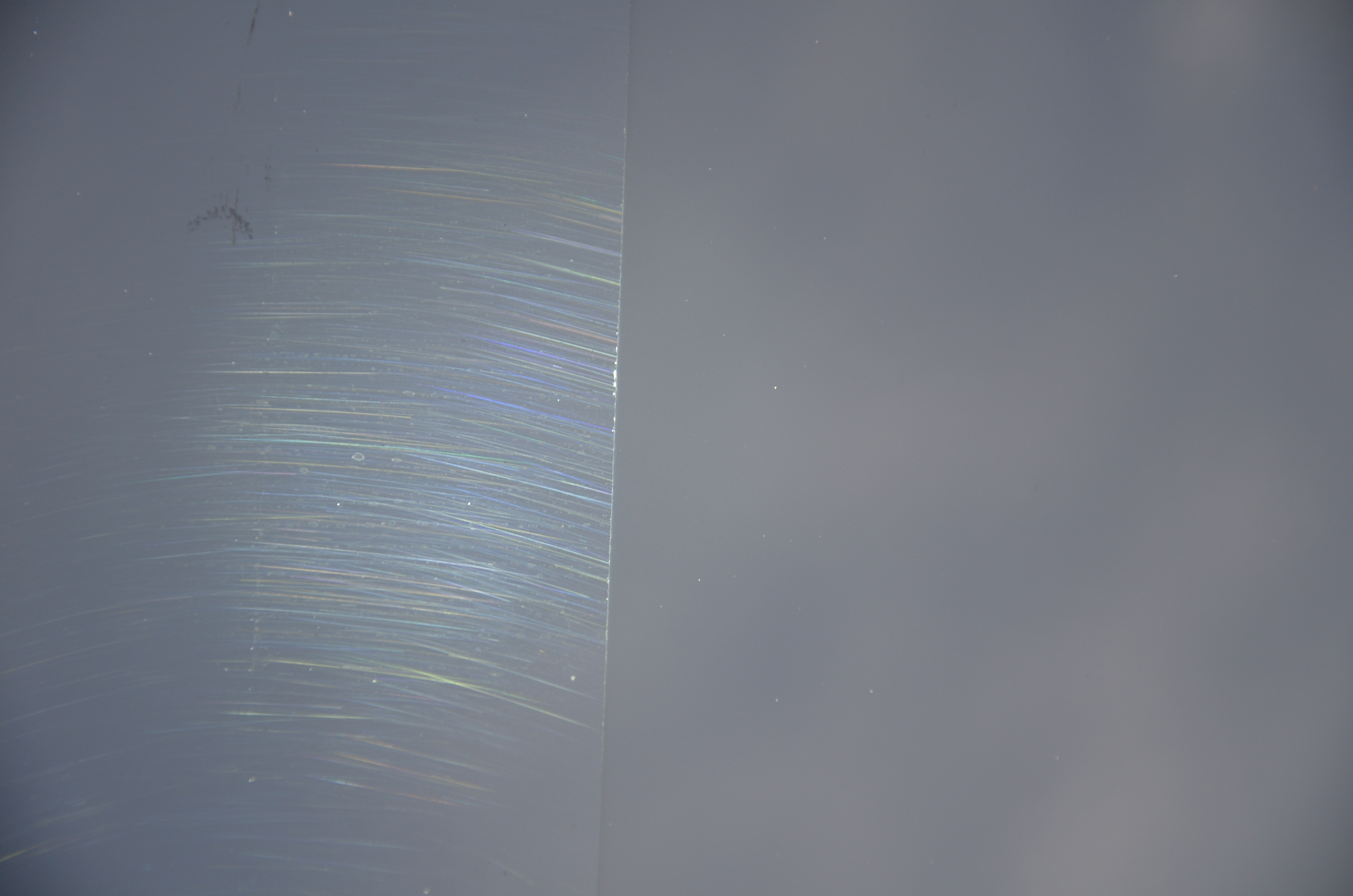

50/50 shots
This was after compounding (various panels on the car)
Name:  DSC_7540.jpg
Views: 30
Size:  5.09 MB
Name:  DSC_7551.jpg
Views: 31
Size:  5.04 MB
Name:  DSC_7555.jpg
Views: 28
Size:  5.78 MB
Name:  DSC_7554.jpg
Views: 26
Size:  5.22 MB
Name:  DSC_7553.jpg
Views: 30
Size:  5.18 MB

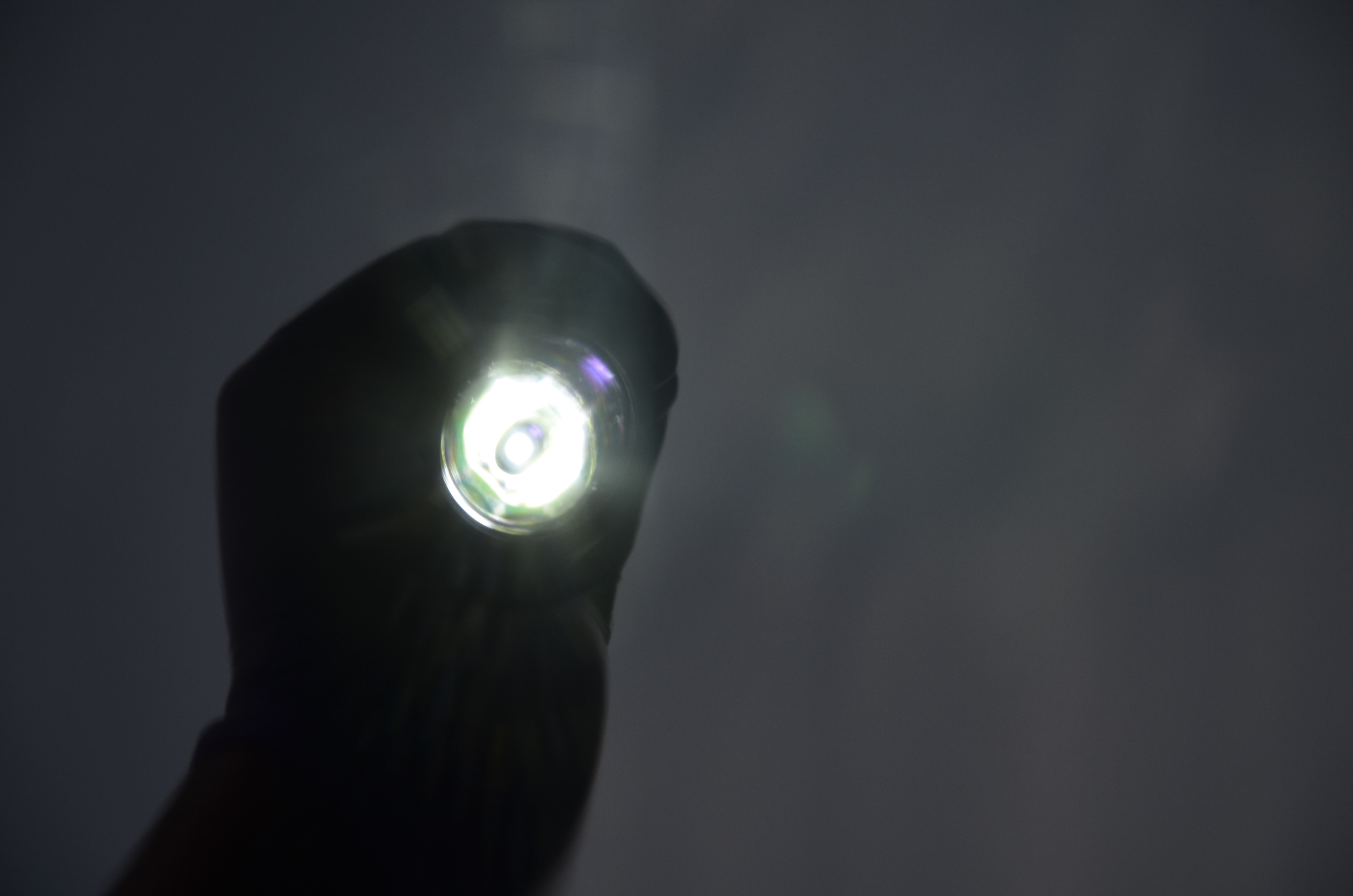

After
Name:  DSC_7552.jpg
Views: 35
Size:  4.20 MB

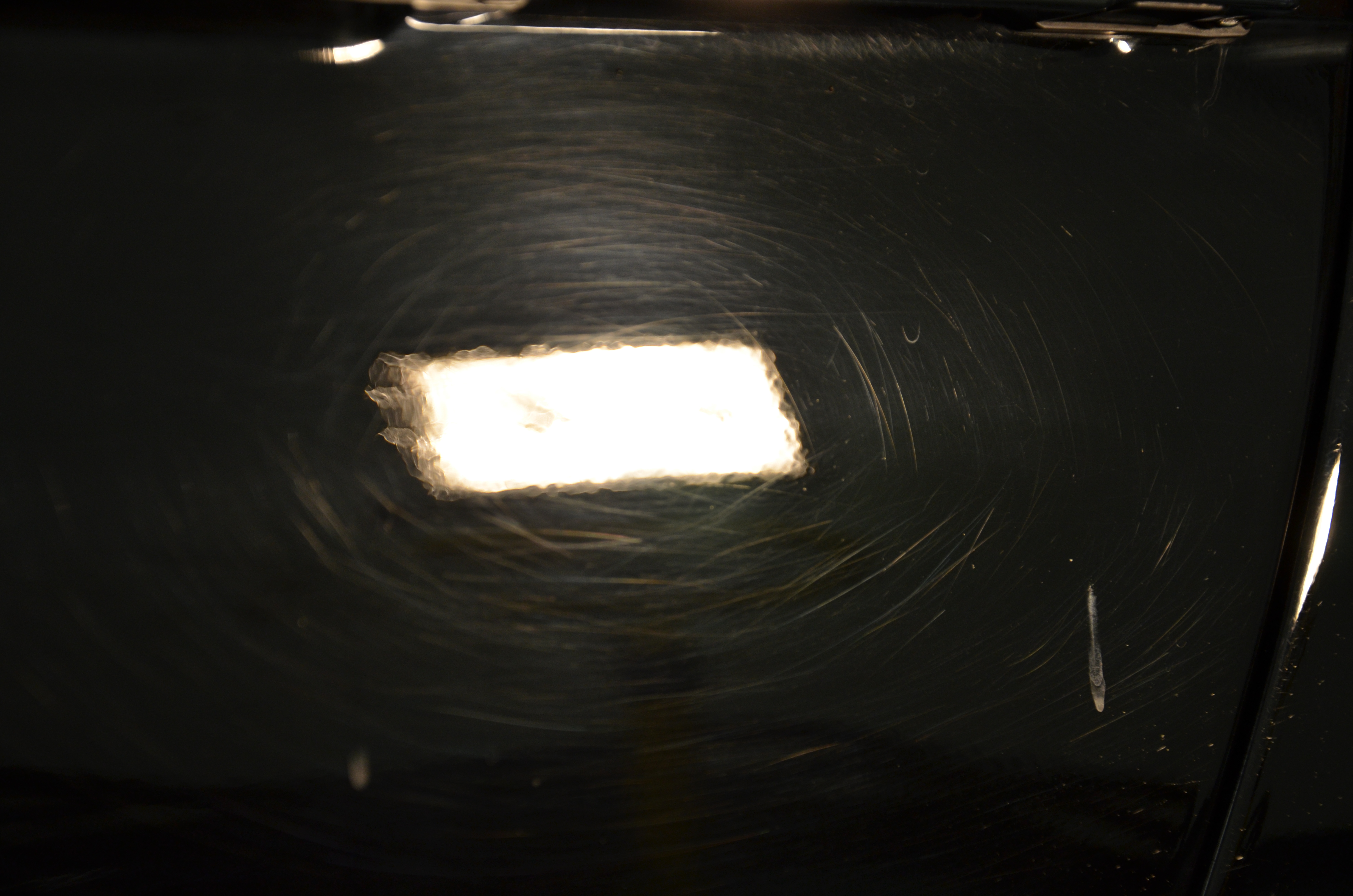

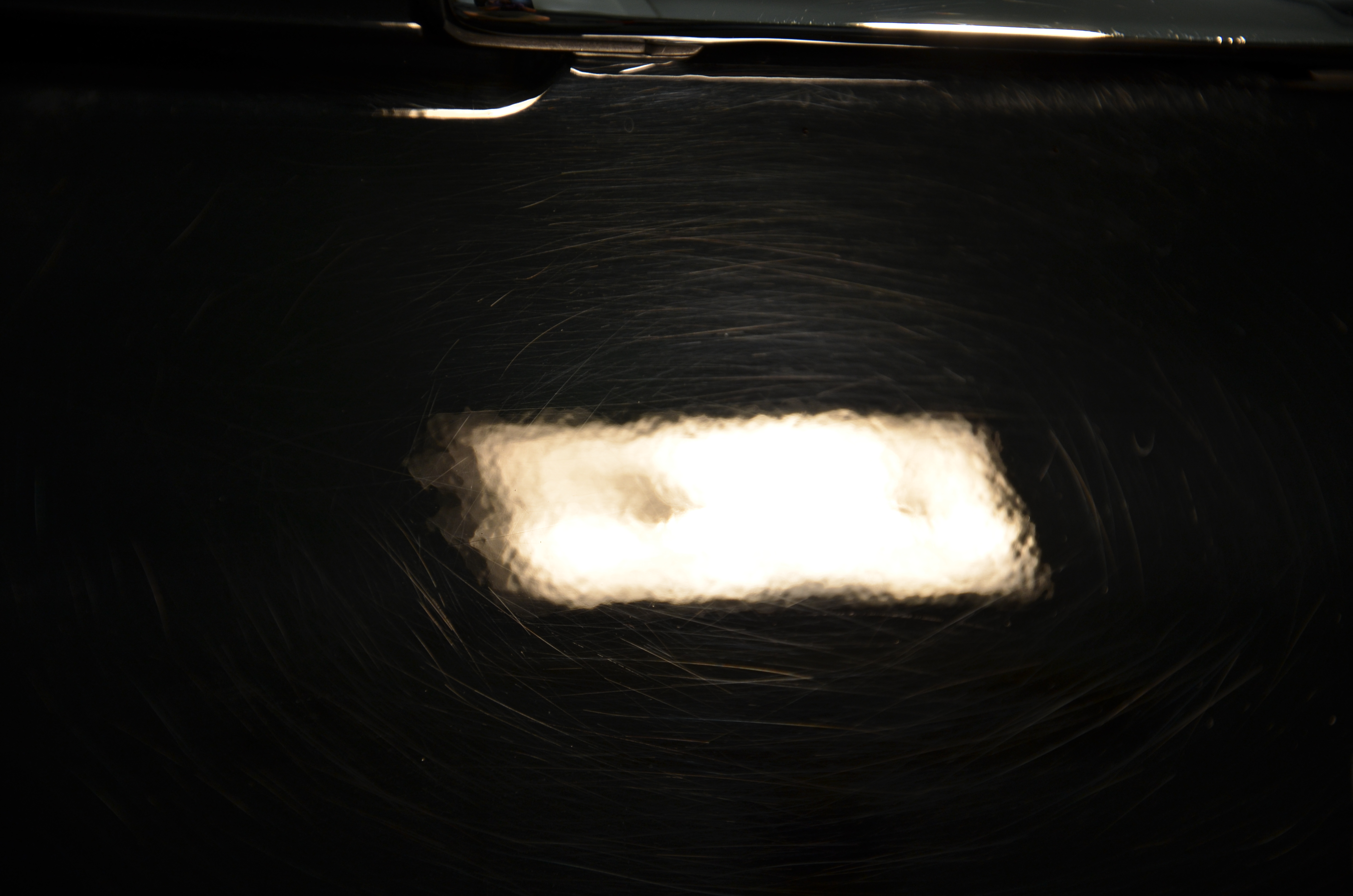

Before
Name:  DSC_7623.jpg
Views: 49
Size:  4.31 MB
Name:  DSC_7621.jpg
Views: 43
Size:  5.31 MB

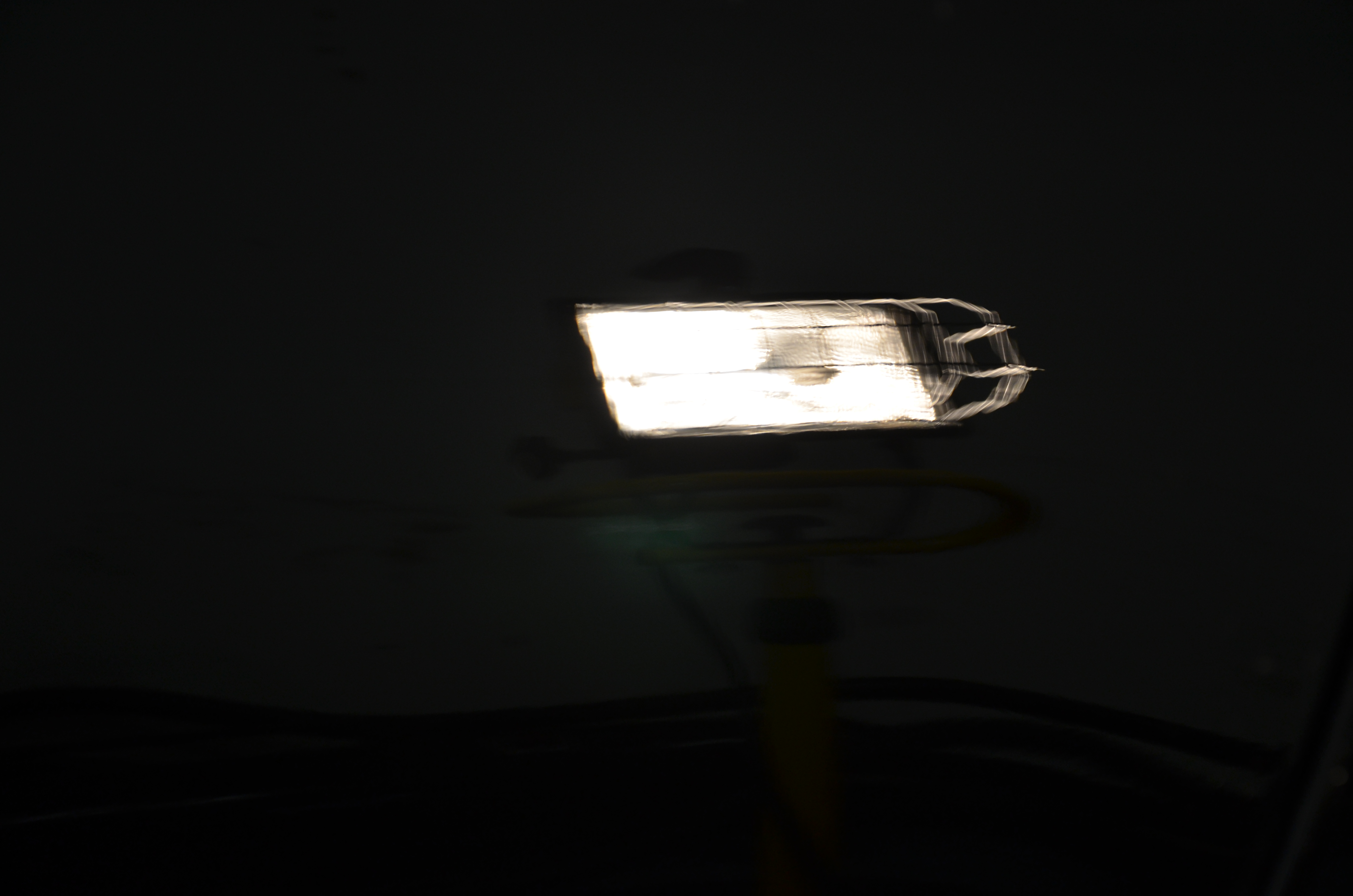

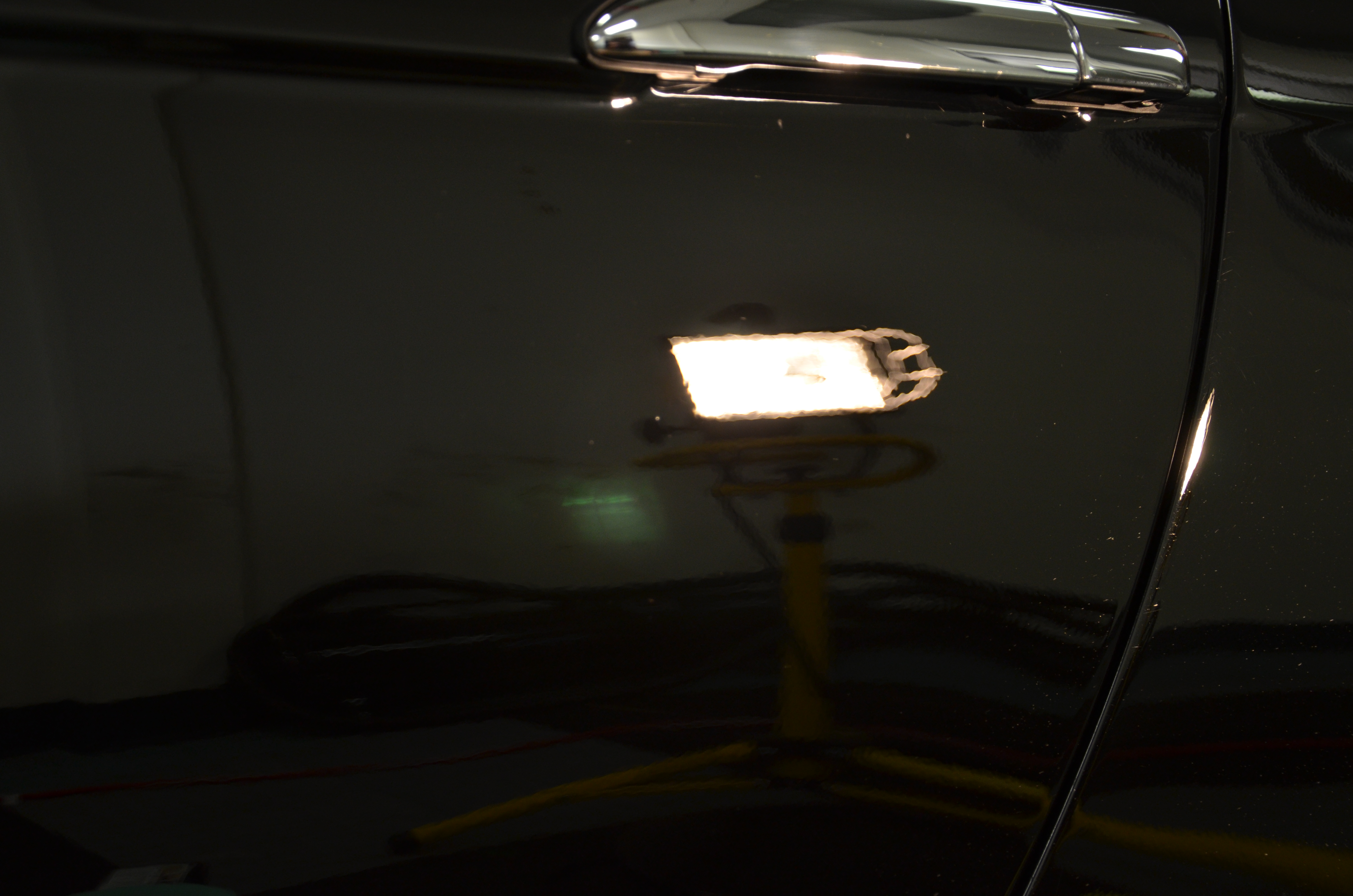

After
Name:  DSC_7624.jpg
Views: 32
Size:  5.59 MB
Name:  DSC_7625.jpg
Views: 28
Size:  3.68 MB

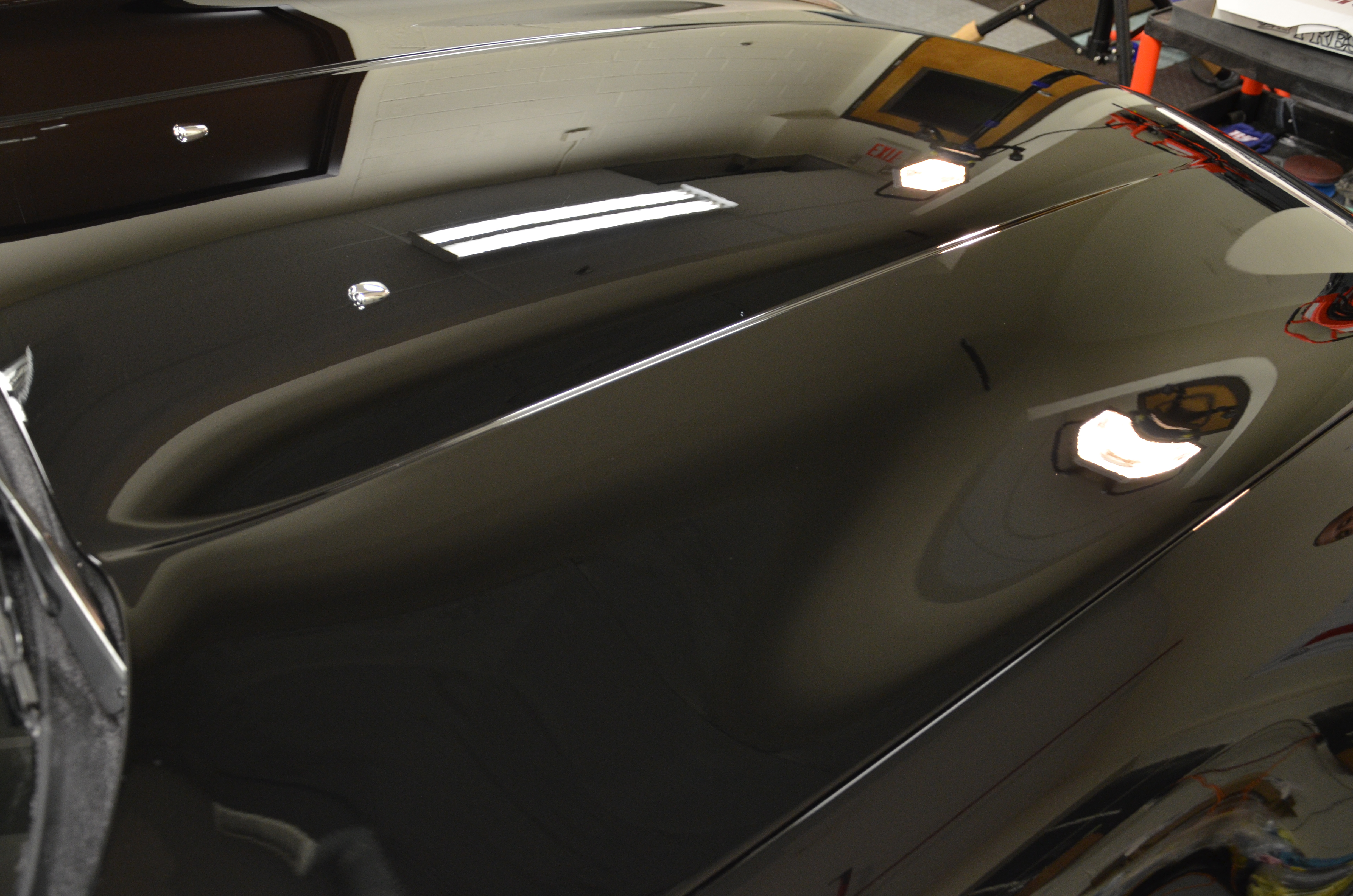

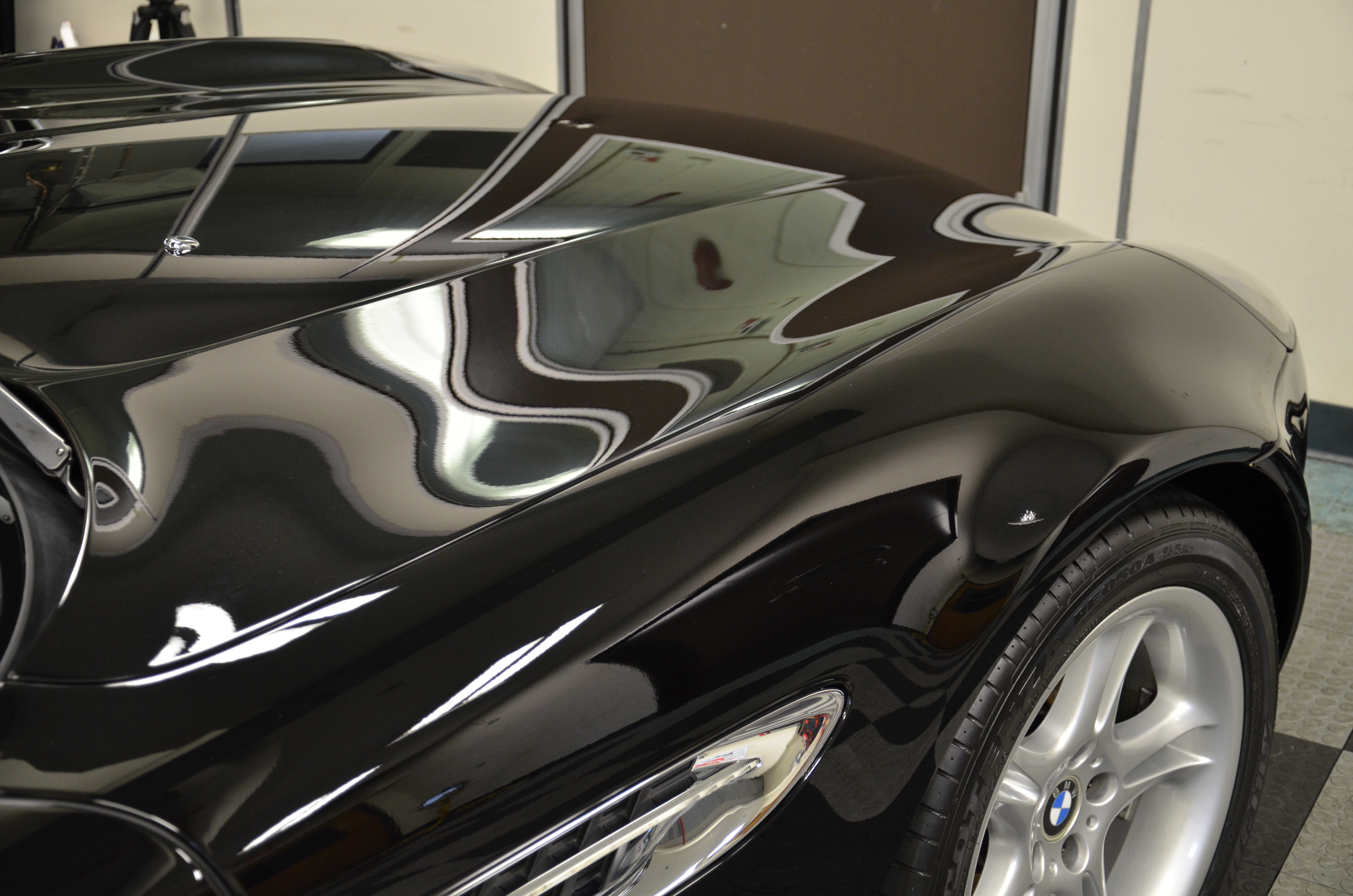

Afters under the lights
Name:  DSC_7653.jpg
Views: 28
Size:  7.17 MB
Name:  DSC_7630.jpg
Views: 46
Size:  7.37 MB

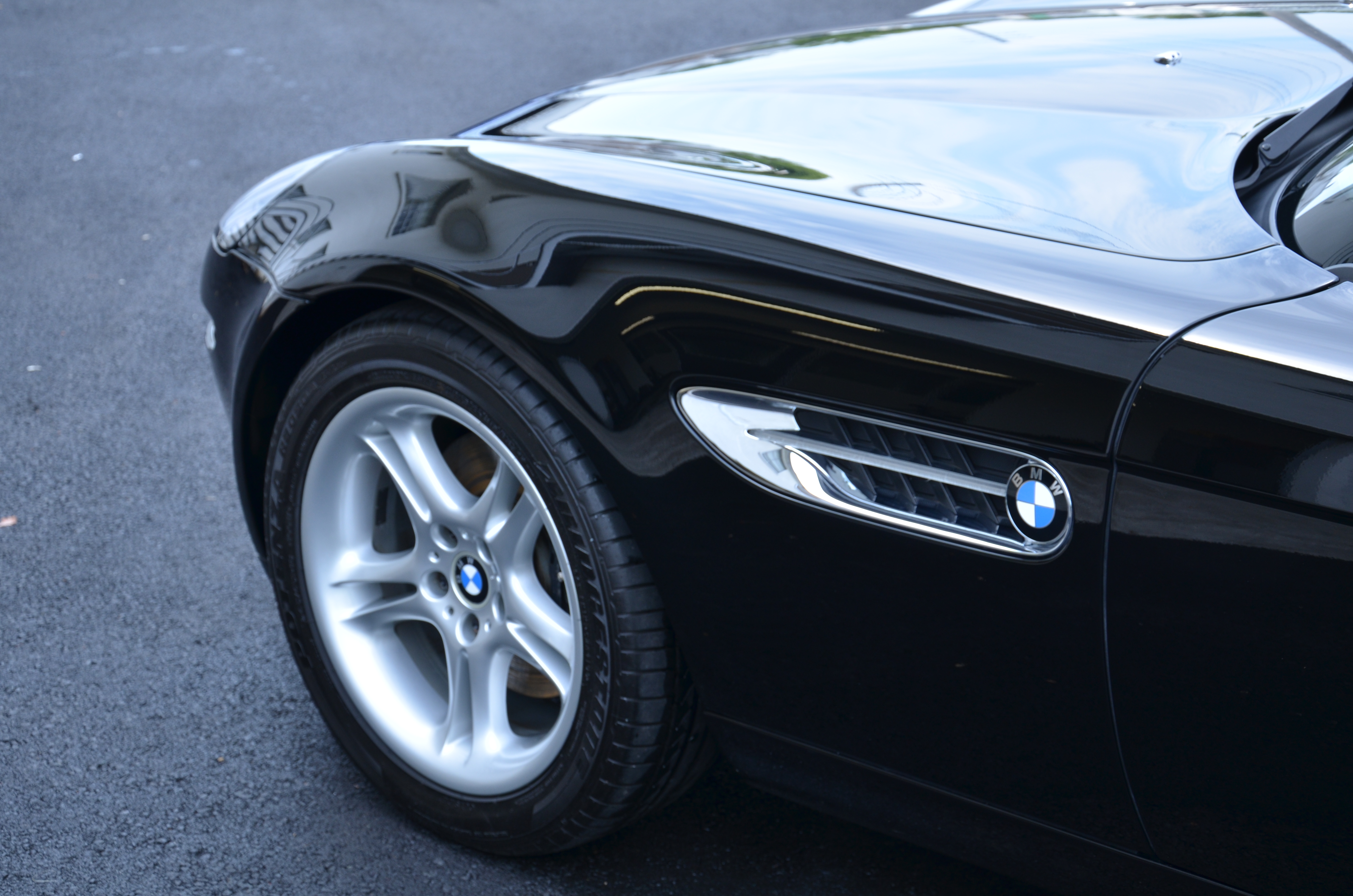

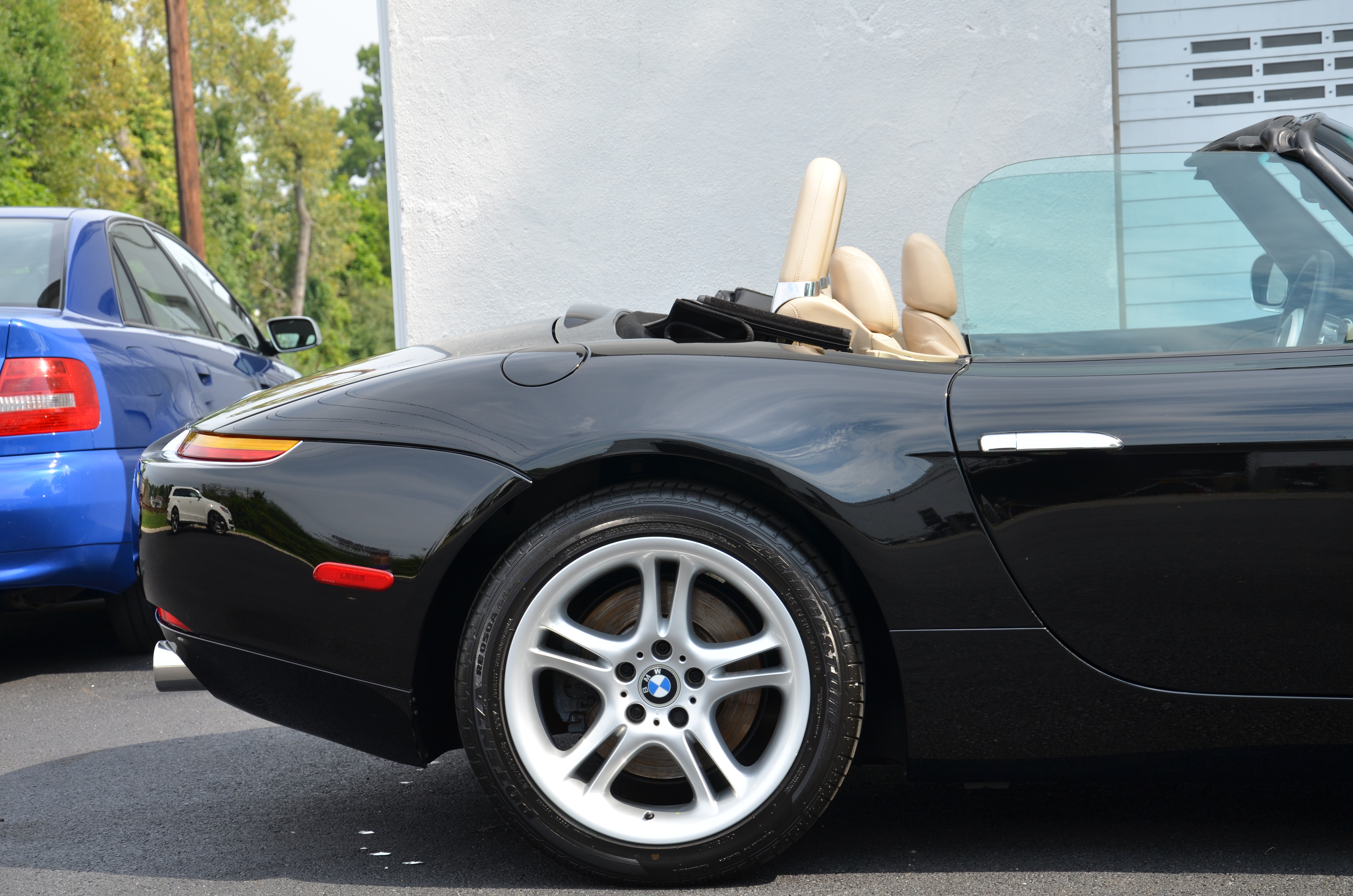

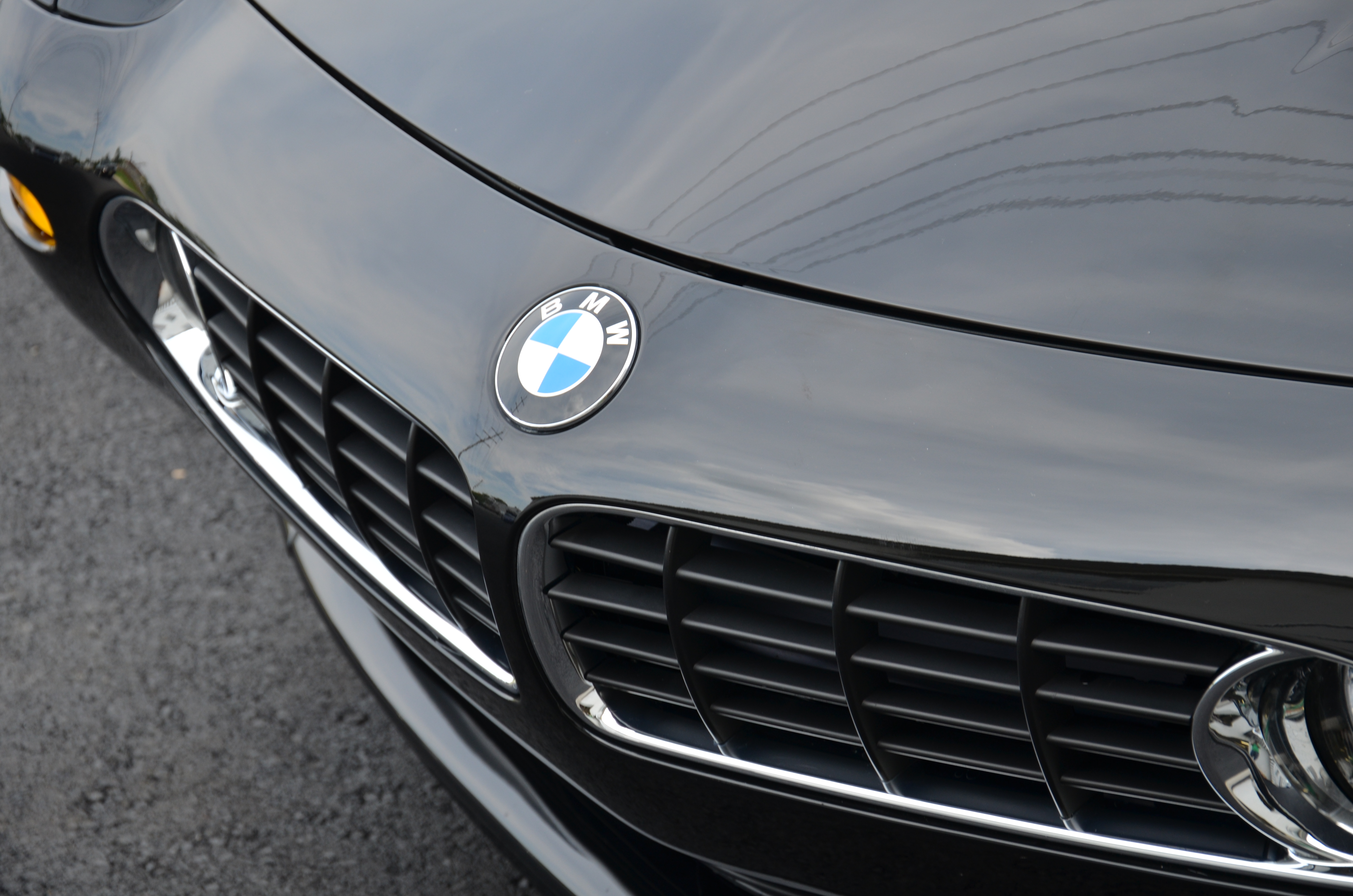

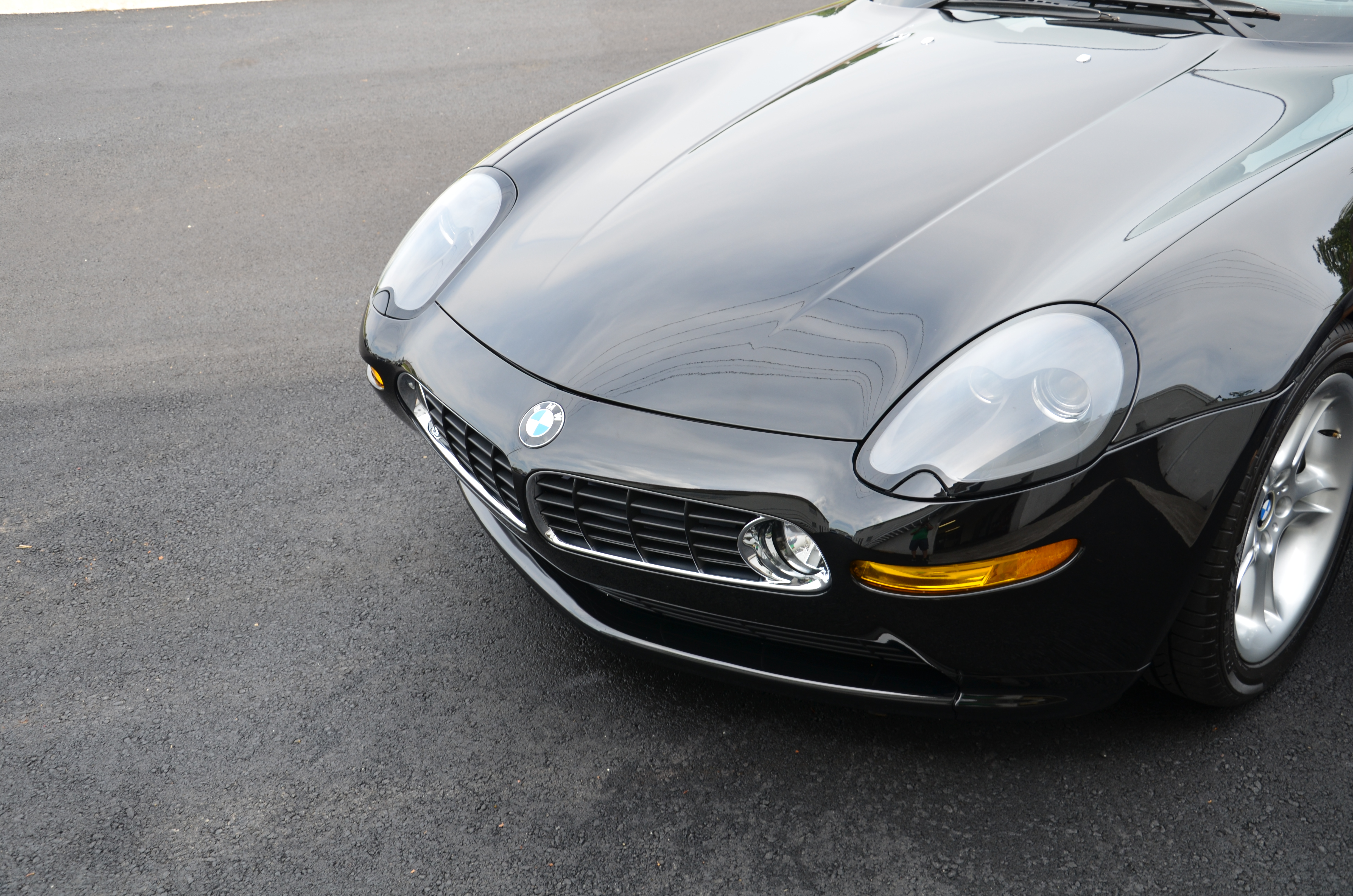

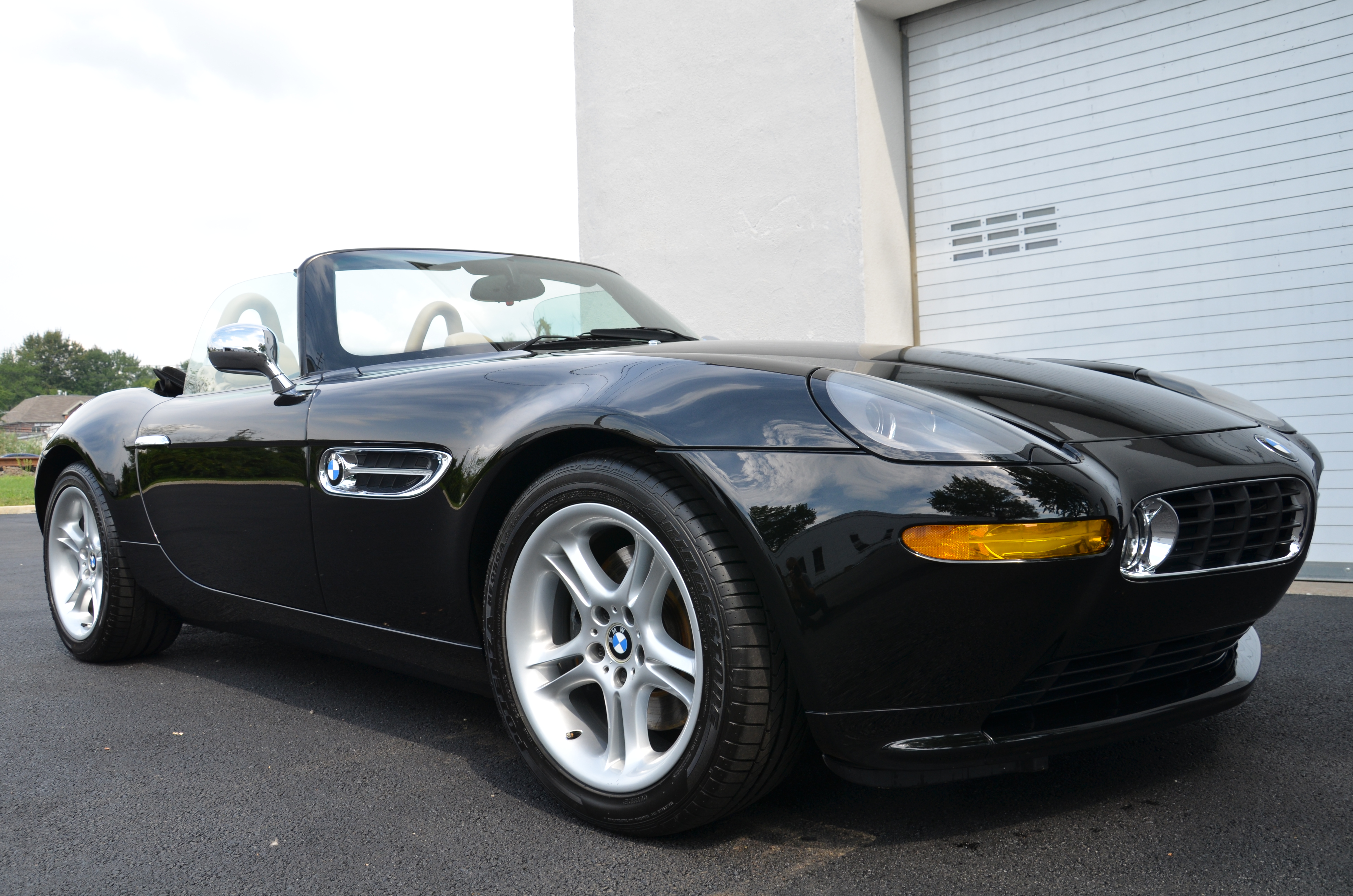

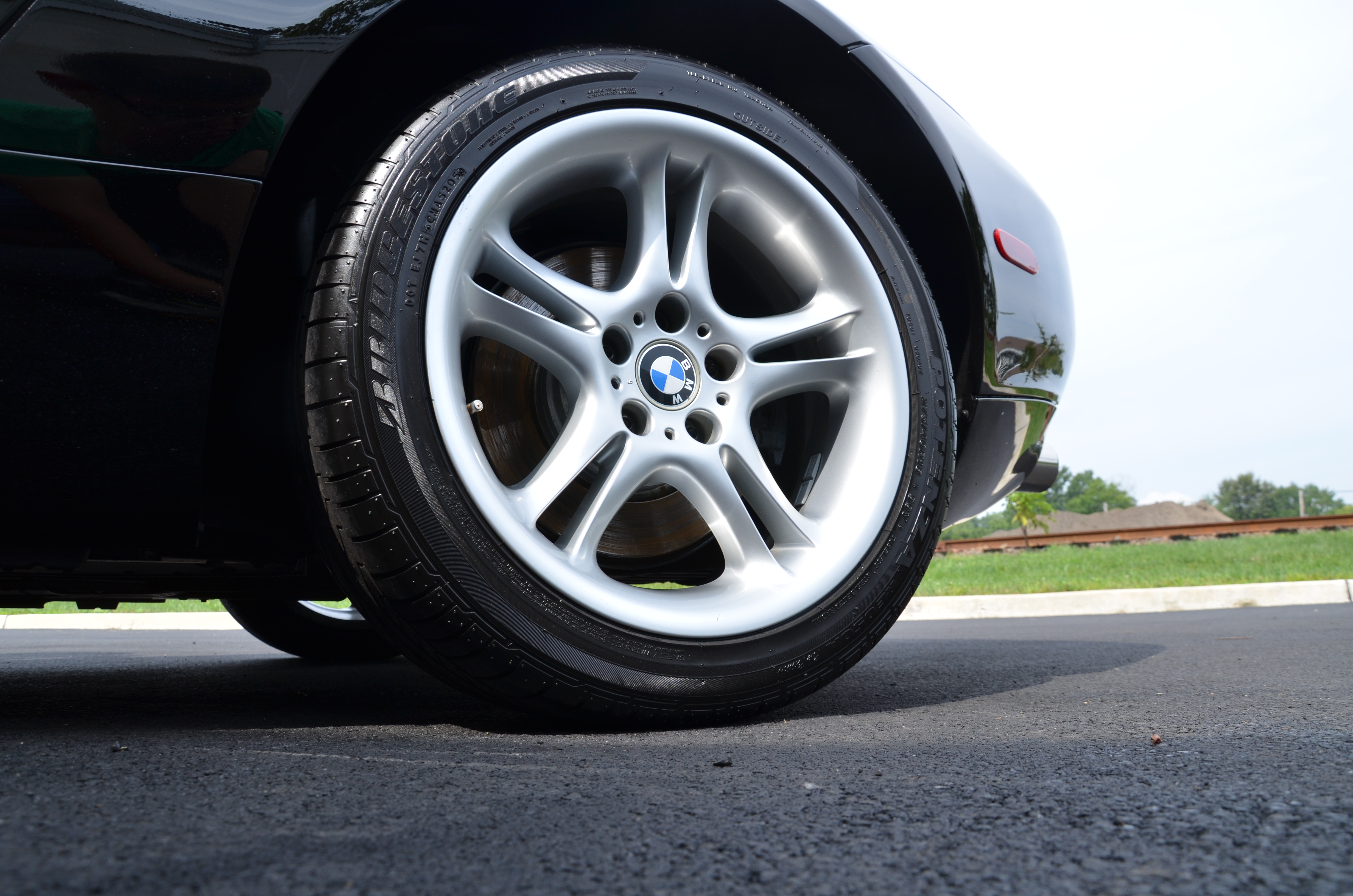

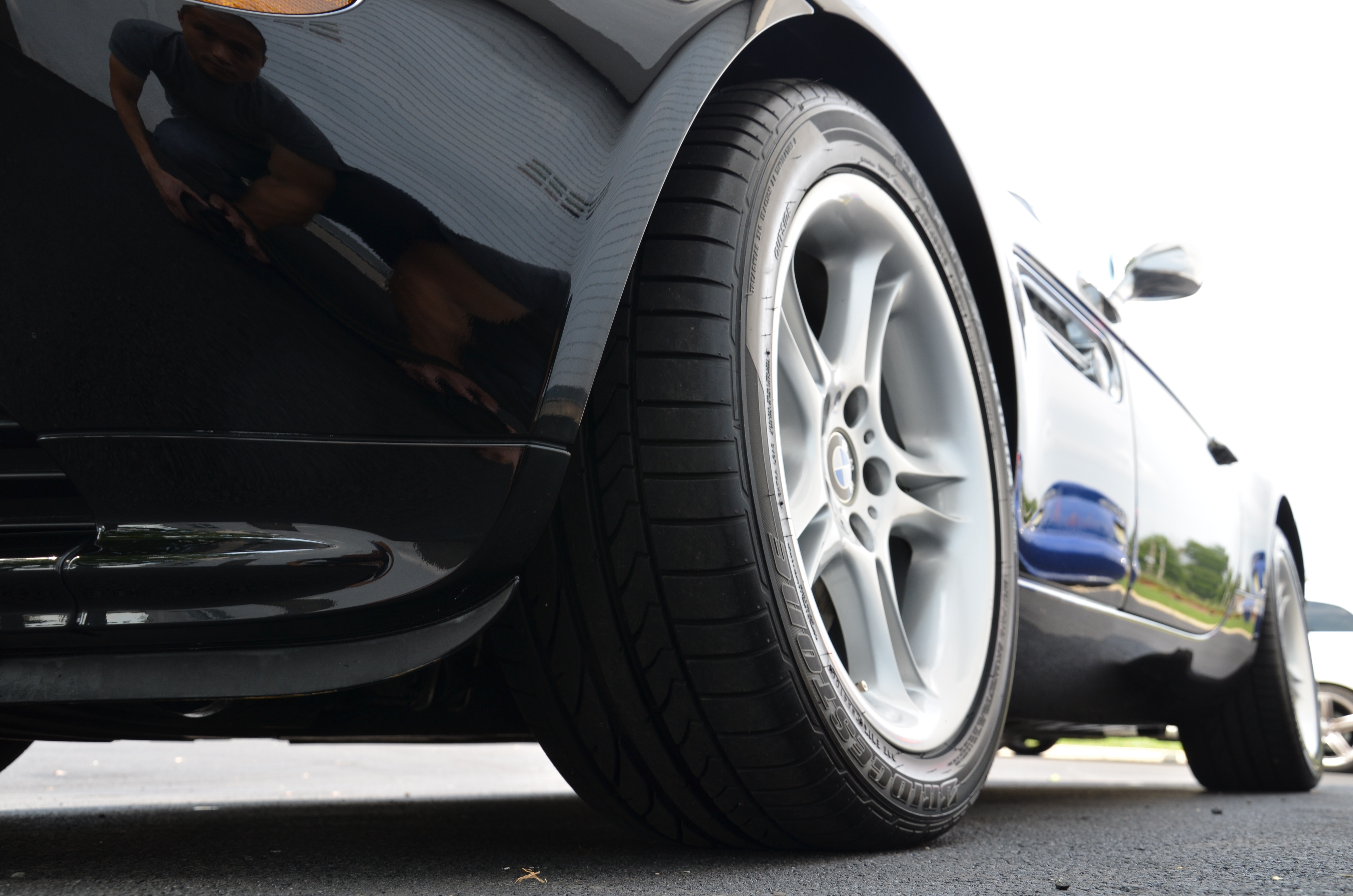

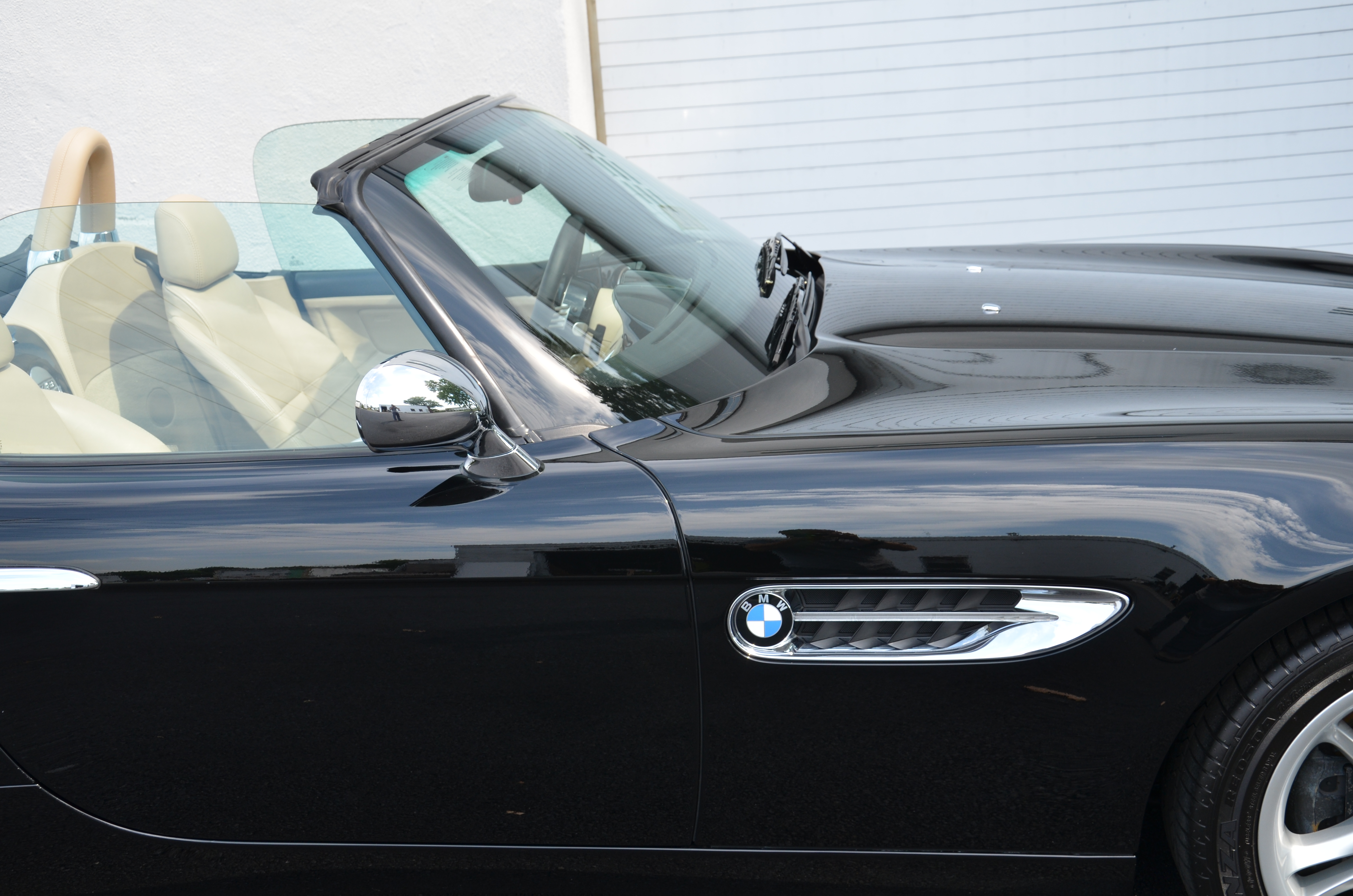

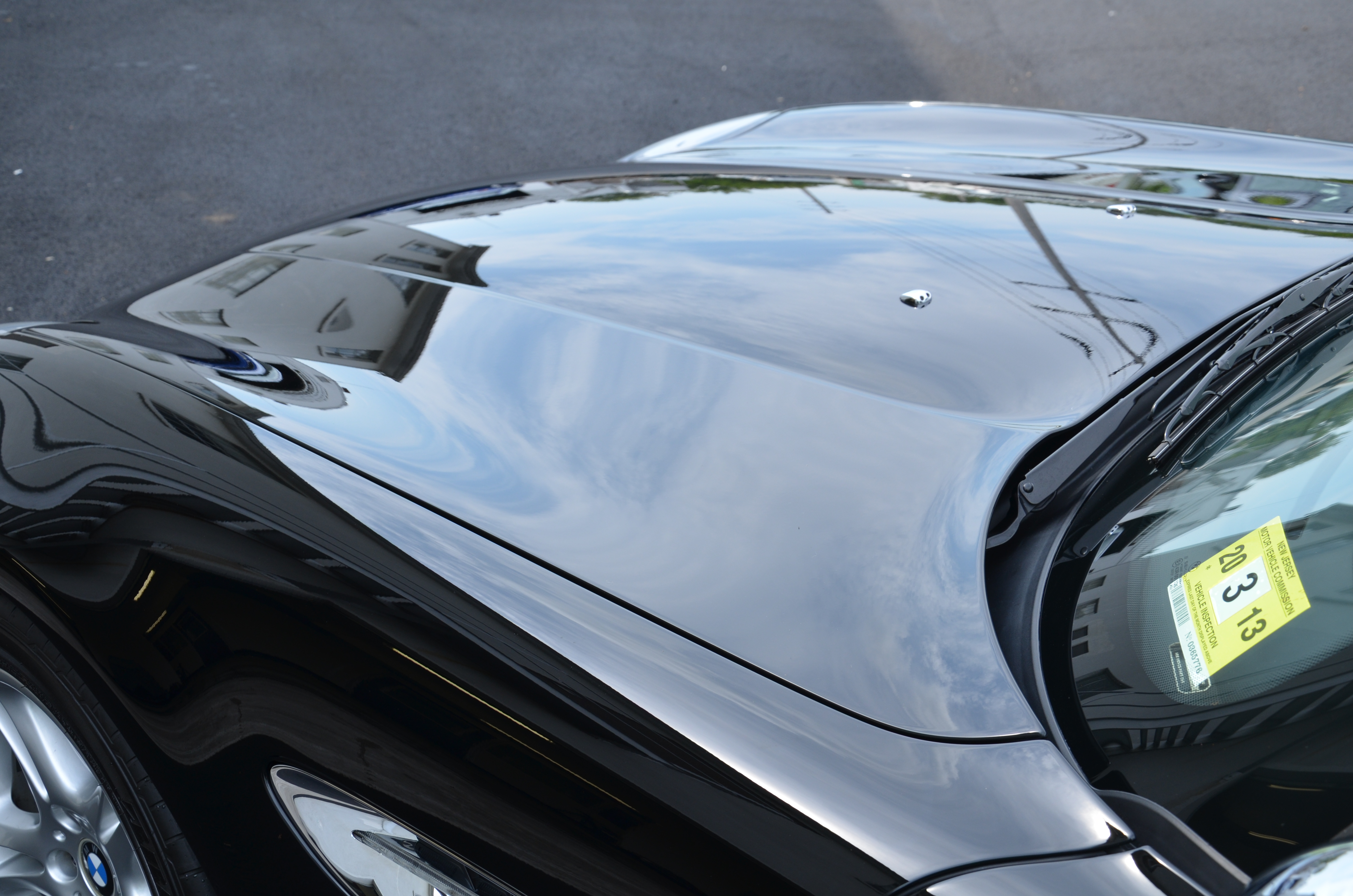

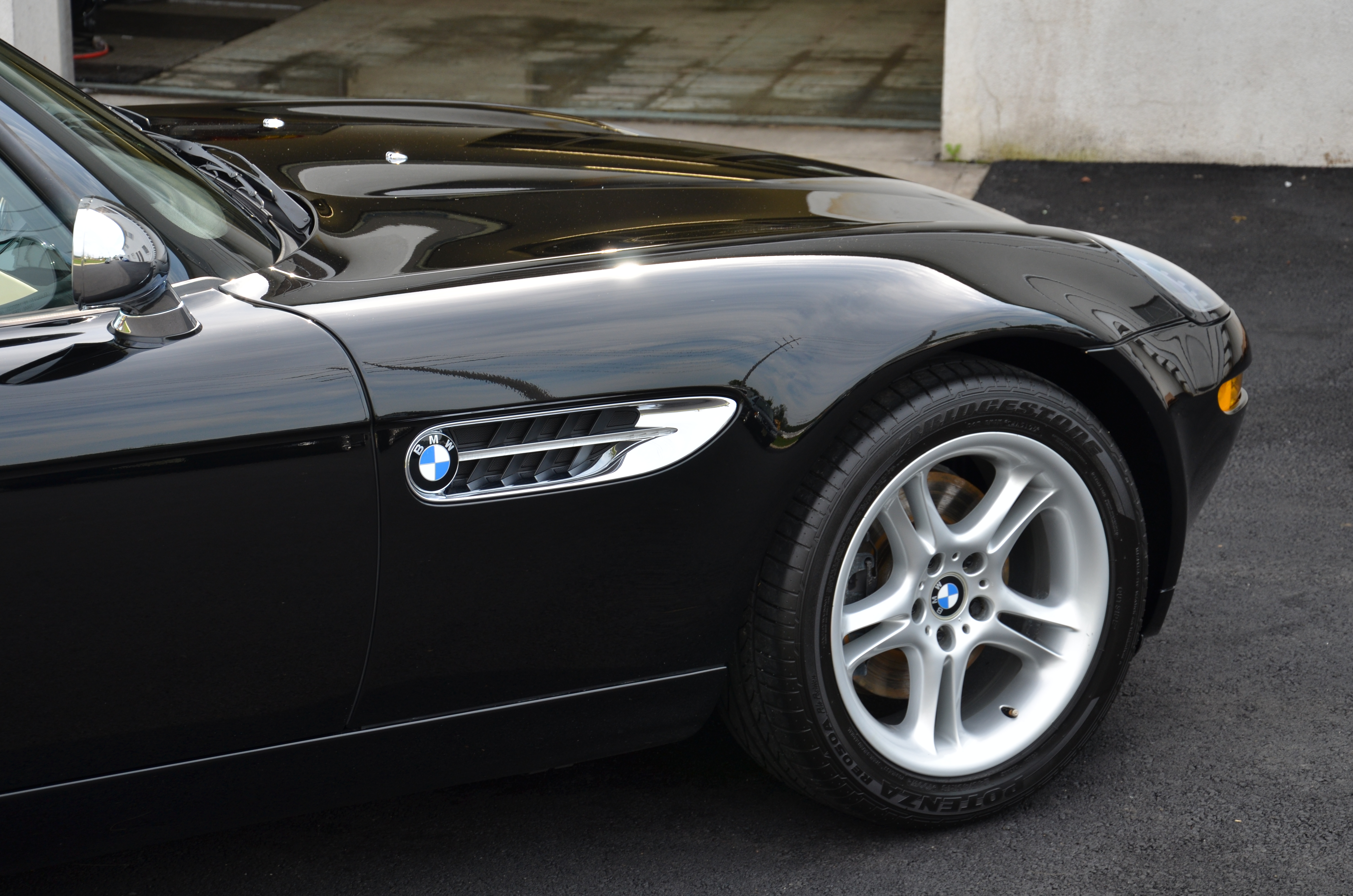

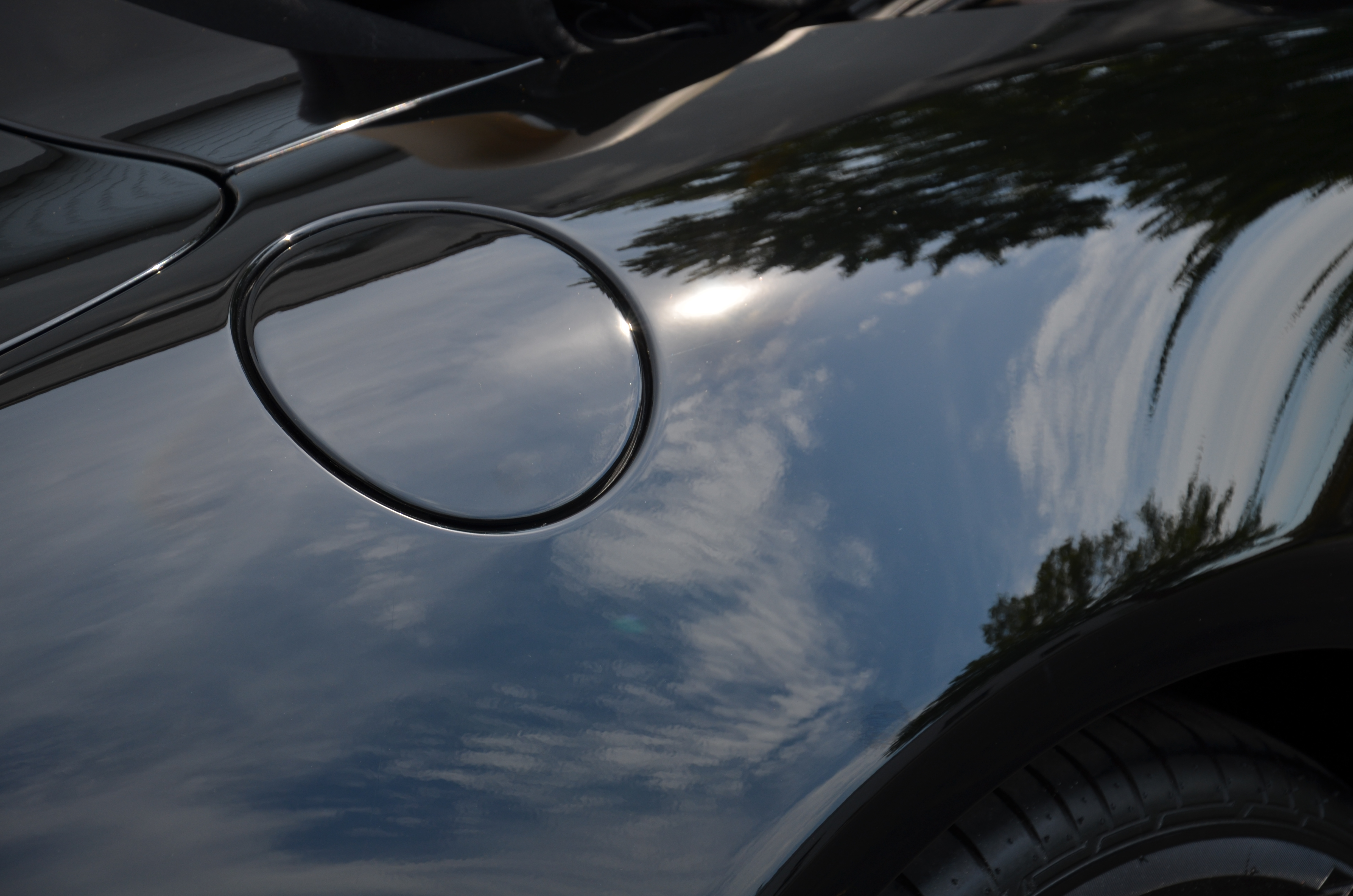

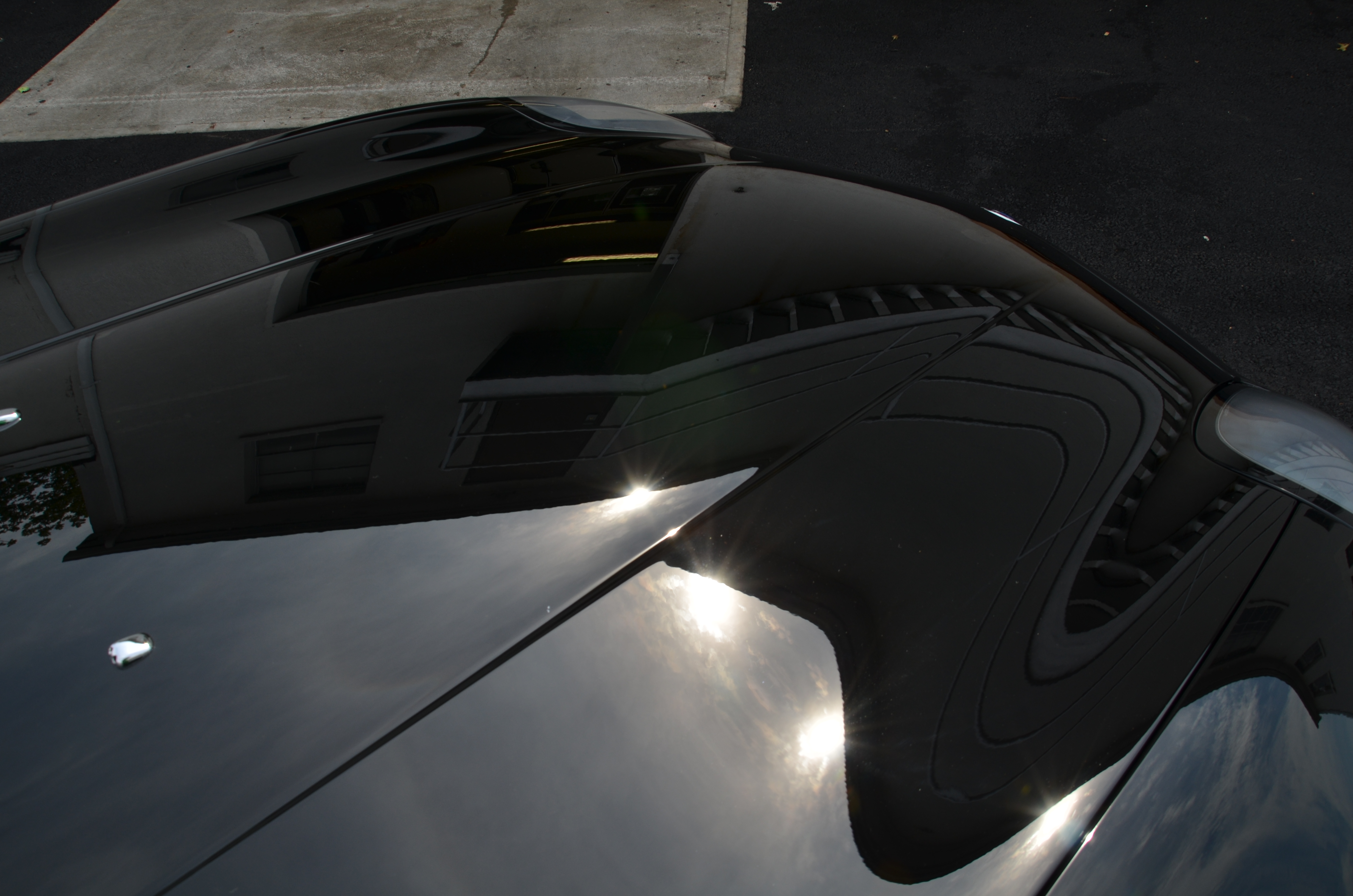

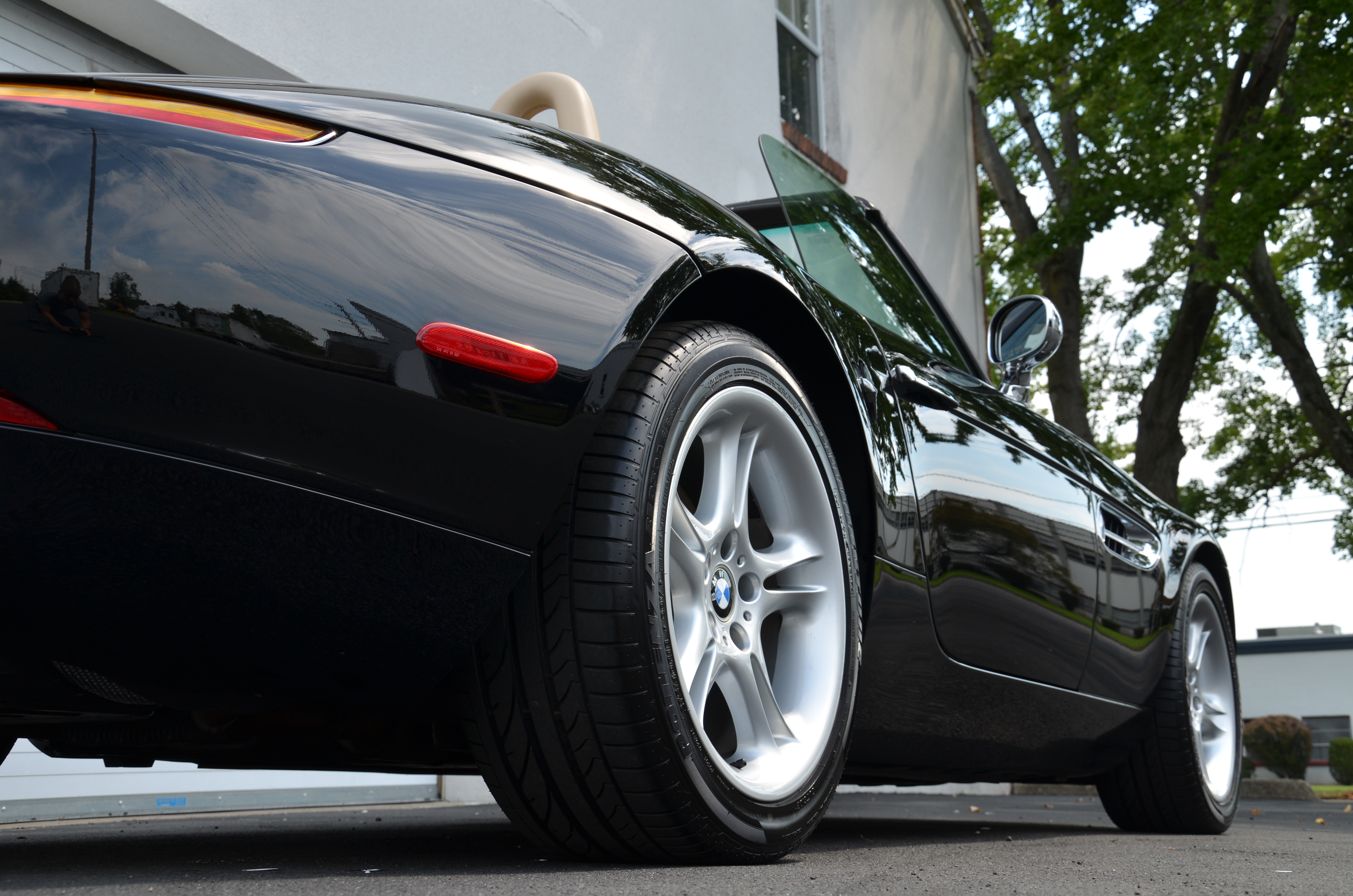

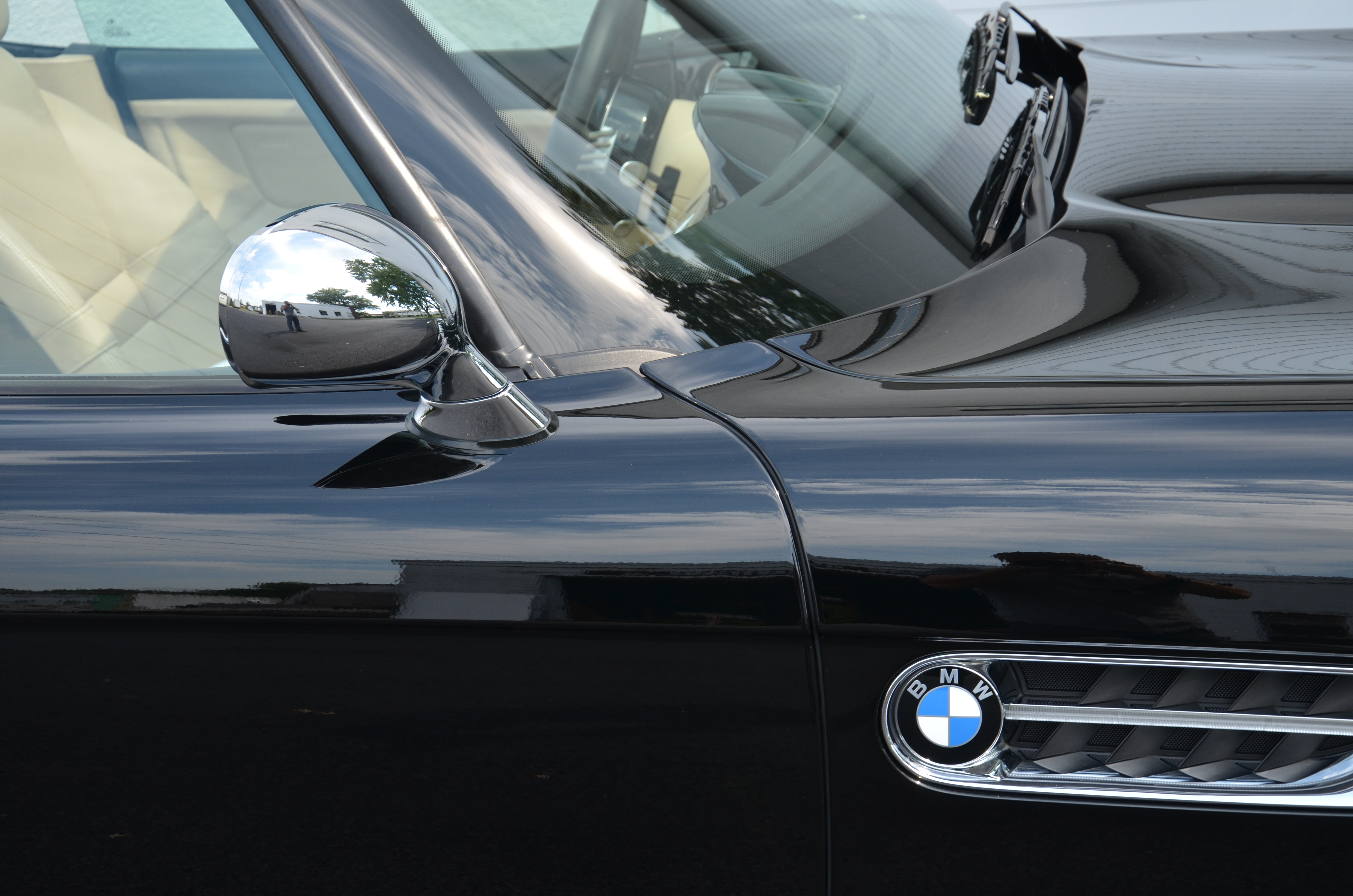

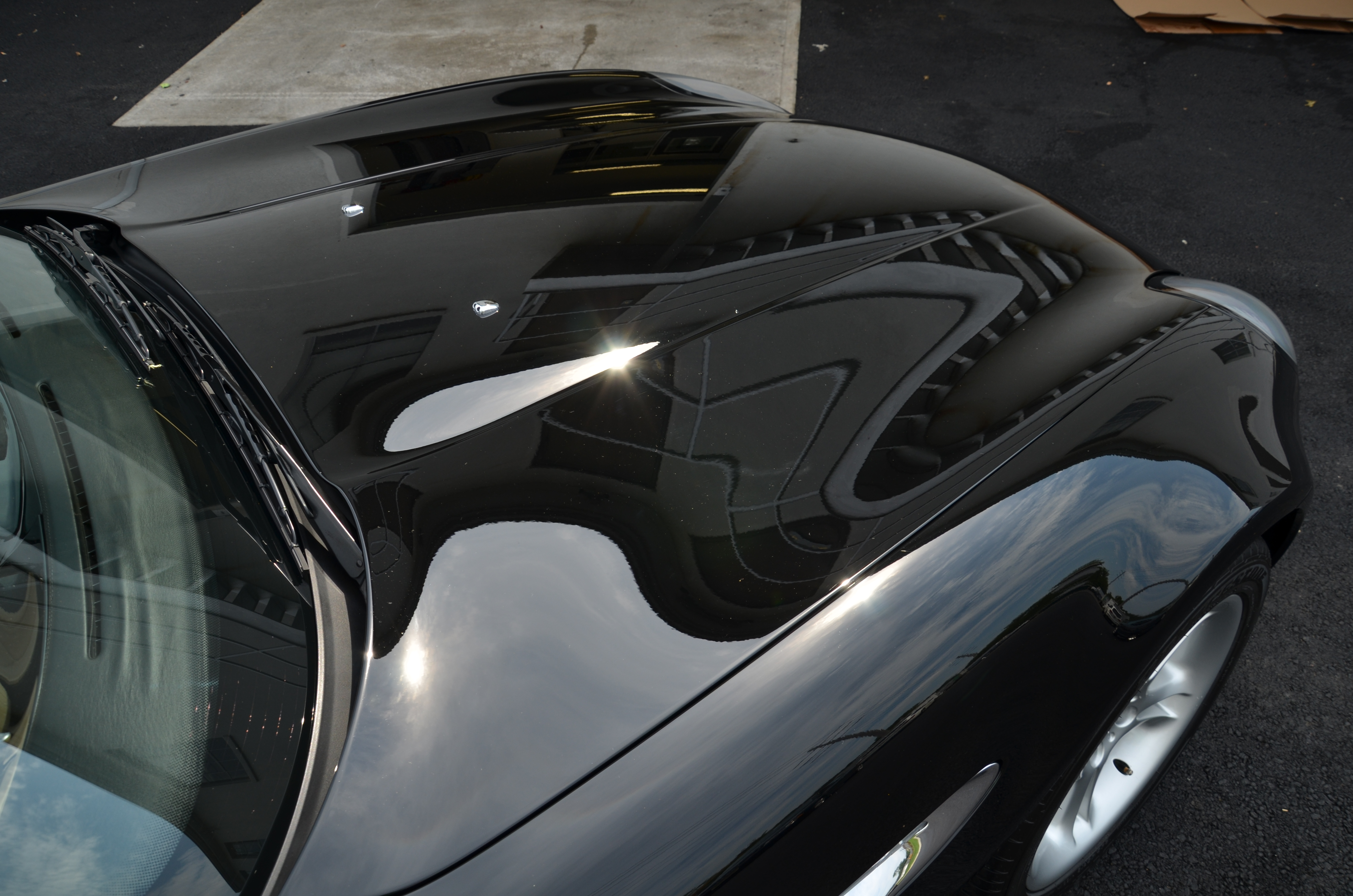

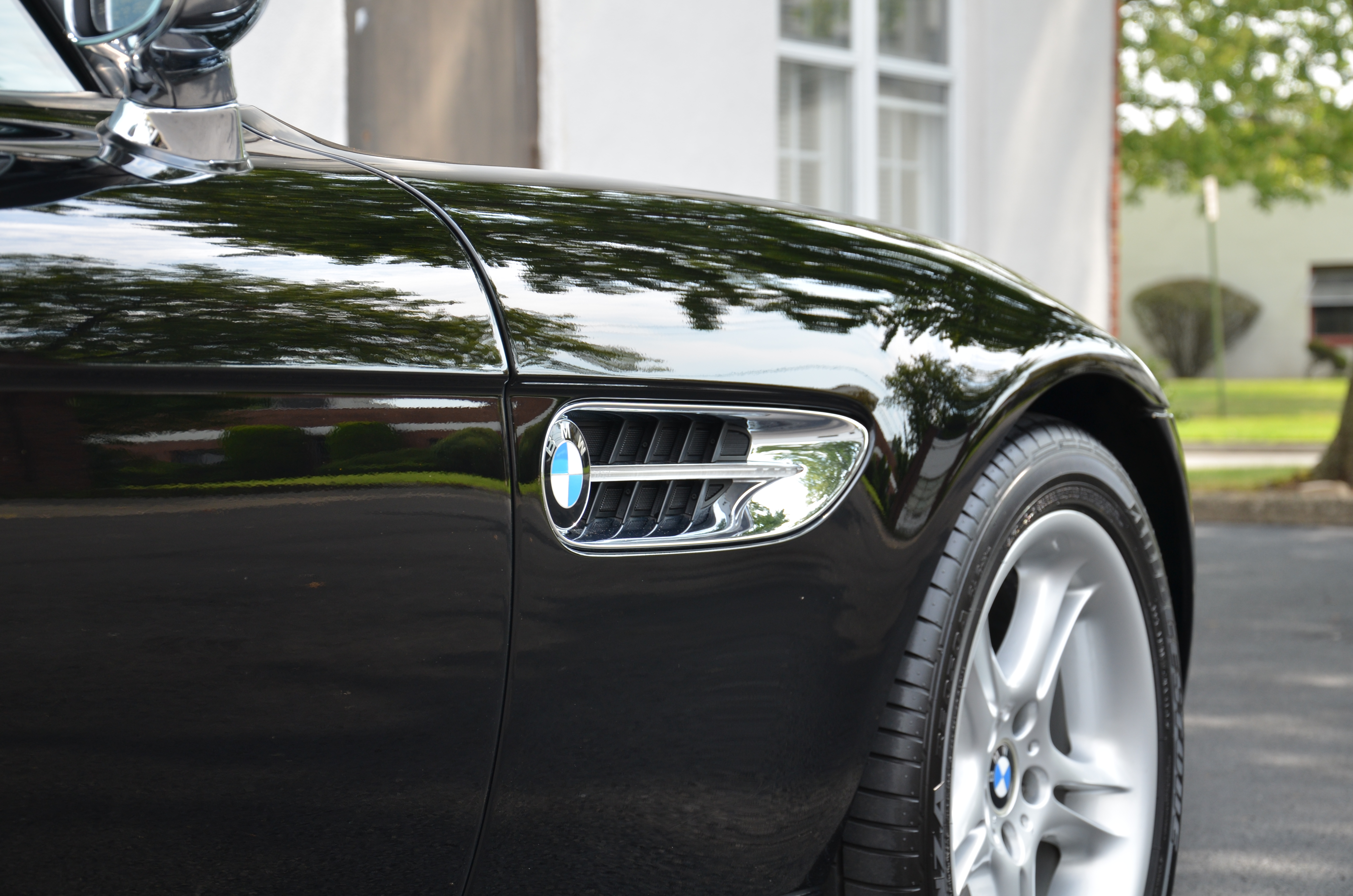

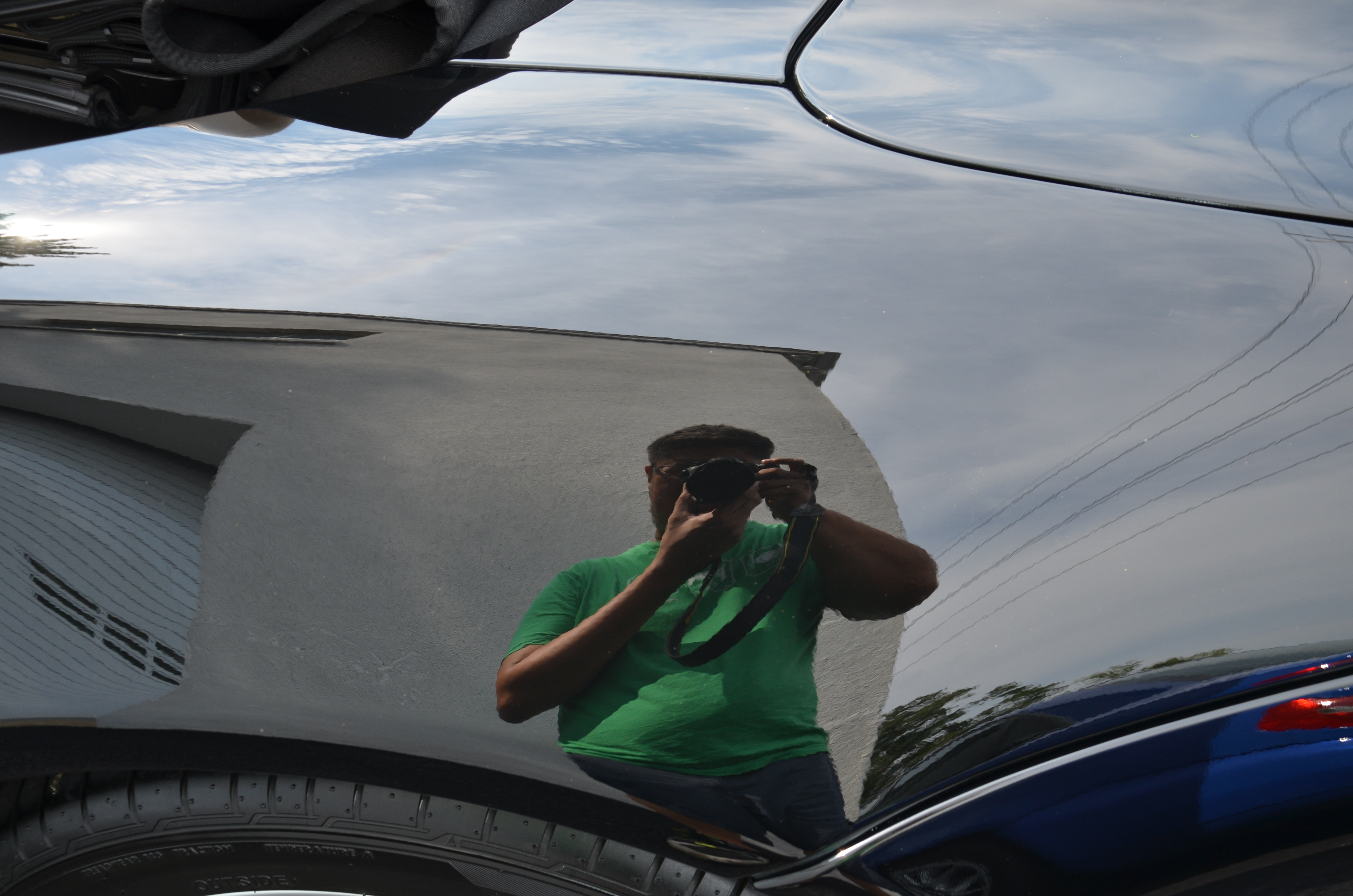

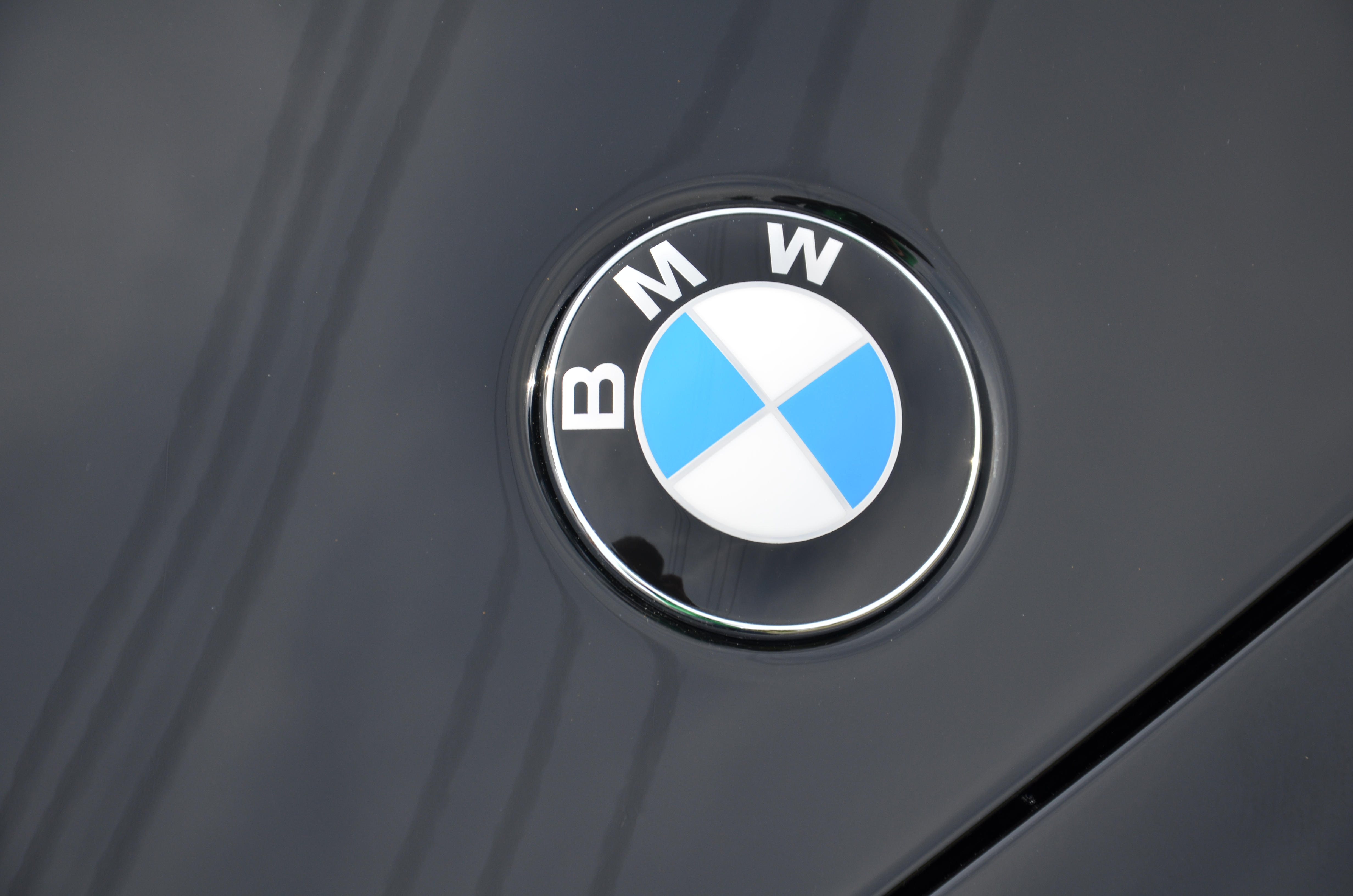

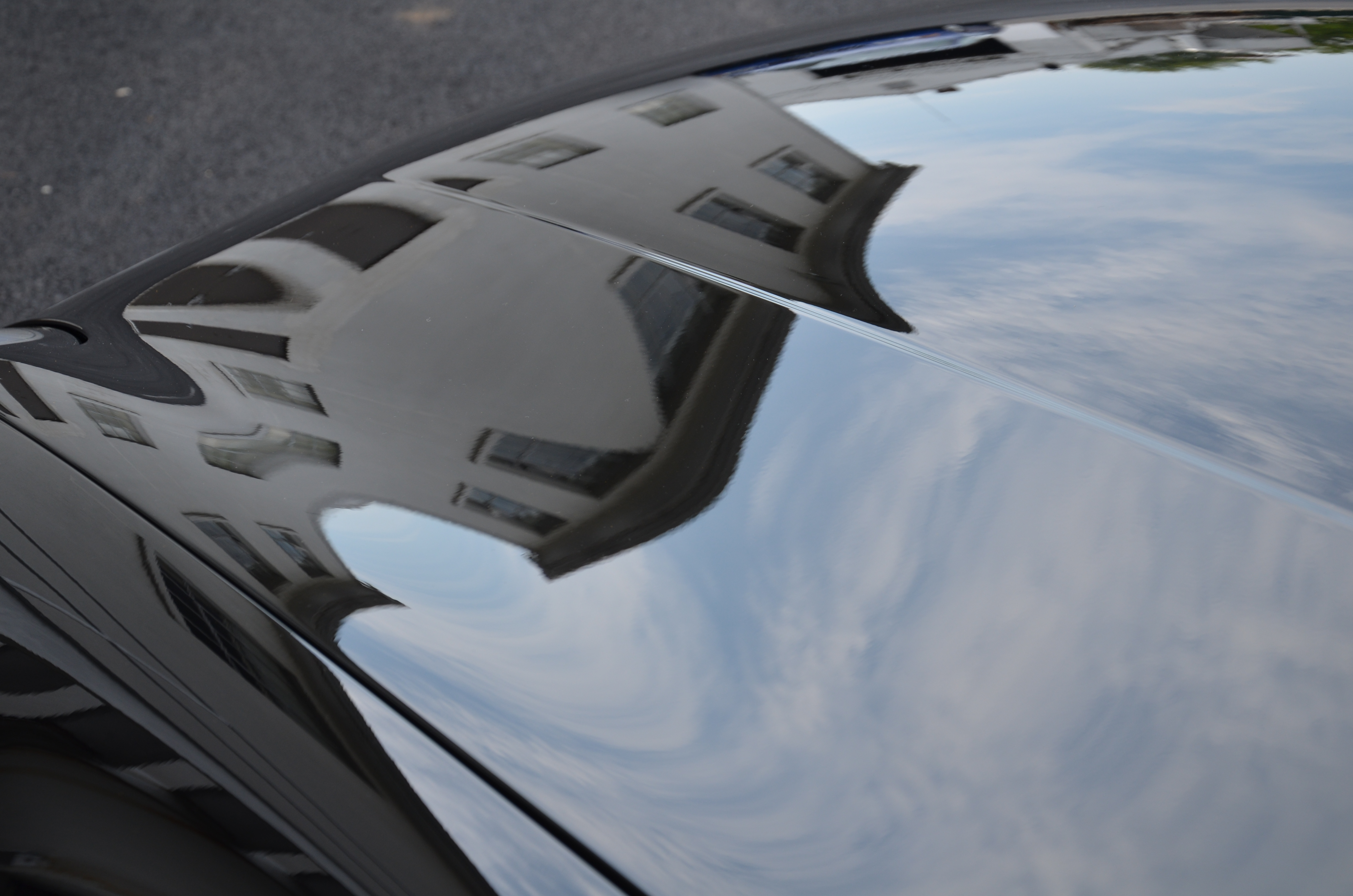

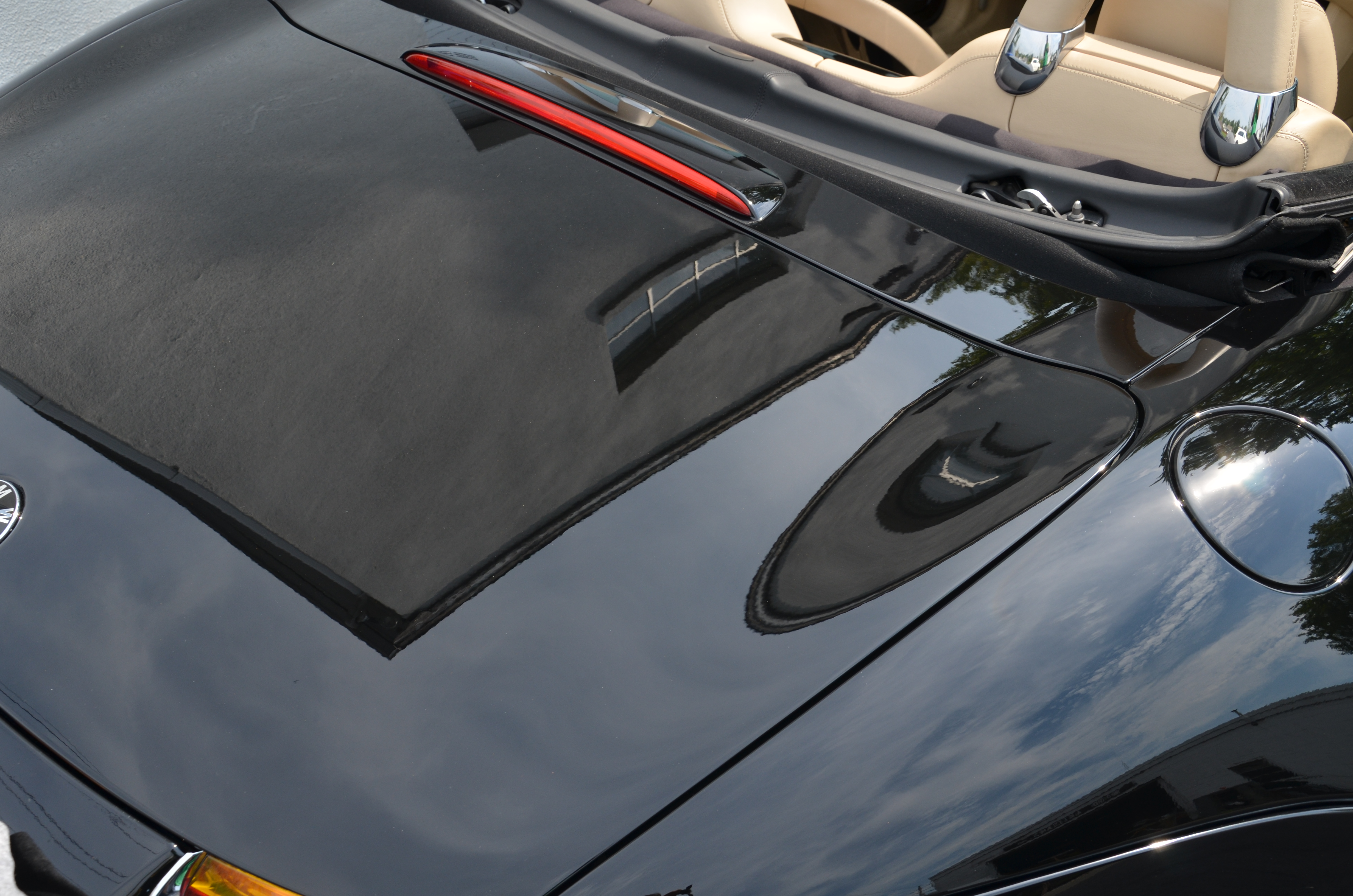

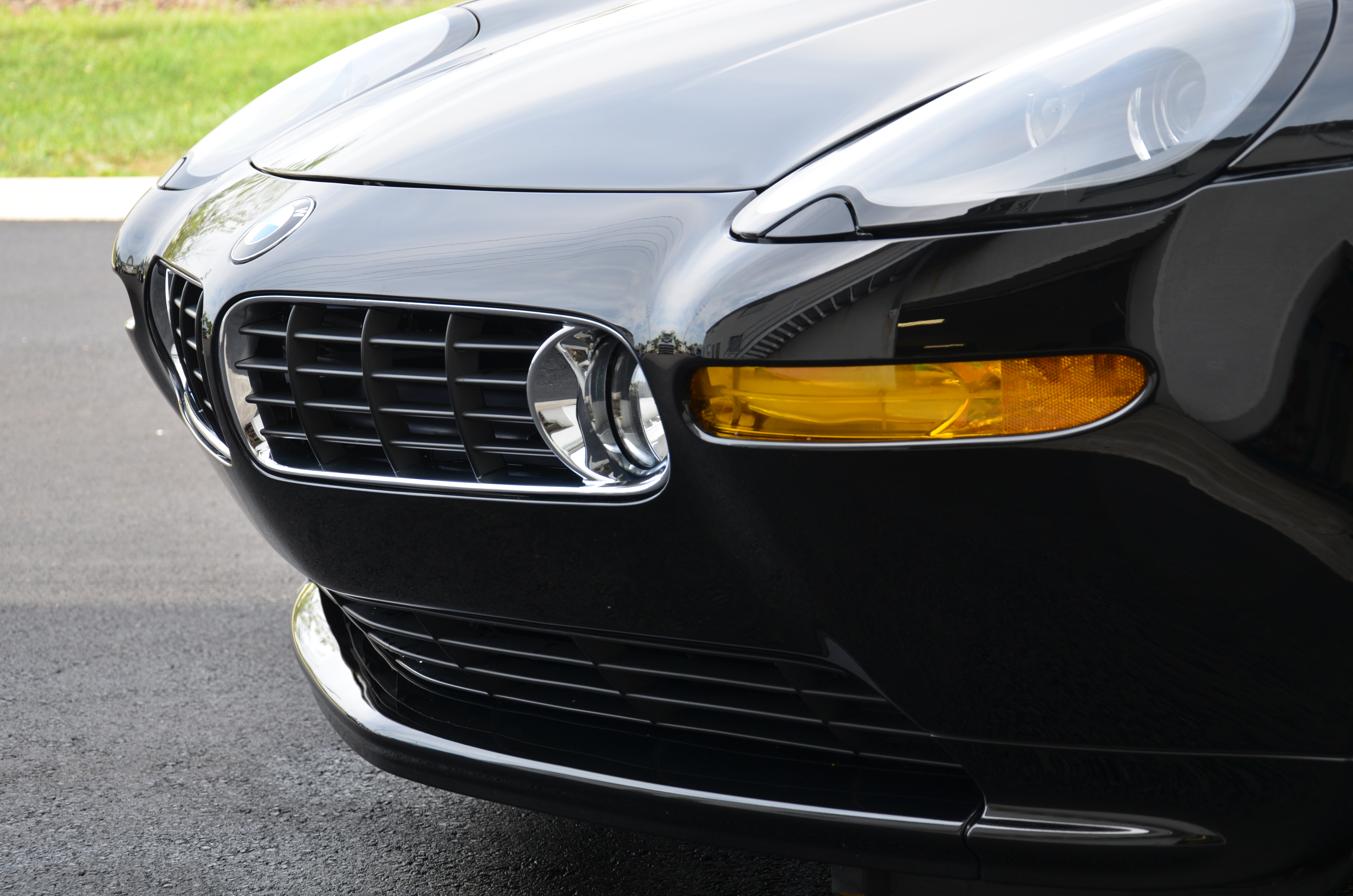

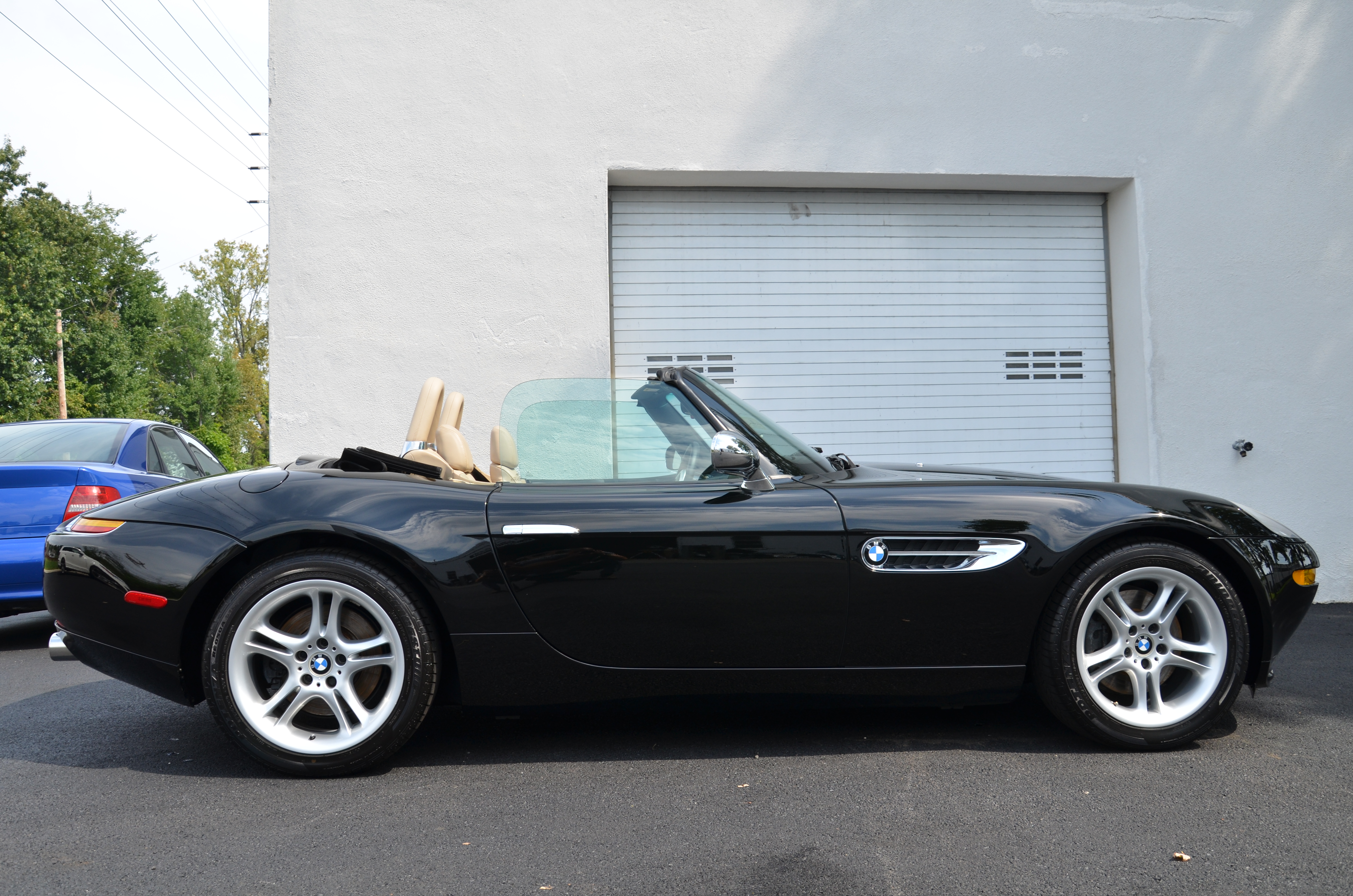

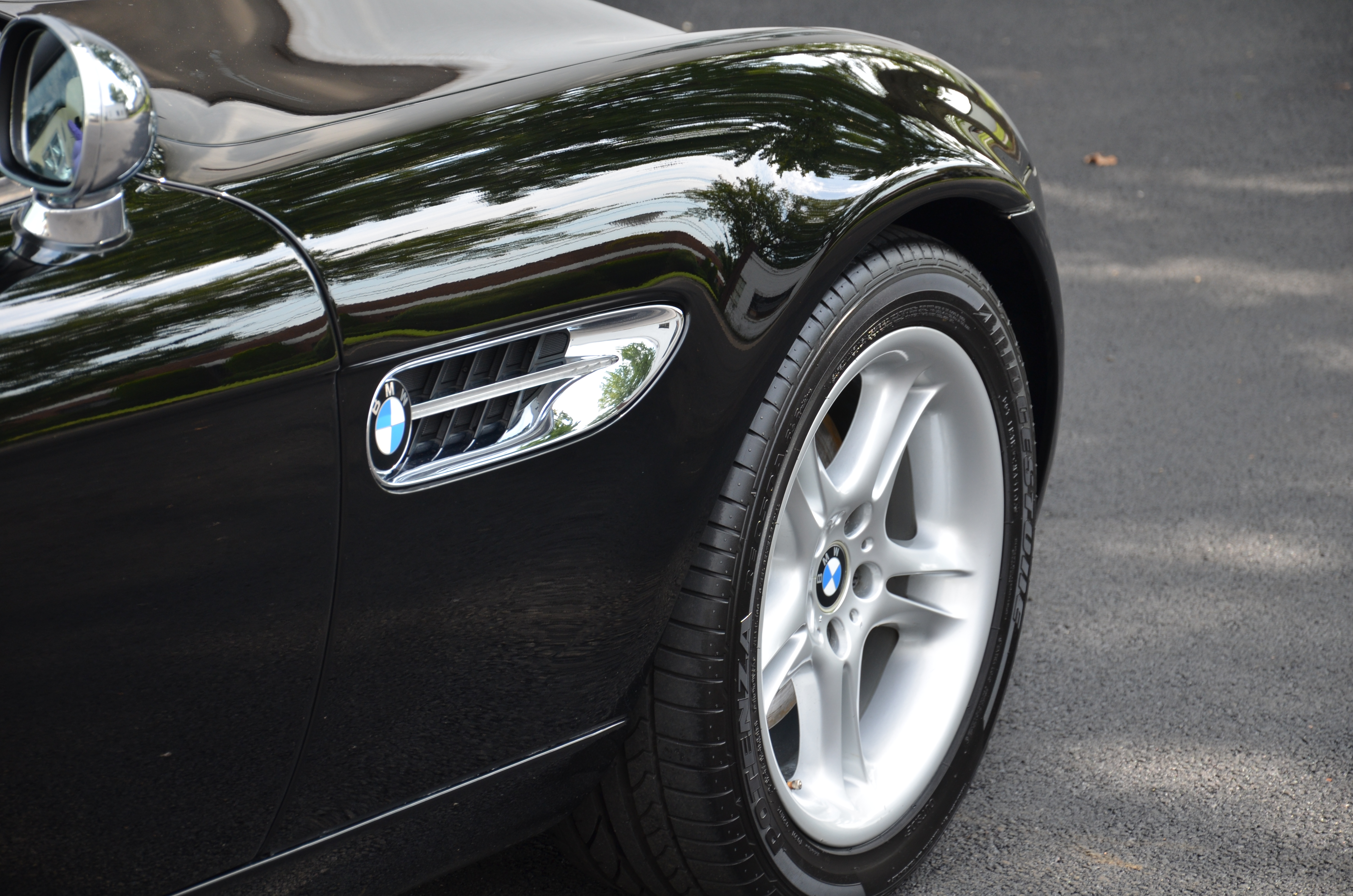

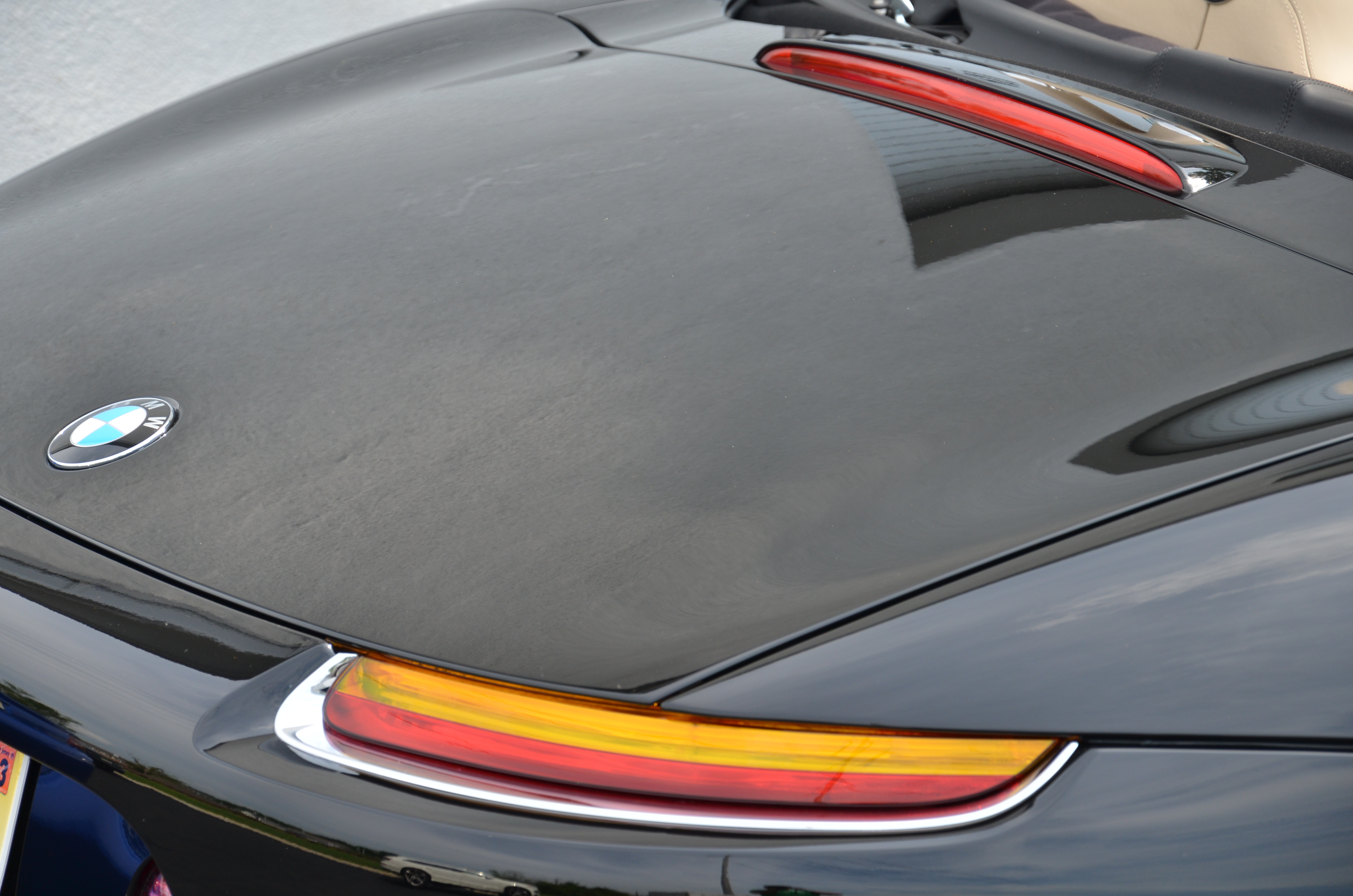

Afters
Name:  DSC_7689.jpg
Views: 48
Size:  5.19 MB
Name:  DSC_7660.jpg
Views: 37
Size:  5.32 MB
Name:  DSC_7659.jpg
Views: 36
Size:  6.49 MB
Name:  DSC_7667.jpg
Views: 32
Size:  5.39 MB
Name:  DSC_7671.jpg
Views: 40
Size:  4.83 MB
Name:  DSC_7701.jpg
Views: 27
Size:  5.60 MB
Name:  DSC_7695.jpg
Views: 48
Size:  6.27 MB
Name:  DSC_7694.jpg
Views: 54
Size:  5.66 MB
Name:  DSC_7692.jpg
Views: 45
Size:  5.22 MB
Name:  DSC_7691.jpg
Views: 32
Size:  4.72 MB

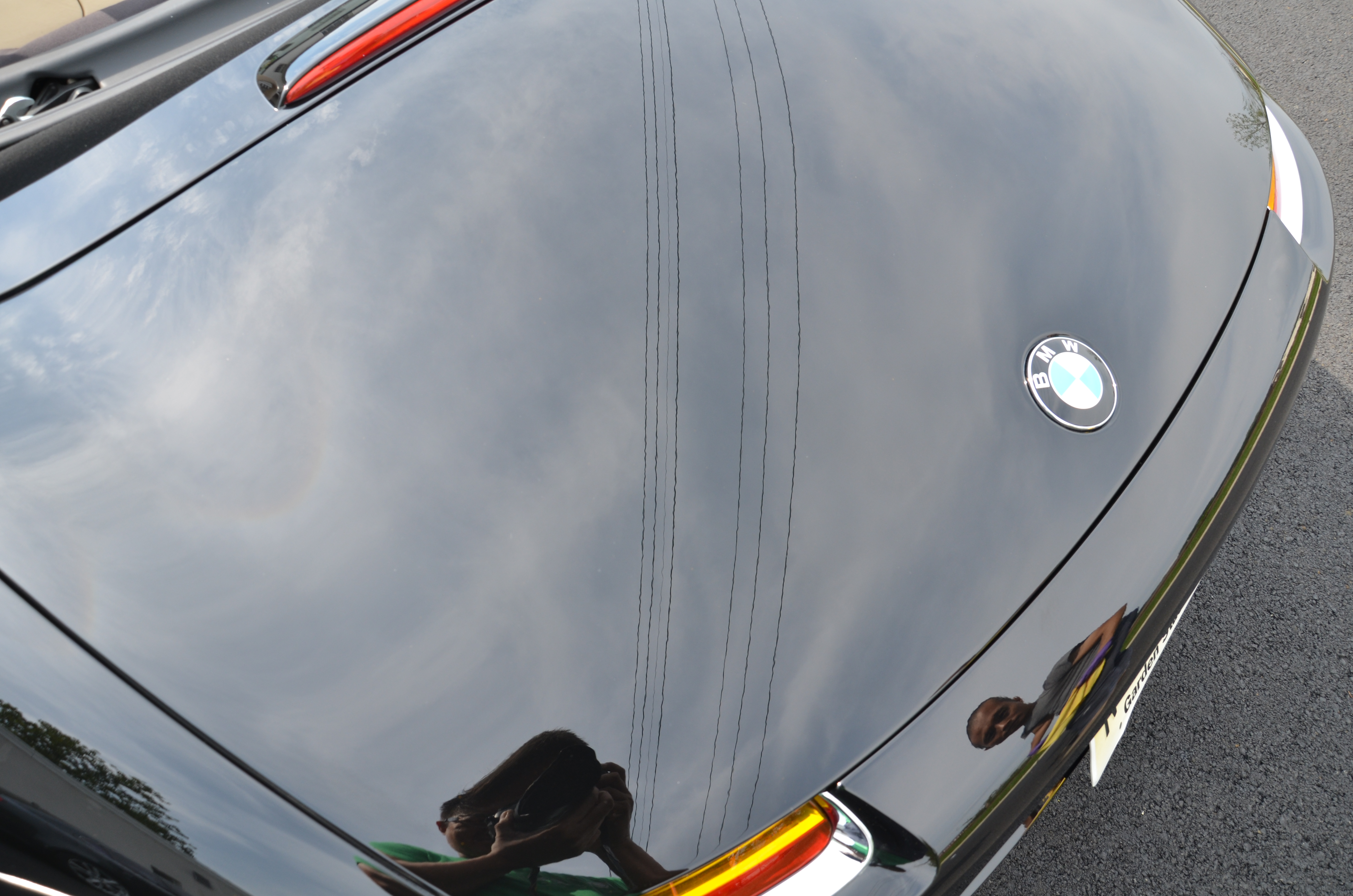

Name:  DSC_7688.jpg
Views: 39
Size:  5.53 MB
Name:  DSC_7684.jpg
Views: 45
Size:  5.94 MB
Name:  DSC_7682.jpg
Views: 35
Size:  5.43 MB
Name:  DSC_7678.jpg
Views: 29
Size:  5.44 MB
Name:  DSC_7674.jpg
Views: 28
Size:  5.45 MB
Name:  DSC_7706.jpg
Views: 33
Size:  4.68 MB

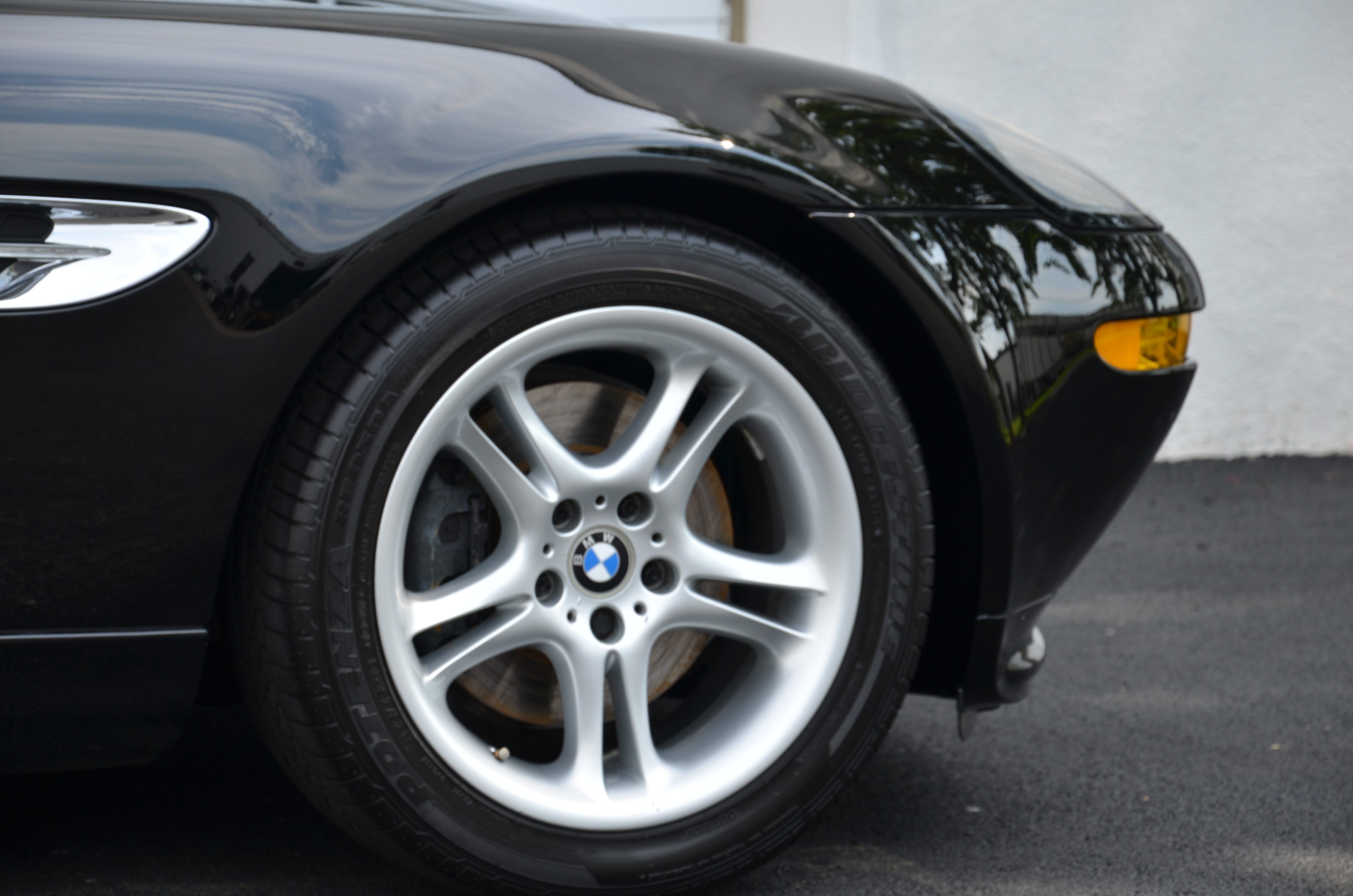

Name:  DSC_7712.jpg
Views: 50
Size:  5.08 MB
Name:  DSC_7711.jpg
Views: 39
Size:  6.26 MB
Name:  DSC_7713.jpg
Views: 38
Size:  5.94 MB

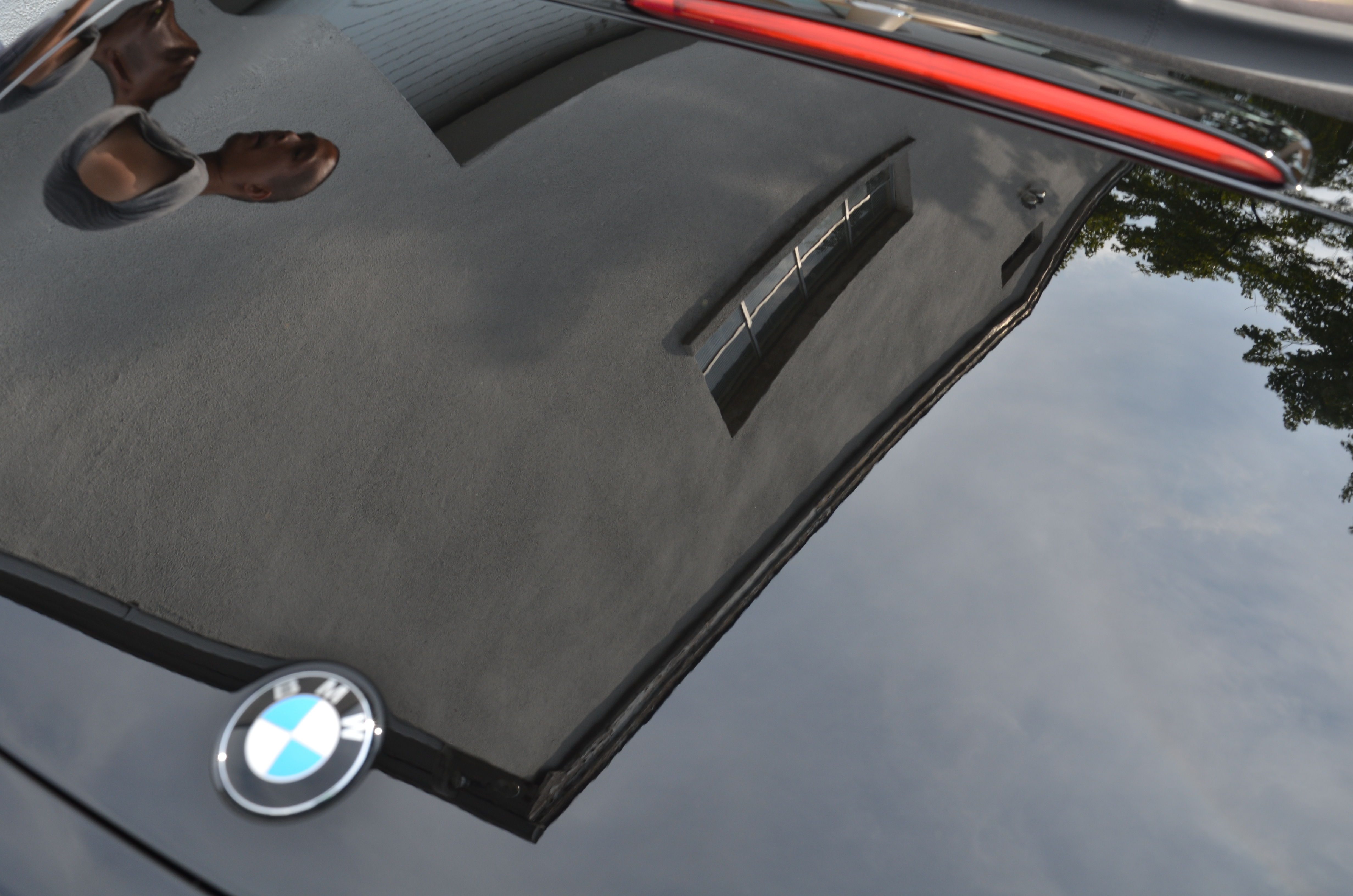

Name:  DSC_7719.jpg
Views: 20
Size:  5.92 MB
Name:  DSC_7720.jpg
Views: 23
Size:  5.45 MB

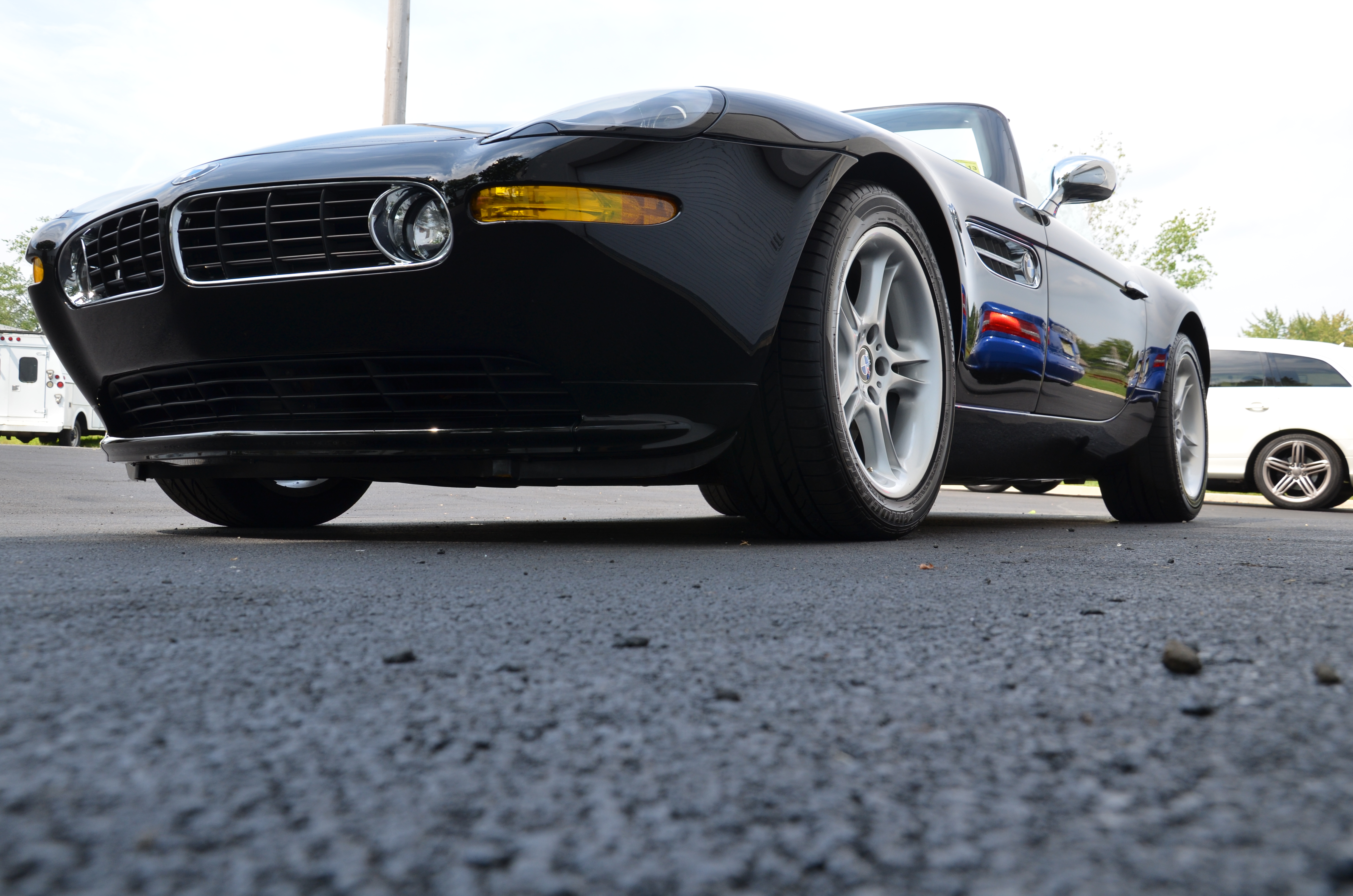

Name:  DSC_7723.jpg
Views: 21
Size:  5.43 MB
Name:  DSC_7726.jpg
Views: 24
Size:  4.67 MB
Name:  DSC_7750.jpg
Views: 21
Size:  6.00 MB

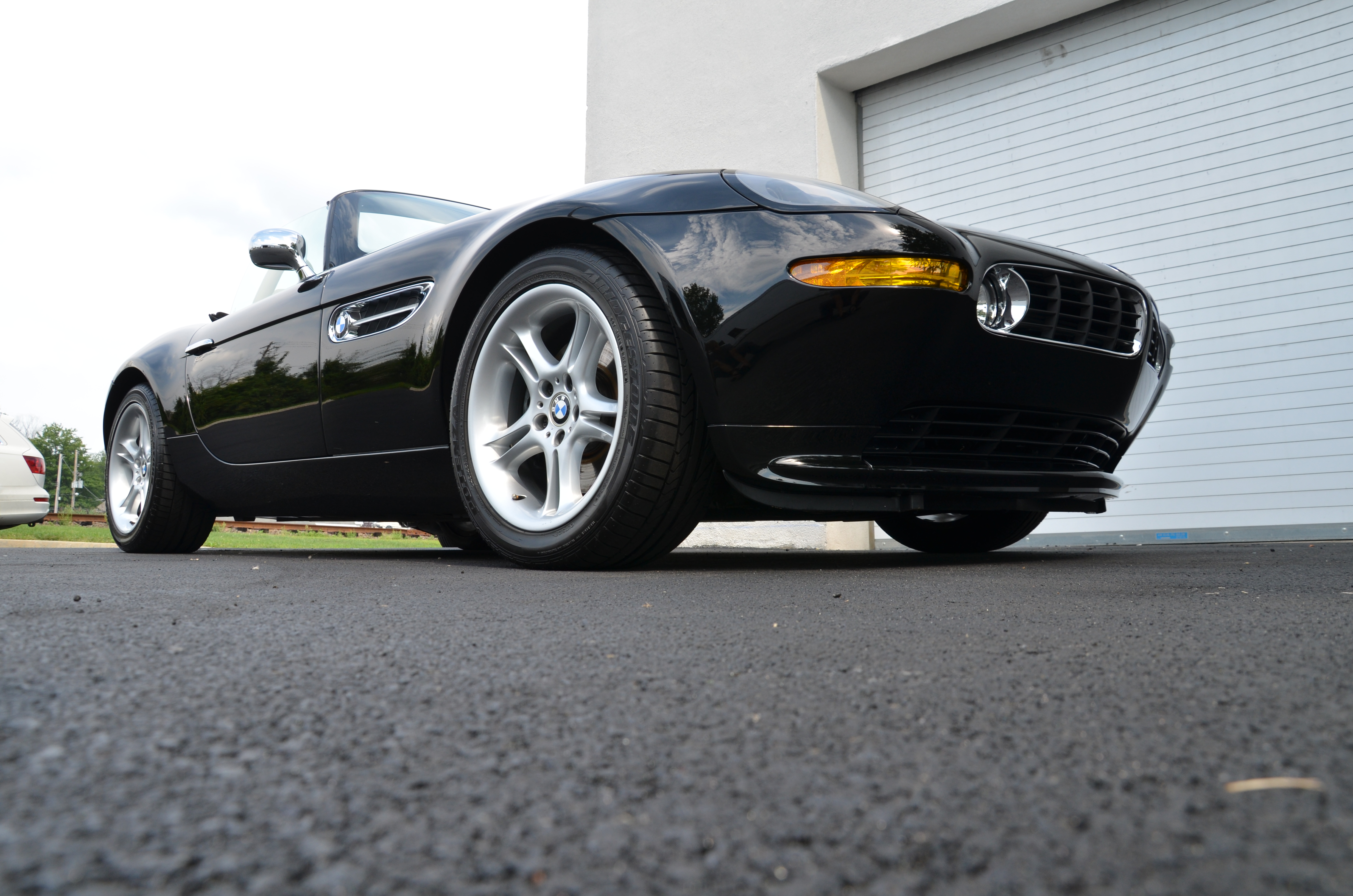

Name:  DSC_7759.jpg
Views: 19
Size:  5.41 MB
Name:  DSC_7757.jpg
Views: 25
Size:  5.70 MB
Name:  DSC_7756.jpg
Views: 29
Size:  5.15 MB
Name:  DSC_7755.jpg
Views: 21
Size:  5.71 MB
Name:  DSC_7733.jpg
Views: 22
Size:  7.39 MB

Enjoy

Reply
Old Sep 17, 2012 | 07:23 PM
  #3
bdeitemeyer's Avatar
Registered User
iTrader: (2)
Joined: Aug 2008
Posts: 103
Likes: 5
From: Tampa, FL
Amazing work, nothing looks better than a recently corrected dark paintjob in my opinion...especially when completed at such high standards as this one was.

Reply
Old Sep 17, 2012 | 09:28 PM
  #4
itgogitrev's Avatar
Registered User
iTrader: (1)
Joined: Feb 2008
Posts: 976
Likes: 10
From: Cincy
Nice work!

Just got some of the Aquartz IronCut from you guys about a month ago. Easily cut my claying time in half!

Tried it on the wifey's car (a white Matrix that have NEVER been cleaned properly) and it looked like a tie-dye shirt.

Just be prepared for the smell... It's stanky isht, but it works great!

I'll need to hit you guys up for some pads for my RO later on.

Reply
Old Sep 18, 2012 | 11:07 AM
  #5
DetailersDomain's Avatar
Thread Starter
|
Former G35driver Vendor
Joined: Jul 2010
Posts: 464
Likes: 8
Originally Posted by itgogitrev
Nice work!

Just got some of the Aquartz IronCut from you guys about a month ago. Easily cut my claying time in half!

Tried it on the wifey's car (a white Matrix that have NEVER been cleaned properly) and it looked like a tie-dye shirt.

Just be prepared for the smell... It's stanky isht, but it works great!

I'll need to hit you guys up for some pads for my RO later on.
yup it stinks but is a very effective tool.

on your next order pick up a nanoskin autoscrub pad and you will cut your clay time down at least another 25% if not more.
