JWT Flywheel Install HELP

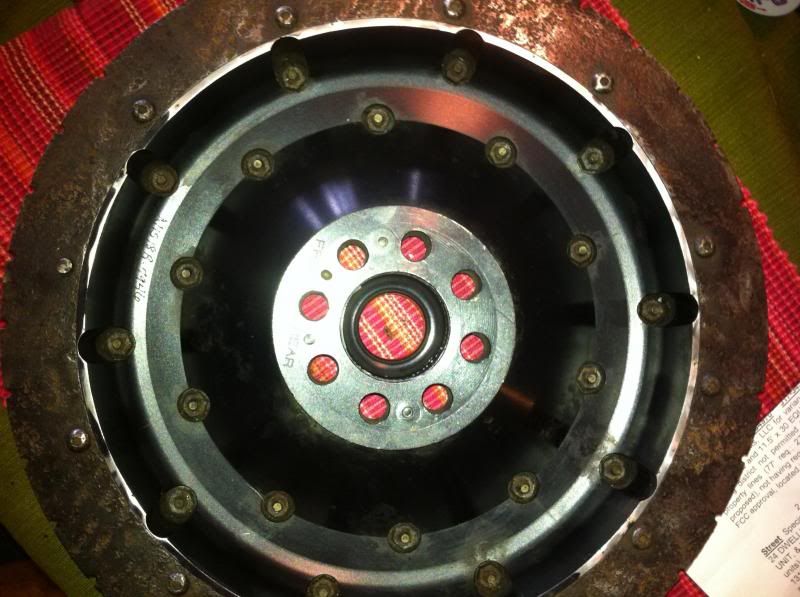

In process of getting clutch and flywheel in and came to a part i cant figure out how to line this flywheel up to the crankshaft dot on engine with flywheel. There is 4 little holes on the back of flywheel 2 of them says FRONT and REAR then 2 others. Having trouble in what one to line up to the red dot any help would be amazing see pics below.

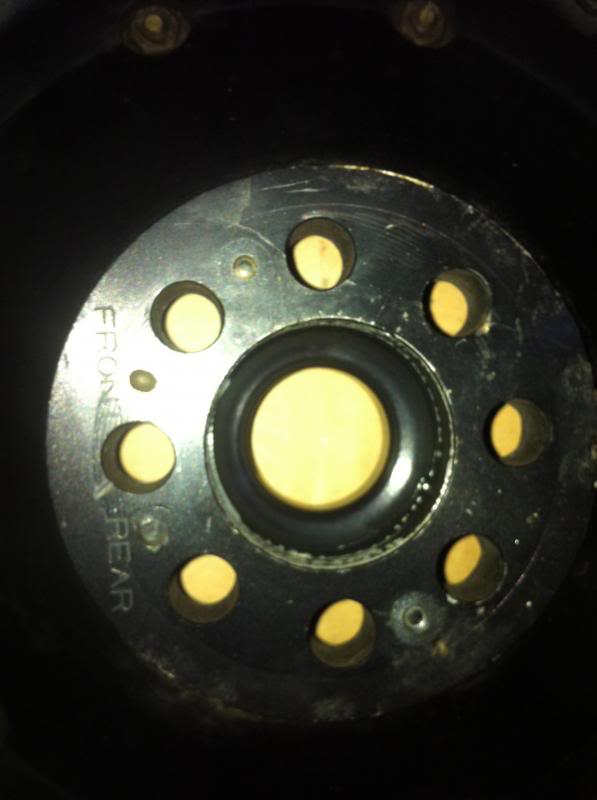

Name:  asset-4.jpg
Views: 815
Size:  32.8 KB

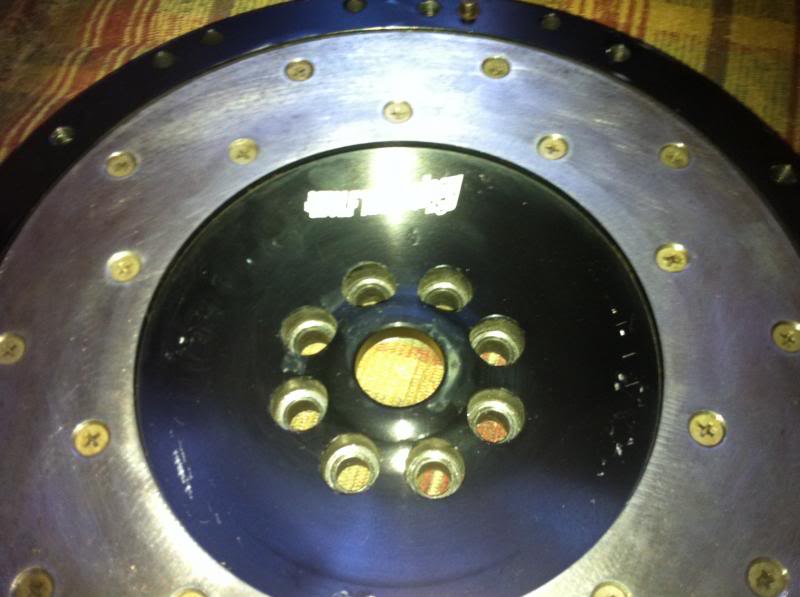

Name:  asset-5.jpg
Views: 768
Size:  50.1 KB

DOT ON CRANKSHAFT
Name:  positiondot.jpg
Views: 1561
Size:  56.2 KB

Reply
Old Apr 15, 2013 | 11:31 AM
  #2
DEMoLITIoN's Avatar
Registered User
iTrader: (15)
Joined: Jan 2008
Posts: 1,469
Likes: 46
From: North Bay 707
Put the motor on Top Dead Center. Also, screw the Crank position sensor back in. The pin should be at the 1-2 o clock position. Make sure the dowel pin fits the flywheel and it should go on with the 'jwt' writing siting at the 12 o clock position. Verify the flywheel is indexed correctly.

Reply
Old Apr 15, 2013 | 05:51 PM
  #3
dvandriesen's Avatar
Thread Starter
|
Registered User
iTrader: (2)
Joined: Feb 2012
Posts: 221
Likes: 6
From: Allentown PA
The flywheel says Rear for the rear wheel drive vehicles it is used with arent i just lining up the rear hole on back to the whole in the image above?
