Hey guys,
I did a search on this on the boards and on google and came up with nothing. I recently purchased a greddy oil catch can from a Z owner at the cape cod meet. He sent it to me but the directions are entirley in Japanese and there is only one picture, however, the picture isnt even of a G35 enginebay, it is of a toyota engine bay so there is no help there. I was wondering if anyone has installed one of these or has seen a DIY that will help me mount and install this properly.
Thanks for al your help.
-Mike



I just installed one on mine. There are two places you can put it, but after a lot of research one is better. To be honest I should have one on both because FI tends to have even more oil blow by.

PM me your email and I will send you some pics.



Anyone else? Im really kind of stuck on this, I cant find a DIY anywhere.



its so easy just follow the instructions here http://www.infinitifx.org/phpBB2/viewtopic.php?t=802 and then locate the place of the PCV hose disconnect it from the plenum side and the PCV valve , connect one side of the catch tank to the PCV valve and the other side to the plenum, and your done

FYI the one i received was with 15 mm hose i should have gotten the one with 9mm because 15mm is too big compared to our 9.5mm PCV valve, both diameters comes with nylon hose with only 1 meter long, its too short because i mounted the catch can near the intake tube side, so you will need 2 3/8 NPT`s and a 3/8 (10mm) hose, use a tough hose like the one used in NOS or fuel applications, bellow is some pictures of my setup.

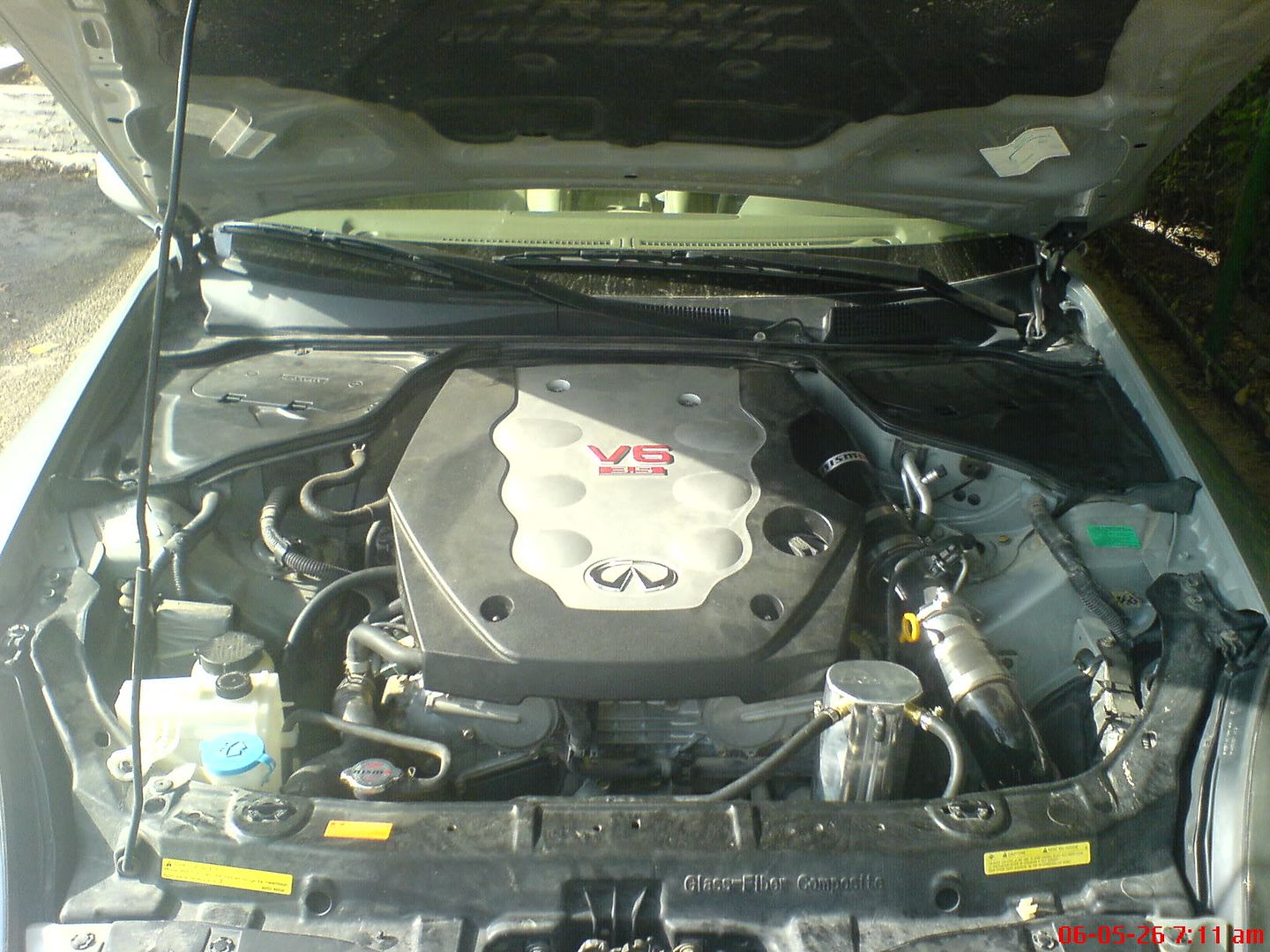

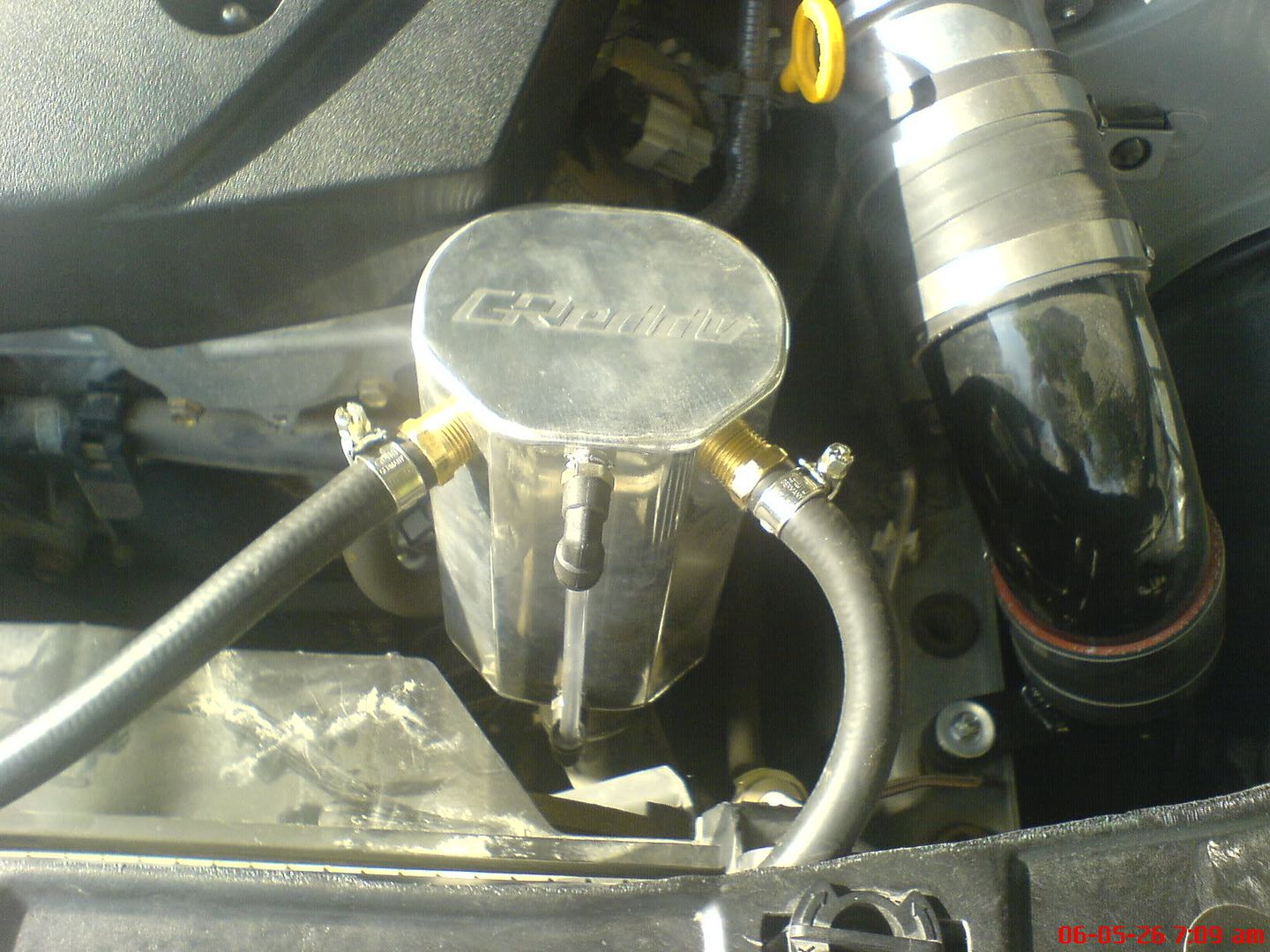

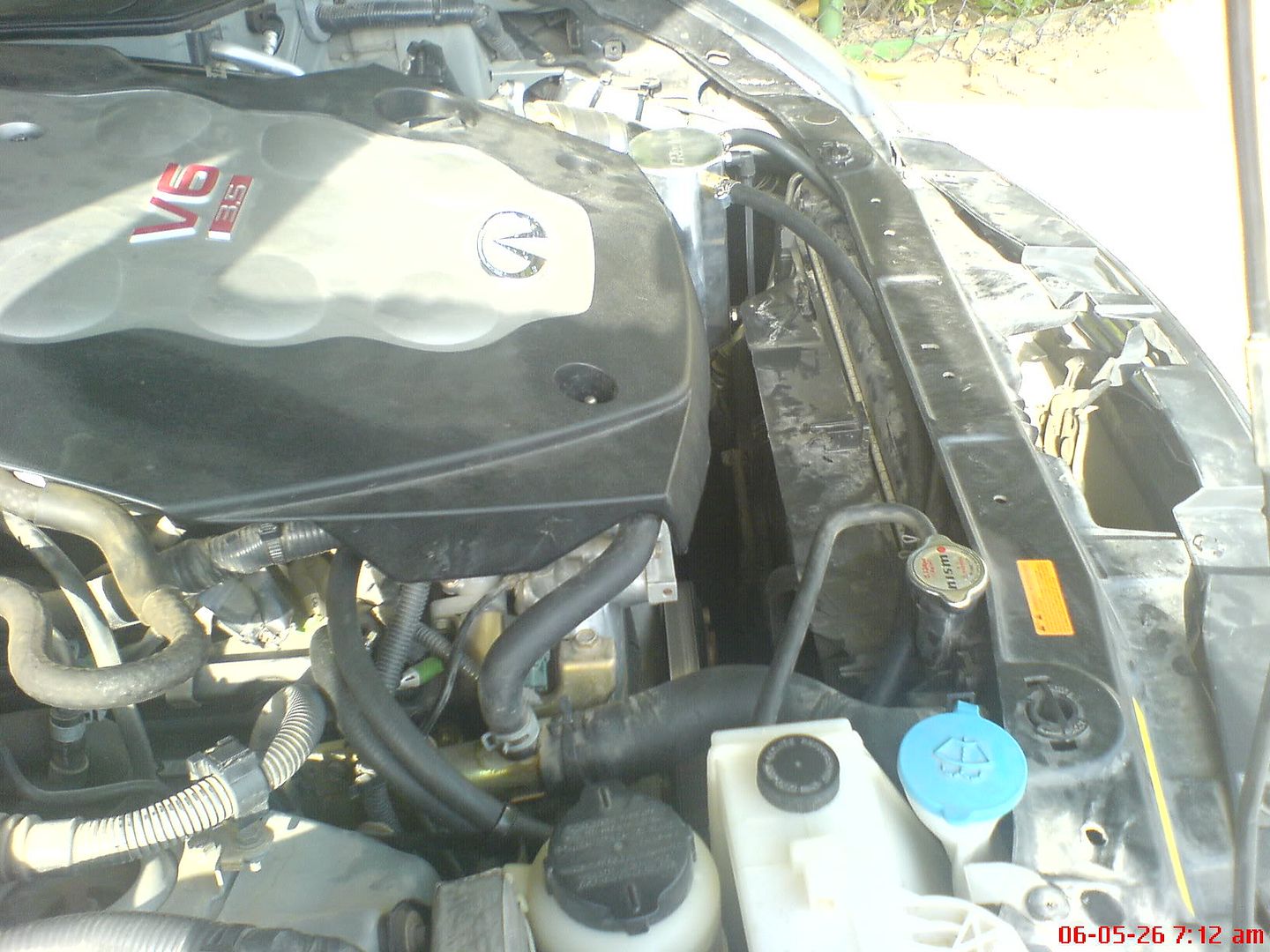

GReddy Oil Catch Tank installed



http://i67.photobucket.com/albums/h3...K/DSC00168.jpg

http://i67.photobucket.com/albums/h3...K/DSC00169.jpg

http://i67.photobucket.com/albums/h3...K/DSC00171.jpg



nice pics.
