So new engine is in with turbo kit on it, new clutch, flywheel and trans all on !

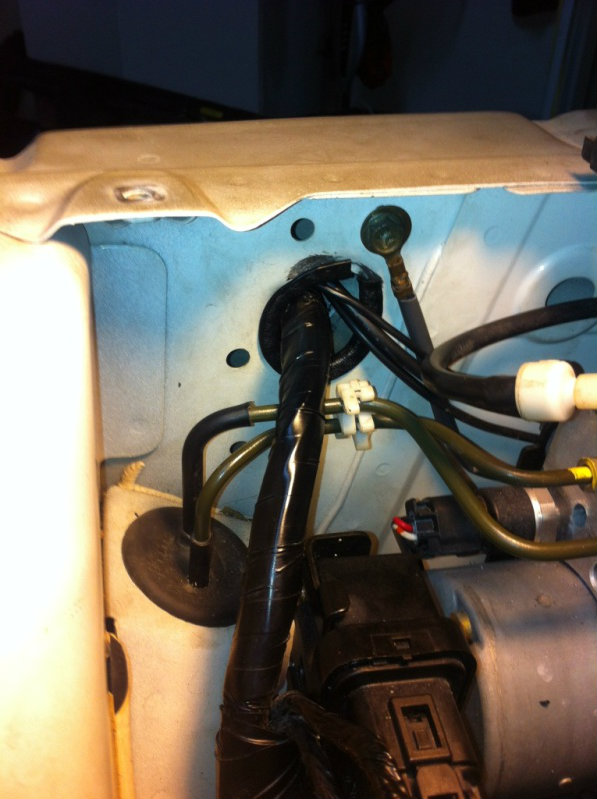

Started doing wire tuck on drivers side (JDM passenger side)

Ended up drilling out the existing hole and also the one inside the compartment. Drilled new hole for ground and used self tapping screw with crush washer

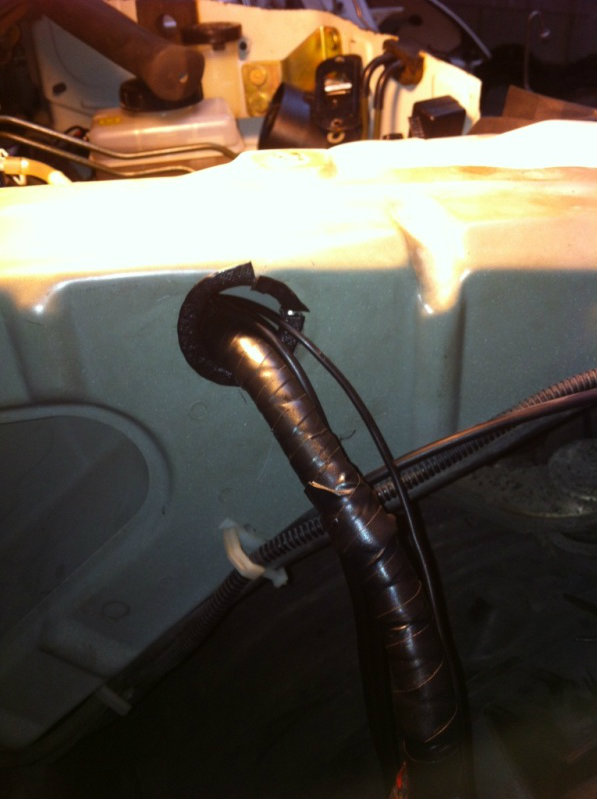

passenger side (JDM drivers side)
Did exact same for this side, used edging to make sure wires didnt get cut through. Also removed the big thick hose and used sprial wrap and put tape over it to make it thinner to fit through



So now engine is in ill be wanting to do harness tuck but need to make sure all connections are on before i pull apart harness.

Sooo any ideas on these.














Edit: Figured some out myself

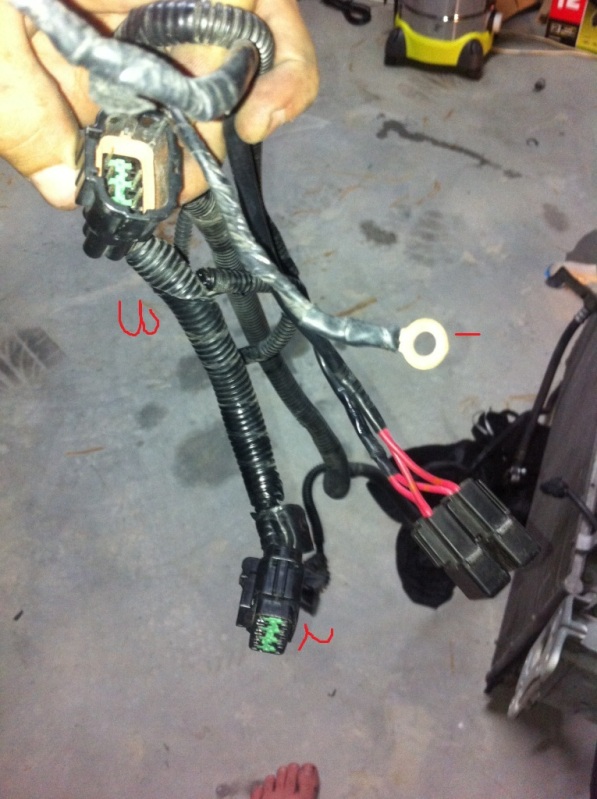

1. This one still confuses me, there are two grounds on this cable. One is black wires so that can be ground anywhere to chassis, but then they have another lug coming off the red wires just after the fuses ??? Does this go on positive on battery ? They are fog light harness (JDM ones)
2. This plugs into headlight
3.The headlight plug now goes to this

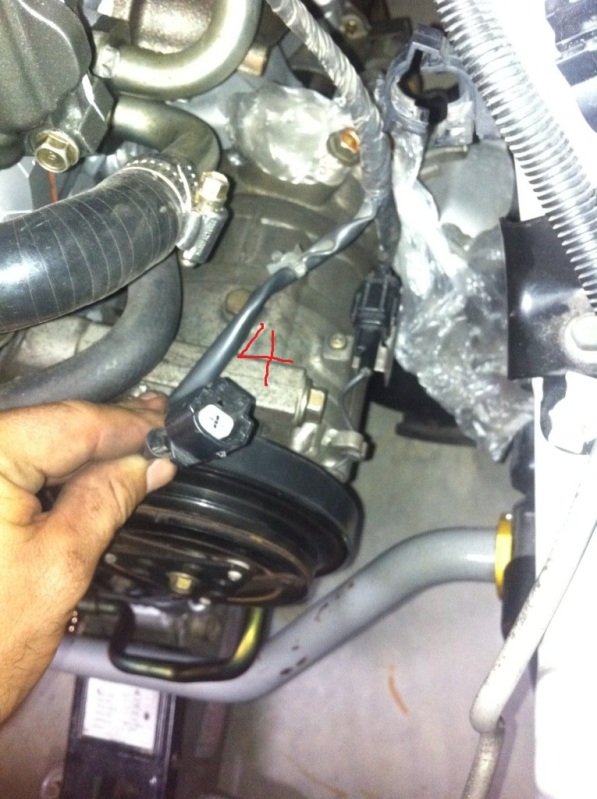

4. Plugs into sensor under the AC unit, pretty much directly under where the #4 is written[/COLOR]

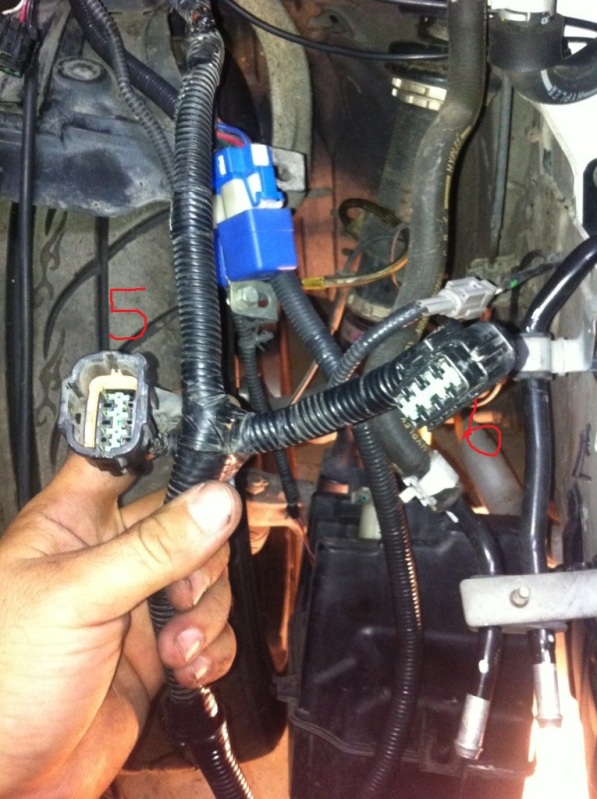

5. The headlight plugs into this
6. This now plugs into headlight
7.I screwed this ground onto the timing chain case cover...
8. What about this ground - not sure yet
9. o2 sensor

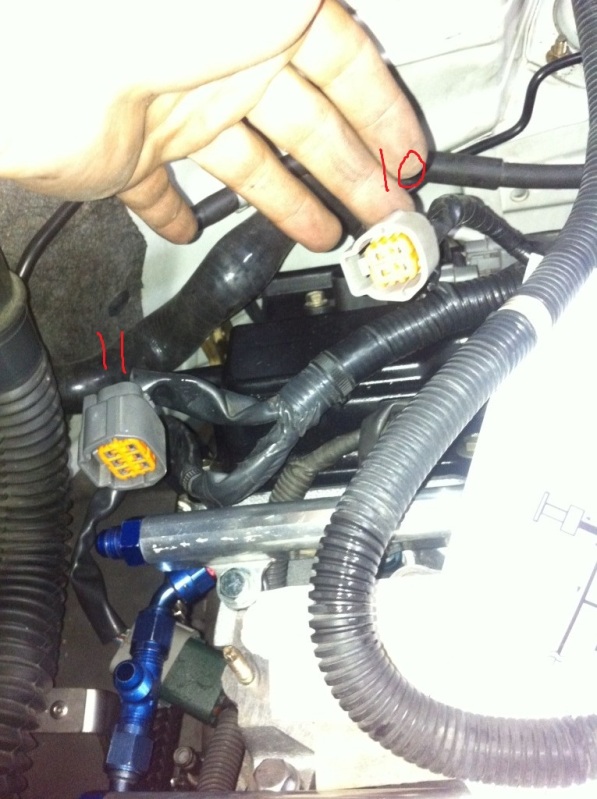

10. o2 sensor
11.Throttle body
12. which tube plugs into this and then where does the other end go?

* I would also like to know where all the hoses on the plenum go if anyone has any links
I have the service manual but cant find any relevant pages on the above..

* I would also like to know where all the hoses on the plenum go if anyone has any links
I have the service manual but cant find any relevant pages on the above..


2,3,5,6 are for JDM fog lights, they link into the system. If no JDM lights you wont have these


Thanks !



Im not sure i got the coil pack order right, does anyone have a firing order?
Edit: Found it
Driver's side F to R: 2-4-6
Passenger side F to R: 1-3-5

Looks like this thread will just be to help someone else out in my same situation ! Only need to figure out ones in red so if ones can help please do
