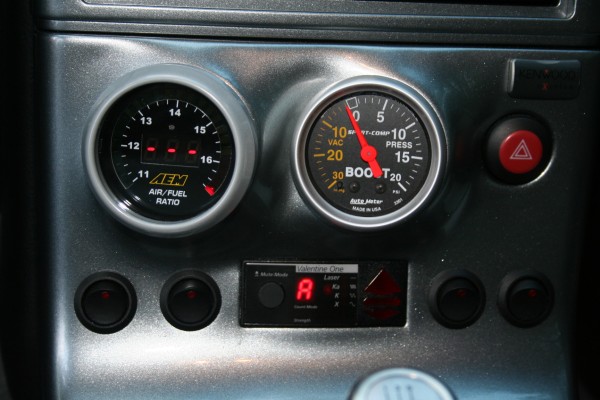

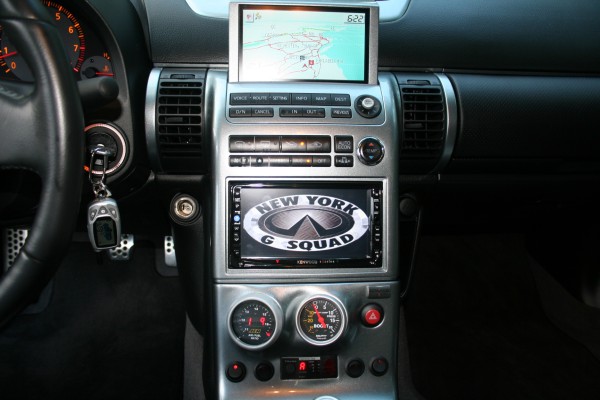

Here is a pic of 2 gauges in my center console. I also have an a pillar as well. I am running Boost, Air/fuel, Water Temp, Oil Temp and Fuel Pressure.



^ another VERY cool set up! Did you do the custom stuf yourself? I really like the angle of the gauges and the placement.



No, I took PVC and molded it to the ash tray area with glue to fit the gauges. I angled them slightly up and towards the driver. My audio shop did the bondo and finishing work.



Sweet, thanks man. Again looks great!



How hard was it to do that? If you have a boost gauge or Zeitronix out when you get pulled over here in CA, you will get busted for sure if the FI unit doesn't have CARB approval.



i just wanted to know which gauge(s) should i get if i just wanted to know the boost only...... mine is a stillen, so boost is around 5-8 psi......what should i do?????



I'll be building a video gauge display that integrates with the nav screen.



now THAT would be something to see! if it could show the same readouts as the Zeitronix (boost, AFR, EGT) i would get 1 in a heartbeat



Decoding the Nissan datastream would be out the scope of the project (that's UpRev's business). It will just be an analog input box that takes sensor data and generates a video gauge display that can be spliced in to the nav display just like DVD video. Any sensor that outputs a meaningful analog voltage could be easily displayed.



You can get AFR with CIPHER (2004.5 and up have wideband O2 sensors) but no way to get boost, EGT obviously...

I would imagine it would integrate with the composite video input of the Xenarc screens also, yes? Could use one of the alternate video inputs?



Here's mine....

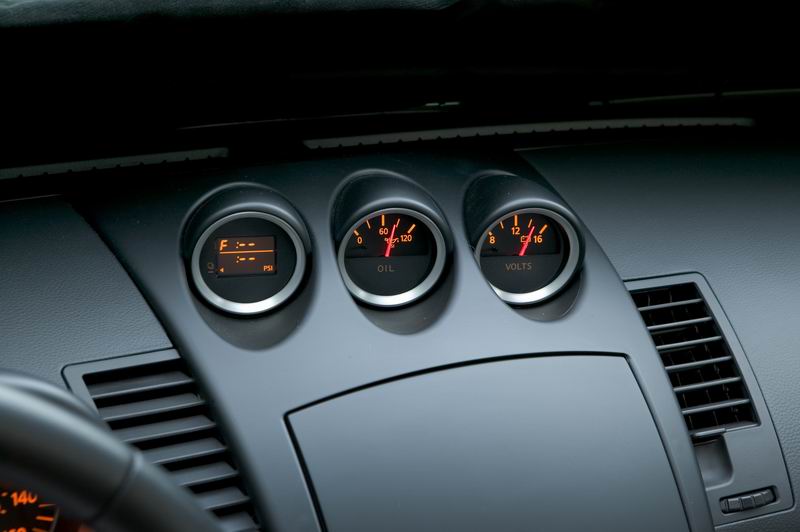

I love your setup. It kind of reminds me of the Z. I like how the Z angles them toward the driver. I wonder if anyone can figure out a way to do it like this.



Yeah it would generate a composite video source, so any screen capable of displaying that would work.



I'm running stillen sc...what gauges should I get ?...thankx



from what i hear..... probably just the boost gauge if needed..... i am in the same situation right now.... but since our boost only hits up around 4-8 psi, none of the gauges out there really meets our need... is there an electronic one that works really well............ anyone?
