G35 Coupe V35 2003 - 07 Discussion about the 1st Generation V35 G35 Coupe

Why does my tire look like this? Small tire on bigger wheel?

Thread Tools

Search this Thread

Rate Thread

  #1
Old 07-20-2017, 03:41 AM
Andy.'s Avatar
Registered User
Thread Starter
Join Date: Nov 2016
Posts: 43
Likes: 0
Received 0 Likes on 0 Posts
Why does my tire look like this? Small tire on bigger wheel?

Did they mix up my tires and wheels? The 2 fronts look like this and the rears look good. Just got new tires put on last week.

The sizes are correct, I double checked a million times


​​​05 coupe with 225/40/19 fronts and 245 rears

  #2
Old 07-20-2017, 05:19 AM
partyman66's Avatar
Registered User
iTrader: (1)
Join Date: Jul 2004
Location: Southeastern Mass.
Posts: 3,560
Received 228 Likes on 199 Posts
Previous owner may have bought a used set of 19"x8.5" rear OEM rims and put them on the front. The front rims have a notch on them to prevent installing them on the rear, but I think you can install the rears on the front. The stock front rim with the OEM 19" package is 19"x8", so it's 1/2" narrower than the stock rear rim.

What size tires were on your fronts before you put these new tires on?

  #3
Old 07-20-2017, 08:59 AM
gary c's Avatar
Registered User
iTrader: (10)
Join Date: Feb 2005
Location: Valencia, Ca
Posts: 19,433
Received 1,132 Likes on 1,002 Posts
Tires aren't big enough for those rims! Factory came with 225s in front and 245s out back, you could easily run 245s on all four corners...Gary

  #4
Old 07-20-2017, 01:08 PM
Andy.'s Avatar
Registered User
Thread Starter
Join Date: Nov 2016
Posts: 43
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by partyman66
Previous owner may have bought a used set of 19"x8.5" rear OEM rims and put them on the front. The front rims have a notch on them to prevent installing them on the rear, but I think you can install the rears on the front. The stock front rim with the OEM 19" package is 19"x8", so it's 1/2" narrower than the stock rear rim.

What size tires were on your fronts before you put these new tires on?
The fronts were also 225 before with the same issue. Kinda late now that I got my new tires and they're only a week old.
I'll keep what Gary said in mind for my next set though. Will this cause any issues?

  #5
Old 07-20-2017, 04:09 PM
LoSt180's Avatar
Premier Member

iTrader: (11)
Join Date: Mar 2011
Location: Maryland
Posts: 2,796
Received 468 Likes on 379 Posts
An easy way to tell if the front and rears are mixed up is to look on the inside of the wheel around the lug nuts. You'll have to remove the wheels from the car to check.

The 19" x 8" FRONT wheel has deep "spaces" in the areas between the lug holes. The 19" x 8.5" REAR wheel is mostly flat between the lug holes.

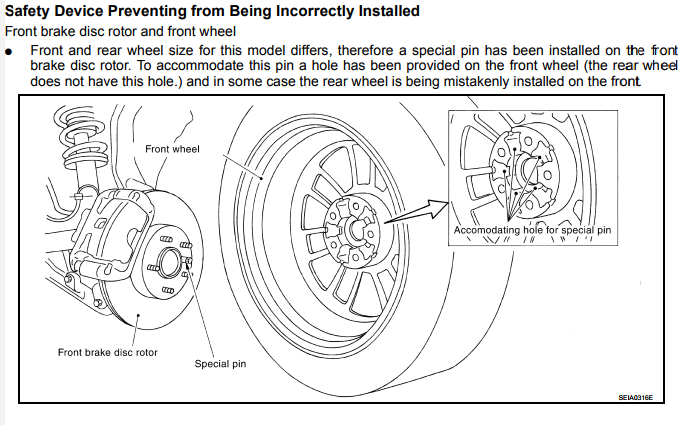

Waaaay back when your car was new, there was a random bolt attached to the front rotors. This was to prevent you (or a well intentioned mechanic) from mistakenly mounting the rear wheels to the front of the car. The front wheels have space to accommodate this "special pin" on the front rotors.

Most of the time that bolt gets tossed when rotors get replaced, or you want to run wheel spacers, or aftermarket wheels, or the car originally came with 17" wheels that are actually the same size.

Attached Thumbnails Why does my tire look like this? Small tire on bigger wheel?-g35-safety-device.png
The following users liked this post:
Blue Dream (07-20-2017)
