How a Differential Works
Here's how a differential works:

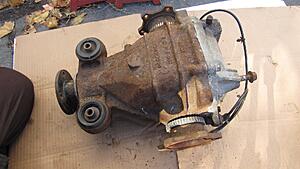

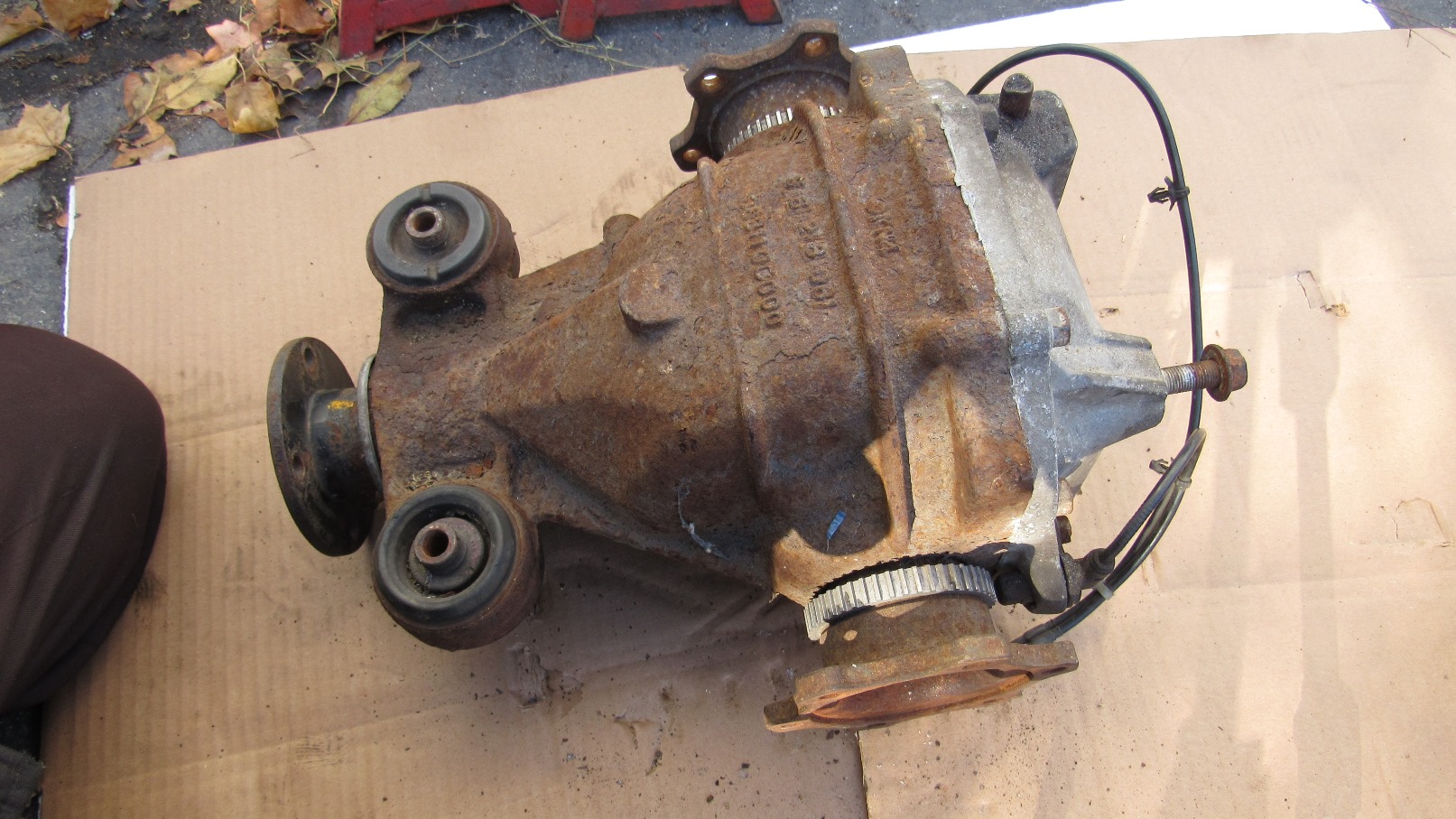

This is the G35 rear differential. It consists of an input flange powered by the driveshaft and two output flange that power the wheels through the CV axle.

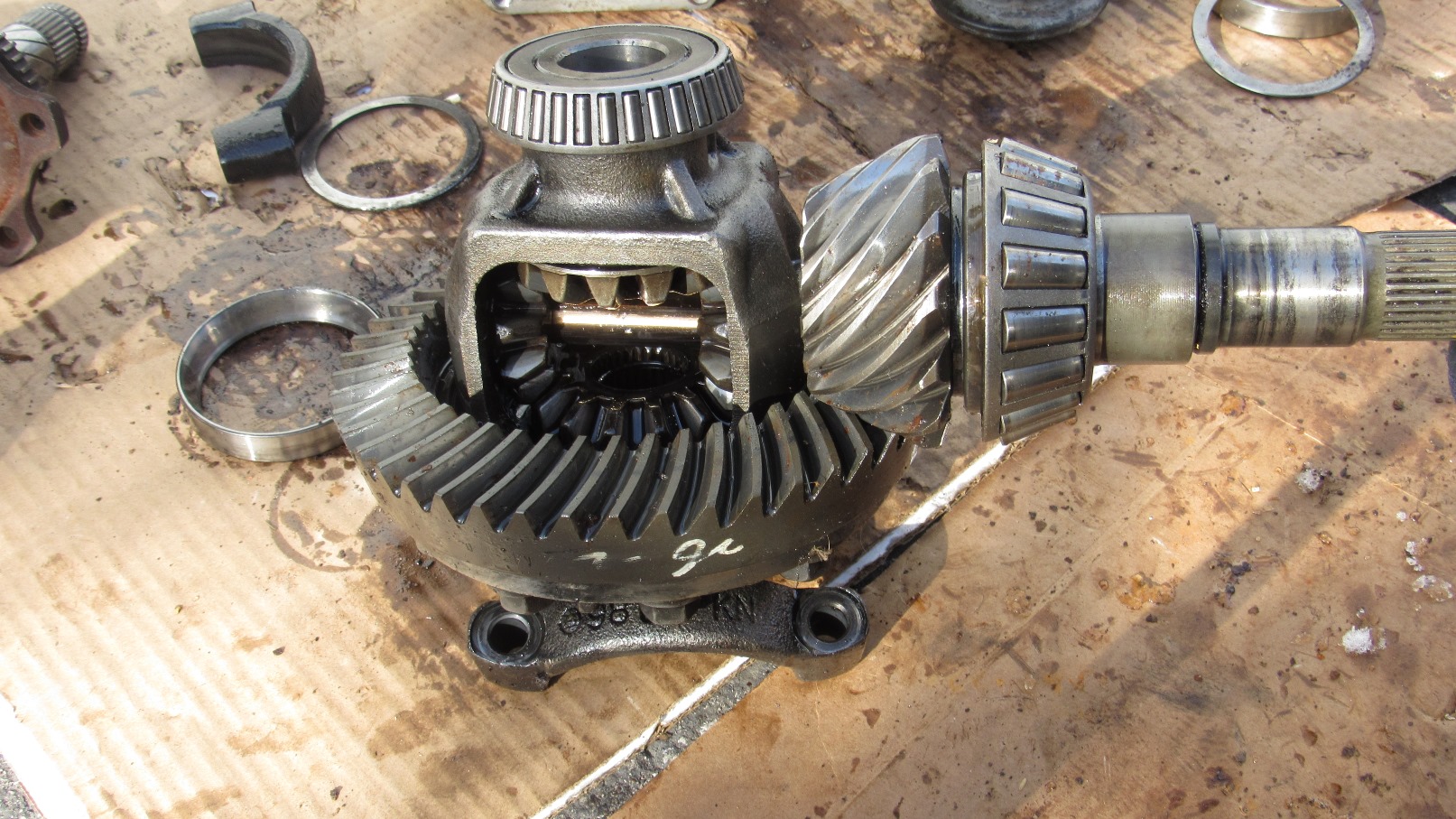

The differential consists of a ring gear, spider gears, the differential housing, the bearings it rides on and the pinion gear:

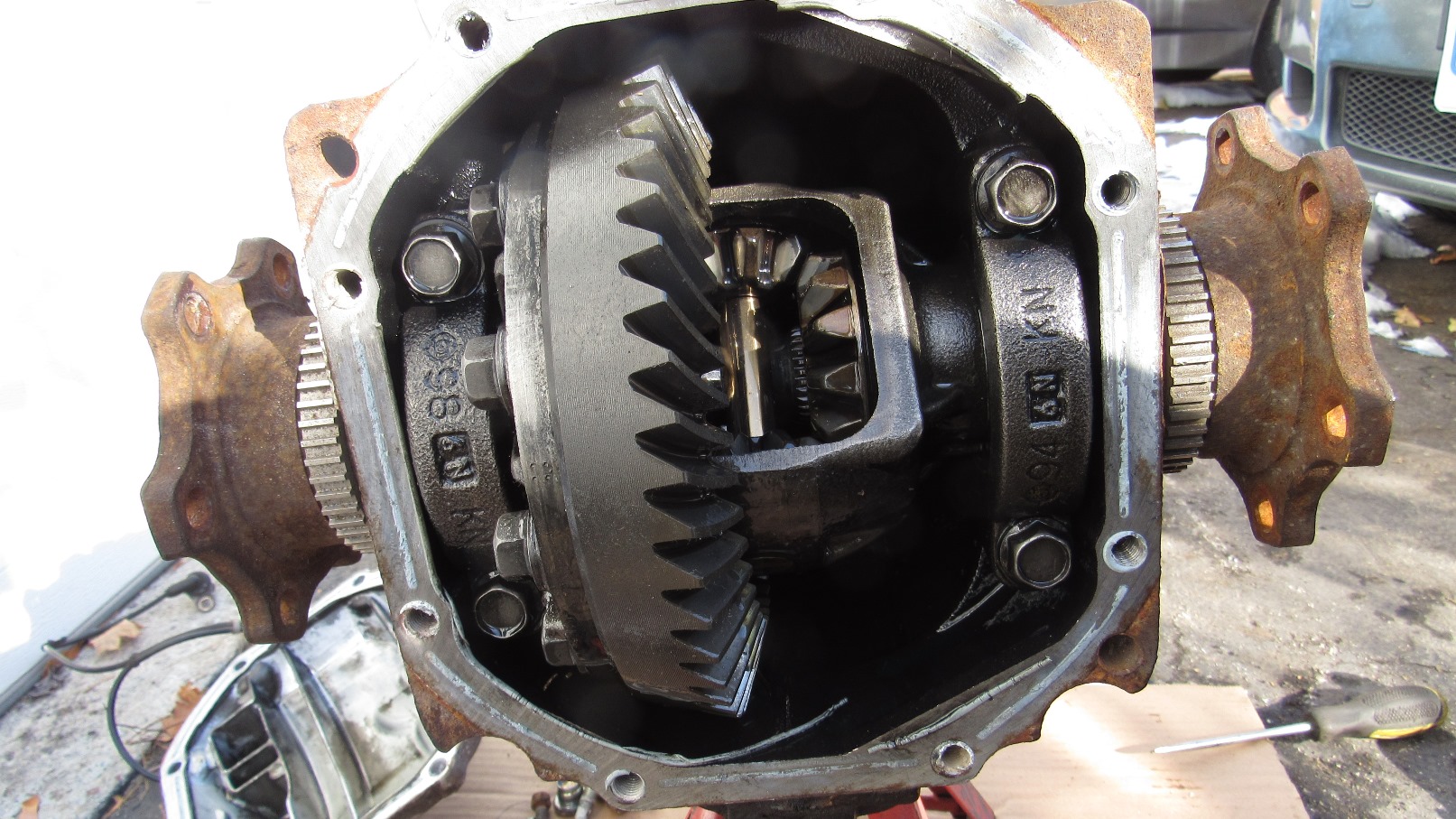

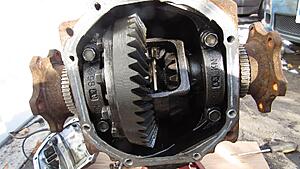

Pretty neat how the gears are cut:
Enjoy!
This is the G35 rear differential. It consists of an input flange powered by the driveshaft and two output flange that power the wheels through the CV axle.
The differential consists of a ring gear, spider gears, the differential housing, the bearings it rides on and the pinion gear:
Pretty neat how the gears are cut:
Enjoy!
