Interior relay identification

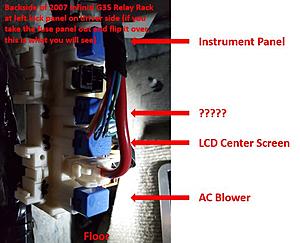

Anybody know what the 2nd relay in the attached picture is for? (2007 G35 sedan).

I'm tracking down an intermittent LCD screen issue whereby the volume and fan icons dont show up.

Attached Thumbnails

Interior relay identification-2007-infiniti-g35-relay-rack2.jpg

Jul 30, 2017 | 12:33 AM

cleric670

BANNED!!!

Joined: May 2017

Posts: 14,837

Likes: 2,497

From: Washington State

Coupe 6MT Premium RAS

No idea what those are, take it off and s3e what doesn't work

Jul 30, 2017 | 09:39 AM

gobbell1

Thread Starter

Registered User

Joined: Jul 2017

Posts: 2

Likes: 0

Cleric, I've already done that (go back and look at the pic)

Jul 30, 2017 | 12:22 PM

cleric670

BANNED!!!

Joined: May 2017

Posts: 14,837

Likes: 2,497

From: Washington State

Coupe 6MT Premium RAS

Only other thing I can think it would be is a cruise control relay, I know it's one of those standard blue nissan ones but I've never had to search for it.

Jul 30, 2017 | 07:15 PM

coffeysm

Registered User

iTrader: (1)

Joined: Jun 2006

Posts: 1,382

Likes: 171

From: West Chester, PA

Why not grab the FSM for your vehicle and look at the wiring diagrams?

Aug 7, 2017 | 05:04 PM

cleric670

BANNED!!!

Joined: May 2017

Posts: 14,837

Likes: 2,497

From: Washington State

Coupe 6MT Premium RAS

Rear window defogger, thanks for the encouragement Coffeysm I've been meaning to dig the FSM to actually FIND THE PAGE THAT SHOWS THE BACK of the relay board lol, now I know exactly where it's at.

http://www.nicoclub.com/service-manu...7_G35_Sedan/pg

Page 93 gobbell1
