Originally Posted by ShanesG

Ok so i know that some people, including myself, would like to change up some of the hoses in the engine bay to some braided hose. So i thought i'd make a diagram to show the different hose sizes so that people can know what to buy. Hopefully rookie, randy, kurtis, or anyone else who knows can chime in and give some of the sizes as i'm not familiar with them.

i used 98intrigues bay, if you want me to use another just lmk.

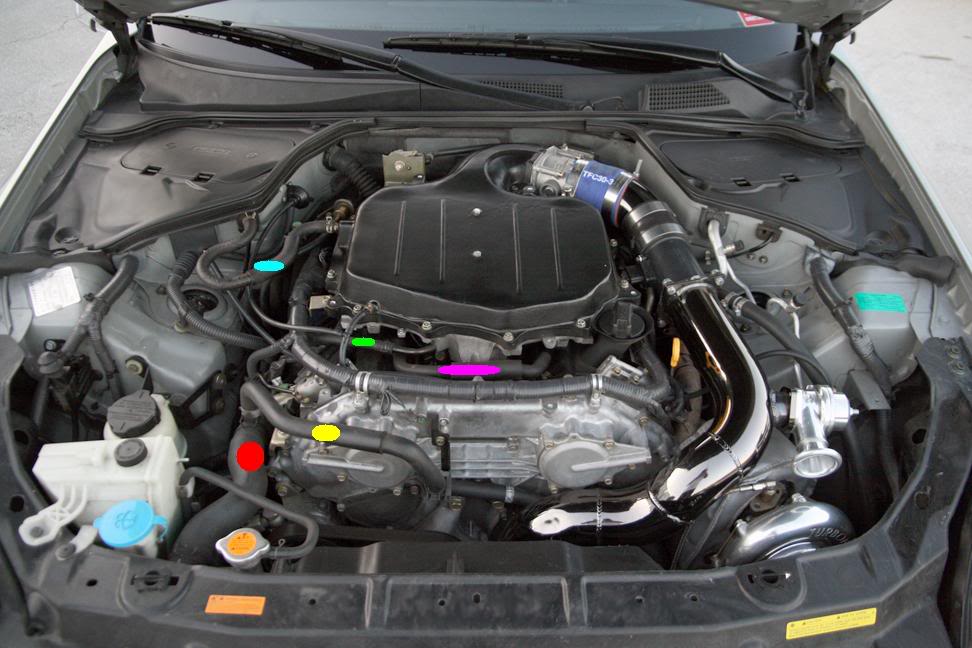

Attachment 237732

Red(coolant) -
Blue(vacuum) -
Green(vacuum) -
Purple(vacuum) -
Yellow(coolant) -

Thanks.

And i know you can't run braided hose on the coolant hose to the radiator but you can sleeve it.
