Rear License Plate Light Up Bulbs!

hey i have a question to anyone that will be kind enough to help me out. i want to change the bulbs that shine out to our rear license plates. i want to make it look like the new lexus is350's and GS. what bulb does it use? someone told me i need the 194's but i just want to be sure before i go ahead and order them.

anybody know?

  #2
Old 09-08-2006, 08:51 PM
aleok's Avatar
Registered User
iTrader: (6)
Join Date: Sep 2005
Location: MANOA
Posts: 1,943
Likes: 0
Received 0 Likes on 0 Posts
yup 168/194

  #3
Old 09-08-2006, 10:23 PM
Calvin's Avatar
Overglorified Altima
iTrader: (65)
Join Date: Jun 2006
Location: Chicago
Posts: 53,506
Received 187 Likes on 128 Posts
194 or 168

^^same thing

  #4
Old 09-09-2006, 11:46 PM
sixthGear's Avatar
Registered User
iTrader: (2)
Join Date: Mar 2006
Location: Edmond, OK
Posts: 261
Likes: 0
Received 0 Likes on 0 Posts
i scanned ebay..... are we talking about the LED bulbs in white or blue?

  #5
Old 09-10-2006, 12:12 AM
Calvin's Avatar
Overglorified Altima
iTrader: (65)
Join Date: Jun 2006
Location: Chicago
Posts: 53,506
Received 187 Likes on 128 Posts
^^i dont understand your question exactly..

i have the white ones..i dont know why anyone would want blue for this application..unless maybe you have a show car..

but thats just asking for a ticket......

  #6
Old 09-10-2006, 12:12 AM
halmech's Avatar
Registered User
Join Date: May 2006
Location: Aiea, HI
Posts: 260
Received 0 Likes on 0 Posts
I just recently installed my rear license plate lights with a LED unit here's some before and after pics. These weren't replacement bulbs for the stock units. I mounted this LED bar from these guys http://www.customdynamics.com/illumi...nce_plates.htm (it's at the bottom) to a license plate frame I picked up locally. Then I took off the harness for the current plate bulbs and spliced in a new section of wiring and quick disconnect plugs into the harness ( so if needed I can still go back to the old lights really quick).

Before

Rear License Plate Light Up Bulbs!-img_0156_1.jpg

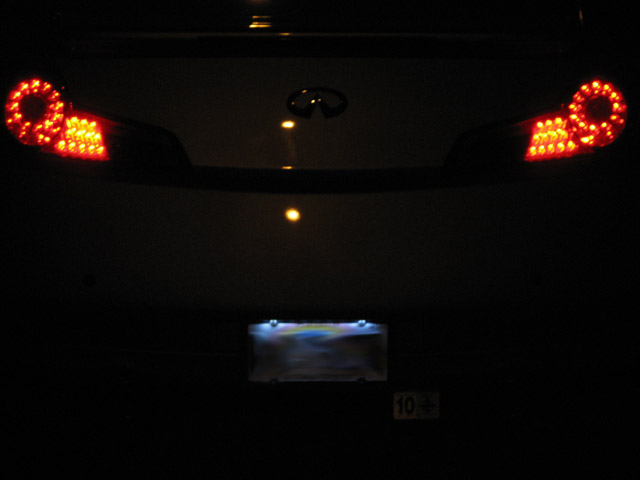

After.

Rear License Plate Light Up Bulbs!-img_0215_1.jpg

  #7
Old 09-10-2006, 12:25 AM
Calvin's Avatar
Overglorified Altima
iTrader: (65)
Join Date: Jun 2006
Location: Chicago
Posts: 53,506
Received 187 Likes on 128 Posts
^^looks great

also, search a thread by member "Yume"

he put a ccfl tube in there and it looks great! easy too he said..i think he said it took like 15 mins..?

  #8
Old 09-10-2006, 12:59 AM
Calvin's Avatar
Overglorified Altima
iTrader: (65)
Join Date: Jun 2006
Location: Chicago
Posts: 53,506
Received 187 Likes on 128 Posts
  #9
Old 09-10-2006, 01:50 AM
wuchen1's Avatar
Registered User
iTrader: (2)
Join Date: Feb 2006
Location: new jersey
Posts: 288
Likes: 0
Received 0 Likes on 0 Posts
Varad Suspension 1 Watt Led

  #10
Old 09-10-2006, 02:18 AM
ozracer01's Avatar
Registered User
Join Date: Aug 2003
Location: Illinois and NC
Posts: 684
Likes: 0
Received 0 Likes on 0 Posts
Here are my 168 LED bulbs, i got them from http://superbrightleds.com/mini-wedge.html

They are the WLED-x6 LED Wedge Base Bulbs and look great...almost like the new GS's LED setup in the license plate.

Attached Thumbnails Rear License Plate Light Up Bulbs!-licblur.jpg
  #11
Old 09-11-2006, 03:26 PM
hye_G's Avatar
Registered User
iTrader: (1)
Join Date: Dec 2004
Location: Southern California
Posts: 621
Likes: 0
Received 1 Like on 1 Post
i used the PIAA 168 White/White LEDs in mine, good white color not too blue

  #12
Old 09-22-2006, 12:52 PM
tgenius's Avatar
Charter Member Florida G35 Club
Join Date: Mar 2004
Location: Miami, FL
Posts: 1,216
Likes: 0
Received 0 Likes on 0 Posts
How many bulbs does the rear license light hold? Is it a single one?

  #13
Old 09-26-2006, 11:11 AM
tiblot's Avatar
Registered User
Join Date: Jan 2005
Posts: 1,335
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ozracer01
Here are my 168 LED bulbs, i got them from http://superbrightleds.com/mini-wedge.html

They are the WLED-x6 LED Wedge Base Bulbs and look great...almost like the new GS's LED setup in the license plate.

looks nice, did u get them in wide or narrow viewing angle?
how many leds?

I'm lookin at "1157-W12" ... sound right?

  #14
Old 09-27-2006, 07:23 PM
MD_V35's Avatar
Registered User
iTrader: (6)
Join Date: Mar 2006
Location: Orlando, FL
Posts: 625
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by tiblot
looks nice, did u get them in wide or narrow viewing angle?
how many leds?

I'm lookin at "1157-W12" ... sound right?
I think you need the 8th one on this page http://www.superbrightleds.com/cgi-b...1.1359&next=50
it says
WLED 6-LED bulb
12 VDC 6-LED Wedge Base bulb (194/168 type)
Non Polarized
$ 2.79

thats what I bought.
