Im about to under go the painstaking interior led swap lol. Im thinking of making all the button lights and the ac display blue then the clock white and gauges a mix of white and blue idk I gotta see when I open it up. But I was just posting to see if any one has any tips as this will be my first attempt at this sort of thing. Hope I dont mess anything up haha...



This is a very technical process and you need to triple check every bulb because you are never going to want to open back up those parts after you finish.

Buy 1.25x the needed amount of bulbs and use nitrile gloves during installation so your finger oils don't mess the board up in the long run.

... And remember someone who knows their stuff may appreciate this, but this cuts into resale value because this is not a direct replacement part from infiniti.

Good Luck! Search around for other members that have done it before and follow their tips.



Ok so I swapped the lights on the window and seat heater switches as well as the vdc switch and they came out great... but like a genious I took apart the cluster to see how many bulbs I need and long story I cant figure out how to realign the needles or why they are sticking anyone have experience with this problem. Ive searched a couple forums but cant cant find a diy on the g35 cluster. Some one help my dumb a** pleeez.



Ok I messed with it a little and I got the gas temp to work accurately but the tach is not as responsive as before it's accurate but slow moving? And the speedo moves in steps 0 straight to 20 then to 40 like it's sticking idk

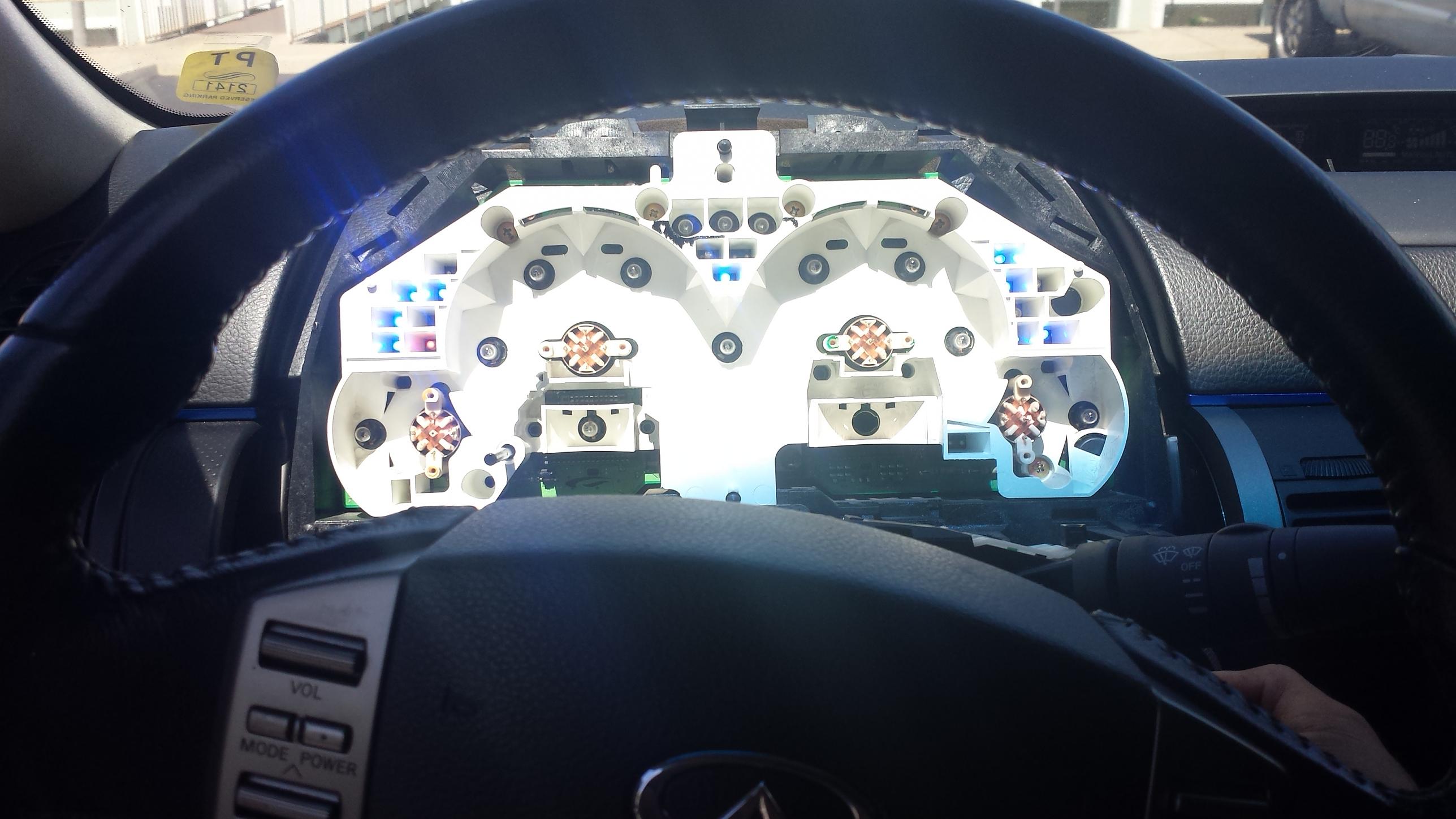

Well I decided to take apart the cluster and change the leds since Im bored and this is what it looks like so far

http://rs36.pbsrc.com/albums/e5/bsmb...7f.jpg~320x480

waiting on the t5 wedge lights to come in the mail and I plan on getting the face and needles sanded today or tomorrow



good luck bro. I hope it turns out well for u



you didnt take the entire cluster out?



I did just I plugged it back in to make sure all the lights work properly and you kinda have to take it out all the way or you wont be able to get to the two screws behind holding that plastic dash shroud thing to the cluster.



Just finished sanding and painting the face gonna go to the store while it dries ill have pics of it



I put too much blue paint lol now I have to let it cure and sand off some layers lol And im still waiting for the t5 lights to arrive then all the amber light will be white.
as for the ac display im thinking to make a clear screen out of plexi and spray a candy blue to make the light blue instead of that aqua color I cant find any BLUE tint where I live or on the internet

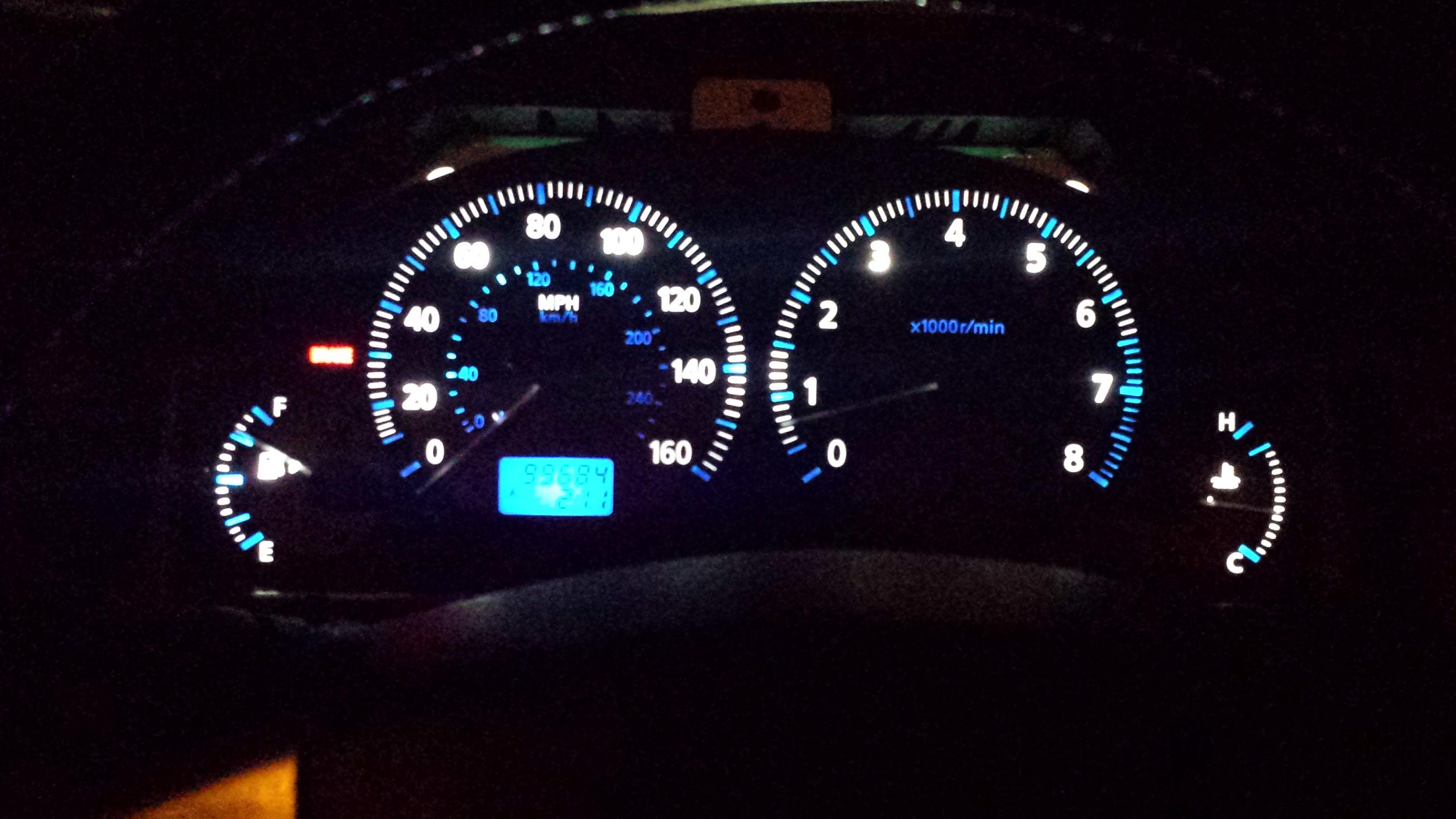

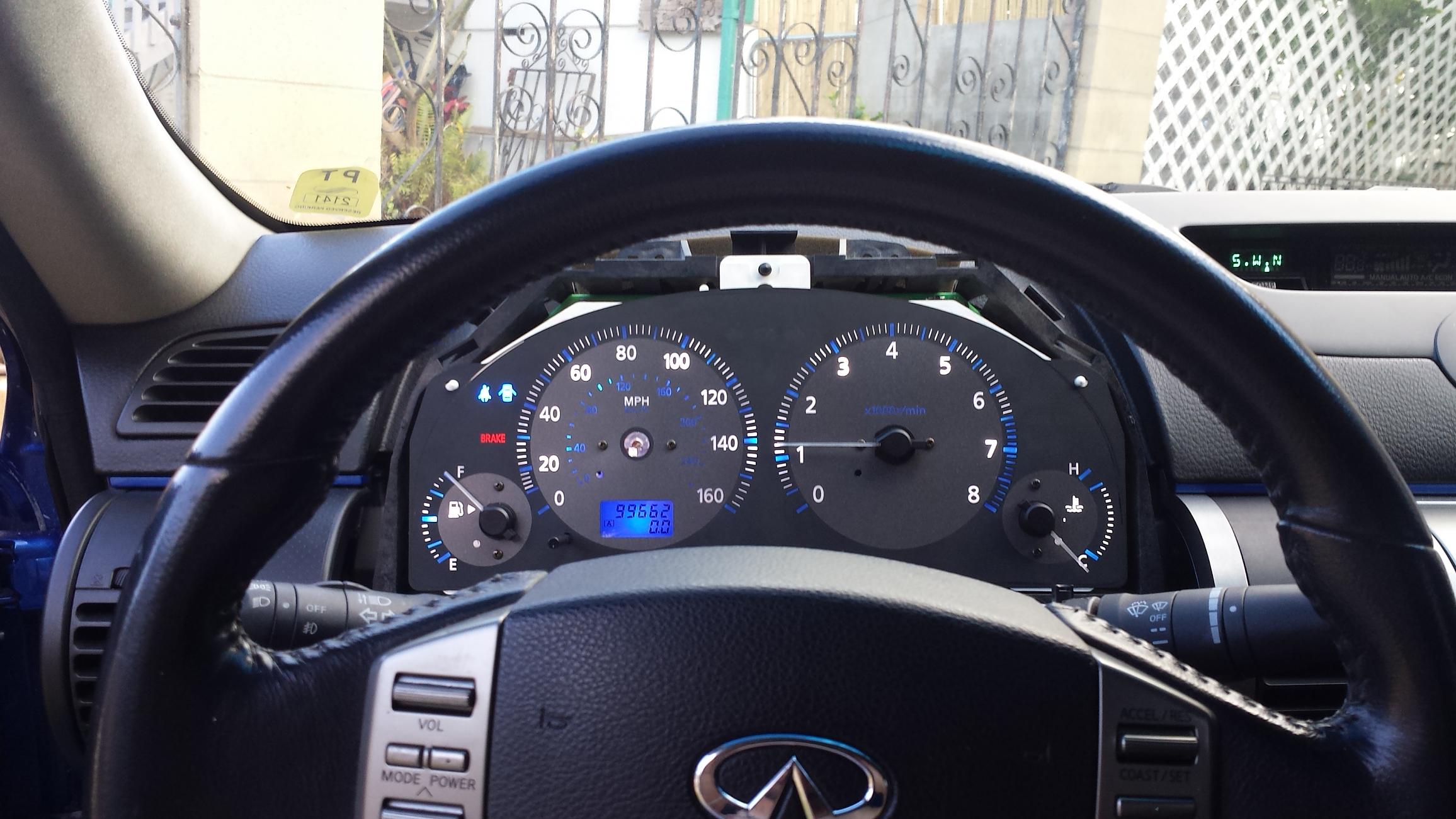

Finally all my lights for the cluster came in and im pretty proud of my self this being my first time doing this. Figured out why my gauges werent working properly I had them pushed in too far now they are calibrated and working properly I know theres hot spots but im planning on changing the face to a professional one just wanted to see what I could do with the stock one idk I like it for now but its pretty tiring on the eyes. Now I just have to put everything together and wait for the 1206s for the ac.



That looks nice, Is it that hard? I really like this mod.



Looks nice to be bro..



Looks soooooooo good!!!!



Diy?
