Click From Pedal When Releasing Clutch
#31
10-03-2007, 06:01 PM
Just spoke with Brand Glincher (my service advisor) and he said the tech put some kind of grease or lube on the assembly somewhere and the clicking is now gone and the pedal does not make any kind of noise. They are still working on the other issue so I won't get the car back today. When I do get it back I will post the tech's comments along with my review of the fix
#32
10-05-2007, 05:38 PM
I got it back and the crazy click is gone!!!
I spoke with the tech that fixed it, his name was Max, he said the name of the part to lubricate is the "clutch pivot return spring." He said he had to remove the cover under the steering wheel to get good access to the spring.

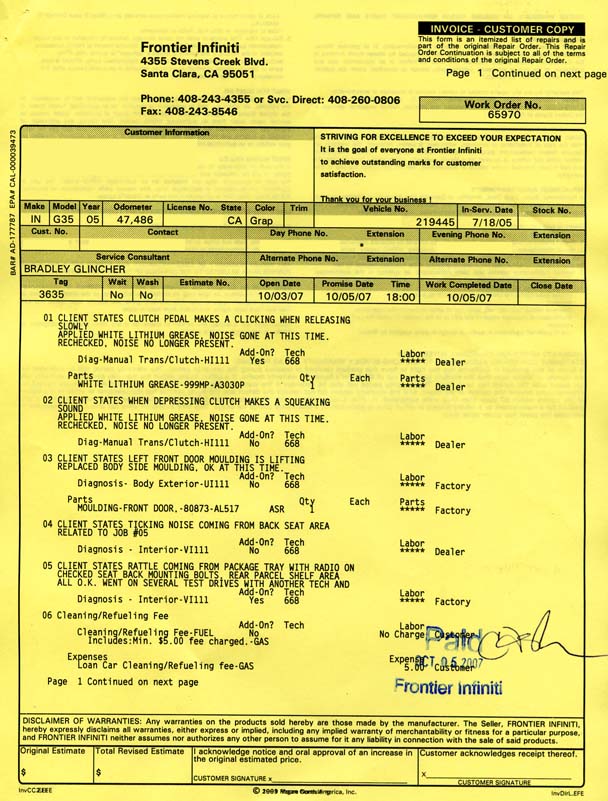

Regarding the noise I had when pressing the pedal down all the way, he sprayed white lithium grease in/on/around the hold that the clutch pedal shaft goes through... maybe I can provide pics for that if needed but it should be obvious if you look down there. I will post a scanned version of my final invoice when I get home.
I spoke with the tech that fixed it, his name was Max, he said the name of the part to lubricate is the "clutch pivot return spring." He said he had to remove the cover under the steering wheel to get good access to the spring.
Regarding the noise I had when pressing the pedal down all the way, he sprayed white lithium grease in/on/around the hold that the clutch pedal shaft goes through... maybe I can provide pics for that if needed but it should be obvious if you look down there. I will post a scanned version of my final invoice when I get home.
#33
10-05-2007, 08:40 PM
#34
10-08-2007, 04:35 AM
#35
10-26-2007, 04:19 PM

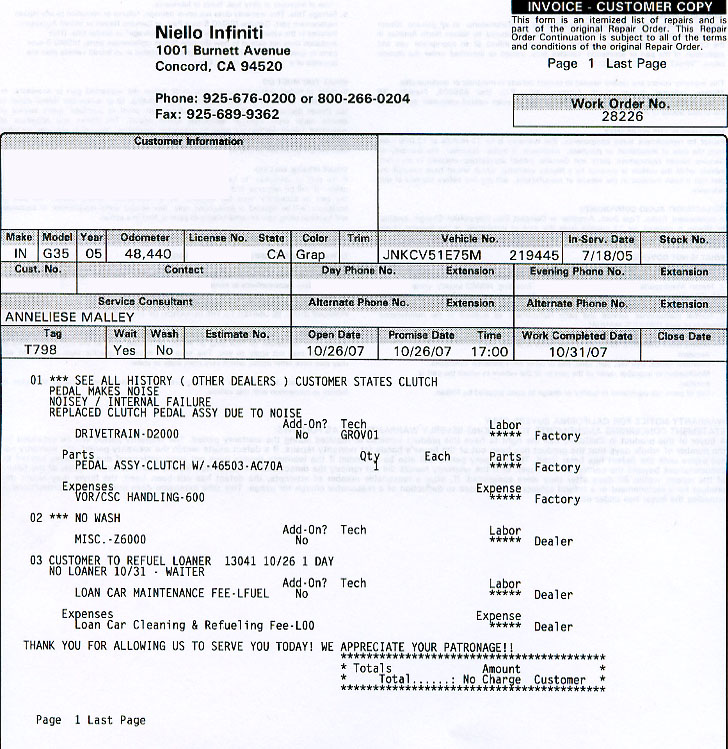

Drove 60 miles over to Concord to visit Niello Infiniti. The service manager confirmed the problem and they ordered me another assembly. He said this time around they're going to disassemble the new assembly and add silicon lube to the nylon bushing...
why can't my local dealership provide me with quality service like this?
btw, current click status is "loud"
why can't my local dealership provide me with quality service like this?
btw, current click status is "loud"
#36
10-27-2007, 05:48 PM
Originally Posted by mal_TX
I had this problem and fixed it. For me, it was being made by the point where the clevis meets the pedal arm. Get down there and look and you will see what I mean. I noticed that while the pedal was releasing, after a certain point it was "pulling on" the clevis. And, sometimes, based a million factors out of my control or observation, they would make enough metal-to-metal contact to make this annoying click sound.
I looked thru the FSM and noticed it says that the clevis pin should be able to freely rotate when the pedal is released. On my car, it was kinda tight to rotate it, but if I pressed on the pedal very gently, it loosened up and rotated freely. This backed my conclusion that the pedal was pulling on the clevis.
So, to fix it, I loosened the nut on the ACSD (the switch that the pedal presses on when it is released). Then, I turned that switch assembly such that it would push the pedal down towards the floor gently. I kept checking the pin to see when it "freed up" and started rotating freely. Once I had the switch applying pressure on the pedal enough to free up the clevis, I tightened the nut back down (12mm wrench).
This completely got rid of my clutch clicking sound, 100%. Check it out, if yours is the same problem, it is easy to fix. Just make sure you do not put so much pressure on the pedal that it is actually making a difference in the clutch itself. However, that should be impossible, because the clevis pin binds up when that much pressure is on it, so it will be clear that you went too far anyway.
I looked thru the FSM and noticed it says that the clevis pin should be able to freely rotate when the pedal is released. On my car, it was kinda tight to rotate it, but if I pressed on the pedal very gently, it loosened up and rotated freely. This backed my conclusion that the pedal was pulling on the clevis.
So, to fix it, I loosened the nut on the ACSD (the switch that the pedal presses on when it is released). Then, I turned that switch assembly such that it would push the pedal down towards the floor gently. I kept checking the pin to see when it "freed up" and started rotating freely. Once I had the switch applying pressure on the pedal enough to free up the clevis, I tightened the nut back down (12mm wrench).
This completely got rid of my clutch clicking sound, 100%. Check it out, if yours is the same problem, it is easy to fix. Just make sure you do not put so much pressure on the pedal that it is actually making a difference in the clutch itself. However, that should be impossible, because the clevis pin binds up when that much pressure is on it, so it will be clear that you went too far anyway.
I readjusted the ACSD as described above; did not fix the clicking, but did eliminate a lot of noisy play when the clutch pedal is at the top. HOWEVER, as mentioned in another post, I rotated the spring (while the pedal was depressed), and the clicking is GONE.
THANKS!!!
#37
10-27-2007, 07:41 PM
Originally Posted by SPice
I readjusted the ACSD as described above; did not fix the clicking, but did eliminate a lot of noisy play when the clutch pedal is at the top. HOWEVER, as mentioned in another post, I rotated the spring (while the pedal was depressed), and the clicking is GONE.
THANKS!!!
THANKS!!!
#38
10-30-2007, 06:13 PM
#39
10-31-2007, 05:16 PM
#40
10-31-2007, 05:18 PM

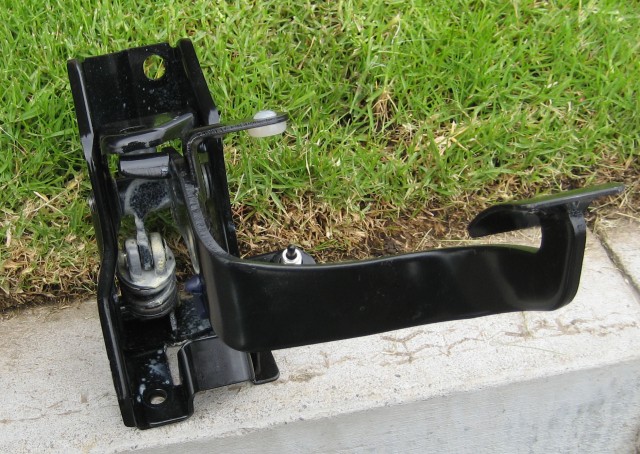

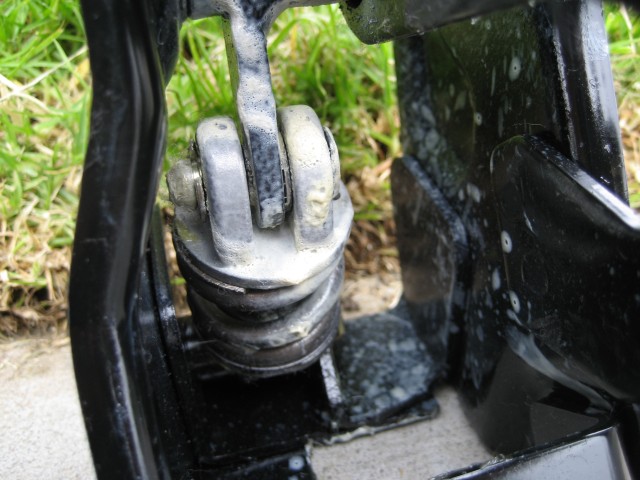

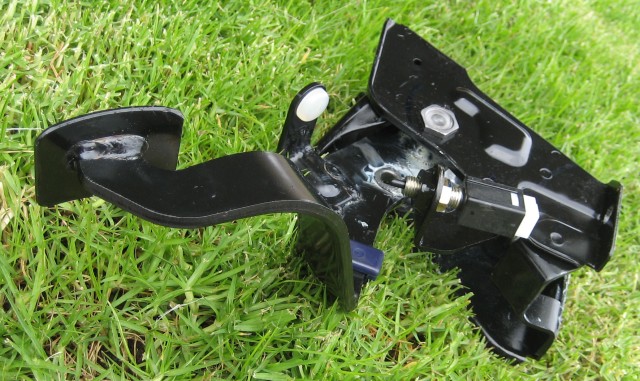

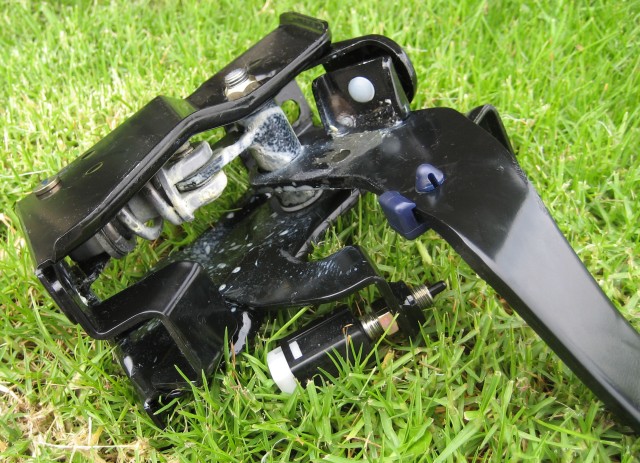

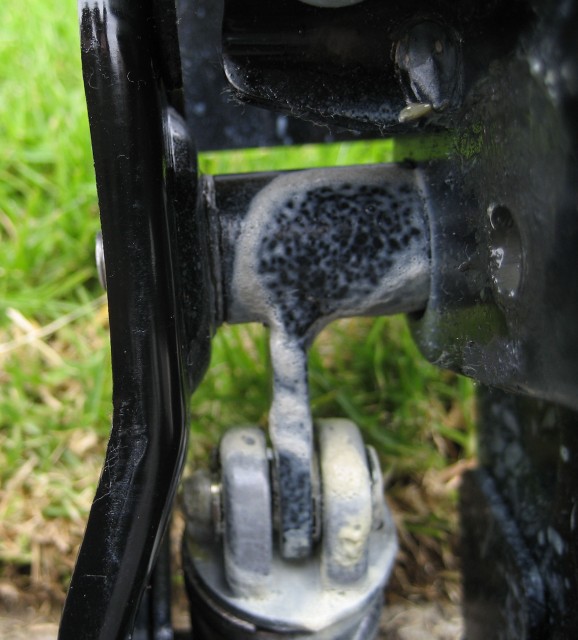

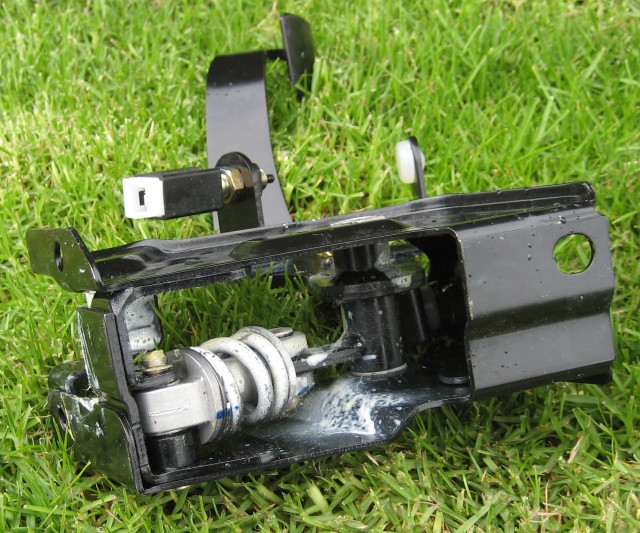

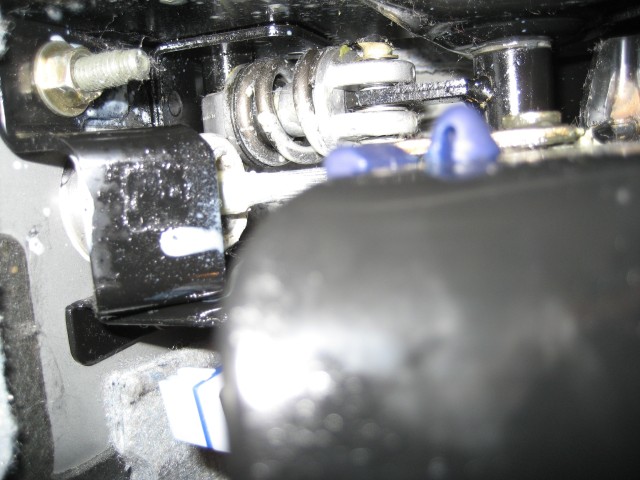

and here are some more pics of it:
You guys can find these same pics in 5 MP quality here:
http://www.sfplayers.com/gallery/album09?page=1
I'll post the work order later.
You guys can find these same pics in 5 MP quality here:
http://www.sfplayers.com/gallery/album09?page=1
I'll post the work order later.
#42
12-03-2007, 11:51 PM
Registered User
Join Date: Jun 2005
Location: Granada Hills
Posts: 181
Likes: 0
Received 0 Likes
on
0 Posts
Just did this work to my 06. I followed mal_TX's write-up but did the contratry. Found that it was the clevis ping (#3)being the cause of the click and is caused by the slack between the clevis pin and the amount of travel before it clutch starts to engage. The clevis pin bounces around a bit when clutch is disengaged from factory I guess.
Each time you release the clutch pedal, you will hear a slight pop noise, or metal contact. I adjusted the slack by the clutch interlock switch (#8) until the clevis pin had no slack. You will need to unplug the switch first, then adjust the height of it along with the clutch travel.
The manual is incorrect in saying "the clevis pin needs to float freely", that is the cause of the problem in the first place.
Each time you release the clutch pedal, you will hear a slight pop noise, or metal contact. I adjusted the slack by the clutch interlock switch (#8) until the clevis pin had no slack. You will need to unplug the switch first, then adjust the height of it along with the clutch travel.
The manual is incorrect in saying "the clevis pin needs to float freely", that is the cause of the problem in the first place.
Last edited by Hitman_; 12-04-2007 at 12:02 AM.
#43
12-04-2007, 11:22 AM
The manual is indicating that if the clevis pin does not float freely, then the clutch is being disengaged slightly and thus it will wear.
You can choose to call BS on them but you are doing so at your down risk. I suggest minimizing how much pressure you put on the pedal so you have the least chance of interacting with the clutch just for the sake of tighting up the pin. Or... just solve it some other way like fattening up the pin using rubber or something.
You can choose to call BS on them but you are doing so at your down risk. I suggest minimizing how much pressure you put on the pedal so you have the least chance of interacting with the clutch just for the sake of tighting up the pin. Or... just solve it some other way like fattening up the pin using rubber or something.
#44
12-04-2007, 08:23 PM
Registered User
Join Date: Jun 2005
Location: Granada Hills
Posts: 181
Likes: 0
Received 0 Likes
on
0 Posts
True, but I am saying just enough so it keep the clevis pin from moving. Up to you but spraying the area or having the whole pedal replaced will not work. The way I described it, you won't even be getting to the point where the clutch is being engaged. Try it and you will see, took 5 minutes to do anyway.
Last edited by Hitman_; 12-05-2007 at 11:29 PM.
#45
01-04-2008, 10:49 PM
Join Date: Mar 2007
Location: Jacksonville, FL
Posts: 292
Likes: 0
Received 0 Likes
on
0 Posts
