DIY 06 HU Removall
#46
What do you mean by this? The wiring is plug and play. No soldering. There is a spot down where the ash tray is, where I shoved the unit itself and there is a little less room behind the radio because of the extra plugs so it makes it a little harder to push the unit back into place but it fits.
#48

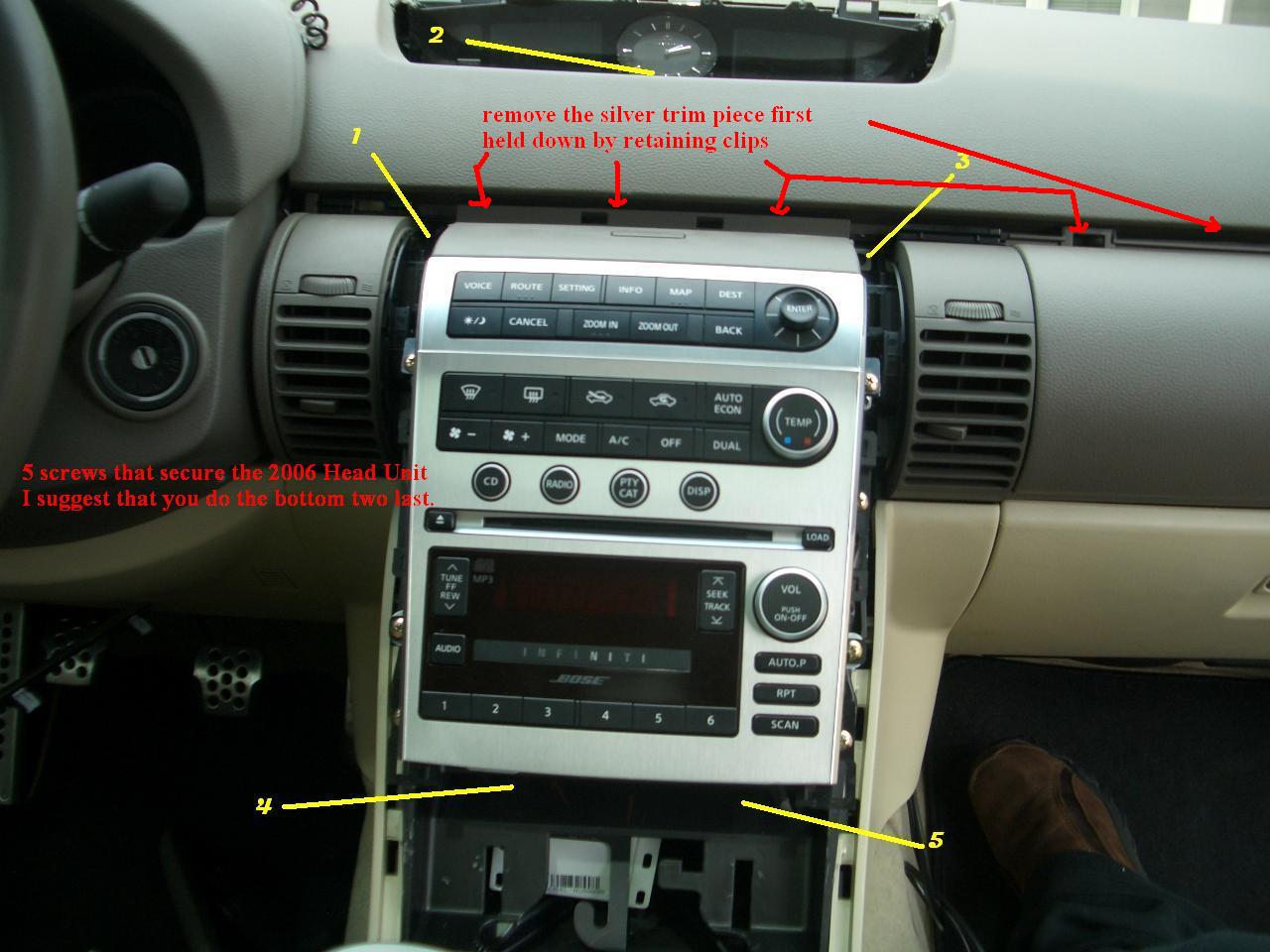

5. Now it should look like this . Remove the trim piece from the top. and then the 5 screws. (see photo)
Attachment 36477
Now the radio will come out.. ensure that you use the towel to protect the front of the headunit when you lean it forward.

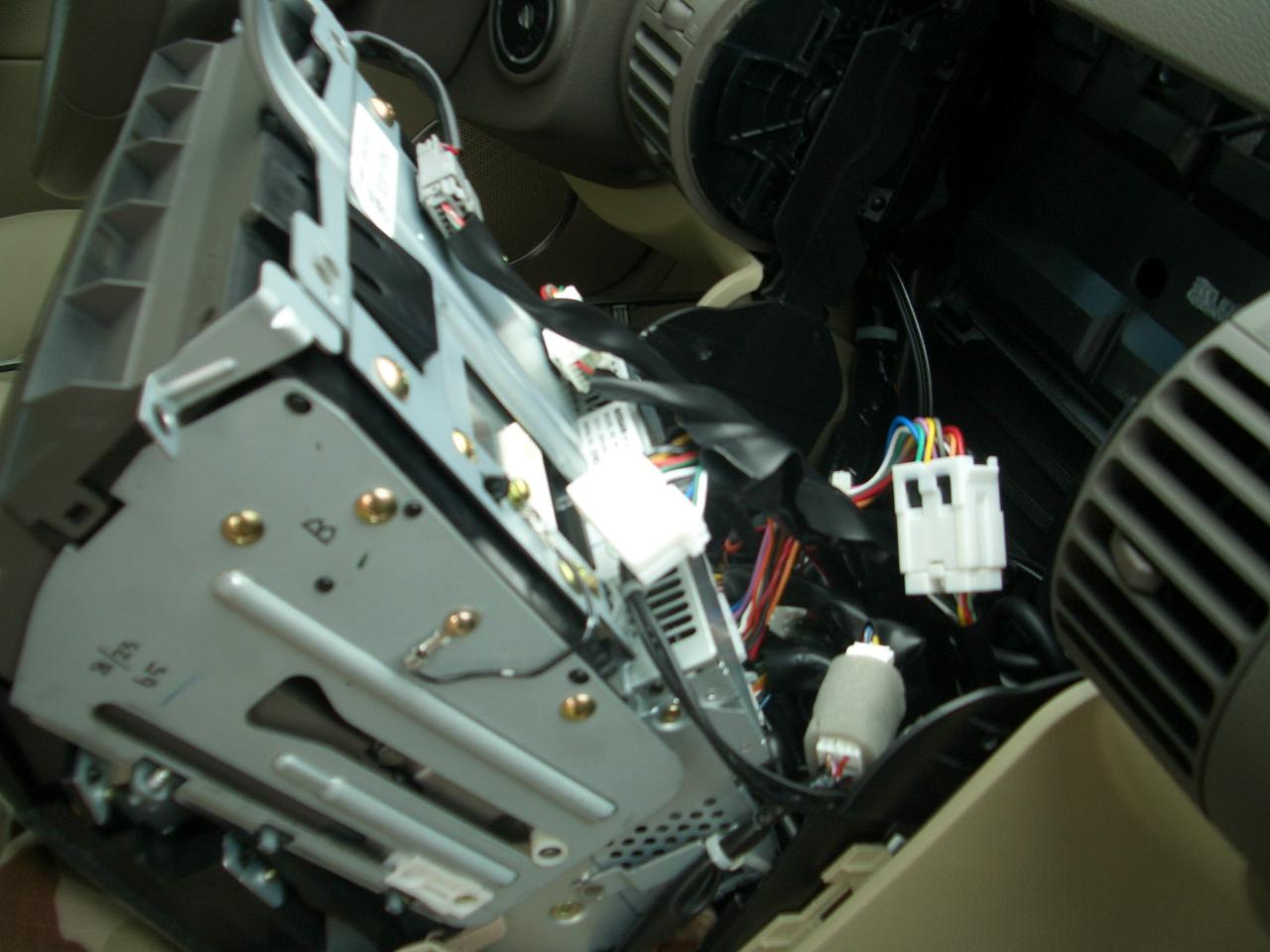

Here is the back of the radio.
Attachment 36478
Any questions.. Feel free to PM me. Mods please make this a sticky! (and move it to the DIY forum!)
Attachment 36477
Now the radio will come out.. ensure that you use the towel to protect the front of the headunit when you lean it forward.
Here is the back of the radio.
Attachment 36478
Any questions.. Feel free to PM me. Mods please make this a sticky! (and move it to the DIY forum!)
