Dangling wire under dashboard - help

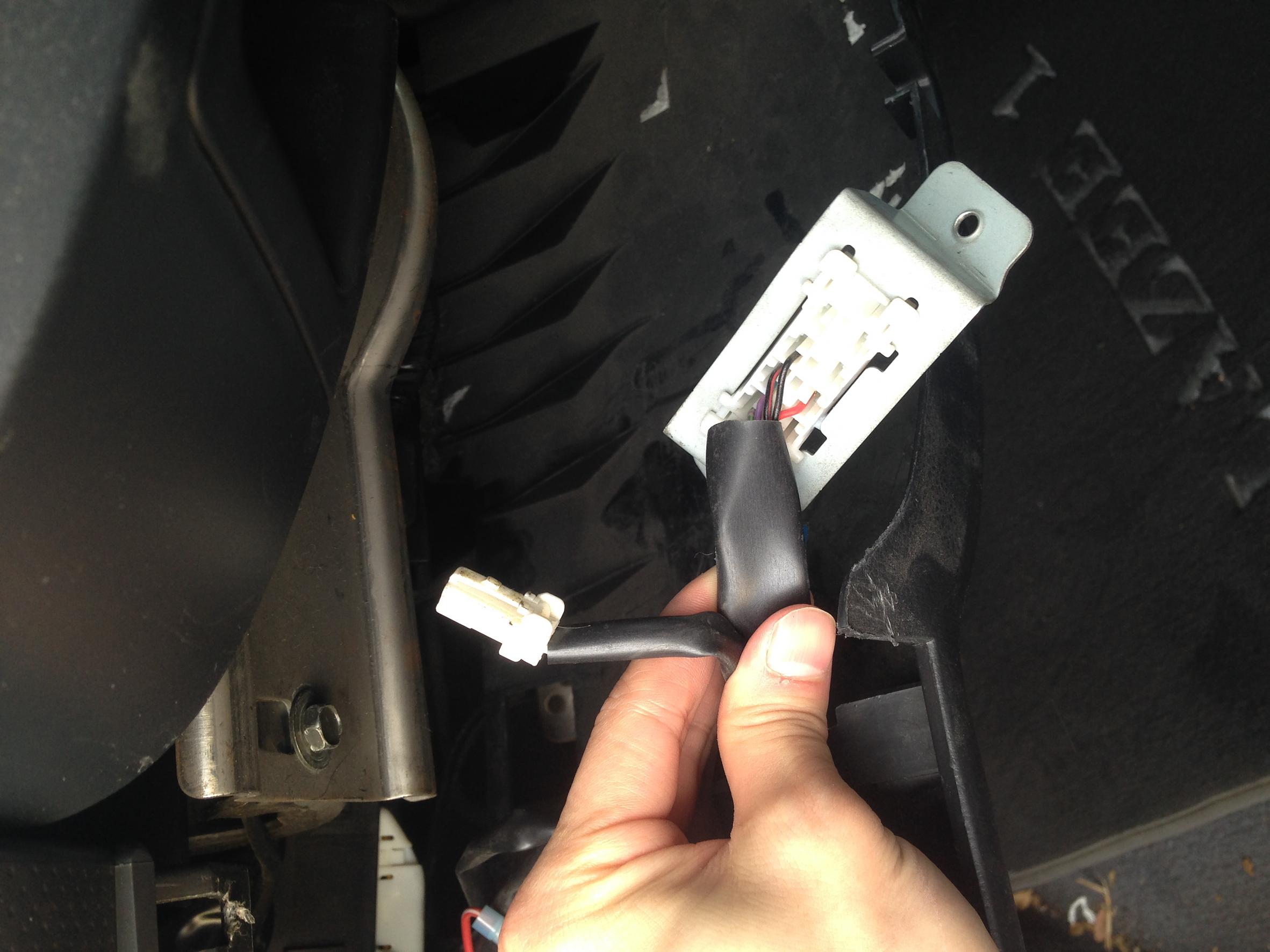

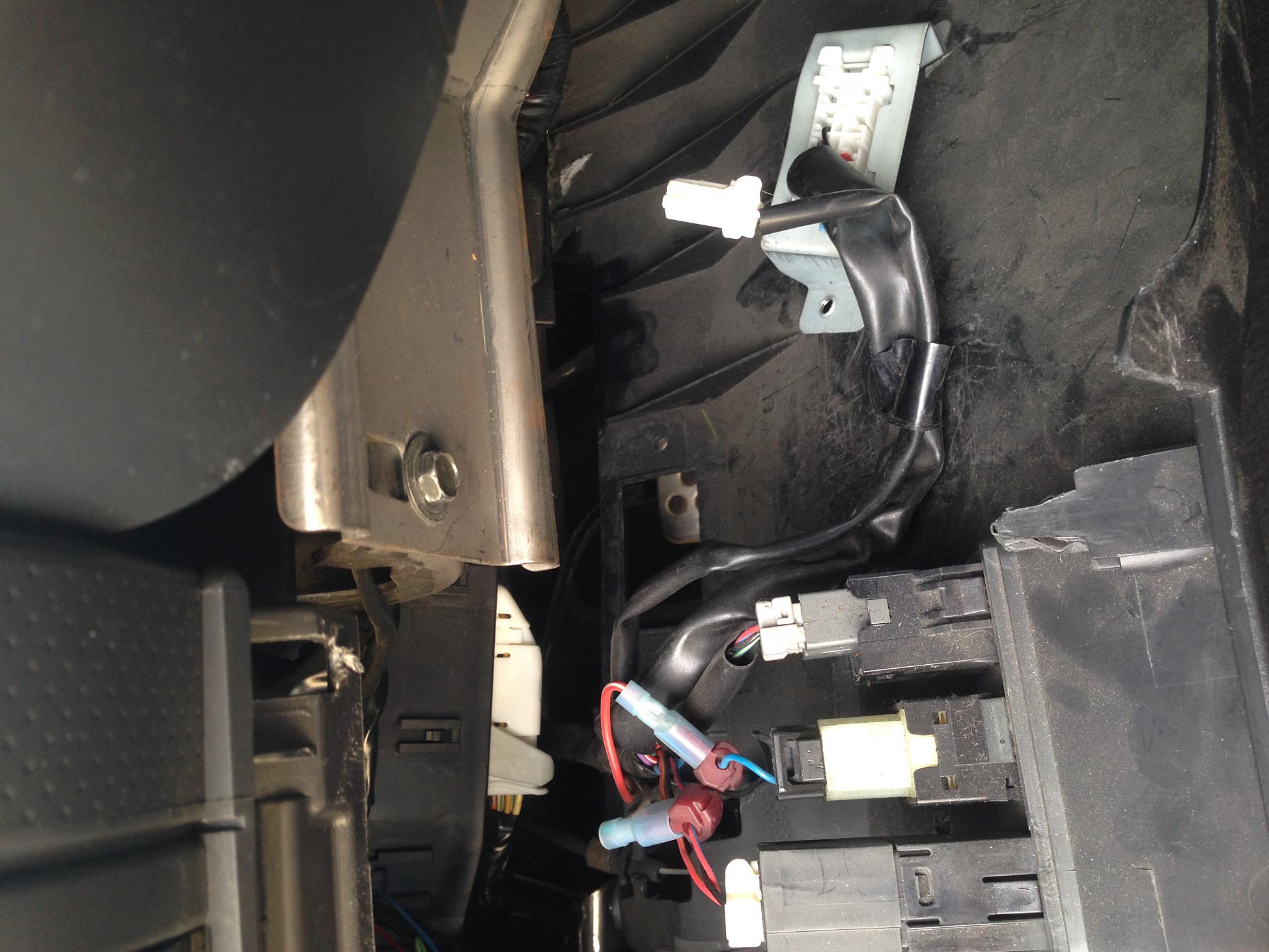

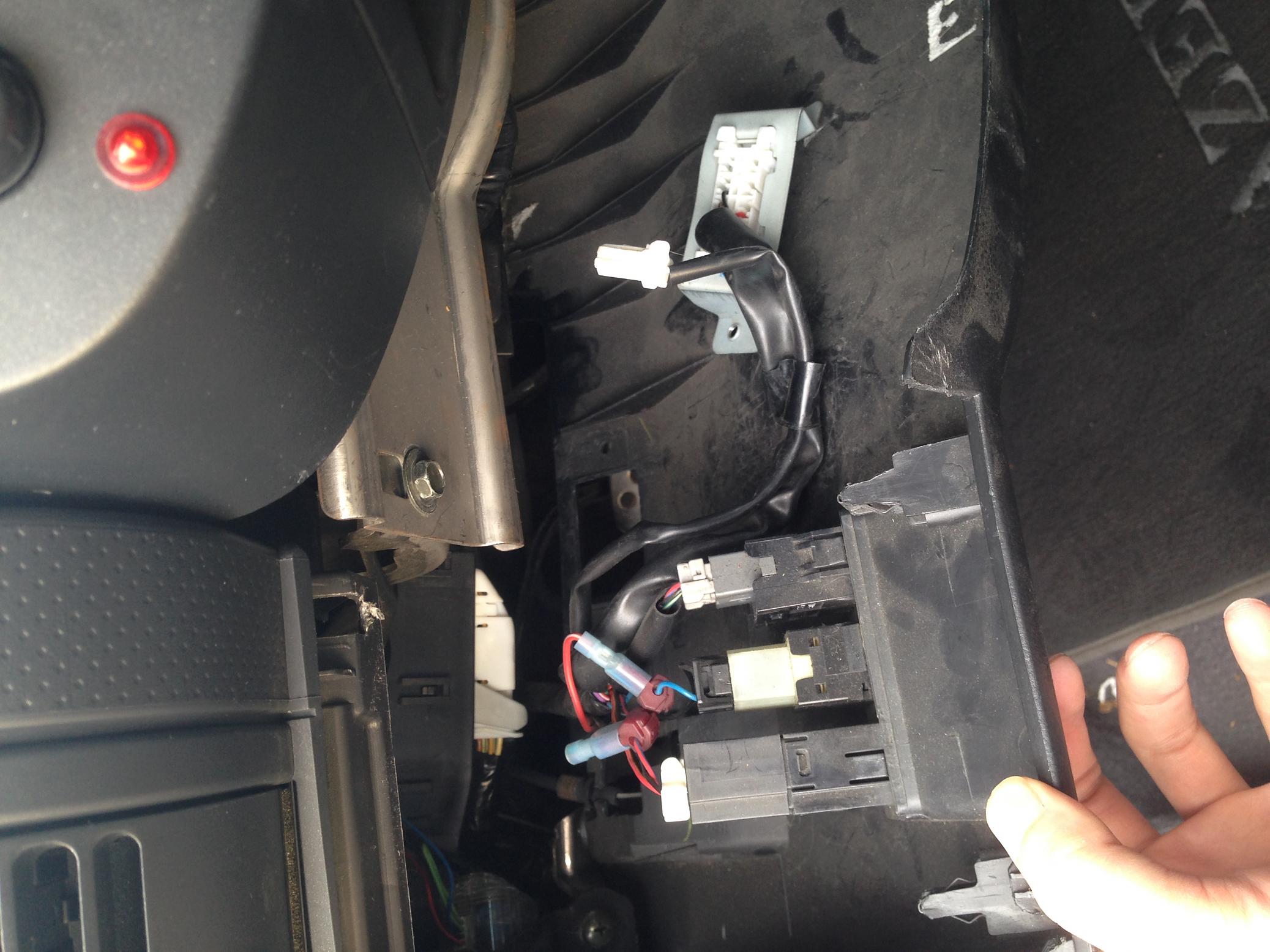

As I was driving, I noticed a wire fell out from underneath my dashboard. Upon inspecting, it looks like the screws that were holding the plug in place was missing. However, what was more concerning, is that it looks like the skinny plug is no longer plugged into whatever it is supposed to be plugged into. Can someone please advise on what this plug is for and if I need to plug the skinny plug back into something? I'm hoping I can figure this out without the need to go to the dealership.

Thanks!

Attached Thumbnails Dangling wire under dashboard - help-img_3908.jpg   Dangling wire under dashboard - help-img_3907.jpg   Dangling wire under dashboard - help-img_3909.jpg
  #2
Old 12-17-2013, 06:34 PM
Wrathernaut's Avatar
Gentle Manne of Leisure

iTrader: (5)
Join Date: Nov 2008
Location: Pennsylvania
Posts: 7,945
Received 1,036 Likes on 609 Posts
Originally Posted by imalazeeass
As I was driving, I noticed a wire fell out from underneath my dashboard. Upon inspecting, it looks like the screws that were holding the plug in place was missing. However, what was more concerning, is that it looks like the skinny plug is no longer plugged into whatever it is supposed to be plugged into. Can someone please advise on what this plug is for and if I need to plug the skinny plug back into something? I'm hoping I can figure this out without the need to go to the dealership.

Thanks!
The large harness is the ODB2 connector, it should screw back into place. I'm 99% sure it was removed so they could get to the smaller plug - the small plug that doesn't plug into the car anything is for reprogramming Tire Pressure Monitor Sensor interface. You plug the tool into it (or stick a wire into it to ground to manually reprogram).

Nothing to be alarmed about.

  #3
Old 12-17-2013, 09:58 PM
imalazeeass's Avatar
Registered User
Thread Starter
iTrader: (40)
Join Date: Jan 2004
Location: 626!
Posts: 3,874
Likes: 0
Received 0 Likes on 0 Posts
Awesome thanks so much for replying. I'll just screw it back and leave the plugs as is. Thanks!
