No problem, I couldn't find a guide like this so I made one myself. The antenna is mounted right next to the rearview mirror, and the wiring just runs through the headliner. The antenna is the easiest part which is why I didn't even bother to take pictures of it, but I'll do it when I get a chance to.
#17
Been wanting to do this since I saw this post, thank you very much for the clear step by step.
My 06 G35 has a different color scheme for the driver side door pin, see pic below. Since you mentioned that you weren't sure if it does anything I left it alone but if I was to connect it to which one should I connect it to as my color schemes appear to be different.
Also, where did you end up putting the EVO-ALL and the RS7 Devices?
Finally have you setup any of the combination key presses for AC control? Would be nice to setup seat heaters and AC controls.
My 06 G35 has a different color scheme for the driver side door pin, see pic below. Since you mentioned that you weren't sure if it does anything I left it alone but if I was to connect it to which one should I connect it to as my color schemes appear to be different.
Also, where did you end up putting the EVO-ALL and the RS7 Devices?
Finally have you setup any of the combination key presses for AC control? Would be nice to setup seat heaters and AC controls.
#18
Been wanting to do this since I saw this post, thank you very much for the clear step by step.
My 06 G35 has a different color scheme for the driver side door pin, see pic below. Since you mentioned that you weren't sure if it does anything I left it alone but if I was to connect it to which one should I connect it to as my color schemes appear to be different.
Also, where did you end up putting the EVO-ALL and the RS7 Devices?
Finally have you setup any of the combination key presses for AC control? Would be nice to setup seat heaters and AC controls.
My 06 G35 has a different color scheme for the driver side door pin, see pic below. Since you mentioned that you weren't sure if it does anything I left it alone but if I was to connect it to which one should I connect it to as my color schemes appear to be different.
Also, where did you end up putting the EVO-ALL and the RS7 Devices?
Finally have you setup any of the combination key presses for AC control? Would be nice to setup seat heaters and AC controls.
I'm not sure if this is correct, since you didn't specify if you have the sedan or coupe, but it seems to be correct according to the manual. I'd suggest that you take a multimeter and check it according to the service manual, and if you figure it out, let me know.
The EVO-ALL and RS7 are just tucked where there was space. I just made sure that they weren't in the way of the steering wheel and secured them with zip ties. I don't have any good pictures of this, sorry.
I've actually sold my 2005 G35x and now have a 2007 g35x, so I never got a chance to do anything fancy like combination key presses. I really don't know if there's any easy way to control systems like that, but I definitely would have tried if I still had the car!
Hopefully this all helps! Best of Luck!
#19
The yellow didn't do it. I also checked the manual for 2005 G35 Coupe/Sedan and it shows the same as what you were referring to in the 2006 Sedan manual. (I have an 06 coupe) It only shows yellow wire, I'm actually not seeing anywhere where it is showing wire colors (white) with the plug like you have in yours and as mentioned in the picture. Yours is one line white other black, mine both top and bottom row of plug is white and all the wires are different colors.
The issue I'm having is that the headlights are not turning off if left in auto and car locked with RS7-G5.
Also when I lock the car with the RS7 remote the horn honks, yet I did not wire any of the 2 optional ones, the horn or the parking lights. I don't mind the honk upon lock just found it weird that it did it without me actually wiring those two optional ones.
Aside from that the car locks/unlocks remote starts/stops on command. I just want to resolve this headlight issue before I put everything back together.
Thinking about this some more I'm wondering if the instructions are correct and I just need to look for a white wire in a different BCM plug? I have the white wire as shown below, any idea where it goes in the car?
The issue I'm having is that the headlights are not turning off if left in auto and car locked with RS7-G5.
Also when I lock the car with the RS7 remote the horn honks, yet I did not wire any of the 2 optional ones, the horn or the parking lights. I don't mind the honk upon lock just found it weird that it did it without me actually wiring those two optional ones.
Aside from that the car locks/unlocks remote starts/stops on command. I just want to resolve this headlight issue before I put everything back together.
Thinking about this some more I'm wondering if the instructions are correct and I just need to look for a white wire in a different BCM plug? I have the white wire as shown below, any idea where it goes in the car?
Last edited by phatrabbitzz; 10-07-2017 at 02:32 AM.
#20
The yellow didn't do it. I also checked the manual for 2005 G35 Coupe/Sedan and it shows the same as what you were referring to in the 2006 Sedan manual. (I have an 06 coupe) It only shows yellow wire, I'm actually not seeing anywhere where it is showing wire colors (white) with the plug like you have in yours and as mentioned in the picture. Yours is one line white other black, mine both top and bottom row of plug is white and all the wires are different colors.
The issue I'm having is that the headlights are not turning off if left in auto and car locked with RS7-G5.
Also when I lock the car with the RS7 remote the horn honks, yet I did not wire any of the 2 optional ones, the horn or the parking lights. I don't mind the honk upon lock just found it weird that it did it without me actually wiring those two optional ones.
Aside from that the car locks/unlocks remote starts/stops on command. I just want to resolve this headlight issue before I put everything back together.
Thinking about this some more I'm wondering if the instructions are correct and I just need to look for a white wire in a different BCM plug? I have the white wire as shown below, any idea where it goes in the car?
The issue I'm having is that the headlights are not turning off if left in auto and car locked with RS7-G5.
Also when I lock the car with the RS7 remote the horn honks, yet I did not wire any of the 2 optional ones, the horn or the parking lights. I don't mind the honk upon lock just found it weird that it did it without me actually wiring those two optional ones.
Aside from that the car locks/unlocks remote starts/stops on command. I just want to resolve this headlight issue before I put everything back together.
Thinking about this some more I'm wondering if the instructions are correct and I just need to look for a white wire in a different BCM plug? I have the white wire as shown below, any idea where it goes in the car?
Hmm, I'm not sure why the yellow wire didn't work... In all honesty I didn't use the service manual to make this tutorial from scratch, I just put together various info from Fortin, Crimestoppers and MyPushCart. The MyPushCart documentation states that all G35s use a white wire, but the Fortin documentation states that it's the yellow wire. There is a very good chance this is a sedan/coupe difference. I'm not sure if I'm allowed to post WireColor pictures here, so mods just delete if you need to, but that's another place where a yellow wire is mentioned.

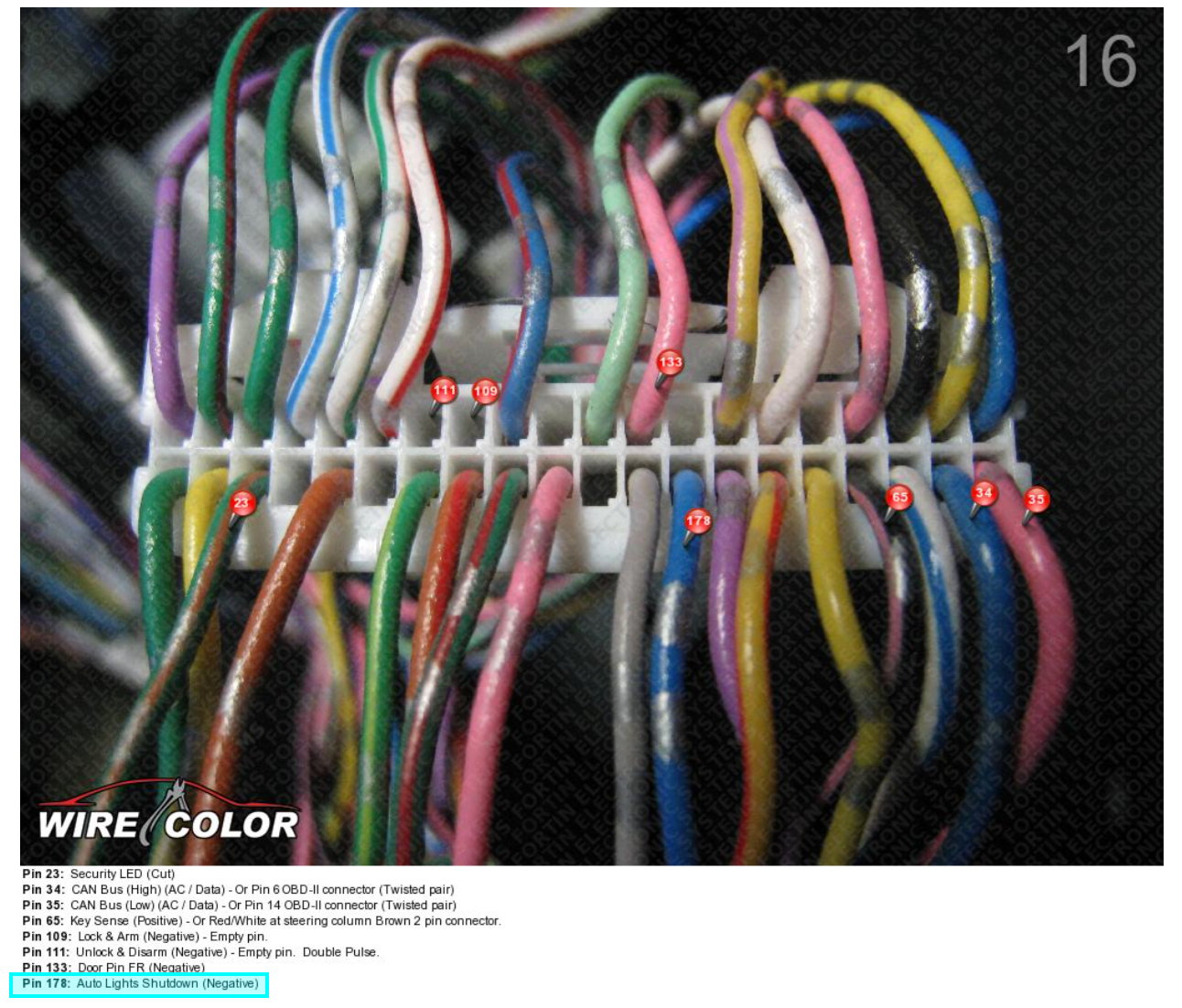

The other wire you can potentially tap into is the "Autolight Shutdown" wire. I didn't use this, and this isn't used in any of the documentation, but if it does what it says, then it should do the job just fine. It's the blue wire with silver stripes on the bottom row of the large BCM connector (refer to the pictures). Try using this instead and see if it works.
In regards to the fact that your horn and parking lights are working without actually hooking them up... That's pretty crazy, because as far as I know, these cars don't support that functionality over CANBUS, but I guess the 2006 does, even though it's not mentioned anywhere. Might be something to look into.
Give it a shot and let me know, if that Autolight Shutdown wire doesn't work, I'll keep digging and see what I can find.
#21
That's actually really helpful. I ended up running a wire from the actual driver door pin (green/black wire) and connected that to the lt blue/black Fortin wire and that did the same thing. My headlights would flicker and then stay on. I then ran the orange wire from the RS7 unit to the wire I ran from driver door pin and that worked. I'm thinking maybe my Fortin connector at the lt blue/black is bad or maybe should've downgraded firmware. But I achieved the same thing by just connecting the orange wire from the RS7 so problem solved.
#22
That's actually really helpful. I ended up running a wire from the actual driver door pin (green/black wire) and connected that to the lt blue/black Fortin wire and that did the same thing. My headlights would flicker and then stay on. I then ran the orange wire from the RS7 unit to the wire I ran from driver door pin and that worked. I'm thinking maybe my Fortin connector at the lt blue/black is bad or maybe should've downgraded firmware. But I achieved the same thing by just connecting the orange wire from the RS7 so problem solved.
But good on you for fixing it anyways! Enjoy your remote starter!
Here's the Fortin Q&A for anyone interested in what I'm talking about: http://fortin.ca/en/qa/74851/evo-all...ed-on-2005-g35
The following users liked this post:
phatrabbitzz (10-11-2017)
#24
Have a look under your steering column and you should see the different colored wires coming out of your OBD2 port. They should be blue and pink and they should correspond to CAN HIGH and CAN LOW.
Hopefully this helps!
#27
Thanks for the guide. This is awesome! So thorough.
I ordered this a while back but haven't gotten around to installing it.
