Ok so Im doing a show 2005 G35 coupe for a customer that had me install a double din eclispe video deck and he also has the factory navigation. I had to modify the japanise kit to fit it all, bla bla bla. But now im having trouble trying to find the audio output to run into the deck to hear the guidance. Ive done this countless times in the 350z but never in a G35. If anyone might have the pinout on the nav unit or maybe just have some help please email me at arrivalanche@tmail.com. thanks I'll post pics soon also to show you how it looks.



http://www.g35frenzy.com/forum/showthread.php?t=1044



WOW that had everything i needed! I cant thank you enough!!



actually i just realized that was for the older series. i checked the pins and there is a pin missing from one of the two holes where audio should be. not to mention the color was off on the one. everything else seemed to be the same though. it did give me a better idea where to look though.

Does anyone have the 05+ manual?



Yea thats for an 04. I don't have the 05 manual, sorry. Maybe post your email and ask someone to send it to you? Or start a new thread asking so.



ill try and get it to you 2nite...

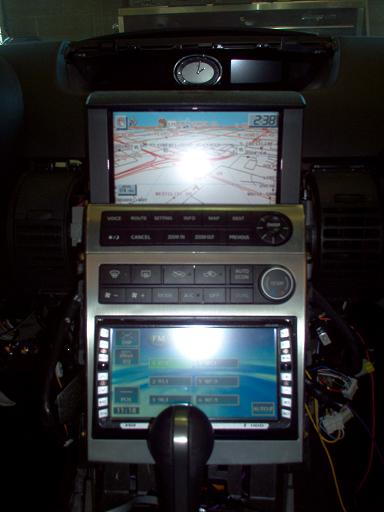

nm i called up some friends at infiniti and got it. that guide was nice though. Heres some pics like i said. Ive seen the double din in here but never with the factory nav to.



Sweet, nice work! So your telling me that the NAV voice can be added? Can you go into how? I just bought the Kenwood 7017.



No, thats not what he's saying. He's utilizing the OEM nav voice by creating some sort of audio switching.



actually you need to run the low level output from the dvd into a amplified speaker. im using a clarion center channel for this install mounted under the dash. then i use a low voltage relay to activate a boshe relay to cut off the amp turnon to mute the system while the nav talks



Man I wish you were closer. I would really like to have that done. What does that glass work cost? Can you also tell me what screen that is?



I believe its the avn2594 from eclipse. we did that one because it is the only avn without nav. I believe that the total on his stereo was around 35K

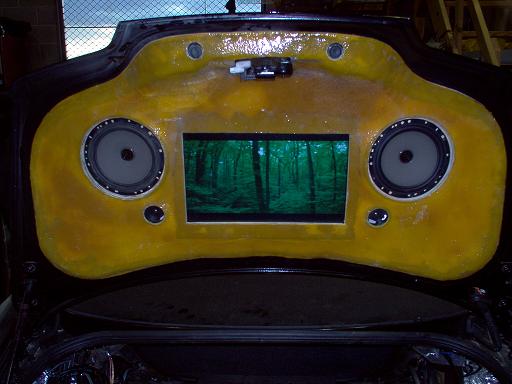

Wow that much! Big baller! I ment the screen in the deck lid. Do you have anymore pics of the install?

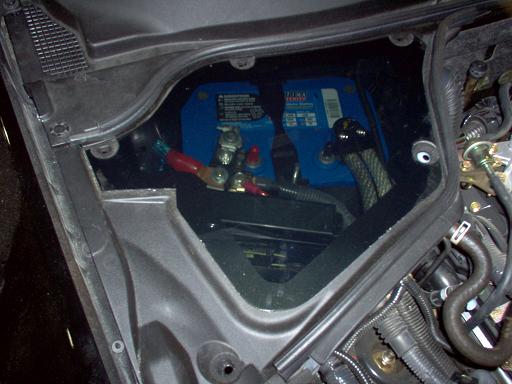

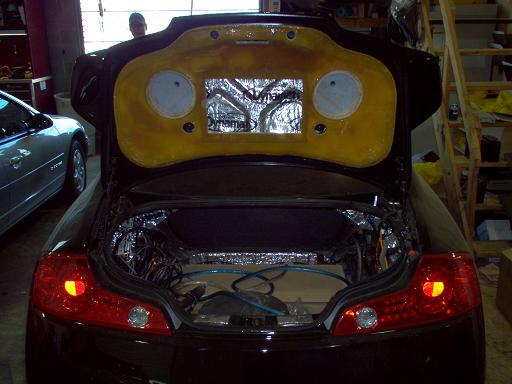

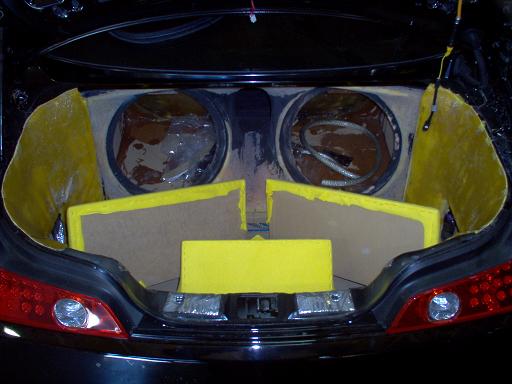

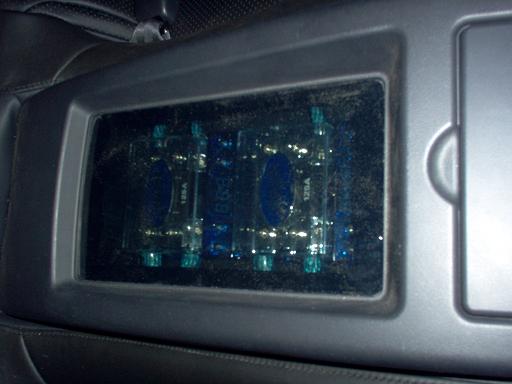

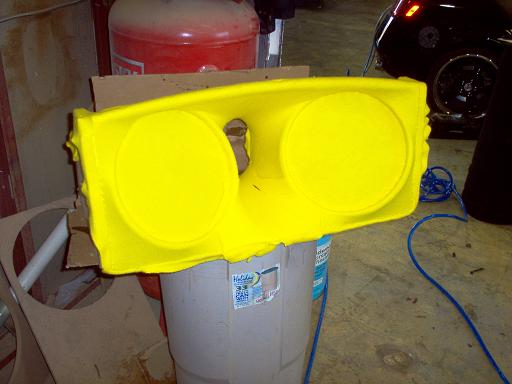

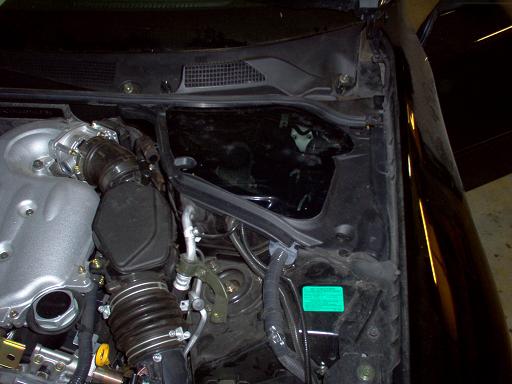

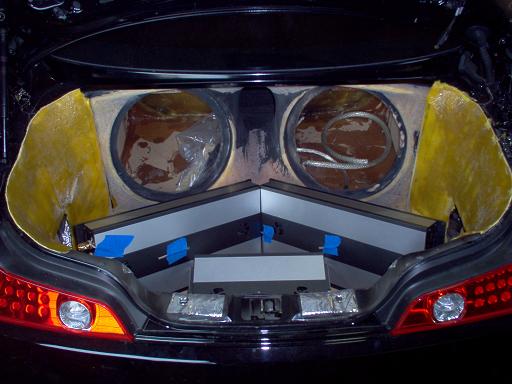

heres a few more pics of the build



and more
