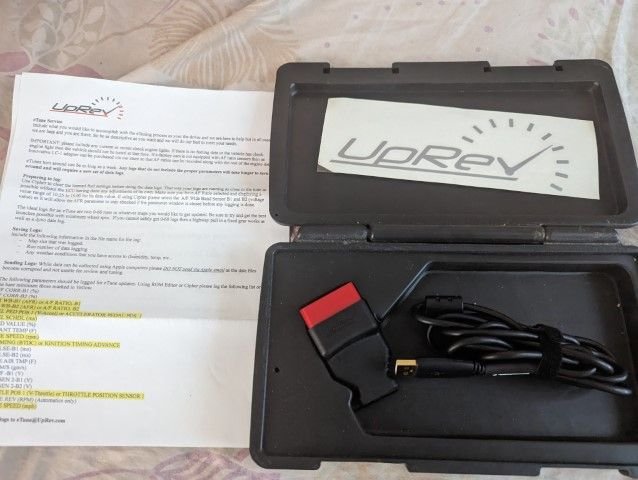

Selling my UpRev cable with ARC license already embedded. All you need to do is buy a flash license and your good to go. Cable in excellent condition, only used twice, comes with the secure case. $225 shipped in the USA
The UpRev Cipher Data & Diagnostics is a popular data logging and diagnostic tool for various 2003+ Nissan and Infiniti products. The UpRev Cable allows you to connect your USB equipped Windows PC directly to your vehicle and communicate with on-board systems such as the VQ ECU.
With the Cipher Cable, you can log various sensors/parameters and retrieve CEL or DTC (Diagnostic Trouble Codes) so you can see how your vehicle is running and see what needs to be repaired or adjusted. The CEL (check engine light) codes are displayed, along with a description of what that code means. The Cipher cable also allows you to reset the CEL on the fly. Data that is retrieved with Cipher can be viewed in real time or saved to a file for later viewing or comparison. Cipher's .csv files can be viewed through Cipher's built-in graphical display or through many spreadsheet programs.
Cipher communicates using Nissan's proprietary communication protocol which enables you to view data with more speed than generic OBDII scan tools giving the user better insight into how the vehicle is running. Sample rates of 20 times per second can be achieved on more than 15 sensors at a time.
The following support is available using UpRev Software with your Data Cable:
Simple ECU and BCM Control:
Cipher also provides the user with basic dealership work support routines for the ECU and BCM including:
Target Idle RPM (depends on year, check to verify before ordering)
+/- 2 degree static timing adjustment
Cylinder power testing
Clear Learned Fuel settings
Manual control of BCM functions, ie. Windows UP/Down, Activate Locks, Wipers, Lamps, etc.
Fuel Pressure purge
Ethanol Adjustments (if vehicle is equipped)
Coolant Test
Available data parameters:
Engine Speed - RPM
Throttle Position Sensor
Vehicle Speed
MAF Sensor
Calculated Load Value
Oxygen Sensor
Ignition Timing
Accelerator Position
Wide Band A/F Voltage and Live AFR (04+ equipped vehicles)
Coolant Temperature
NOTE: An UpRev cable is also necessary to flash and activate purchased ARC Features (included) without visiting your tuner.Once you've updated your software and downloaded a new ROM file, open up the ROM Editor. Upon opening any non-locked 350Z, G35, 370Z, or G37 ROM from 2003 to 2017, you will see the following new tabs appear: ARC Launch Control. ARC Flat-foot Shifting, and ARC Rolling Anti-lag. Once you obtain an ARC License you will also see the tab labeled ARC Toggles; this is where you will choose which features you would like to turn ON or OFF.
Each feature is governed by a minimum and maximum oil temperature, which means that the features won't activate until your oil temperature gets into this range (2003-2009 vehicles have the oil temperature setting maxed out as they do not have these sensors). You will be able to adjust the minimum and maximum to your liking. The base ROM will come with default temps of 120 F and 250 F, so for the features to work, your oil temperature must be within that range.
ARC 2-Step Launch Control - This feature makes it possible to have more controlled launches and for building boost off the line. You must be in first gear with the clutch engaged to activate 2-Step Launch Control. In the ROM Editor you can set your Launch RPM, this can also be adjusted on the fly using the cruise toggle on the steering wheel, the base ROM is set to 3200 RPM. In the Editor, you can also adjust the minimum throttle voltage required to activate 2-Step Launch Control, the base ROM is set to 3.8 Volts, which is fairly close to WOT - in order for the feature to activate the throttle voltage must be greater than what you have set. You will also see the setting Launch Vehicle Speed; the speed you choose here will be the vehicle speed that the 2-Step will disengage and the rev limiter will return to whatever you have set in the current map under Rev &Speed Limits. You will be able to set your timing target, which will take affect while 2-Step is active, the base ROM is set to -10 degrees BTDC. Lastly, you can adjust the Launch Fuel Compensation, this value is on the same scale as those found in your main Fuel Compensation map under the Fuel tab.
ARC Flat-foot Shifting - This feature makes it possible to continue holding the accelerator pedal while shifting with the clutch engaged. A temporary Rev limit will be set at (current engine + RPM jump). The RPM jump is adjustable in the Flat-foot Shifting settings, we have it set to 50 RPM in the base ROM. This feature allows for faster shifting, an extra jolt of power upon entering the next gear, and with full control of fuel and timing you can hold boost during shifts. The clutch must be engaged for Flat-foot Shifting to activate. The first setting under this tab is the Flat-foot Throttle Activation, we have it set to 3.00 Volts (roughly 3/4 throttle) in the base ROM, so that Flat-foot shifting only activates if the throttle voltage is at least 3.00 Volts. You can adjust this to your liking as well. The Flat-foot Speed Activation is the minimum vehicle speed needed to activate Flat-foot Shifting, the base ROM is set to 18 MPH, which means Flat-foot Shifting will only activate if the vehicle speed is over 18 MPH. You will also see Flat-foot Minimum RPM, this is so that you can govern the minimum RPM which Flat-foot Shifting can engage, the base ROM is set to 3000 RPM, thus the feature can only be activated if your engine speed is at least 3000 RPM - this is adjustable as well.
ARC Rolling Anti-lag - Unlike 2-Step and Flatfoot Shifting you don't need to use the clutch pedal for this feature. This feature makes it possible for more controlled rolling launches and building boost for roll racing. Like 2-Step and Flat-foot Shifting, this feature also gives you full control of fuel and timing. In the ROM Editor under the ARC Rolling Anti-lag tab, you will see Rolling Anti-lag Vehicle Speed Activation, this is the speed you must reach in order for this feature to activate, the base ROM comes set with 18 MPH, which means you must be over 18 MPH to use this feature. You will also see Rolling Anti-lag Minimum RPM, this is so that you may govern the minimum RPM which Rolling Anti-lag can engage, the base ROM is set to 3000 RPM, thus the feature can only be activated if your engine speed is at least 3000 RPM - this is adjustable as well. Lastly and most importantly, in order to activate Rolling Anti-lag you must meet the minimum throttle activation requirement, the base ROM comes set to 2.00 Volts, which means you must be about 1/2 throttle for the feature to activate - you may adjust this value as well. To activate Rolling Anti-lag be sure all the above requirements are met, then hold down the Cancel cruise button once you get to the desired vehicle speed for your roll, release the Cancel button when you want to go
