Car won’t get out of limp mode
#1
Car won’t get out of limp mode
I just recently replaced my accelerator position sensor and changed my starter. I know you’re supposed to do the ECU reset and I’ve done that, but whenever I do it, the SES light won’t blink/go away. At this point I’m lost on what to do and help would be very appreciated.
Last edited by jordan lee; 02-10-2021 at 06:33 PM.
#2
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
#3
The code is P2135. I went ahead and changed the pedal position sensor and had zero throttle response. I put the old one back on and cleaned the throttle body and got about 4% throttle (I checked with a OBD reader).
#4
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
#5
thanks for the reply man. I’m still learning so I’m not too familiar with the difference between the pedal position sensor and throttle position sensor. I kinda thought they were the same thing just a different name. Where would I find the throttle position sensor and also do you have a good brand you’d recommend?
#6
Premier Member
iTrader: (11)
Throttle position is the throttle body on the intake manifold. Accelerator would be the pedal you push with your foot.
Three posible causes:
Harness or connector (at the throttle body or the accelerator pedal)
Throttle actuator itself
Accelerator pedal position sensor
Since you've recently changed parts, do the basic position relearns: key on (no start) for 5 seconds - key off for 10 seconds - key on for 5 seconds - key off for 10 seconds (you should hear the throttle body open and close), then try to start it.
If the throttle body is indeed bad, use the Hitachi brand part from Rock Auto (or local auto store if they sell it). Hitachi is the actual OE part, other brands may or may not work, your call if you want to take the risk.
After replacing that, you'll need to do the relearn, then do the idle relearn procedure after the car is warmed up.
Three posible causes:
Harness or connector (at the throttle body or the accelerator pedal)
Throttle actuator itself
Accelerator pedal position sensor
Since you've recently changed parts, do the basic position relearns: key on (no start) for 5 seconds - key off for 10 seconds - key on for 5 seconds - key off for 10 seconds (you should hear the throttle body open and close), then try to start it.
If the throttle body is indeed bad, use the Hitachi brand part from Rock Auto (or local auto store if they sell it). Hitachi is the actual OE part, other brands may or may not work, your call if you want to take the risk.
After replacing that, you'll need to do the relearn, then do the idle relearn procedure after the car is warmed up.
#7
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
You said previously you cleaned the throttle body, the throttle position sensor is part of the throttle body. If you are working the butterfly plate manually by hand it's VERY easy to damage the delicate internal gearing and screw up things like the throttle position sensor.
NEVER work the butterfly plate by hand. To clean around where the plate is you need to remove the two screws on the pivot bar and take the plate out. Then you can thoroughly clean everything without damaging the gear. When you put the plate back on just apply a little blue Loctite 242/243 to the threads on those two screws.
NEVER work the butterfly plate by hand. To clean around where the plate is you need to remove the two screws on the pivot bar and take the plate out. Then you can thoroughly clean everything without damaging the gear. When you put the plate back on just apply a little blue Loctite 242/243 to the threads on those two screws.
Trending Topics
#8
Throttle position is the throttle body on the intake manifold. Accelerator would be the pedal you push with your foot.
Three posible causes:
Harness or connector (at the throttle body or the accelerator pedal)
Throttle actuator itself
Accelerator pedal position sensor
Since you've recently changed parts, do the basic position relearns: key on (no start) for 5 seconds - key off for 10 seconds - key on for 5 seconds - key off for 10 seconds (you should hear the throttle body open and close), then try to start it.
If the throttle body is indeed bad, use the Hitachi brand part from Rock Auto (or local auto store if they sell it). Hitachi is the actual OE part, other brands may or may not work, your call if you want to take the risk.
After replacing that, you'll need to do the relearn, then do the idle relearn procedure after the car is warmed up.
Three posible causes:
Harness or connector (at the throttle body or the accelerator pedal)
Throttle actuator itself
Accelerator pedal position sensor
Since you've recently changed parts, do the basic position relearns: key on (no start) for 5 seconds - key off for 10 seconds - key on for 5 seconds - key off for 10 seconds (you should hear the throttle body open and close), then try to start it.
If the throttle body is indeed bad, use the Hitachi brand part from Rock Auto (or local auto store if they sell it). Hitachi is the actual OE part, other brands may or may not work, your call if you want to take the risk.
After replacing that, you'll need to do the relearn, then do the idle relearn procedure after the car is warmed up.
#9
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS

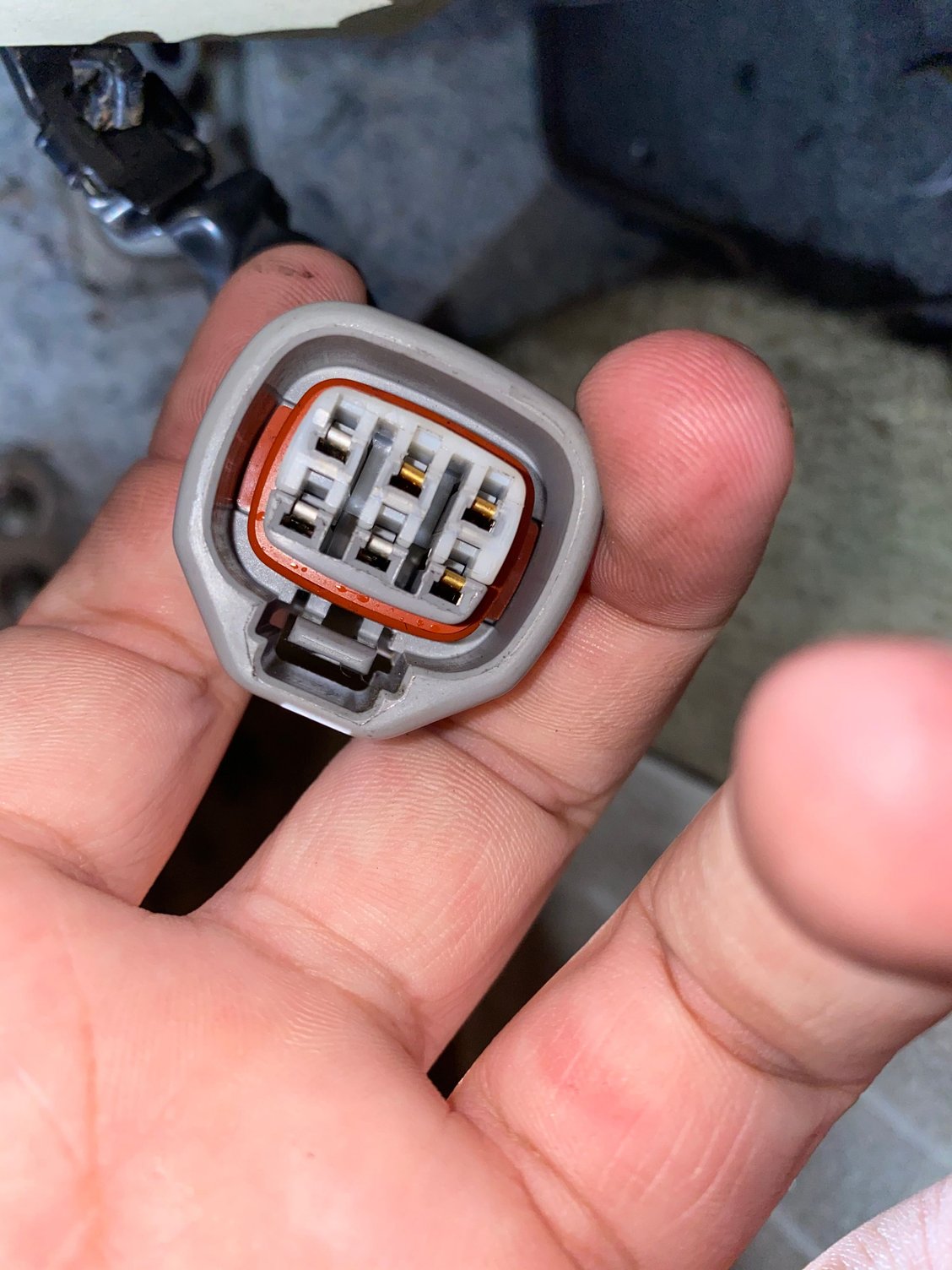

Those two codes means the ECM is not getting the proper data from the pedal, if you have already tried a new pedal switch then the next likely culprit is damaged wiring between the pedal and the ECM. Here is a snippet from the FSM.
You can test the pedal switch with a 3x AA battery holder to supply your 5vdc (close enough with the 4.5vdc from three AA batteries in series) and run the pedal through it's range while using a DMM to check voltage output on both switches (they are inverse of one another, one is like 0.4vdc - 5vdc the other is 5vdc - 0.4vdc when you go from idle position to wide open throttle.).
You can test the pedal switch with a 3x AA battery holder to supply your 5vdc (close enough with the 4.5vdc from three AA batteries in series) and run the pedal through it's range while using a DMM to check voltage output on both switches (they are inverse of one another, one is like 0.4vdc - 5vdc the other is 5vdc - 0.4vdc when you go from idle position to wide open throttle.).
#10
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
#12
Those two codes means the ECM is not getting the proper data from the pedal, if you have already tried a new pedal switch then the next likely culprit is damaged wiring between the pedal and the ECM. Here is a snippet from the FSM.
You can test the pedal switch with a 3x AA battery holder to supply your 5vdc (close enough with the 4.5vdc from three AA batteries in series) and run the pedal through it's range while using a DMM to check voltage output on both switches (they are inverse of one another, one is like 0.4vdc - 5vdc the other is 5vdc - 0.4vdc when you go from idle position to wide open throttle.).
You can test the pedal switch with a 3x AA battery holder to supply your 5vdc (close enough with the 4.5vdc from three AA batteries in series) and run the pedal through it's range while using a DMM to check voltage output on both switches (they are inverse of one another, one is like 0.4vdc - 5vdc the other is 5vdc - 0.4vdc when you go from idle position to wide open throttle.).
#13
Join Date: Mar 2011
Location: Central NJ
Posts: 2,605
Received 196 Likes
on
177 Posts
Front and rear cameras, tire pressure for all four tires can display on screen,folding side view mir
That is why you would have been better off in paying the one hour diagnostic fee at your local Infiniti dealer?
You still may eventually have to do that?
The dealer's expensive Consult tool will locate the problem?
Just sayin!
My $.02
You still may eventually have to do that?
The dealer's expensive Consult tool will locate the problem?
Just sayin!
My $.02
#14
Join Date: May 2017
Location: Washington State
Posts: 14,799
Received 2,463 Likes
on
2,155 Posts
Coupe 6MT Premium RAS
So it will throw the exact same code with both the old gas pedal AND the new one yes?
Where did you get the new pedal from? It's possible you bought a defective one, I would return it and get another one.
If it has this issue with a THIRD pedal there's a really good chance it's actually bad wiring.
There's also a really good chance that if you got that pedal at like Autozone/Oreillys, etc that someone had a bad pedal, bought the one you have, swapped out JUST THE SENSOR, returned the pedal with the bad sensor, you bought the sensor with the bad pedal.
Also, the sensor itself can be replaced without purchasing the entire pedal assembly, most parts houses will sell it as an assembly though.
Where did you get the new pedal from? It's possible you bought a defective one, I would return it and get another one.
If it has this issue with a THIRD pedal there's a really good chance it's actually bad wiring.
There's also a really good chance that if you got that pedal at like Autozone/Oreillys, etc that someone had a bad pedal, bought the one you have, swapped out JUST THE SENSOR, returned the pedal with the bad sensor, you bought the sensor with the bad pedal.
Also, the sensor itself can be replaced without purchasing the entire pedal assembly, most parts houses will sell it as an assembly though.
