Can 04 auto coupe heated seats fit on a 03 6mt sedan?

G35 Sedan V35 2003-06 Discussion about the 1st Generation V35 G35 Sedan

Can 04 auto coupe heated seats fit on a 03 6mt sedan?

  #16
Old 01-25-2016, 05:52 PM
Registered User
iTrader: (14)
Join Date: Jun 2008
Location: SoCal, OC
Posts: 521
Received 39 Likes on 35 Posts
If the car originally came with a power passenger seat but got swapped out at some point, and the harness is still there, then it's possible to re-wire and make the power seat work again; however some early 03 sedans (doggy doors) came with just basic options with manual passenger seat factory installed, and I'm not sure if those are pre-wired for power seat or not. So you need to make sure the harness is indeed for the power seat. If the car is not pre-wired then it'll be more difficult to make the power seat work.

You can still put heated seat in, you just don't get to turn it on since you don't have the switch.

Check your VIN with Infiniti to find out what seats were originally equipped in your car. Post a picture of the said cut harness if you can.

  #17
Old 01-26-2016, 01:48 PM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts

Ok i took this pic under the passenger seat , i hope u can see it and know what is that white plug for and the wires they cut

There is a white plug and those wires cut



  #18
Old 01-26-2016, 03:36 PM
Registered User
iTrader: (14)
Join Date: Jun 2008
Location: SoCal, OC
Posts: 521
Received 39 Likes on 35 Posts
Good news: the white plug is power seat harness, just use a voltage meter to confirm it provides power; if it does then you can get power passenger seat.

Not so good news: looks like those cut wires are for something else. See if you can trace it and see where it goes. There might be some functions disabled by the cut wires.

  #19
Old 01-26-2016, 03:58 PM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts
It could be the header seat harness?

  #20
Old 01-26-2016, 05:46 PM
Registered User
iTrader: (14)
Join Date: Jun 2008
Location: SoCal, OC
Posts: 521
Received 39 Likes on 35 Posts
Not sure, if the wires go to the seat then maybe, if they don't then it's for something else. Just test the white plug and see if there's power first.

  #21
Old 01-26-2016, 07:54 PM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts
Ok am going to test the plug for power and am going to pull the seat to see where those wires come from... i'll post a pic later maybe u can tell me what are those wires for? ... thanks for ur time and help ray1370

  #22
Old 01-26-2016, 11:20 PM
Registered User
Join Date: Jul 2015
Posts: 311
Received 23 Likes on 22 Posts
Ok, dont quote me but im pretty sure on these. White plug is power seat, there is a 2 wire plug in front of white plug that is probably seat heater, your cut wires are probably for seat airbags and active headrest. Or i have it backwards and your cut wires are seat heaters and 2 wire plug is airbag/active headrest

Best pic i could grab atm
Can 04 auto coupe heated seats fit on a 03 6mt sedan?-20160126_201400.jpg

  #23
Old 01-27-2016, 06:44 AM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts
Yeah that bunch of wires look like my cut wires, but there are only 5 wires and on yours looks like there are 3 more wires, now i just need to know what are those wires for? ... thanks for reply frostbite, soon as i can am going to pull that seat and take a pic to post it here , thank u

  #24
Old 01-28-2016, 04:58 PM
Registered User
iTrader: (14)
Join Date: Jun 2008
Location: SoCal, OC
Posts: 521
Received 39 Likes on 35 Posts
Originally Posted by Frostbite91 View Post
Ok, dont quote me but im pretty sure on these. White plug is power seat, there is a 2 wire plug in front of white plug that is probably seat heater, your cut wires are probably for seat airbags and active headrest. Or i have it backwards and your cut wires are seat heaters and 2 wire plug is airbag/active headrest

Best pic i could grab atm
Attachment 175011
Some points need to be cleared about your information. From the car there are 3 harnesses go to the seat: one for power seat motors and heater (big white one), a 2nd one goes to the seat belt buckle (small white, 3-wire), then the 3rd one is yellow (2-wire), which goes to airbag. AFAIK the active headrest is mechanical not electrical, so there's no wire for it.

  #25
Old 01-28-2016, 06:53 PM
Registered User
Join Date: Jul 2015
Posts: 311
Received 23 Likes on 22 Posts
Originally Posted by ray1370 View Post
Some points need to be cleared about your information. From the car there are 3 harnesses go to the seat: one for power seat motors and heater (big white one), a 2nd one goes to the seat belt buckle (small white, 3-wire), then the 3rd one is yellow (2-wire), which goes to airbag. AFAIK the active headrest is mechanical not electrical, so there's no wire for it.
Good info to know. Thanks for clearing that up

  #26
Old 01-30-2016, 04:57 PM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts

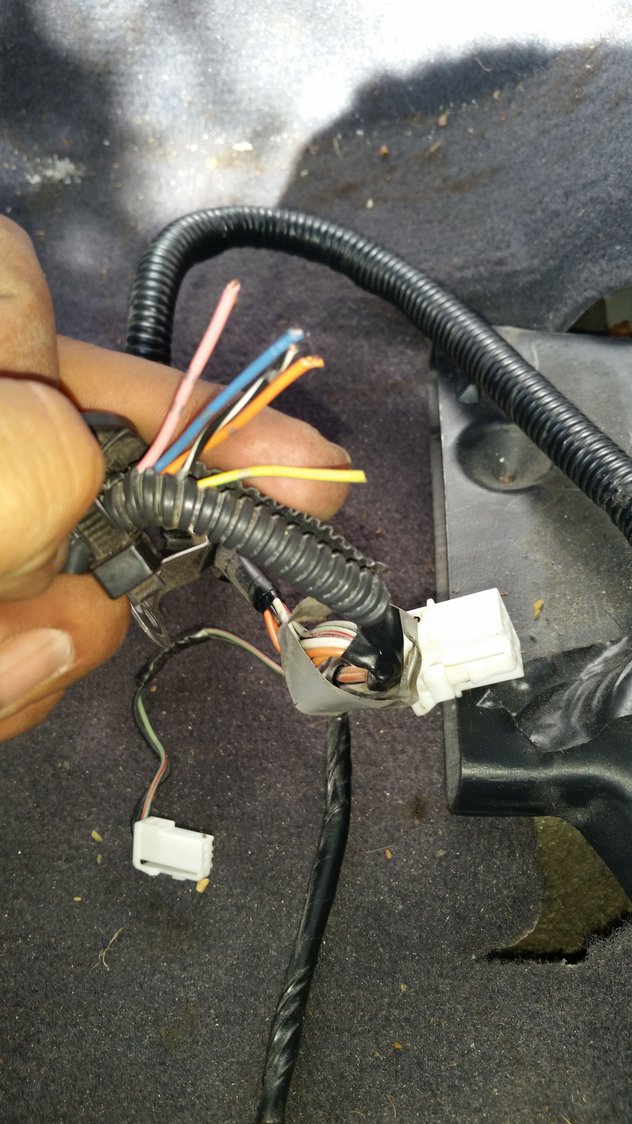

Ok, finally today i had some time to pull my passenger seat and this is what i found, the harness coming fron under carpet has 3 plugs ,one yellow and 2 whites ... one with 4 pins and the other ha

s only 2 pins, but also i found some wires with a plug , the question is what are those wires for?. . Are they part of the seat harness or its for something else?





  #27
Old 04-02-2016, 07:28 PM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts
Hey guys , i just got the 06 coupe seats, i will going to install them tomorrow cuz today is been raining all day... is there somebody who have had installed to help me with the wiring please... the driver seat has the 1 and 2 memory set and the passenger doesnt... any help i will apreciate. .. thanks guys

  #28
Old 05-12-2016, 11:29 PM
Registered User
Join Date: Jan 2016
Posts: 15
Received 0 Likes on 0 Posts
good news I have installed my 06 coupe seats on my 03 sedan doggy door ... they feel sooo good and look nice... i'll post pics tomorrow ... the seat controls work 100% , ... the seats have heaters but I don't need them cuz I live in florida lol, so I just skip them...thanks for the help guys
