CHMSL on sedan dim/flickering/not working?

Thread Tools

Search this Thread

Rate Thread

Old May 15, 2009 | 03:34 PM
  #1
ar9080's Avatar
Thread Starter
|
Registered User
Joined: May 2008
Posts: 19
Likes: 0
CHMSL on sedan dim/flickering/not working?

So I have noticed even some 05-06's with a failing or dead center high-mounted stop light (the LEDs that are on the parcel shelf in the back windshield). My 03 sedan did the same thing, and for a while I found that hitting the back windshield where the light was made it come back on. When my Bose sub crapped out and I replaced it, I disconnected the CHMSL and when I connected it back VOILA! it was fixed! So before you replace the circuit board at the stealership (Sewell has it listed at $146.21) try this.

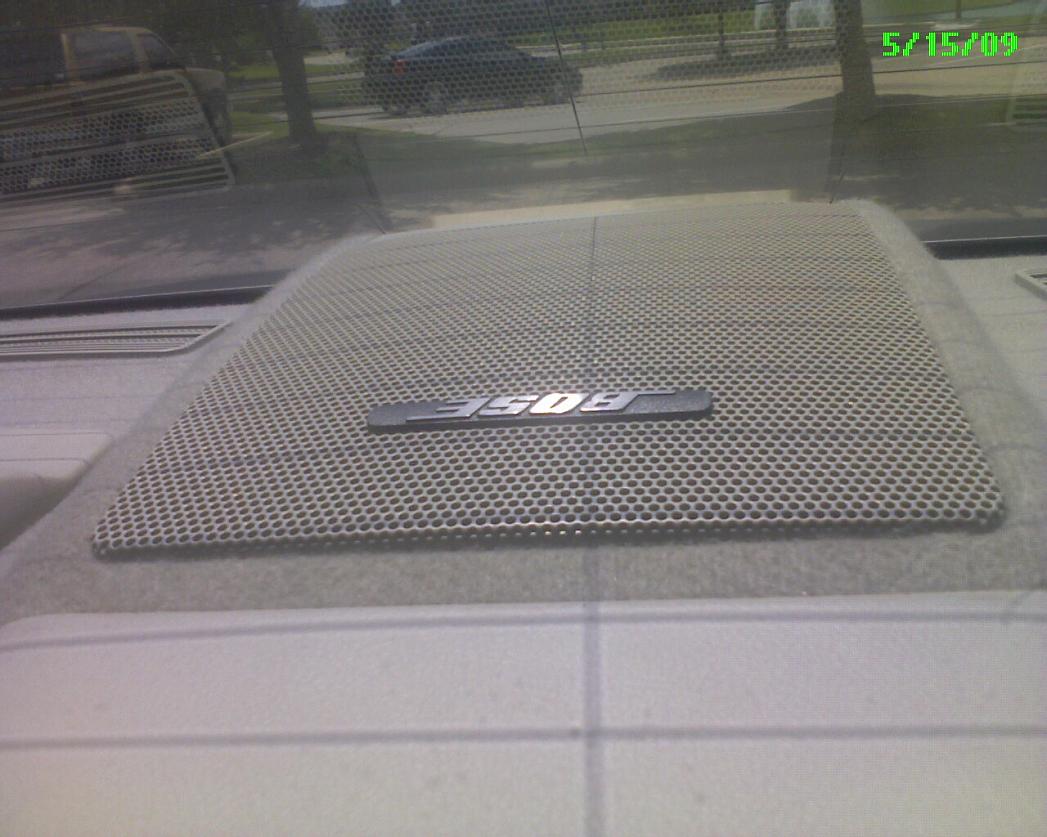

Remove the plastic honeycomb cover thing where the sub is (I haven't seen what this looks like in a non-Bose car) there are some clips and adhesive so be careful not to break it like i did!

Unplug the wiring harness that goes to the lights and re-secure it firmly

Replace the honeycomb thing and you're done!

NOTE: this does not pertain to the LEDs in the optional spoiler.

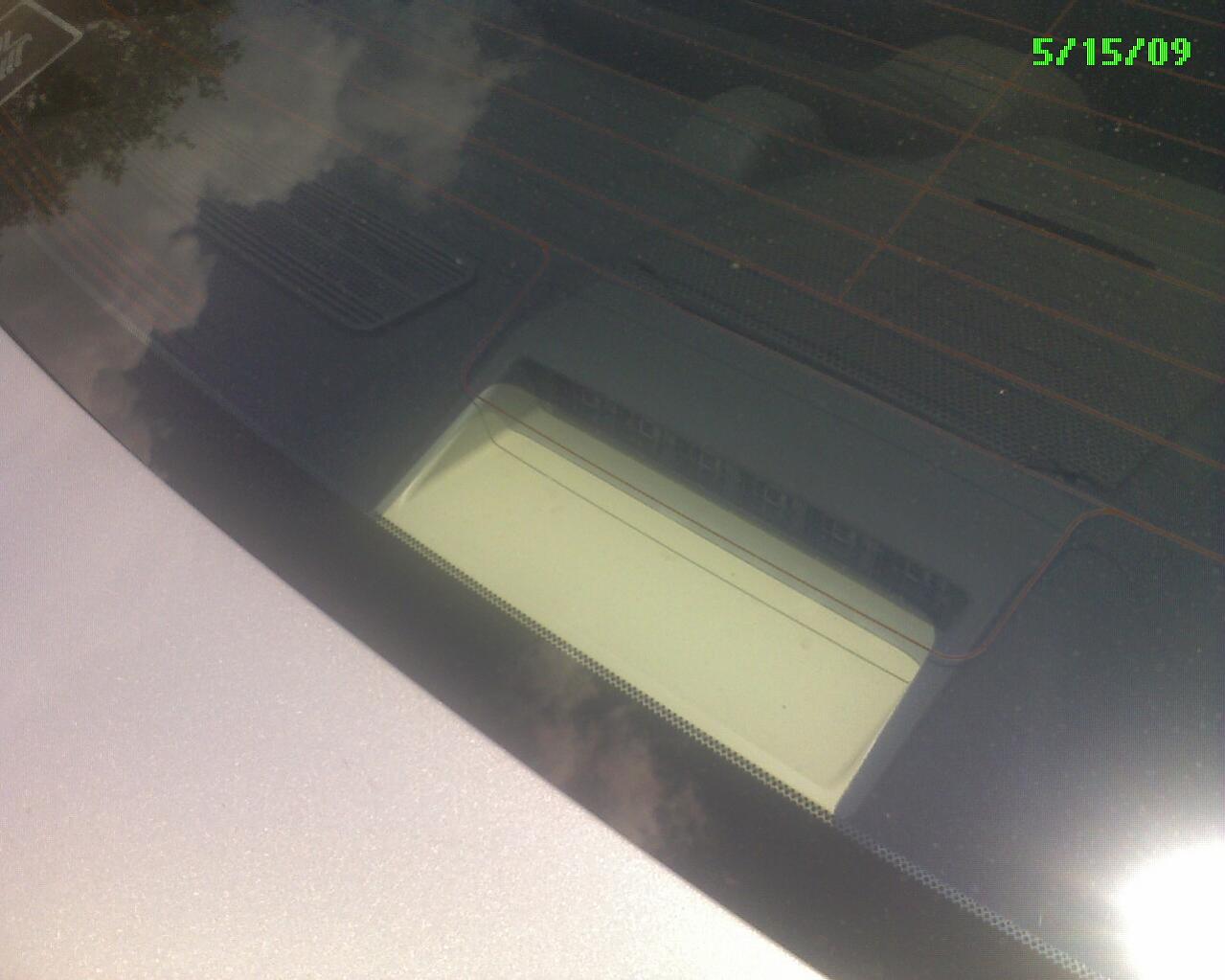

Attached Thumbnails CHMSL on sedan dim/flickering/not working?-honeycombcover.jpg   CHMSL on sedan dim/flickering/not working?-chmsl.jpg
Reply
Old May 15, 2009 | 07:26 PM
  #2
Blue Dream's Avatar
I drove ttrank's car solo
iTrader: (50)
Joined: Mar 2009
Posts: 18,299
Likes: 1,488
From: By the sea, Tx
G35 sedan w/ too much money in mods
Premier Member

Thanks for the potential DIY. Glad it worked for you.

Reply
Old May 15, 2009 | 08:40 PM
  #3
pwebb's Avatar
Registered User
Joined: May 2009
Posts: 471
Likes: 2
those speaker covers are a biatch. remove rear shelf if you dont want to break anything.

rear seat bottoms, backs, C pillar trims. pull up on the shelf to release the pressure clips, then out. it will get snagged on the seat belts anchors. you dont have to remove those.

haven't tried tapping on the rear glass, i've just assumed replace the 3rd lamp assembly.

Reply
