Oil leak. Driver side. G35X Sedan 2005
#1
Oil leak. Driver side. G35X Sedan 2005
Hi all,
I just did front differential oil change and found a bad oil leak at the rear end of the engine on the driver side. . It's definitely not oil filter as front of the engine is 100% dry.
I tried to figure out where it's coming from by starting the engine and revving it but no cigar. I checked all fluids and only the engine is low, so 99% it's engine oil (and I know how my engine oil looks like and smells).
Car has 150k miles on it. Pictures attached.
Any help is appreciated.
I just did front differential oil change and found a bad oil leak at the rear end of the engine on the driver side. . It's definitely not oil filter as front of the engine is 100% dry.
I tried to figure out where it's coming from by starting the engine and revving it but no cigar. I checked all fluids and only the engine is low, so 99% it's engine oil (and I know how my engine oil looks like and smells).
Car has 150k miles on it. Pictures attached.
Any help is appreciated.
#2
It looks like it's coming from the same spot as in this topic: https://g35driver.com/forums/engine-...ing-death.html
But OP from there never came back with his resolution.
But OP from there never came back with his resolution.
#3
Join Date: May 2017
Location: Washington State
Posts: 14,790
Received 2,456 Likes
on
2,150 Posts
Coupe 6MT Premium RAS
First step is to completely clean up any oil residue, use a rag on a stick, mop it up REALLY REALLY good, then start the engine and use a flashlight and inspection mirror (one of those telescoping mirrors on a stick) to probe around and find EXACTLY where the oil is seeping from. With that much leakage it shouldn't take long.
Be careful not to get your inspection mirror eaten by the drive belt...
Be careful not to get your inspection mirror eaten by the drive belt...
#4
First step is to completely clean up any oil residue, use a rag on a stick, mop it up REALLY REALLY good, then start the engine and use a flashlight and inspection mirror (one of those telescoping mirrors on a stick) to probe around and find EXACTLY where the oil is seeping from. With that much leakage it shouldn't take long.
Be careful not to get your inspection mirror eaten by the drive belt...
Be careful not to get your inspection mirror eaten by the drive belt...
So far for having 150k miles car. Compression rod, wheel bearing, now this. I could be on my way to a new car.
Does it look like rear main seal?
#5
Join Date: May 2017
Location: Washington State
Posts: 14,790
Received 2,456 Likes
on
2,150 Posts
Coupe 6MT Premium RAS
I'm more inclined to suspect a leaky valve cover but rear main seals do fail so... If you open theaccess window at the bottom of the block (very middle bottom) that is for accessing the flywheel/flex plate bolts you could poke an inspection mirror in there and visually check for a leaky rear main. It's a tight fit but it will be obvious if it's leaking since you're looking straight up where it would be leaking from.
EDIT: It's really hard to tell from your pictures because literally everything is covered in oil at this point.
EDIT: It's really hard to tell from your pictures because literally everything is covered in oil at this point.
#6
I'm more inclined to suspect a leaky valve cover but rear main seals do fail so... If you open theaccess window at the bottom of the block (very middle bottom) that is for accessing the flywheel/flex plate bolts you could poke an inspection mirror in there and visually check for a leaky rear main. It's a tight fit but it will be obvious if it's leaking since you're looking straight up where it would be leaking from.
EDIT: It's really hard to tell from your pictures because literally everything is covered in oil at this point.
EDIT: It's really hard to tell from your pictures because literally everything is covered in oil at this point.
#7
Trending Topics
#10
#12
Have the same leak.
Did you end up finding where the leak is? I just got this leak on my 2004 G35 Sedan and I'm scared to let her go because of it. did my valve covers and gaskets and may have to recheck them but if it's the rear main seal I'm screwed.

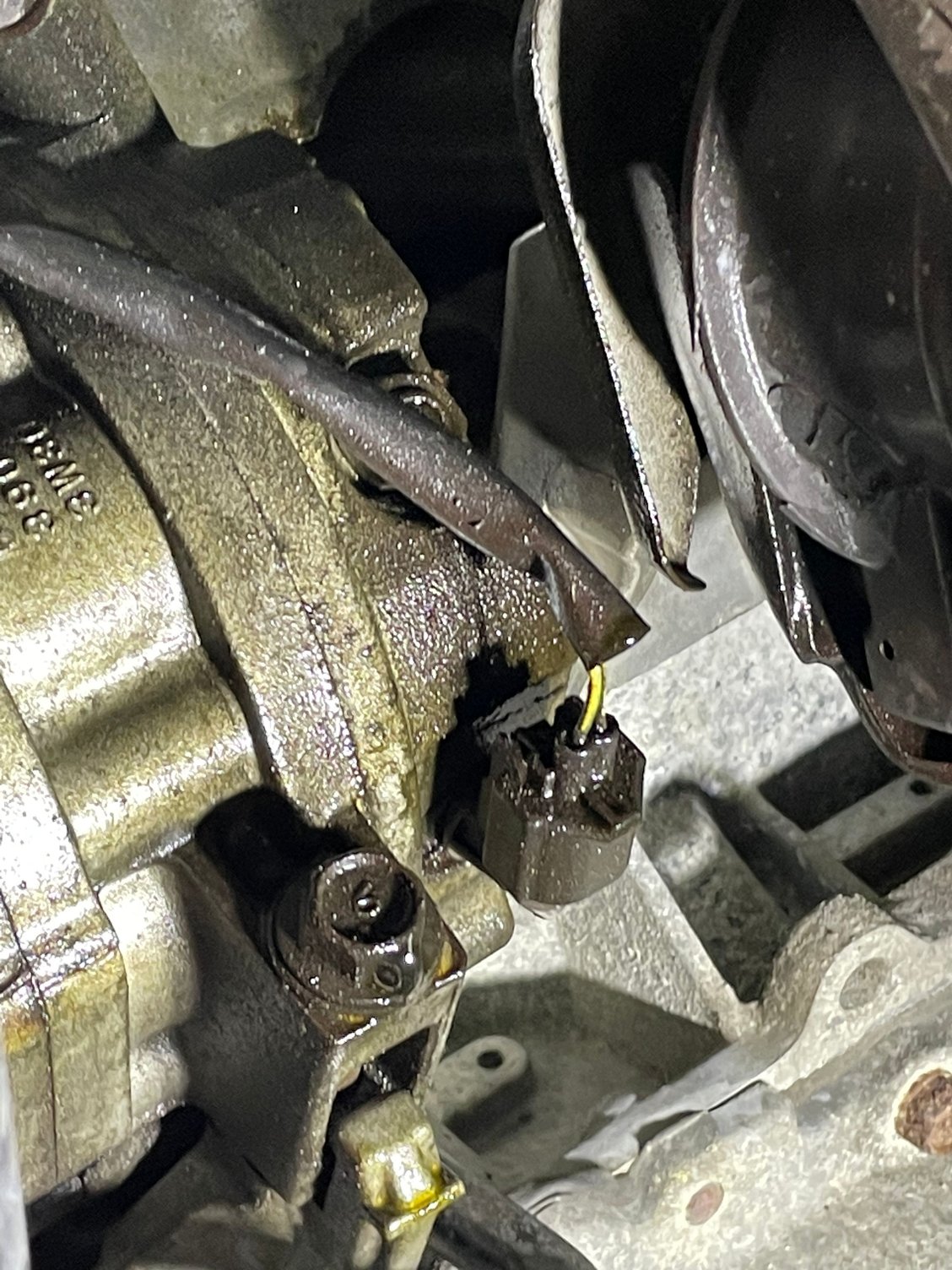

leaking on the backside/motormount
entire angle
on A/C compressor so it's from above
leaking on the backside/motormount
entire angle
on A/C compressor so it's from above
#13
Check your engine oil dipstick. Check if it is seated correctly. That was my oil leak issue, oil was found in the same areas, identical to the images you uploaded.. Lastly, look over the seal on your engine oil dipstick. The seal will deteriorate over time, and you may need a replacement. I hope this helps.
