UpRev Osiris Question(s)
Joined: May 2006
Posts: 658
Likes: 0
From: Raleigh, NC
UpRev Osiris Question(s)
So I got back from the dyno and I'm running pretty lean from all of my breather mods. I've beene mailing UpRev this week asking a few questions before I finished all of the installs. Now that I'm done, I know I'm lean and since it's the weekend, I have no way of getting in touch with them (unless someone can PM me a phone number, Matt didn't leave one in his emails).
Can the stock fuel pump compensate for headers, MREV2, spacer, intake, test pipes?
Basically, after I purchase UpRev, it should be able to put my AFR in optimal range. Will I need to purchase anything else?
Can the stock fuel pump compensate for headers, MREV2, spacer, intake, test pipes?
Basically, after I purchase UpRev, it should be able to put my AFR in optimal range. Will I need to purchase anything else?
Joined: Feb 2006
Posts: 13,068
Likes: 101
From: Southern Cali --> 818
For NA, you don't even need to touch the fuel pump or lines.
Just get the reflash from UpRev, and as long as they have that AFR down to as near as very low 13's, very high 12's, you should be set. They will also give you a little more aggresive timing.
.
Just get the reflash from UpRev, and as long as they have that AFR down to as near as very low 13's, very high 12's, you should be set. They will also give you a little more aggresive timing.
.
Joined: May 2006
Posts: 658
Likes: 0
From: Raleigh, NC
Pull 1 was done in 5th gear as it is 1.00:1
Pull 2 was done in 4th gear just to see if there would be any difference.
As you can see 6,500-7,000 RPMs the AFR isn't that bad. Before that is what scares me. Plus I am pulling code P2A00 which is:
"AF sensor 11 range/performance problem"
Probable causes:
1 - Excessive rich or lean condition
2 - Exhaust leak near sensor
3 - Failed AF sensor
Joined: Feb 2006
Posts: 13,068
Likes: 101
From: Southern Cali --> 818
You are definately running very lean from 2.5 to 6.5k rpms.
The UpRev Osiris should correct that down to around 13 flat through all RPM's, which means there's more power to be made in the low & mid range
Also, make sure you data log your AFR with the cipher tool and check your AFR after the flash with the cipher diagnostic tool that comes with the package. You can send them the data (they will ask for about 5 different types of logs) and they would fine tune the AFR with e-tuning... for free.
Goodluck!
.
The UpRev Osiris should correct that down to around 13 flat through all RPM's, which means there's more power to be made in the low & mid range
Also, make sure you data log your AFR with the cipher tool and check your AFR after the flash with the cipher diagnostic tool that comes with the package. You can send them the data (they will ask for about 5 different types of logs) and they would fine tune the AFR with e-tuning... for free.
Goodluck!
.
Joined: May 2006
Posts: 658
Likes: 0
From: Raleigh, NC
Thanks for the reply skater. I had emailed Matt @ UpRev at the same time, but I figured he wouldn't respond today. He did, which is awesome.
I went ahead and ordered Osiris. And he also confirmed what you said, no need to purchase additional hardware.
I was wanting to get it later on, just not now. But it's all groovy.
I went ahead and ordered Osiris. And he also confirmed what you said, no need to purchase additional hardware.
I was wanting to get it later on, just not now. But it's all groovy.
Joined: Feb 2006
Posts: 13,068
Likes: 101
From: Southern Cali --> 818
No problem.
99.999999% of your answers, if you have any more, will be answered in this thread over @ my350Z.com. I actually did read all 400 posts (over a long period time ofcourse)
http://www.my350z.com/forum/showthread.php?t=279548
"Punkidd" is one of the UpRev guys, and he's answered basically any question you throw at him. Great guy, excellent company.
.
99.999999% of your answers, if you have any more, will be answered in this thread over @ my350Z.com. I actually did read all 400 posts (over a long period time ofcourse)
http://www.my350z.com/forum/showthread.php?t=279548
"Punkidd" is one of the UpRev guys, and he's answered basically any question you throw at him. Great guy, excellent company.
.
Trending Topics
Actually, your AFRs are pretty normal. The stock ECU tunes your car for 14.7 AFR. It looks like you're right around 15, which, considering the tolerance and the amount of use the WBO2 sensor you used, should be just fine. You could drive like that all day long until your car falls apart and not have to worry.

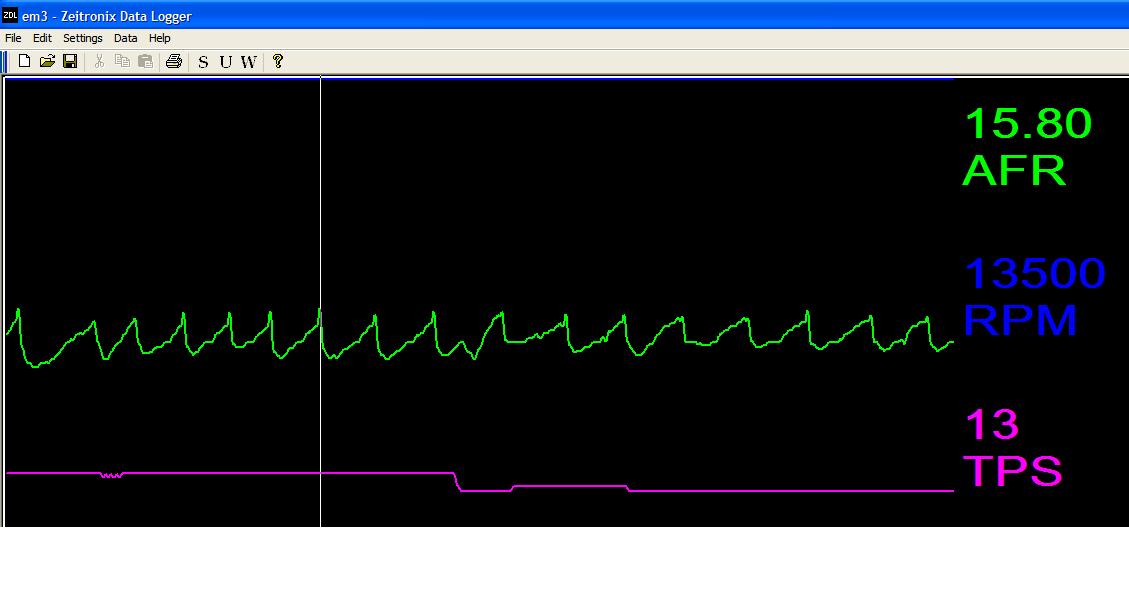

Here's one of my many datalogs. Ignore the RPMs. This is what your AFR looks like when under about 6k rpms, even if you're near WOT, and especially if your ECU has adapted to Highway driving. The peaks are about 15.8 AFR, the troughs are 14.2 AFR. This particular datalog was done with MD 5/16 spacer, K&N drop-in filter, headers, & HFCs with Emanage to about 8 months ago and was taken using my Zeitronix WBO2.
Here's one of my many datalogs. Ignore the RPMs. This is what your AFR looks like when under about 6k rpms, even if you're near WOT, and especially if your ECU has adapted to Highway driving. The peaks are about 15.8 AFR, the troughs are 14.2 AFR. This particular datalog was done with MD 5/16 spacer, K&N drop-in filter, headers, & HFCs with Emanage to about 8 months ago and was taken using my Zeitronix WBO2.
Last edited by dTor; Sep 8, 2007 at 09:48 PM.
Joined: Feb 2006
Posts: 13,068
Likes: 101
From: Southern Cali --> 818
dTor,
In regards to NA: Many, actually all tuners that I have spoken with, they confirm that 13 all throughout the RPM is the ideal AFR for power.
Ofcourse, it's usually a bit out of wach from as low as 1500-2500, but it can still be set to 13.
I remember seeing Punkidd e-tuning someone's osiris: it ranged from 13.2-13.0 through out the whole powerband
.
In regards to NA: Many, actually all tuners that I have spoken with, they confirm that 13 all throughout the RPM is the ideal AFR for power.
Ofcourse, it's usually a bit out of wach from as low as 1500-2500, but it can still be set to 13.
I remember seeing Punkidd e-tuning someone's osiris: it ranged from 13.2-13.0 through out the whole powerband
.
Joined: Feb 2006
Posts: 13,068
Likes: 101
From: Southern Cali --> 818
Apple6MT,
What kind of dyno was it? I got 245 lbs of torque stock but on a Dynapack which sounds about right. 245 lbs for an untuned NA G35 on a dynojet sounds great... if it really was on a dynojet. Even better on a Dynadynamics & Mustang Dyno
What kind of dyno was it? I got 245 lbs of torque stock but on a Dynapack which sounds about right. 245 lbs for an untuned NA G35 on a dynojet sounds great... if it really was on a dynojet. Even better on a Dynadynamics & Mustang Dyno
Joined: May 2006
Posts: 658
Likes: 0
From: Raleigh, NC
Thanks guys. The Triangle Z club got Carolina Auto Masters in Durham, NC to host the event. This is what they listed on their web site: "Carolina Auto Masters features a Dynojet 248H (high inertia) with LoadTrak load control, and integrated wideband O2 logging."
www.carolinaautomasters.com
JB, I ordered my Osiris package on Saturday. I talked to Jared on Monday. Basically my ECU is too new. They sent out the package. When I get it I will pull the ECU rom and email it to them. He said it would take them about a week.
It's hopeful but I am hoping for around 275whp when they get through with it. I was shooting for was 260whp when I went. I had no idea about what kind of tq gain I would have.
After Osiris, the only mod(s) I have planned in terms of performance is to pick up a cat back exhaust (Probably XO2) and Gords Grounding Gear. Then a few cosmetics and a few suspension, but nothing too crazy.
www.carolinaautomasters.com
JB, I ordered my Osiris package on Saturday. I talked to Jared on Monday. Basically my ECU is too new. They sent out the package. When I get it I will pull the ECU rom and email it to them. He said it would take them about a week.
It's hopeful but I am hoping for around 275whp when they get through with it. I was shooting for was 260whp when I went. I had no idea about what kind of tq gain I would have.
After Osiris, the only mod(s) I have planned in terms of performance is to pick up a cat back exhaust (Probably XO2) and Gords Grounding Gear. Then a few cosmetics and a few suspension, but nothing too crazy.
Photographer
Joined: Nov 2002
Posts: 5,050
Likes: 0
From: St.Pete, FL
Originally Posted by App6MT
JB, I ordered my Osiris package on Saturday. I talked to Jared on Monday. Basically my ECU is too new. They sent out the package. When I get it I will pull the ECU rom and email it to them. He said it would take them about a week.
I remember reading that someone else had to do that too.
