#2 Did my Akebono BBK install! The process and MORE issues!
That kink is there because of where the hose ended up when you tightened it into the block. The nut is a collar that spins free around the hose until it's tightened. What happens is that, as you tighten it down, it grips the hose and spins it a bit before it cinches up. Since the banjo bolt has to go in a particular orientation, the hose is forced to kink like that. If you loosen that nut, and untwist the hose all the way AND THEN A BIT MORE than it wants (and hold it there), when you tighten it up again and it gives it that final twist, you will likely be able to have it cinch up in a more relaxed position. It takes a little finesse, but it's totally doable.
Well, it's certainly your call, but I'd take a good assessment of how far that line goes back until it's next junction. I know some are really short and easy to get at, but some of them can go clear up to the engine bay before the next coupling and be a major hassle to replace.(Hopefully, that's not the case here) Also, at this point you only have one coupling that's giving you grief. If you replace the entire hose, you're potentially introducing another point of concern that hadn't been involved previously.
In any case, you're gonna need to get access to a good dealer for parts help. I found an old copy of a page I had a dealer print for me which showed the hardline (Model V36 "Brake Piping and Control" section (462- -A 02) ), but I can't make out the part numbers on it (sorry). Hopefully if they find it, it won't be a 'back ordered to Japan' situation like the simple caliper rebuild kit I tried to order was.
Well, it's certainly your call, but I'd take a good assessment of how far that line goes back until it's next junction. I know some are really short and easy to get at, but some of them can go clear up to the engine bay before the next coupling and be a major hassle to replace.(Hopefully, that's not the case here) Also, at this point you only have one coupling that's giving you grief. If you replace the entire hose, you're potentially introducing another point of concern that hadn't been involved previously.
In any case, you're gonna need to get access to a good dealer for parts help. I found an old copy of a page I had a dealer print for me which showed the hardline (Model V36 "Brake Piping and Control" section (462- -A 02) ), but I can't make out the part numbers on it (sorry). Hopefully if they find it, it won't be a 'back ordered to Japan' situation like the simple caliper rebuild kit I tried to order was.
Anyway I found the part number at infinitipartsusa.com They are finally having part numbers shown there. Very nice!
the part number is 46211JL40A and seems like that's the whole brake line. When I say whole, this one starts front where you have to remove the clip at the wheel-house wall that holds the OEM brake line to the bracket, if you know what i mean. it's only $36 dollars. I get all the additional lines but for that price it's not too bad.
Last edited by Shurik355; Jul 29, 2012 at 01:16 AM.
I'm not sure that's the hardline. I googled it and found this pic:
http://www.everythingnissan.com/Item...767-878216.htm (item #10)
Clearly it's for a Nissan, but the brake caliper is the same and that sure looks like a banjo bolt connection on one end of it.
Here's an aftermarket equivalent part that crosses to that number:
http://www.carpartsdiscount.com/auto...ml?3593=254155
Look back at the part number in the EDIT I did to my last post.
http://www.everythingnissan.com/Item...767-878216.htm (item #10)
Clearly it's for a Nissan, but the brake caliper is the same and that sure looks like a banjo bolt connection on one end of it.
Here's an aftermarket equivalent part that crosses to that number:
http://www.carpartsdiscount.com/auto...ml?3593=254155
Look back at the part number in the EDIT I did to my last post.
Here what I found at infiniti for this part number 46211-JL40A
Number 8 in that picture in this link below is the only brake line that shows up for our Gs Now too detailed, but Im sure at infiniti they see this picture with many more parts. Like for Ex. in the second link below.
http://www.infinitipartsusa.com/Item...054-197939.htm
46246 is a partial part number for the hard line that I need, but I don't know if that's a partial number or the actual full number for the actual hard line that I need. I found more info in here ( link below ) in the second picture from top... that's for 370z which is same brakes as our Gs.
462 Brake Piping & Control
Brake Genuine Nissan Parts 370Z Parts (Z34) 2009-2012 Nissan Parts, NISMO and Nissan Accessories - Courtesyparts.com
Number 8 in that picture in this link below is the only brake line that shows up for our Gs Now too detailed, but Im sure at infiniti they see this picture with many more parts. Like for Ex. in the second link below.
http://www.infinitipartsusa.com/Item...054-197939.htm
46246 is a partial part number for the hard line that I need, but I don't know if that's a partial number or the actual full number for the actual hard line that I need. I found more info in here ( link below ) in the second picture from top... that's for 370z which is same brakes as our Gs.
462 Brake Piping & Control
Brake Genuine Nissan Parts 370Z Parts (Z34) 2009-2012 Nissan Parts, NISMO and Nissan Accessories - Courtesyparts.com
Last edited by Shurik355; Jul 29, 2012 at 02:05 AM.
^^ That hose probably looks a lot like this Dorman piece: https://www.carpartsdiscount.com/aut...ml?3593=254155
It's not just the hardline.
From some of the reading in those two threads I linked before, it seems that there's a few ways folks can get around the whole brake line issue with the G37 BBK upgrade. Some replace the entire line with a SS hose type that skips the whole junction block and hardline issue altogether, some replace just the lower segment from the block to the caliper. At this point, you just need the hardline replaced though.
It's not just the hardline.
From some of the reading in those two threads I linked before, it seems that there's a few ways folks can get around the whole brake line issue with the G37 BBK upgrade. Some replace the entire line with a SS hose type that skips the whole junction block and hardline issue altogether, some replace just the lower segment from the block to the caliper. At this point, you just need the hardline replaced though.
^^ That hose probably looks a lot like this Dorman piece: https://www.carpartsdiscount.com/aut...ml?3593=254155
It's not just the hardline.
From some of the reading in those two threads I linked before, it seems that there's a few ways folks can get around the whole brake line issue with the G37 BBK upgrade. Some replace the entire line with a SS hose type that skips the whole junction block and hardline issue altogether, some replace just the lower segment from the block to the caliper. At this point, you just need the hardline replaced though.
It's not just the hardline.
From some of the reading in those two threads I linked before, it seems that there's a few ways folks can get around the whole brake line issue with the G37 BBK upgrade. Some replace the entire line with a SS hose type that skips the whole junction block and hardline issue altogether, some replace just the lower segment from the block to the caliper. At this point, you just need the hardline replaced though.
46246 is a partial part number for the hard line that I need, but I don't know if that's a partial number or the actual full number for the actual hard line that I need. I found more info in here in the second picture from top... that's for 370z which is same brakes as our Gs.
462 Brake Piping & Control
Brake Genuine Nissan Parts 370Z Parts (Z34) 2009-2012 Nissan Parts, NISMO and Nissan Accessories - Courtesyparts.comI'm positive that's a partial number. In post#22 of that link I gave before, the guy is installing the BBK into his M and he references them like this:
...
9.Right front brake line tube(1) 46245-JK60B
10.Left front brake line tube (1) 46246-JK60B
...
which seems like a much more likely part number. Like I said though, you could really use the help of a good parts guy.
EDIT: It looks like dimsler listed the same numbers in the other thread I posted too, and that was specifically for G37 BBK onto a V36 G35.
https://g35driver.com/forums/6357793-post4.html
When I goggle those numbers, they all come up as "tubes" and NOT hoses; that's key! Plus, they are apparently very cheap too.
Last edited by vqsmile; Jul 29, 2012 at 02:24 AM.
Yeah, that's just like the page I have a printout of, only that's for the Z.
I'm positive that's a partial number. In post#22 of that link I gave before, the guy is installing the BBK into his M and he references them like this:
...
9.Right front brake line tube(1) 46245-JK60B
10.Left front brake line tube (1) 46246-JK60B
...
which seems like a much more likely part number. Like I said though, you could really use the help of a good parts guy.
EDIT: It looks like dimsler listed the same numbers in the other thread I posted too, and that was specifically for G37 BBK onto a V36 G35.
https://g35driver.com/forums/6357793-post4.html
I'm positive that's a partial number. In post#22 of that link I gave before, the guy is installing the BBK into his M and he references them like this:
...
9.Right front brake line tube(1) 46245-JK60B
10.Left front brake line tube (1) 46246-JK60B
...
which seems like a much more likely part number. Like I said though, you could really use the help of a good parts guy.
EDIT: It looks like dimsler listed the same numbers in the other thread I posted too, and that was specifically for G37 BBK onto a V36 G35.
https://g35driver.com/forums/6357793-post4.html
Anyway bro I found this part number at Nissan catalog, that's the part number for sure. it's 46246-Z34003
Im pretty sure the part is same as Infinti, but for some reason the part # isn't matching
And yes 46246-JK60B that one guys listed, gotta be the part number that Infiniti uses for that hard brake line I need. I just looked it up and Nissan calls that part the same name, and price wise it's same as well.
Alright VQSMILE I think we got it bro!
Im 100% sure that the part number I need is 46246-JK60B. It's cheap too, just hope it's in stock at my dealership or from where my dealership orders.
Anyway I really appreciate your help. Wouldn't have gotten it that fast without your help.
EDIT: Also just did a search and that part number works for Nissan and Infiniti. Same part.
Im 100% sure that the part number I need is 46246-JK60B. It's cheap too, just hope it's in stock at my dealership or from where my dealership orders.
Anyway I really appreciate your help. Wouldn't have gotten it that fast without your help.
EDIT: Also just did a search and that part number works for Nissan and Infiniti. Same part.
Last edited by Shurik355; Jul 29, 2012 at 02:38 AM.
Well, just so you know, IF YOU REALLY NEED IT IN A HURRY . . .
there's nothing particularly special about the dealer parts. You can see if anyone (Napa, Dorman, Beck Arnly, Oreilly's, etc.) can supply an equivalent part. Short of that, you can a very easily buy a flare kit at the hardware store (Harbor Freight, Home Depot, Sears) and then pick up a short length of tubing at an auto parts store for yourself and bend up one to suit. It's a bit more work, but it's really not difficult. In the end, it will be cheaper to wait for the dealer parts if the are really only 5 or 6 bucks each. Good luck with whatever you decide to do man.
there's nothing particularly special about the dealer parts. You can see if anyone (Napa, Dorman, Beck Arnly, Oreilly's, etc.) can supply an equivalent part. Short of that, you can a very easily buy a flare kit at the hardware store (Harbor Freight, Home Depot, Sears) and then pick up a short length of tubing at an auto parts store for yourself and bend up one to suit. It's a bit more work, but it's really not difficult. In the end, it will be cheaper to wait for the dealer parts if the are really only 5 or 6 bucks each. Good luck with whatever you decide to do man.
Alright VQSMILE I think we got it bro!
Im 100% sure that the part number I need is 46246-JK60B. It's cheap too, just hope it's in stock at my dealership or from where my dealership orders.
Anyway I really appreciate your help. Wouldn't have gotten it that fast without your help.
EDIT: Also just did a search and that part number works for Nissan and Infiniti. Same part.
Im 100% sure that the part number I need is 46246-JK60B. It's cheap too, just hope it's in stock at my dealership or from where my dealership orders.
Anyway I really appreciate your help. Wouldn't have gotten it that fast without your help.
EDIT: Also just did a search and that part number works for Nissan and Infiniti. Same part.
Glad I could help, Happy Fixing!
Well, just so you know, IF YOU REALLY NEED IT IN A HURRY . . .
there's nothing particularly special about the dealer parts. You can see if anyone (Napa, Dorman, Beck Arnly, Oreilly's, etc.) can supply an equivalent part. Short of that, you can a very easily buy a flare kit at the hardware store (Harbor Freight, Home Depot, Sears) and then pick up a short length of tubing at an auto parts store for yourself and bend up one to suit. It's a bit more work, but it's really not difficult. In the end, it will be cheaper to wait for the dealer parts if the are really only 5 or 6 bucks each. Good luck with whatever you decide to do man.
there's nothing particularly special about the dealer parts. You can see if anyone (Napa, Dorman, Beck Arnly, Oreilly's, etc.) can supply an equivalent part. Short of that, you can a very easily buy a flare kit at the hardware store (Harbor Freight, Home Depot, Sears) and then pick up a short length of tubing at an auto parts store for yourself and bend up one to suit. It's a bit more work, but it's really not difficult. In the end, it will be cheaper to wait for the dealer parts if the are really only 5 or 6 bucks each. Good luck with whatever you decide to do man.
are you serious??? wow didn't even think about that one. Im just afraid if I custom make something like that, it might leak on me lol ... Im very capable of doing stuff like that since im a technician and do all kind of body work, just not too familiar with mechanical stuff like this lol.
Yeahhh car is running and driving now. I'll post some pics soon hopefully. Fixed my front brake issue and about to go install my rear After Market wheels on see what I get.

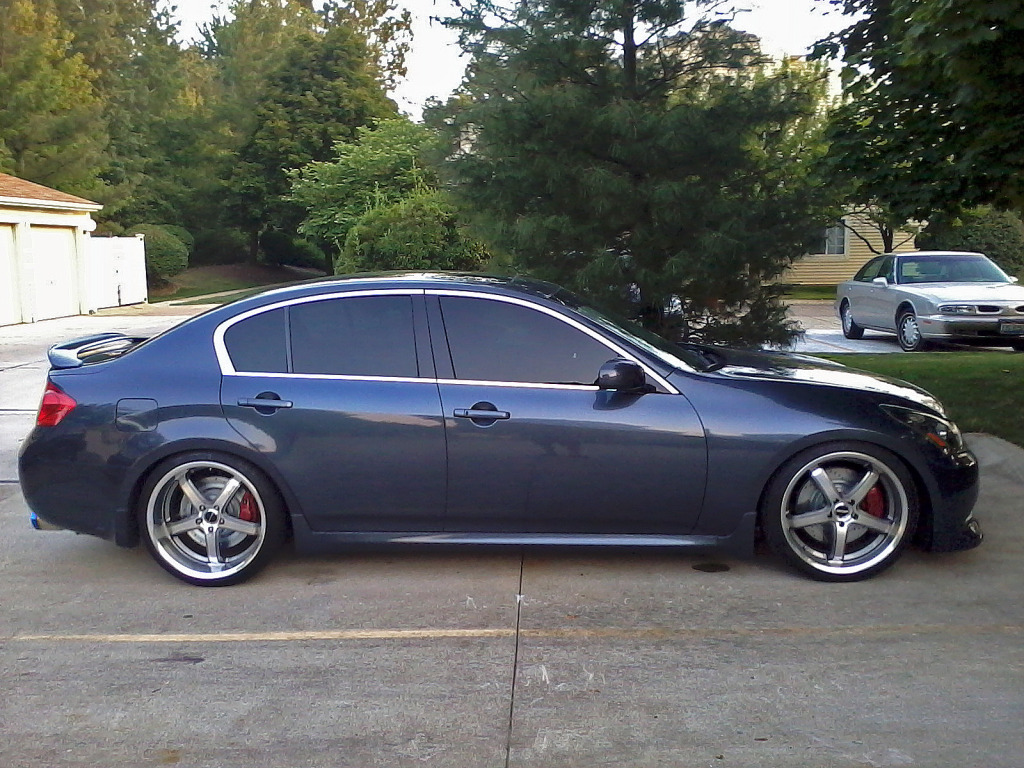

here is just a quick crappy phone shot. Installed my rear wheels on. Everything looks good. Anyway I'll try and take some nice pictures later. Didn't have time yet. And I'll update on the fix on the issues I've had.
Love my new aggressive stance. 5mm wider all the way around then before.

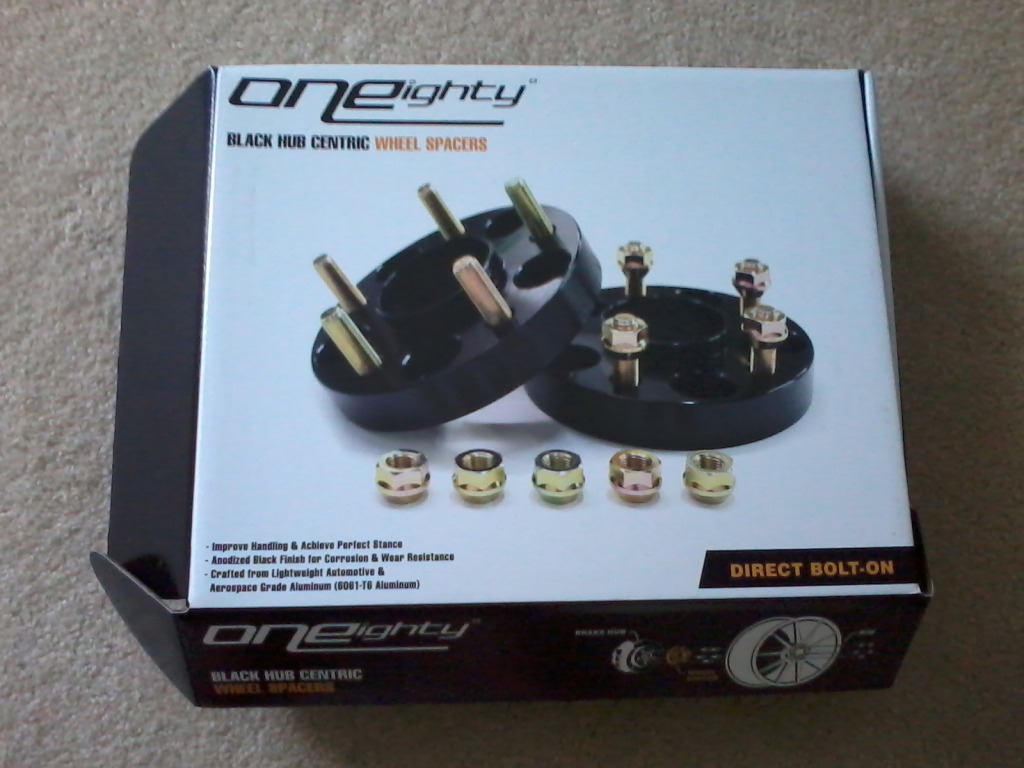

Moved my 10mm Project Kics spacers in the back and got 15mm OneEighty Spacers for the front. Bought these directly from 180 for $100 shipped!!! For $100 that's a BARGAIN!!!!
Love my new aggressive stance. 5mm wider all the way around then before.
Moved my 10mm Project Kics spacers in the back and got 15mm OneEighty Spacers for the front. Bought these directly from 180 for $100 shipped!!! For $100 that's a BARGAIN!!!!
