Replace In Cabin Air Filter 2008
#17
The filter that I bought had an arrow pointing up but the word "AIR FLOW" beside the arrow was upside down if I held it with arrow pointing up. The official instructions read "The filter is installed so that the arrow, on the end of the filter, is facing the rear of the vehicle and is pointed upward." [1]
Looking at the picture, did I install it wrong ? Is it worth changing or just leave it like this ? I installed it 2 month ago
[1] http://www.infinitihelp.com/diy/gcou...eplacement.htm
Thanks!
Looking at the picture, did I install it wrong ? Is it worth changing or just leave it like this ? I installed it 2 month ago
[1] http://www.infinitihelp.com/diy/gcou...eplacement.htm
Thanks!
Last edited by krypton; 06-19-2011 at 10:30 PM.
#19

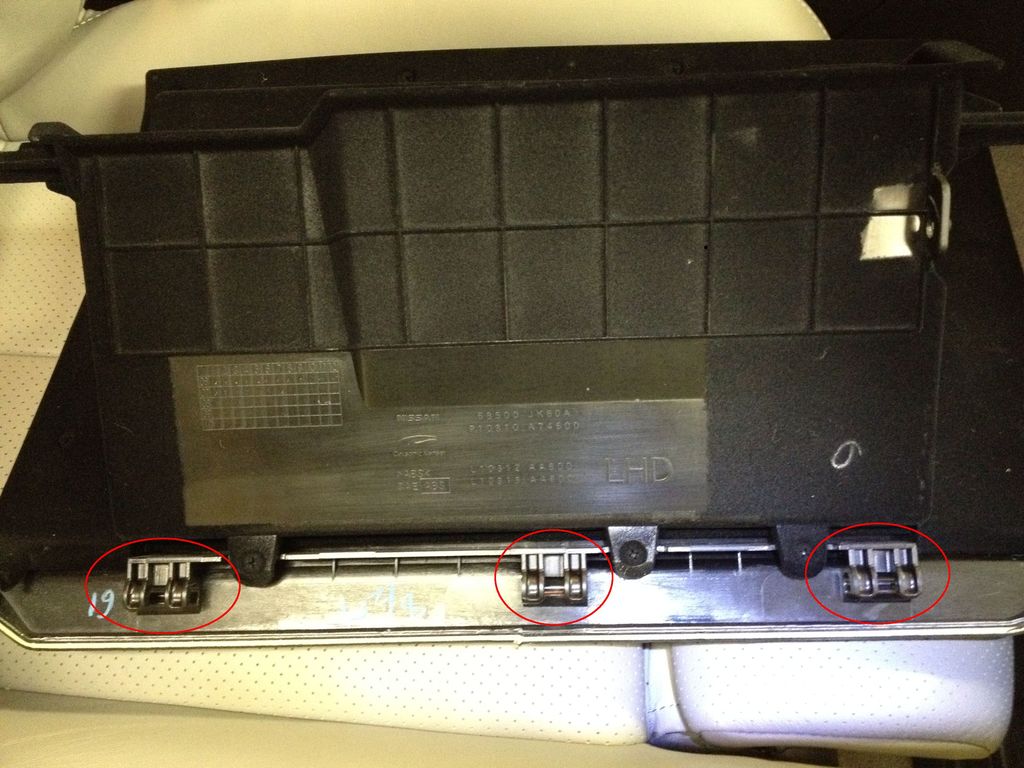

Back of the glove box:

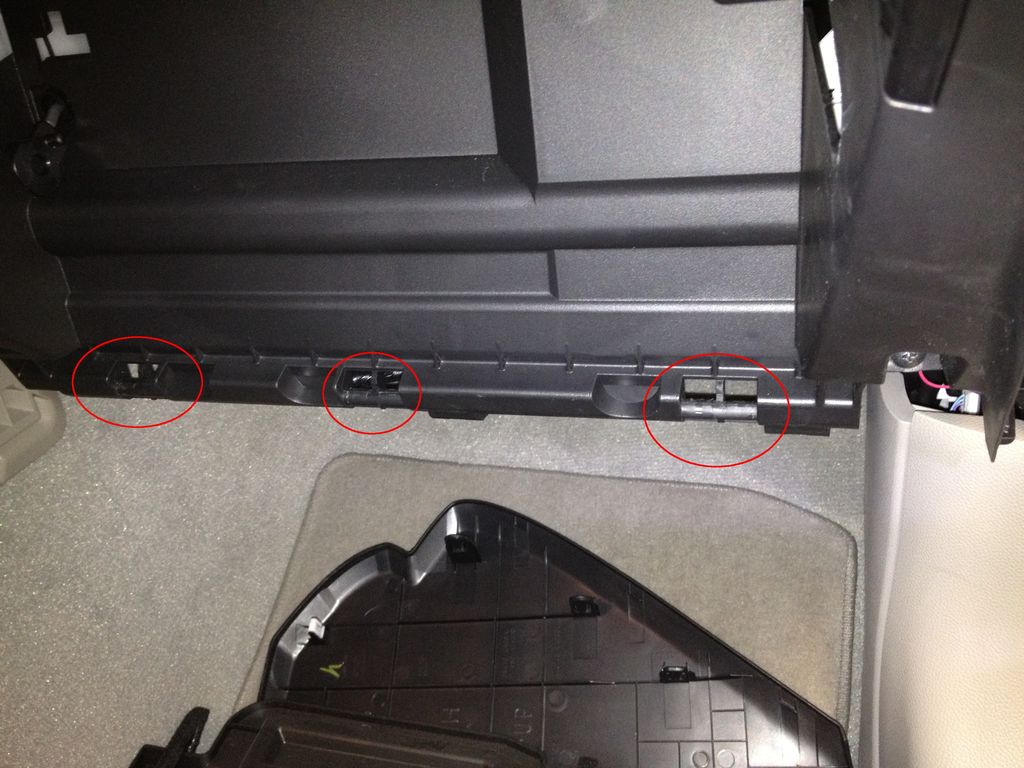

The area behind the glove box:
Put your hands on the bottom edge of the glove box and pull out towards you and slightly up, and it'll come off the track. I found it easier to do it one side at a time.
There's also a string on the left side of the glove box that provides the soft open feature; you need to disconnect this to move the glove box completely out of the way.

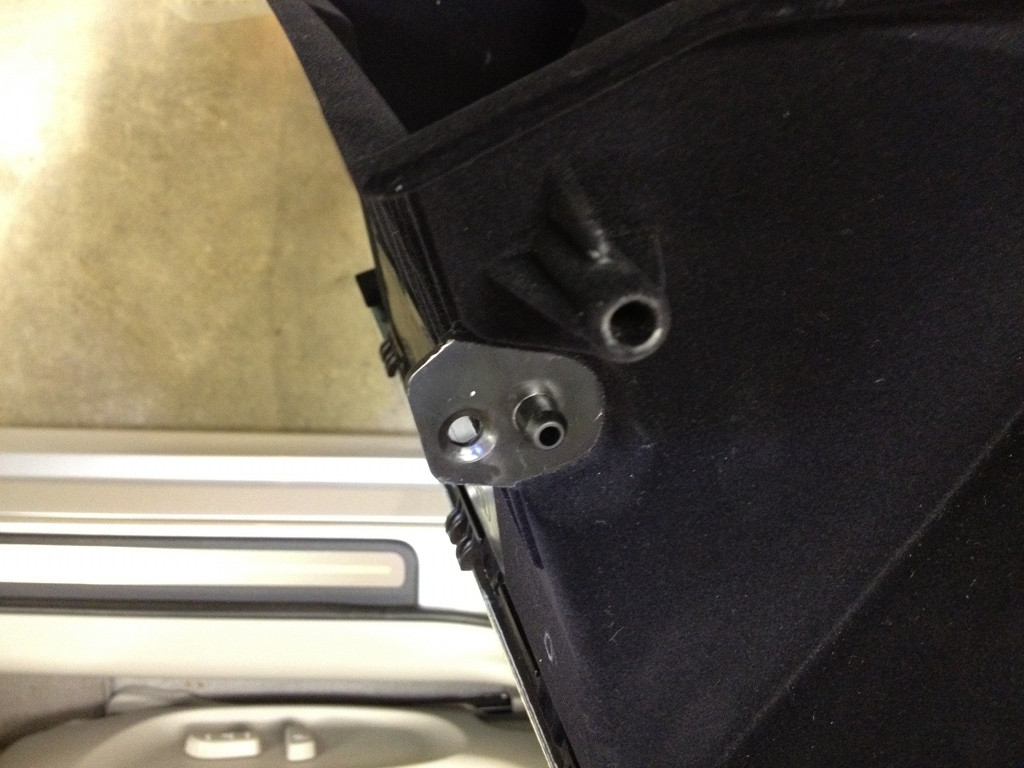

The string is connected to a bracket that has a hole and a peg:
(I apologize for this blurry image. I didn't realize it until I was done swapping the filter.)

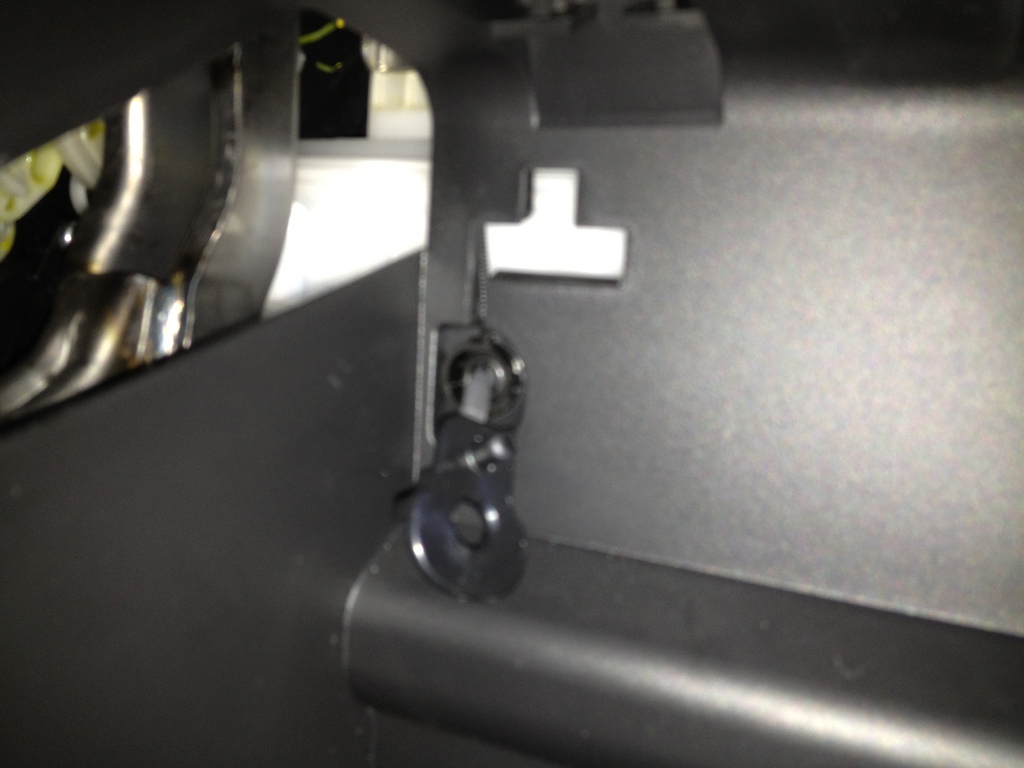

Here's where it's attached on the left side of the glove box:
The peg on the bracket connected to the string has a split in the middle. It's the type that expands when inserted into a hole--you need to squeeze the peg to get it to come back out.
Hope that helps.
