running 16awg wires to doors/insulating.

Runing new wires are a PITA!!! Finally have both doors wired, removed the back seats and reardeck.

Attached Thumbnails

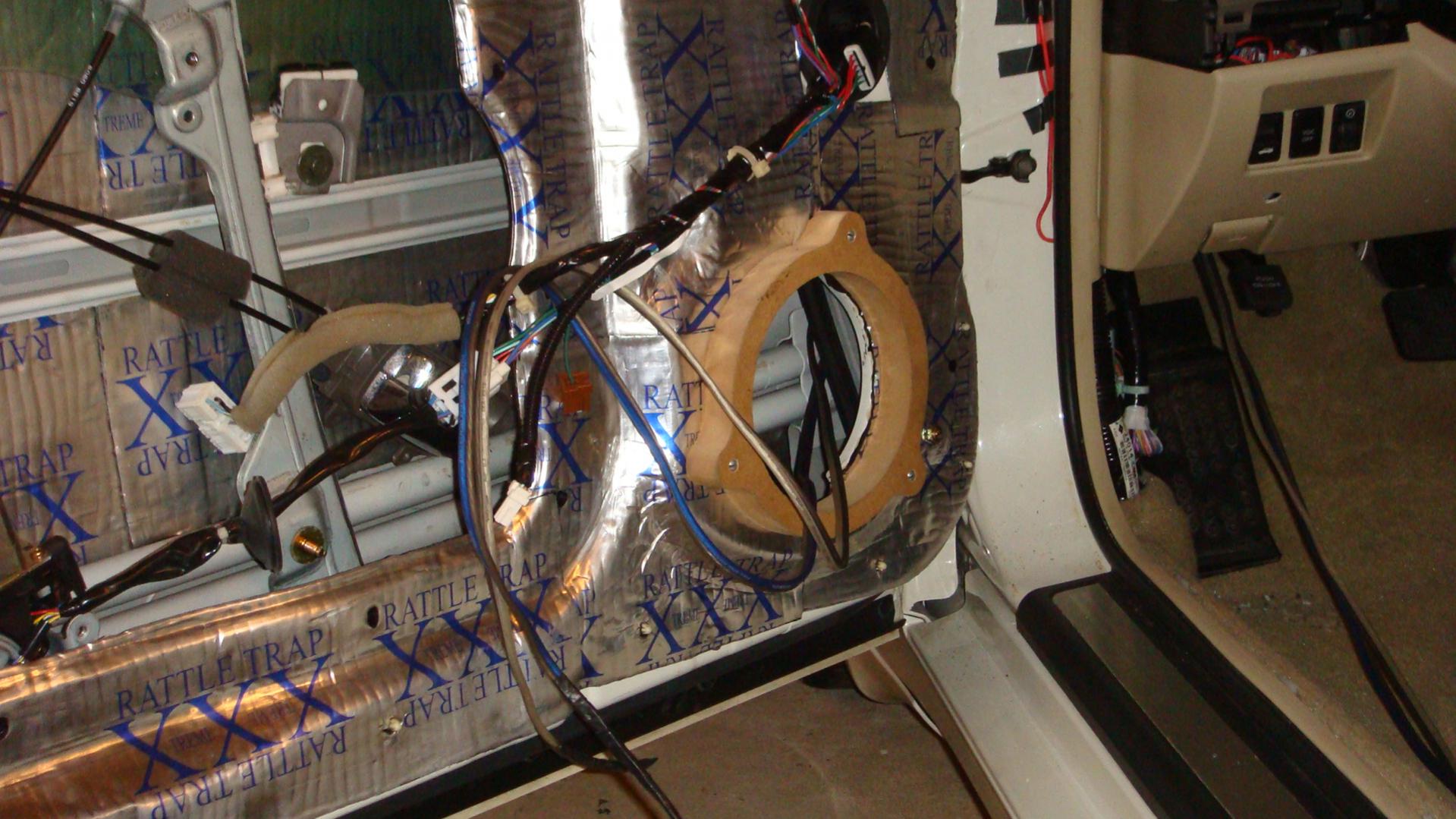

running 16awg wires to doors/insulating.-new-folder-009.jpg

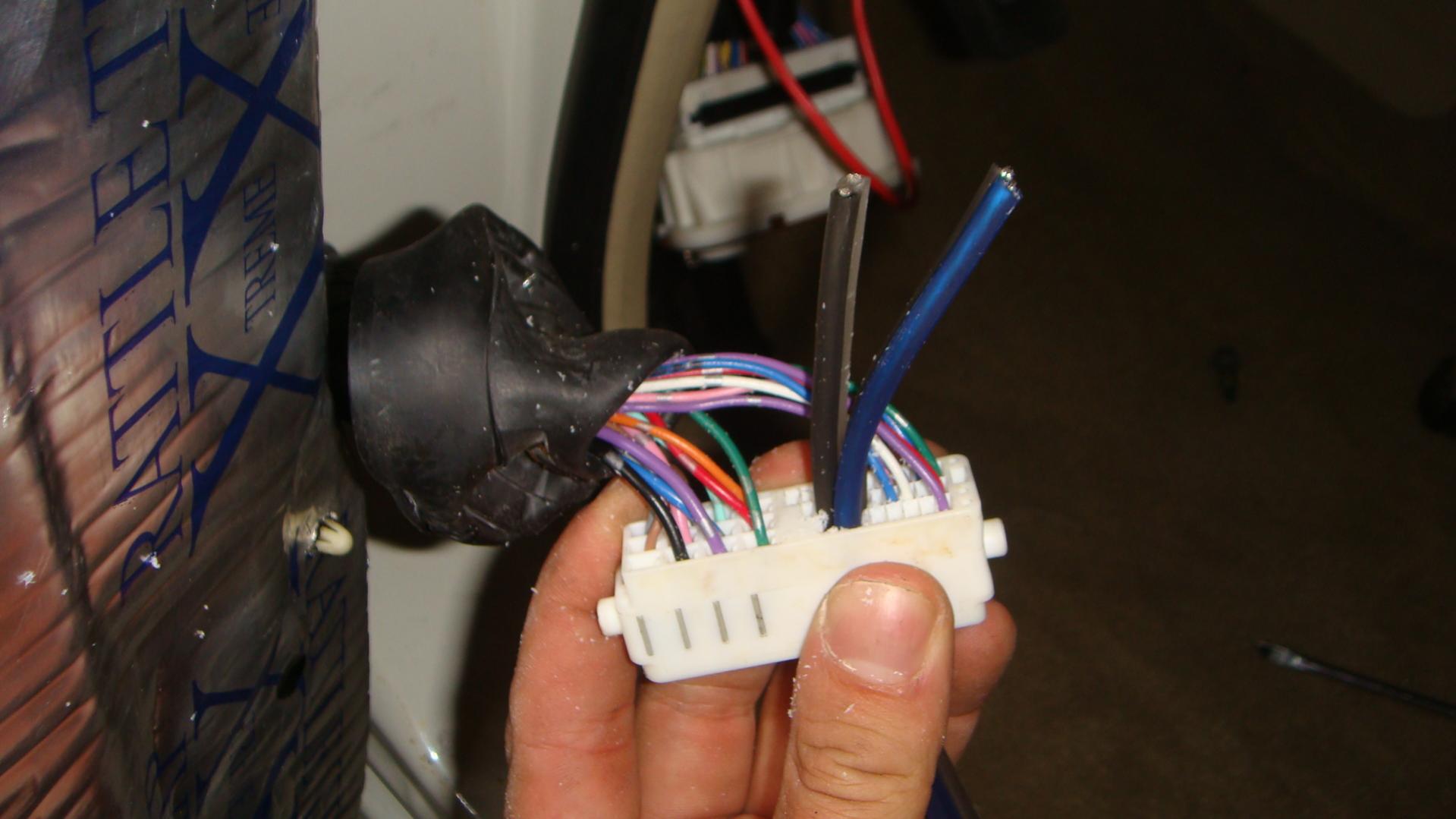

running 16awg wires to doors/insulating.-new-folder-003.jpg

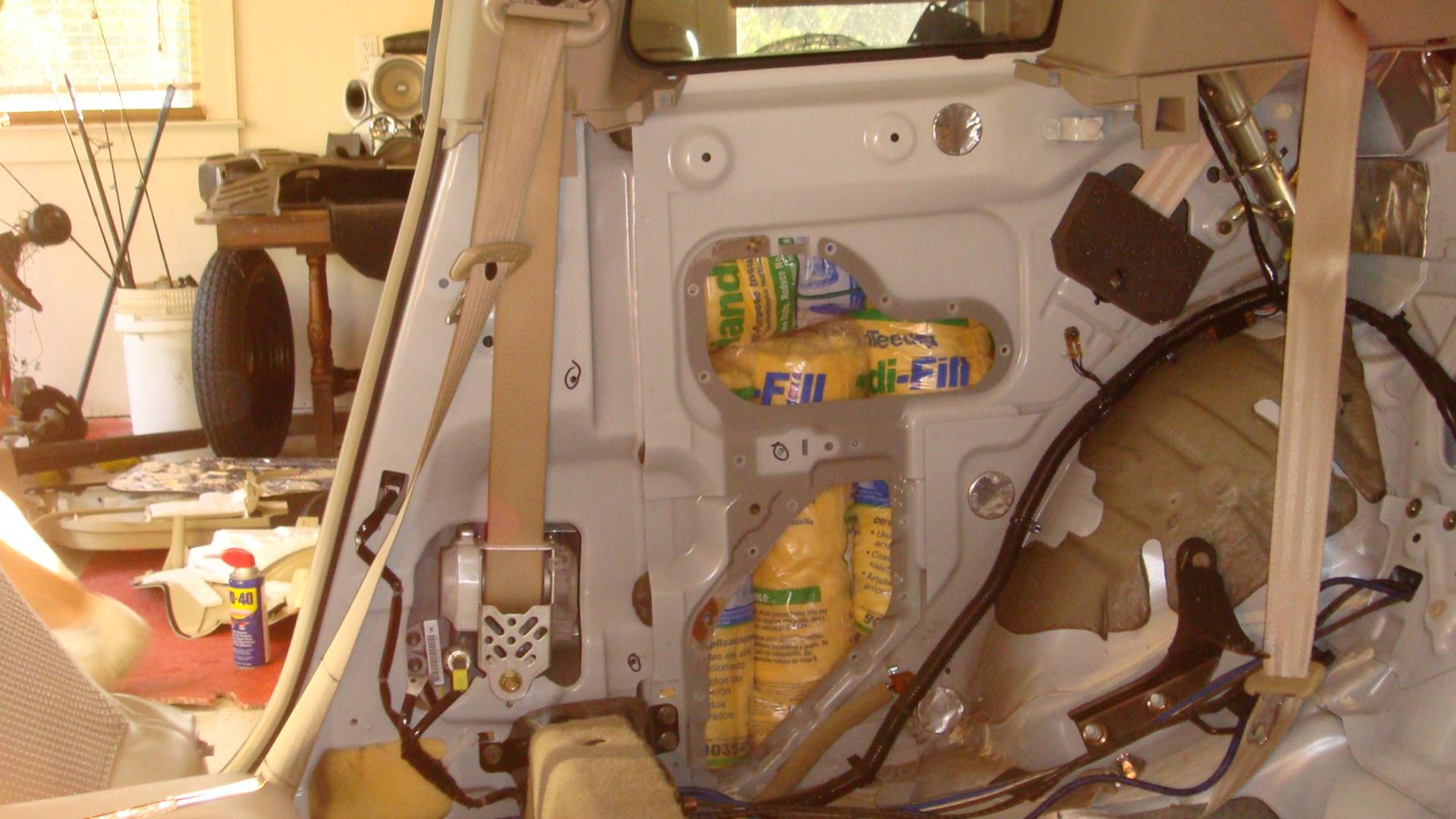

running 16awg wires to doors/insulating.-new-folder-004.jpg

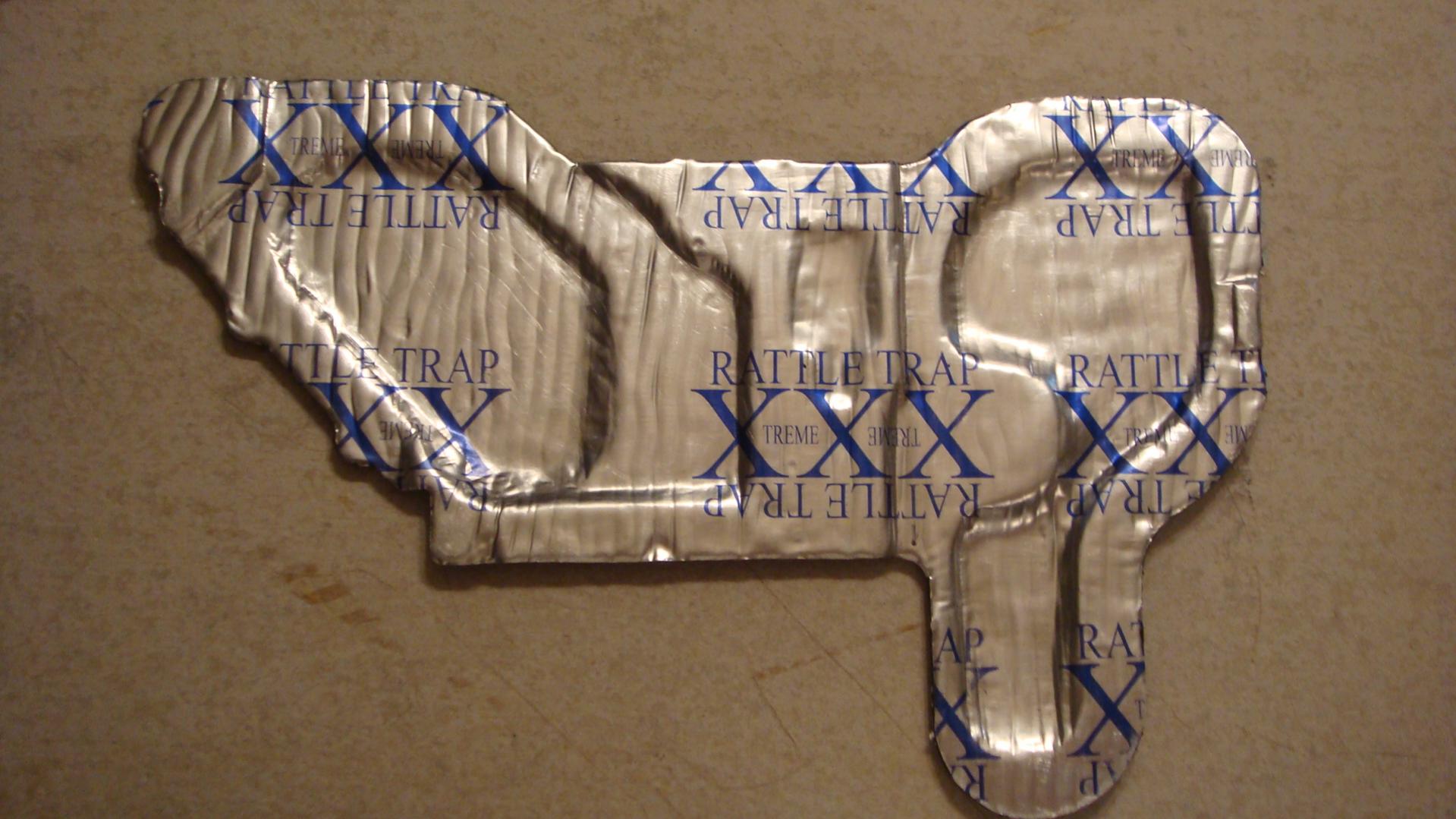

running 16awg wires to doors/insulating.-new-folder-005.jpg

Sep 26, 2009 | 12:29 AM

fluffykurt

Thread Starter

Registered User

iTrader: (5)

Joined: May 2008

Posts: 128

Likes: 0

1.2

Some more pixs.

Attached Thumbnails

running 16awg wires to doors/insulating.-new-folder-006.jpg

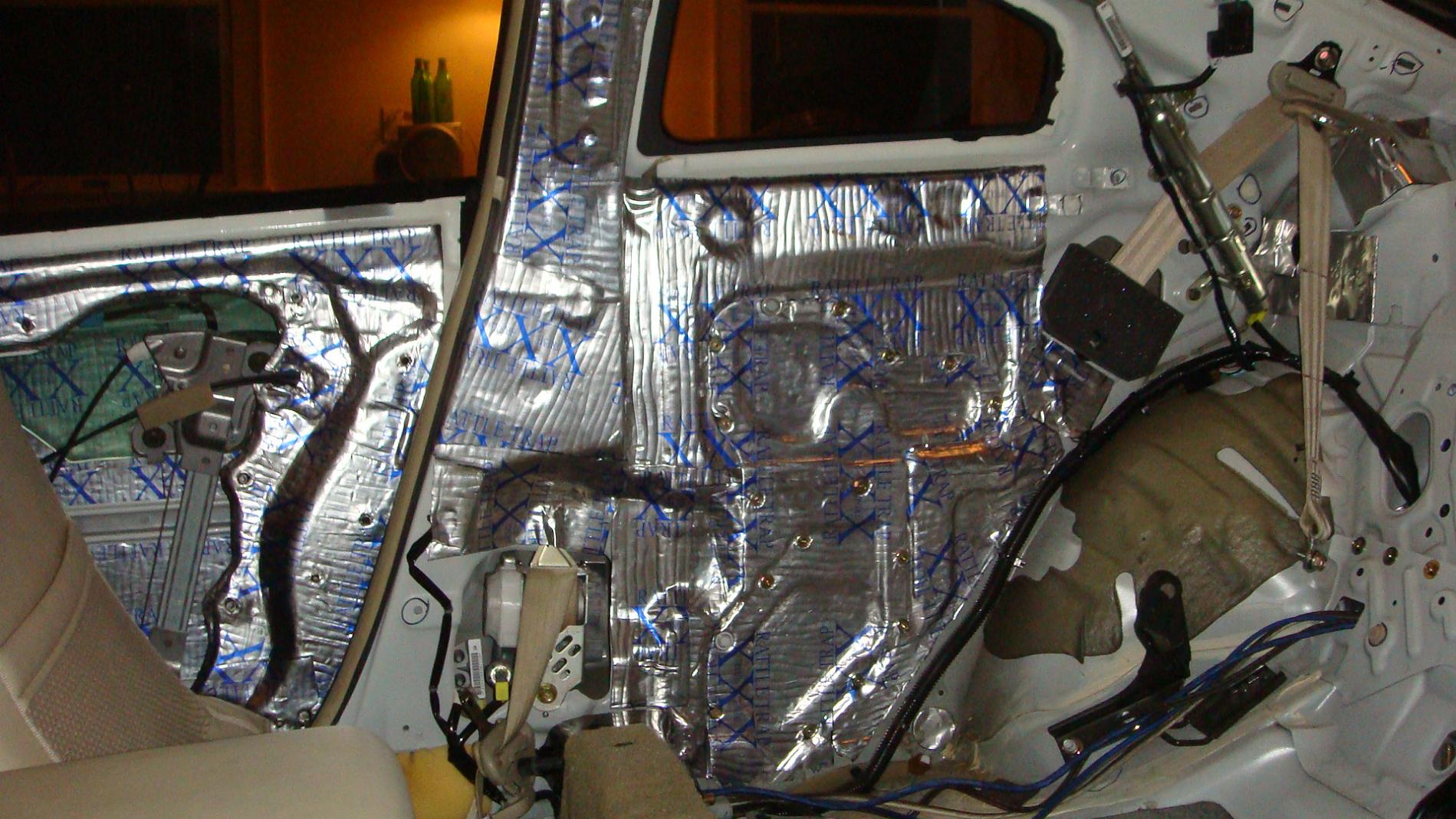

running 16awg wires to doors/insulating.-new-folder-010.jpg

Sep 26, 2009 | 10:57 AM

TroysG

Registered User

iTrader: (5)

Joined: Jul 2007

Posts: 1,229

Likes: 0

nicely done!

Sep 28, 2009 | 04:02 PM

DcmaN

Registered User

Joined: Mar 2009

Posts: 30

Likes: 0

From: CT

Yep, i ran two sets of 16 gauge wire into the door, i found it easier to take the door off the car its only 4 bolts anyway. But you did it the same way i did i drilled out the empty areas in both sides of the connectors and ran my speaker wire thru it.The passenger side is moderatly harder if you havnt got that far yet.
