Yet another Valentine 1 install...
Banned
Joined: Apr 2005
Posts: 45
Likes: 0
Originally Posted by Espresso
I'm in MD but often travel in VA/DC where a radar detector is illegal. When in doubt, I hit the kill switch and fold up the ashtray. From the outside, you don't notice anything since my V1 is mounted in the upper passenger corner. The switch is also helpful if you don't really need the detector if in traffic or around shopping malls when it always goes off. Comes in handy with a stealth install where you don't have access to the unit.
http://www.radardetector.net/viewtop...383&highlight=
Originally Posted by MISTIKMACK
But since I don't have that module you're referring to (after reading it up on KPTechnologies' website, it could be an interestng future mod), I guess I have to tap into the thick black/red wire in the ignition.
Just tap into the cig lighter right there. Some people are a little hesitant to tap into ignition wires.
Take the A-pillar off and run the wires to the corner of the windshield or if you want, run it all the way to the middle. To get to the center console from the passenger side, I ran the wires behind the glove box but had to take apart the ashtray trim piece to have access to the rest of the install. Use zipties to secure the wires unless you want vibrations. Especially around the A-pillar.
Joined: Feb 2004
Posts: 1,819
Likes: 1
From: CA
G35 6MT
Originally Posted by Meatshackle
Just tap into the cig lighter right there. Some people are a little hesitant to tap into ignition wires.
Joined: Feb 2004
Posts: 1,819
Likes: 1
From: CA
G35 6MT
Originally Posted by Espresso
Take the A-pillar off and run the wires to the corner of the windshield or if you want, run it all the way to the middle. To get to the center console from the passenger side, I ran the wires behind the glove box but had to take apart the ashtray trim piece to have access to the rest of the install. Use zipties to secure the wires unless you want vibrations. Especially around the A-pillar.
Registered User
Joined: Jul 2003
Posts: 227
Likes: 0
From: Moore, OK

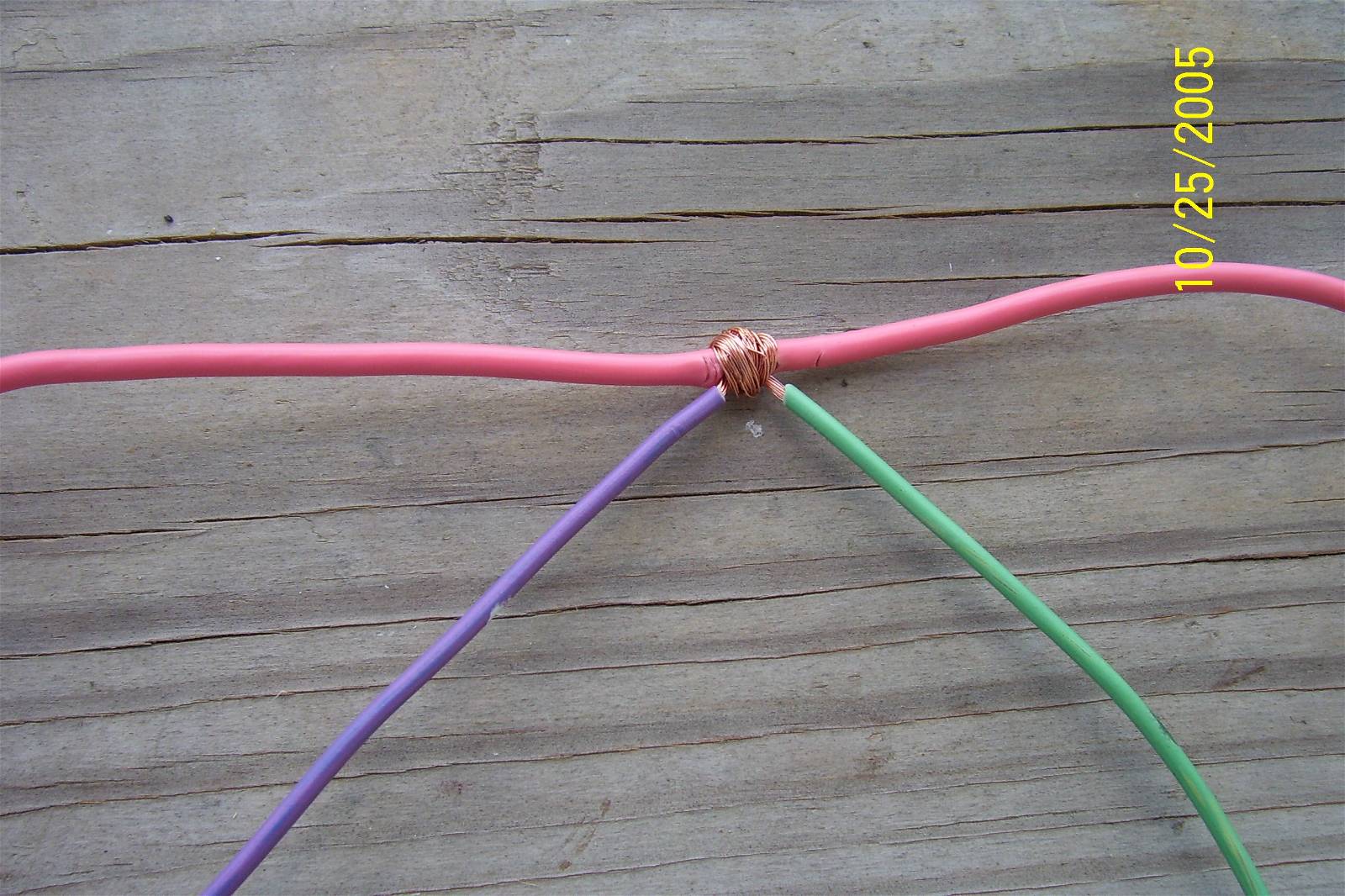

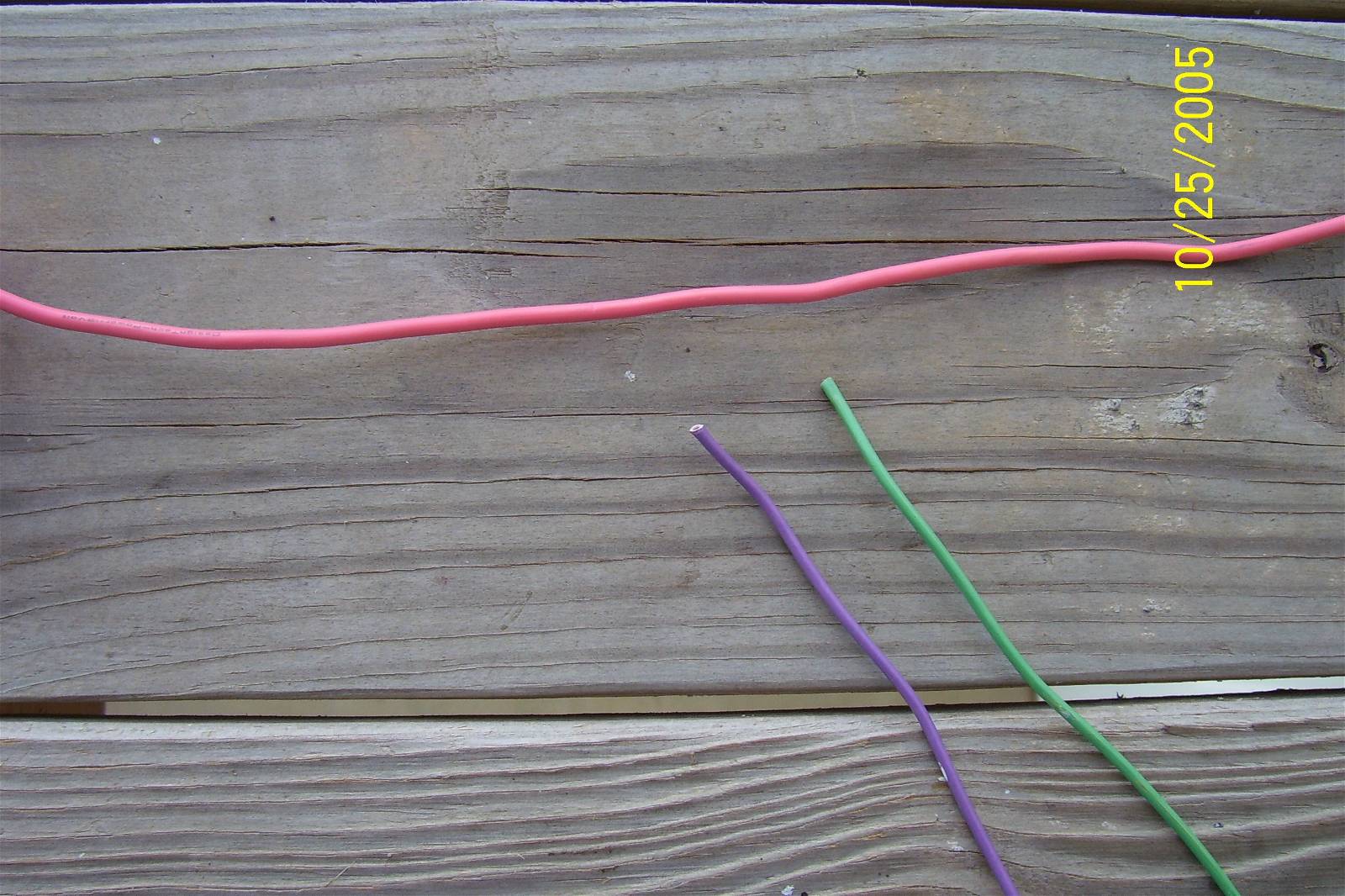

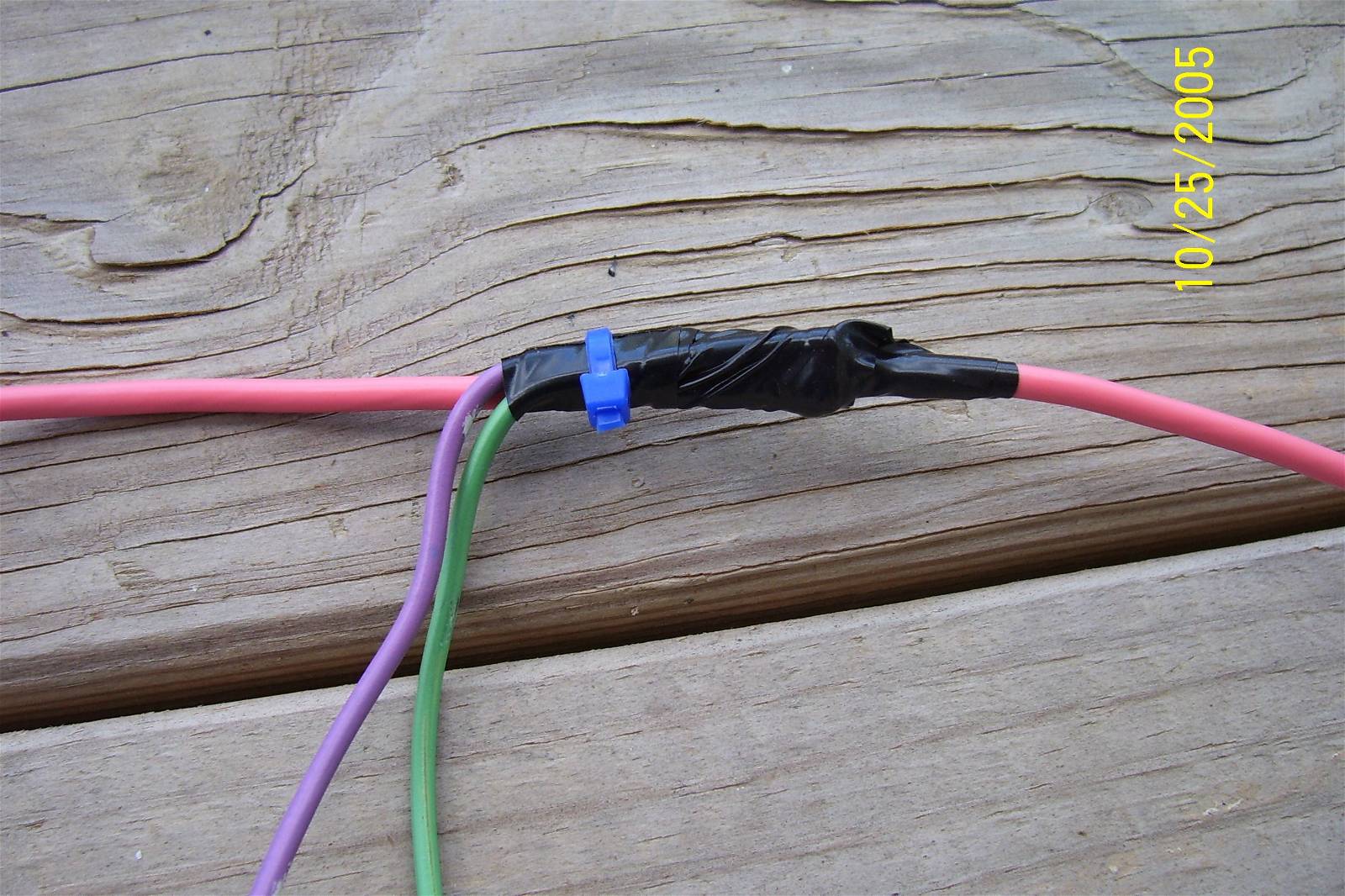

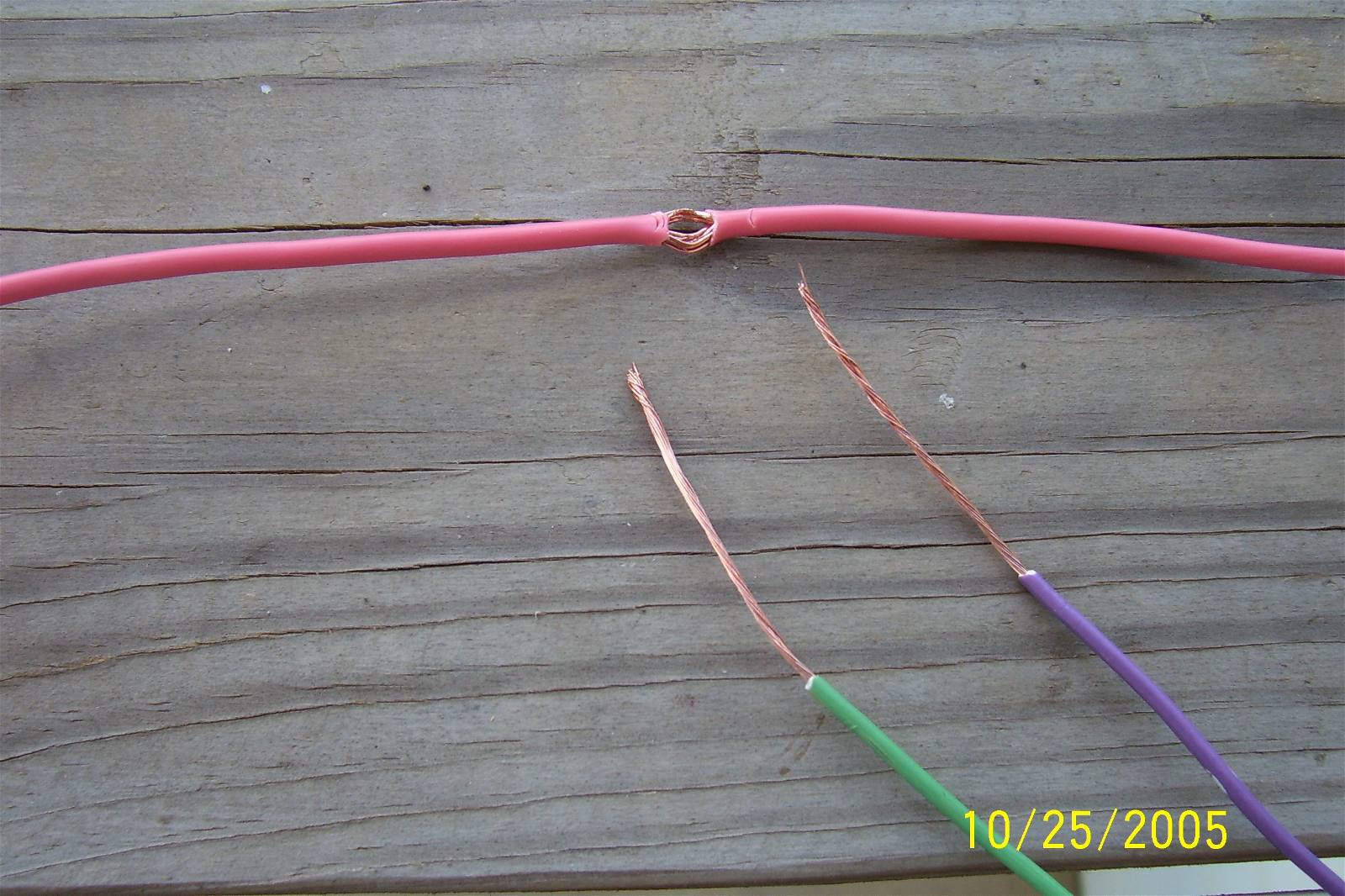

Maybe this will help those needing to tap the ignition wire, but aren't sure how. Pretend the pink wire in the pic is the igntion wire and the other 2 are anything your needing to get power to. Also make sure any power connection you add is properly fused. Hope this helps *Last 2 pics are backwards*
Last edited by SLVRG35; Oct 26, 2005 at 09:23 PM.
Originally Posted by SLVRG35
Maybe this will help those needing to tap the ignition wire, but aren't sure how. Pretend the pink wire in the pic is the igntion wire and the other 2 are anything your needing to get power to. Also make sure any power connection you add is properly fused. Hope this helps *Last 2 pics are backwards*
Registered User
Joined: Jul 2003
Posts: 227
Likes: 0
From: Moore, OK
Thats true, but you have to consider who is doing this and what experience they have. If someone were to use an 20-22ga wire tap on an ignition wire, then its very possible the wire will be cut in half. And also if they're not correctly used, can eventually fail.
Registered User
Joined: Feb 2007
Posts: 160
Likes: 0
From: Augusta, GA
The initial picture is broken, can anyone repost??
Where can I get the installation manual for V1 into my rear mirror with the wire? I want to know where to connect which wire (color)
-Sooiseng
Where can I get the installation manual for V1 into my rear mirror with the wire? I want to know where to connect which wire (color)
-Sooiseng
Registered User
iTrader: (4)
Joined: Oct 2007
Posts: 5,267
Likes: 355
From: o-town & west palm beach FL
