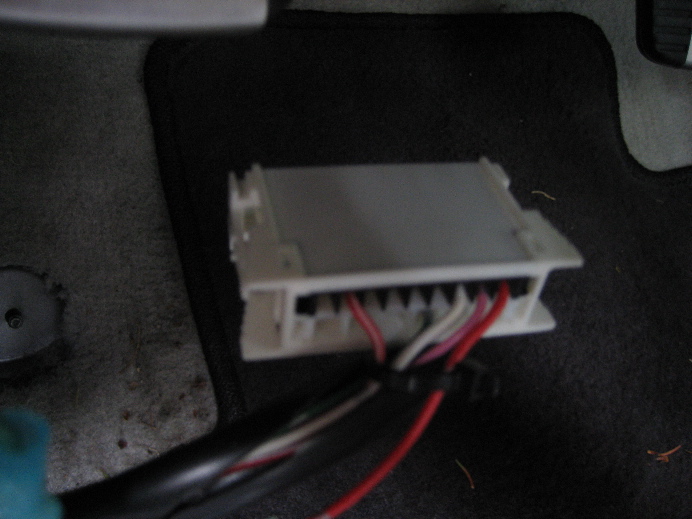

My harness as 5 wires. A pink, white, green, red, and red-white.

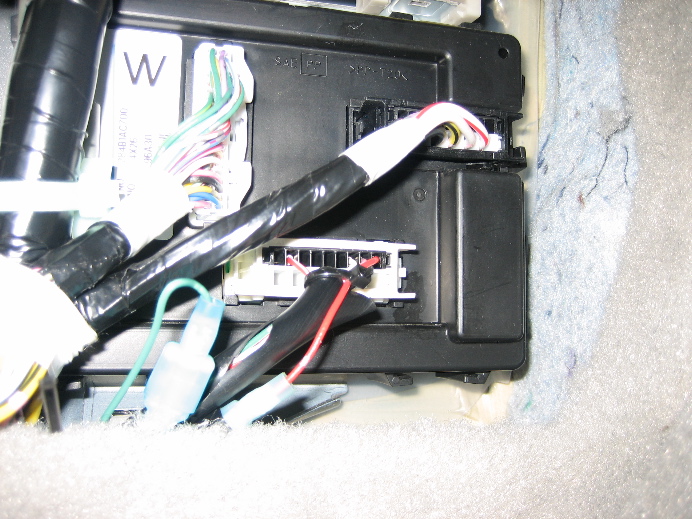

And here are some crappy pictures. I guess I will try the red & white wire next. I just hate to keep hacking into the harness.



are you letting the alarm arm???



sit in the car with the door shut
lock the car with you in it
your security led will come one solid after you lock the car.
after 30 secs it will start blinking.
when is starts blinking tap the shock sensor and see if it goes off
do not tap the shock sensor when the security led is blinking or it will disable the alarm.



I really appreciate the help, but it seems like you contradict yourself here. Or did I just not read it right.
What I have done.
I wait 30 seconds after arming, Infiniti LED starts blinking. I tap shock sensor, its LED lights but no alarm. If I open trunk (actually I pull the emergency open handle, while the trunk is open but locked) the alarm does go off. So assuming I did tap into the right wire, its signal does still go through the hook up. Since I used connectors I will try forcing the trunk alarm with the wires split. If the alarm still works I have the wrong wire, or if other trunk features dont work same thing. So it appears that that harness is diffrent between the 03, 05, 06 (or intellikey?). Was your 05 the same wiring as mine (five wire)? Thanks.



yeh i ment to stay

when the security led is solid dont tap the shock sensor cause it will disable the alarm



Still cant get it to work. With the solid Red wire I used disconnected the trunk alarm still goes off. so I dont know what that wire controls. The dash trunk switch still works, but the trunk light does not seem to be working with the wire disconnected or tapped into the sensor. I will have to wait until I get some more connectors before I try cutting the white/red wire.



try this

strip a little bit of the insulator of teh red white wire off
then take a wire that is connected to ground
after the alram has armed take teh wire that you connected to ground and touch it to the bare spot in the red white wire. if the alarm goes off when you do that you have the right wire

or take your dmm connect the black end to ground stick the red end into the red white wire and then pull the emergeny release. if the wire goes to ground when yo do that its the right wire.

if anyone has an 06 service manual could you please send it to me so i can find the correct wire quicker and easier

thanks



john feel free to contact me on aim sn is over here -------------------------------------------------------------------------->



Thanks. I probabally wont have time to work on it again until the weekend.



So I used the red & white wire just like it said in the directions. And it worked. So basically I read this thread a few days early. I dont know on the 05 & 06 listed, but on my 05 G35x (early production I have been told) the standard hook up works just fine. But thanks for the help. All the harnesses look a little diffrent.



sweet so you got it working!?



yep. Not as sensitiave as I want, but later I will try and make the sensor more "dangling". But thanks for the help.



What is the model of shock sensor that people are using with the stock alarm?



complete info here, dei 504m was the orig, but they might have a newer one out with a switch now
