P0430 Error Code
P0430 Error Code
Tonight I had a service engine light come up. I checked the error and it was a P0430 code. This came out as P0430 TW Catalyst System, Bank 2. What does this mean and how can I fix it? Thank you.
Wow, that one is a bit of a monster to diagnose...

The service manual says to check: exhaust system, exhaust gas leaks, intake air leak, ignition timing, injector voltages, ignition spark and injector leaks. Any one of those could cause the code. I assume you cleared to code and it came back (clearing the code is always your first step to see if the problem is intermittent.) The O2 sensors are not on the list of possible causes. The O2 sensors have a complete diagnostic routine of their own.

The service manual says to check: exhaust system, exhaust gas leaks, intake air leak, ignition timing, injector voltages, ignition spark and injector leaks. Any one of those could cause the code. I assume you cleared to code and it came back (clearing the code is always your first step to see if the problem is intermittent.) The O2 sensors are not on the list of possible causes. The O2 sensors have a complete diagnostic routine of their own.
Originally Posted by sliderg35
Wow, that one is a bit of a monster to diagnose...

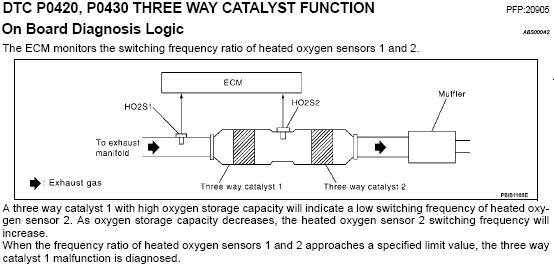

Attachment 85377
The service manual says to check: exhaust system, exhaust gas leaks, intake air leak, ignition timing, injector voltages, ignition spark and injector leaks. Any one of those could cause the code. I assume you cleared to code and it came back (clearing the code is always your first step to see if the problem is intermittent.) The O2 sensors are not on the list of possible causes. The O2 sensors have a complete diagnostic routine of their own.
Attachment 85377
The service manual says to check: exhaust system, exhaust gas leaks, intake air leak, ignition timing, injector voltages, ignition spark and injector leaks. Any one of those could cause the code. I assume you cleared to code and it came back (clearing the code is always your first step to see if the problem is intermittent.) The O2 sensors are not on the list of possible causes. The O2 sensors have a complete diagnostic routine of their own.
Trending Topics
Service Manual Page EC-343.
I think I would go to the dealer for this one. They are probably familiar with it and would likely get to the problem faster, but this problem is not in the "Quick to Diagnose" category at all.
I think I would go to the dealer for this one. They are probably familiar with it and would likely get to the problem faster, but this problem is not in the "Quick to Diagnose" category at all.
