So engine builder only had enough time to pull engine out of car, build new one but i have to put it all back in...

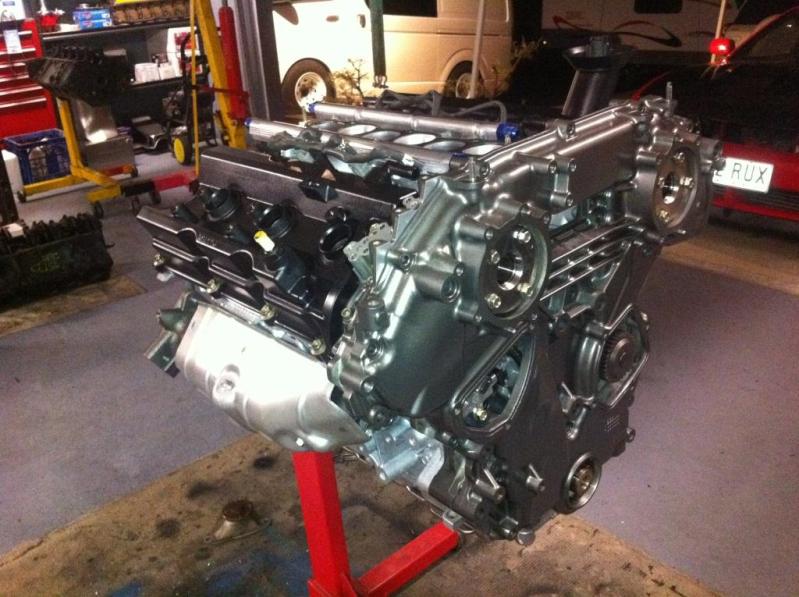

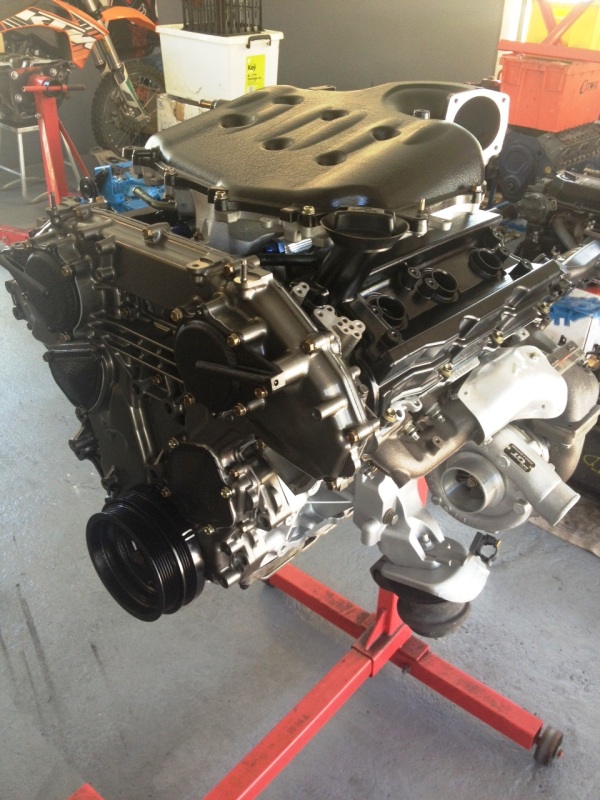

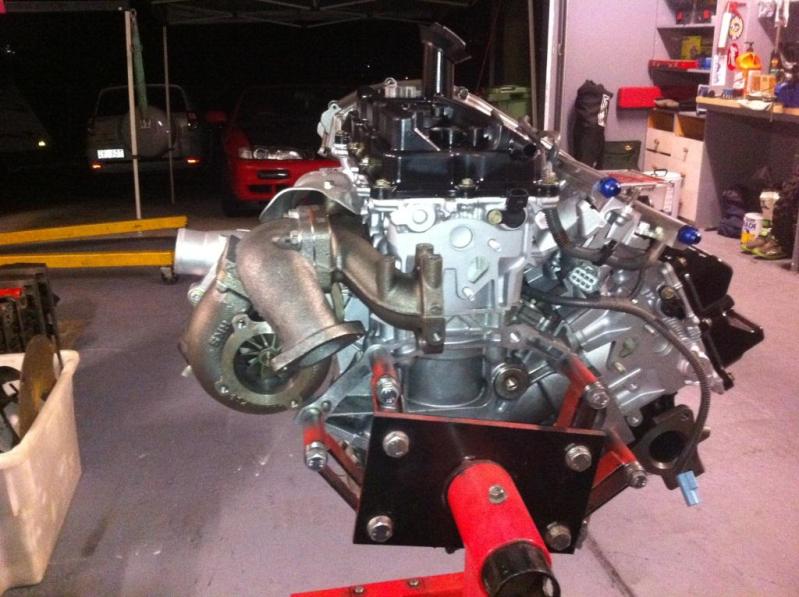

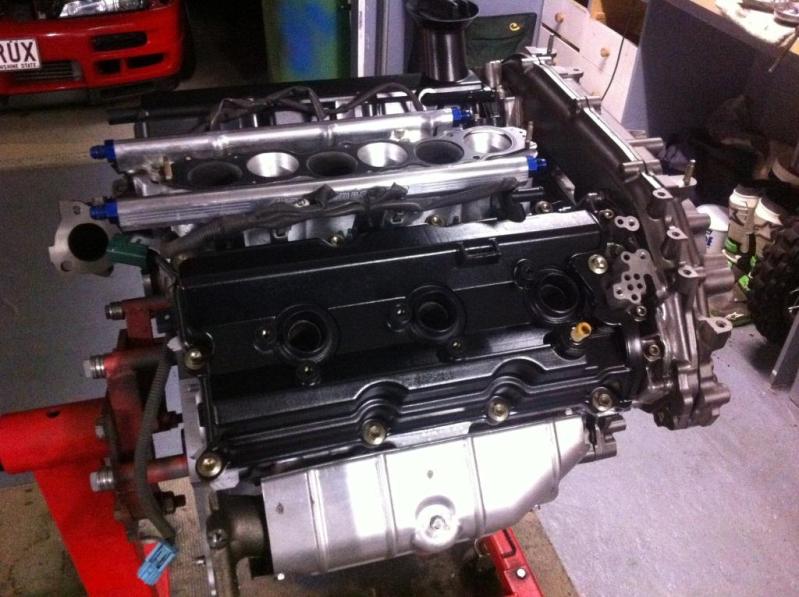

Pics of Engine









Now i get given my car back no engine or any parts inside the bay, and a box of bolts... great, where do these all go..
I found this tread so it will help somewhat but appreciate if anyone can identify and let me know and i can then figure out the rest hopefully!!!!
https://g35driver.com/forums/engine-...olt-sizes.html








Thanks very much, i appreciate it !



Where are you located? You need to find someone who knows what they are doing to help you put this motor back in.

You run out of money to pay the guy to put it back in?



Damn that sucks... From the picture looks like it could of taken the guy another day then motor is in. Hope something works out.



Located in Australia..

He had the engine and all parts and machine done for 3 months, i said why are you delaying finishing, he said cause i dont have time to do it all, sooo i said just finish the engine, ill deal with the rest..

No one this close to xmas wants to touch it, i can do it but if i took engine out i would have labled all the bolts in bags etc..

Just incase it helps someone here is some of the ones i figured out
^^ I am updating what i have found, ill add yours to my list in a sec, thanks so much!!!
edit: wow you are awesome, btw ps, alternator, a/c are all still on old engine so no brackets, bolts/nuts should be in that pic.
trans and drive shaft also taken out
Engine didnt come with coil packs
(I brought this engine a year ago and it didnt have a few bits and pieces which im taking off my un-built engine fyi)

red = Guilty1s
green = friend of mine

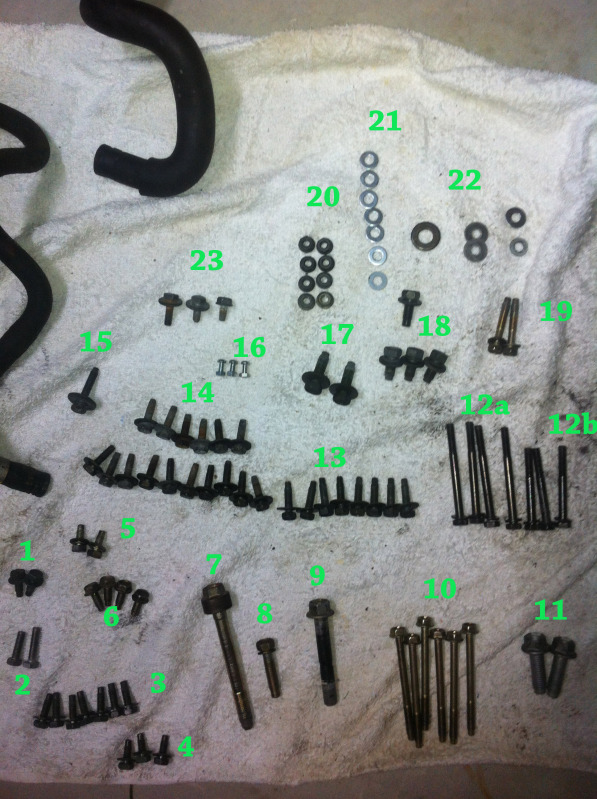

Just incase it helps someone here is some of the ones i figured out
1: ?
2: ?
3: ?
4: ?
5: ?
6: Sump plate
7: ?
8: ?
9: ?
11: Coolant cross over
12: Plenum inner
13: Front of the under body splash guard
14: ?
15:?
16: ?
17: ?
18: Sump
18: ?
20: driving lights nuts
21: driving light spacers
22: ?
23: ?
24: Plenum outer
25: Tail shaft
26: ?

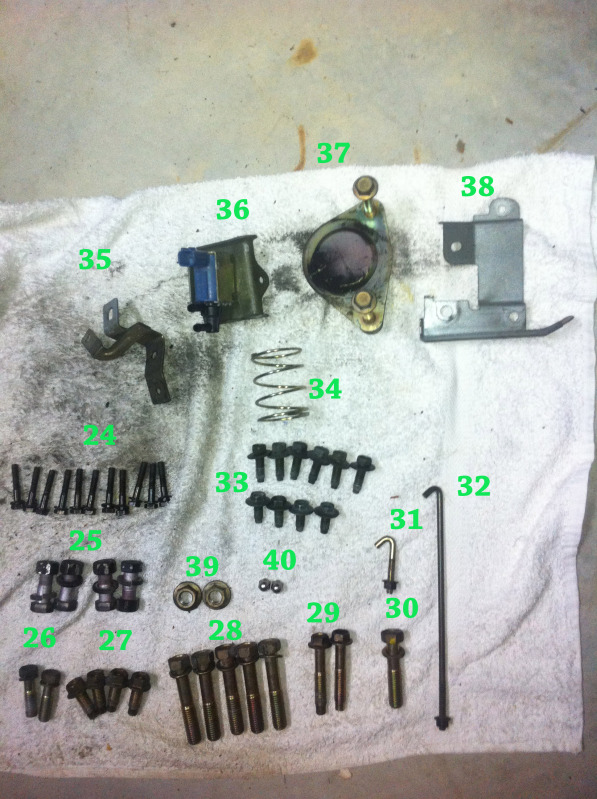

27: Idler Pulley
28: upper bell housing
29: lower bell housing
31 & 32: Battery bracket
33a: ?
33b: lower 4 are for that front black radiator support bracket
34: Shifter spring
35: Coolant cross over bracket (attached to timing chain cover)
36: Evap solenoid
37: to cover the lower left bell housing hole (opposite side of alternator, as its RHD)
38: Harness bracket (where does this attach to?)
39: Engine mount nuts
40: ?

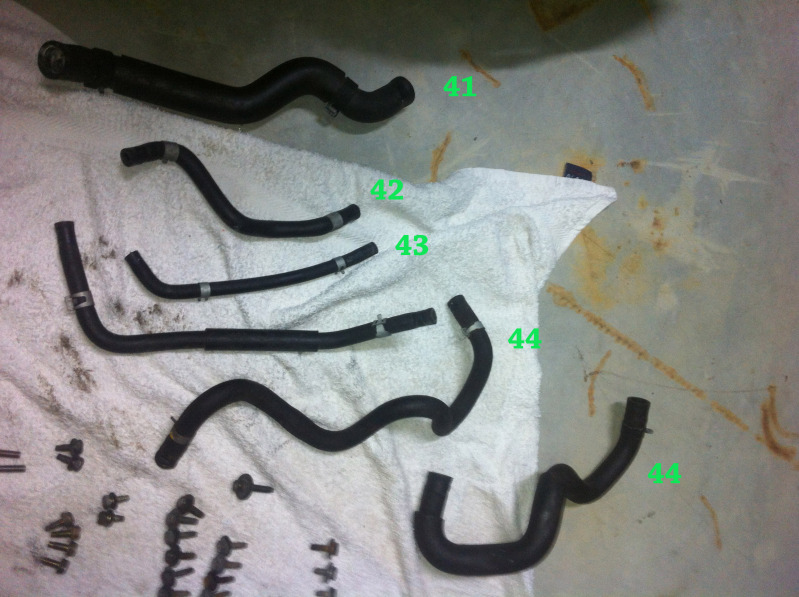

41: Radiator hose
42 & 43: Vaccume lines
44: coolant lines for oil filter housing/cooler
44: cam cover breather hose?


Any other help would be awesome



Takes it out and rebuilds but won't/ can't put it back in!? WHO THE FK DOES THAT!? I would have never taken a job that huge to someone that wouldn't finish it. Good luck though!



try to distinguish via service manual.
believe it or not, there is a service manual for engine placement.
bolts should be easy since the manual tells you the length and thread pitch of bolts.
thread measuring ruler will def. help here.
GL
