Any input on this meter would be greatly appreciated....and where's in your car do you guys/girls put this ?



I have one, it is very useful for getting info from your car; I will take a picture this weekend of where I have it placed, but it's basically right next to the gauge panel, on the right.

Dave



pics would be helpful...thanks caelric



does it shows boost/ af ?



No boost, since it only reads the stock OBDII sensors, but it will show air flow meter vvoltage, which you can deduce the af ratio from.

Basically anything engine related that the OBDII reads, it will show. I think the website is www.blitzusa.com (if not, google will find it) and it shows on there exactly what it will read.

Pics this weekend!

Dave





Thats about where I have mine, except it is a little higher up, because the console is slightly different on the 05's. On the 05/06, if it was in that position, it would interfere with the center console box opening.

Dave



Thanks...sorry 4 another newbie Q....you will need to run the wire to your dianostic port right?



caelric,

how do you deduce the AF ratio from the voltage #?

what's the equation?



that's nice.... but i need a boost gauge....



How exactly does that work?



If you're looking for a boost gauge, check out this one out:

http://www.blitz-performance.com/Blitz_SBC_iColor.htm



As promised, pictures.

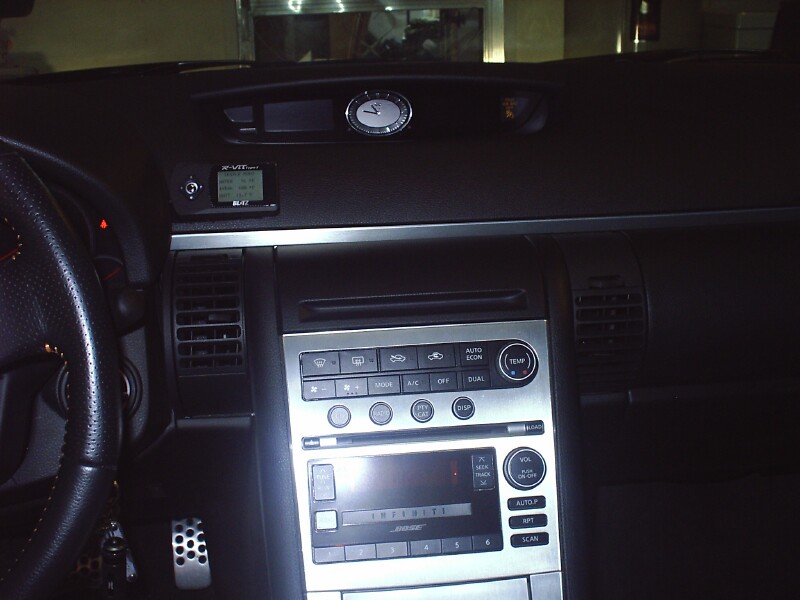

Pic 1 is the R-Vit from a distance.

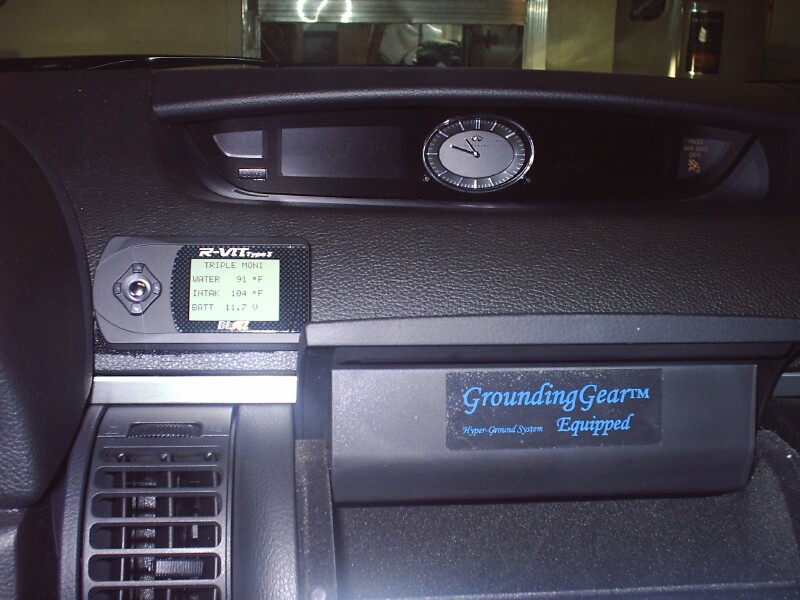

Pic 2 is close in, with the cubby hole open so you can see how it all fits, along with a gratuitious ad for GordGee's Grounding Gear

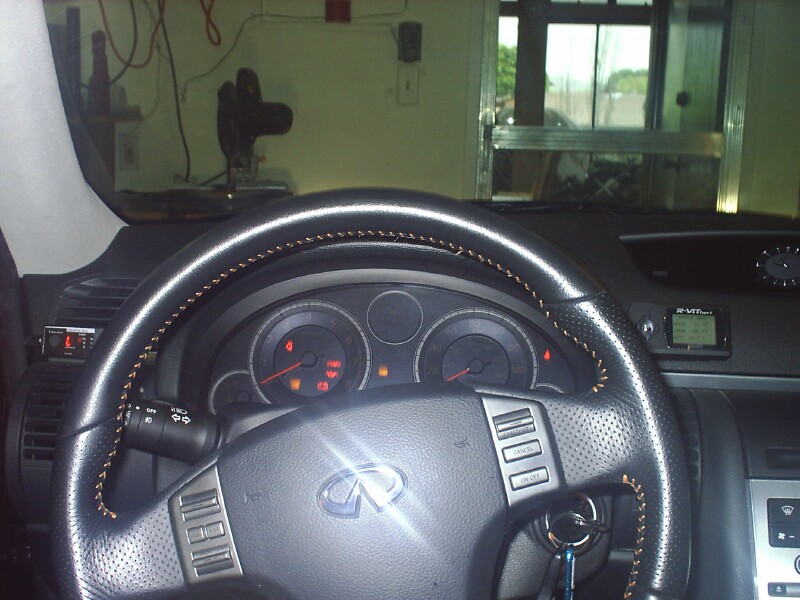

Pic 3 is the R-Vit on the right, and the Valentine One remote display on the left.

Dave



And I honestly don't know exactly how to figure the A/F ratio from the R-Vit, I never bothered, but you can do it, from getting the MAF voltage and the injector pulse. Easier just to get a wideband A/F gauge, though, and much more accurate.

Dave
