I have mine just sitting in my garage until tollboothwilley sends me my catalytic converter under tray!!!!!!

And my poished aluminum diversion panel.

Pm TBW. Holler.



so i guess i wasnt clear enough in my last post.

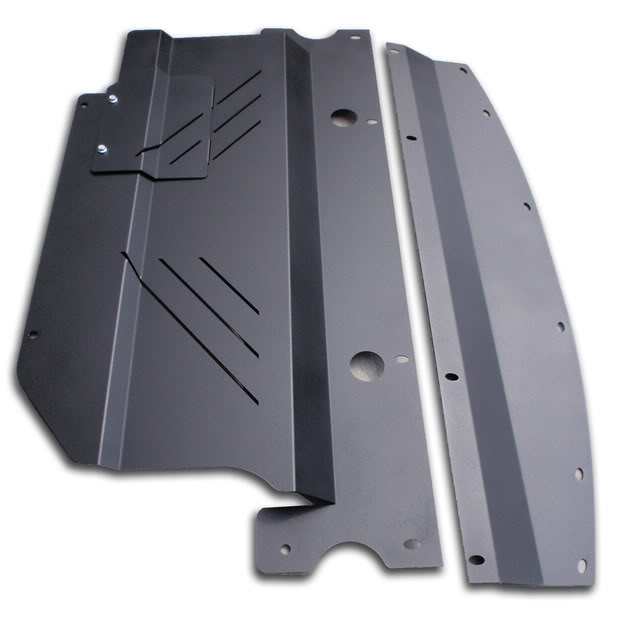

so two pictures below. if you see how they are laid out, the front half is laid differently. which is correct?

#1 - lower surface of FRONT HALF points toward the car. (it is sloping DOWN towards the front)


#2 - higher surface of FRONT HALF points toward the car. (it is sloping UP towards the front)


if you can clarify that for me.. thanks.


and also for others, the bolts that were supplied have such small head that it just slides through the elongated (not sure why the holes are elongated, and not a perfect circle. maybe fitment issue during the manufacturing?) holes. I had to purchase matching washers so it doesn't do that. washers are NOT removable in the oem bolts,.

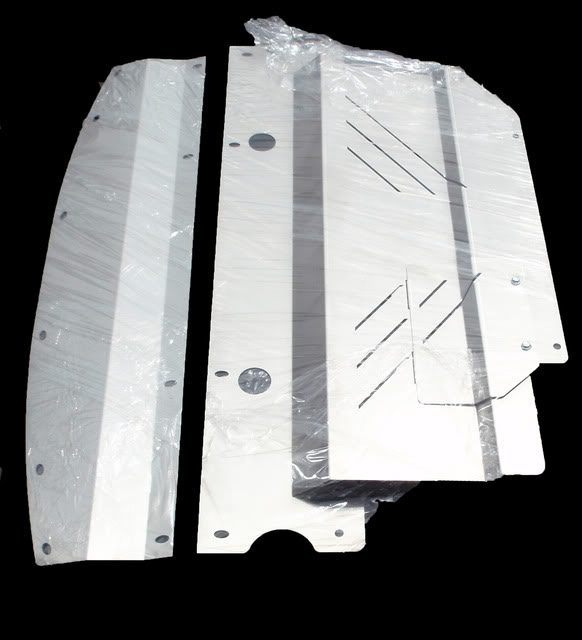

When you put the front piece up it will only fit one way - it is perfectly a mirror image so flipping it around fits the holes just won't match to the bumper. Should be similar to the picture of the brushed photo.

Bumper >>> Radiator Support
................... __________
__________ /

Bumper sits lower - metal will bend UP from the bumper to the radiator support

As for the holes being elongated - its so that you have a small amount of adjustment. Some people may need extra fitment. I have never seen the bolt heads slide through the shroud - once you tighten everything up you should not have any problems or need any washers. Having installed these personally on 20+ vehicles, it has never once failed me.



thanks for the clarification!
looks like i installed it correctly from the beginning.
The pc quality is very good without any defects. highly recommended!!
props to you for providing this extra service without any up-charge to members



pics please!!



I believe its impossible to mount it incorrectly!!

If the front piece doesn't fit - you just flip it upside down - its symmetric





were you just saying that the DIVERSION PANEL is impossible to mount correctly?



LOL - no, i haven't done the diversion panel. hopefully i'll be able to get going on it this week brosef



awesome! whats good with that catalytic under shield? still sending me one?



for you, just $1,000,000

picking some up from my shop tomorrow - just got back in town

should have a some pics up after i get them



^Literally LOL = LLOL

ill pay what ever it takes as long as i have it!! wont be installing it until my under shield until i grab one of those catalytic under shields from you so i can take pics all at once! you know how this goes.... you sell them to me, i install, take pics, post it up in 11 threads and you sell more of them thanks to me! hahaha



hey tollbooth can you create a panel to protect the oil pan??



The one that goes under the engine helps protect the oil pan, why would you want another?



Hey, have you thought about making airboxes like the ARC ones? Maybe even in titanium?
