Wiring the spoiler brake light
#1
Wiring the spoiler brake light
http://postimg.org/image/o418r0afr/
Hello G drivers,
I just installed a spoiler(aftermarket factory style) for my 2007 g35 coupe and I'm not quite sure how to wire the spoiler brake light. My car already has a third brake light above the back seats..So I'm wondering if i have to disconnected that first? There is also a wire under the trunk like the picture above. Is that where i am suppose the connect the wires from spoiler? I hope its that simple..
Thanks in advance.
Hello G drivers,
I just installed a spoiler(aftermarket factory style) for my 2007 g35 coupe and I'm not quite sure how to wire the spoiler brake light. My car already has a third brake light above the back seats..So I'm wondering if i have to disconnected that first? There is also a wire under the trunk like the picture above. Is that where i am suppose the connect the wires from spoiler? I hope its that simple..
Thanks in advance.
#3
#4
#5
I just had to do this, bought the car with an aftermarket non oem style spoiler and it looks like the previous owner spliced the wiring but didnt do it correctly and it wasnt working. The spoiler did not have an adapter just a red and black wire. After looking at the wiring coming off the 3rd brake light plug, I spliced into thos wires. One was a pink wire with grey dashed and a black wire with red dashes (I think, I know the pink one is correct). Spliced in some connectors just in case I ever wanted to take off the spoiler and voila, it worked. Looked really weird with the spoiler light and the 3rd brake light, so I just popped off the 3rd brake light cover (push forward then lift) and disconnected the plug. Hope this helps because I was researching this same thing last week! Good luck.
#6
I just had to do this, bought the car with an aftermarket non oem style spoiler and it looks like the previous owner spliced the wiring but didnt do it correctly and it wasnt working. The spoiler did not have an adapter just a red and black wire. After looking at the wiring coming off the 3rd brake light plug, I spliced into thos wires. One was a pink wire with grey dashed and a black wire with red dashes (I think, I know the pink one is correct). Spliced in some connectors just in case I ever wanted to take off the spoiler and voila, it worked. Looked really weird with the spoiler light and the 3rd brake light, so I just popped off the 3rd brake light cover (push forward then lift) and disconnected the plug. Hope this helps because I was researching this same thing last week! Good luck.
#7
is this the correct wire? This is the only wire i see under the trunk. Thanks!
Btw, does anyone know what that connector is for?
Trending Topics
#8
To tktk88: I didnt use that connector but mine also had that and the previous owner spliced into the green and black wire from that and the spoiler wasn't working. You already have the trunk lid cover off, now take off the truck roof cover (the roof of the trunk not on the trunk lid). You will see wires going to the left side of the car. That is where I spliced in. I then ran the speaker wire I spliced with to the right and through the wire boot deal on the right side of the trunk (had to use a hanger to fish it through. When my wife gets home for lunch I will try to pop off that rear upper cover again and take some pictures of the wires I spliced into. They are the wires the run the rear brake lights I think because I disconnected the 3rd brake light harness and the spoiler still works. Hope this helps and Im not just rambling.
#9
To tktk88: I didnt use that connector but mine also had that and the previous owner spliced into the green and black wire from that and the spoiler wasn't working. You already have the trunk lid cover off, now take off the truck roof cover (the roof of the trunk not on the trunk lid). You will see wires going to the left side of the car. That is where I spliced in. I then ran the speaker wire I spliced with to the right and through the wire boot deal on the right side of the trunk (had to use a hanger to fish it through. When my wife gets home for lunch I will try to pop off that rear upper cover again and take some pictures of the wires I spliced into. They are the wires the run the rear brake lights I think because I disconnected the 3rd brake light harness and the spoiler still works. Hope this helps and Im not just rambling.
#10

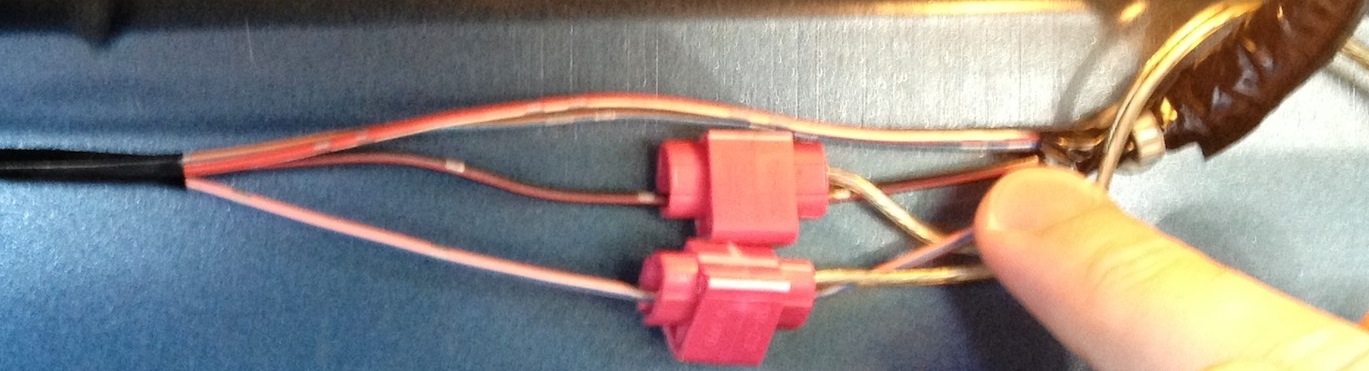

Spliced from the Pink wire with blue line, and red wire with black stripe and grey dashes with some speaker wire.
Clearer pic of the wire colors.
This is in the trunk near the trunk release harness thing. The red and black wires are coming from the non oem spoiler and connected them to the speaker wire with connectors, that way I can unhook the spoiler if I want. Then I just unplugged the harness going to the 3rd brake light cause it looked weird with all them brake lights
Hope this helps.
