O2 Wire Harness Part

  #1
Old 02-23-2019, 04:05 PM
Registered User
Thread Starter
Join Date: Feb 2019
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Silver
O2 Wire Harness Part

I have an '03 G35 coupe and I recently scraped my underbody and it managed to disconnect my downstream right O2 sensor. I jacked it up and took a look today and the sensor appears to be fine, but the harness that the O2 sensor hooks into got scraped up pretty bad. To be clear, its not the harness at the end of the O2 sensor, but the female end coming from the engine. I attached a couple pictures to show what I mean. I want to know the part I need to replace that black connector. I found the thread below, but it is referring to an 07-08 sedan, so I wasn't sure if the parts match.

https://g35driver.com/forums/g35-sed...ring-help.html

If anyone could provide me the proper part # for that black connector, or confirm that the part listed in the thread above is correct, it would be greatly appreciated!

Thanks

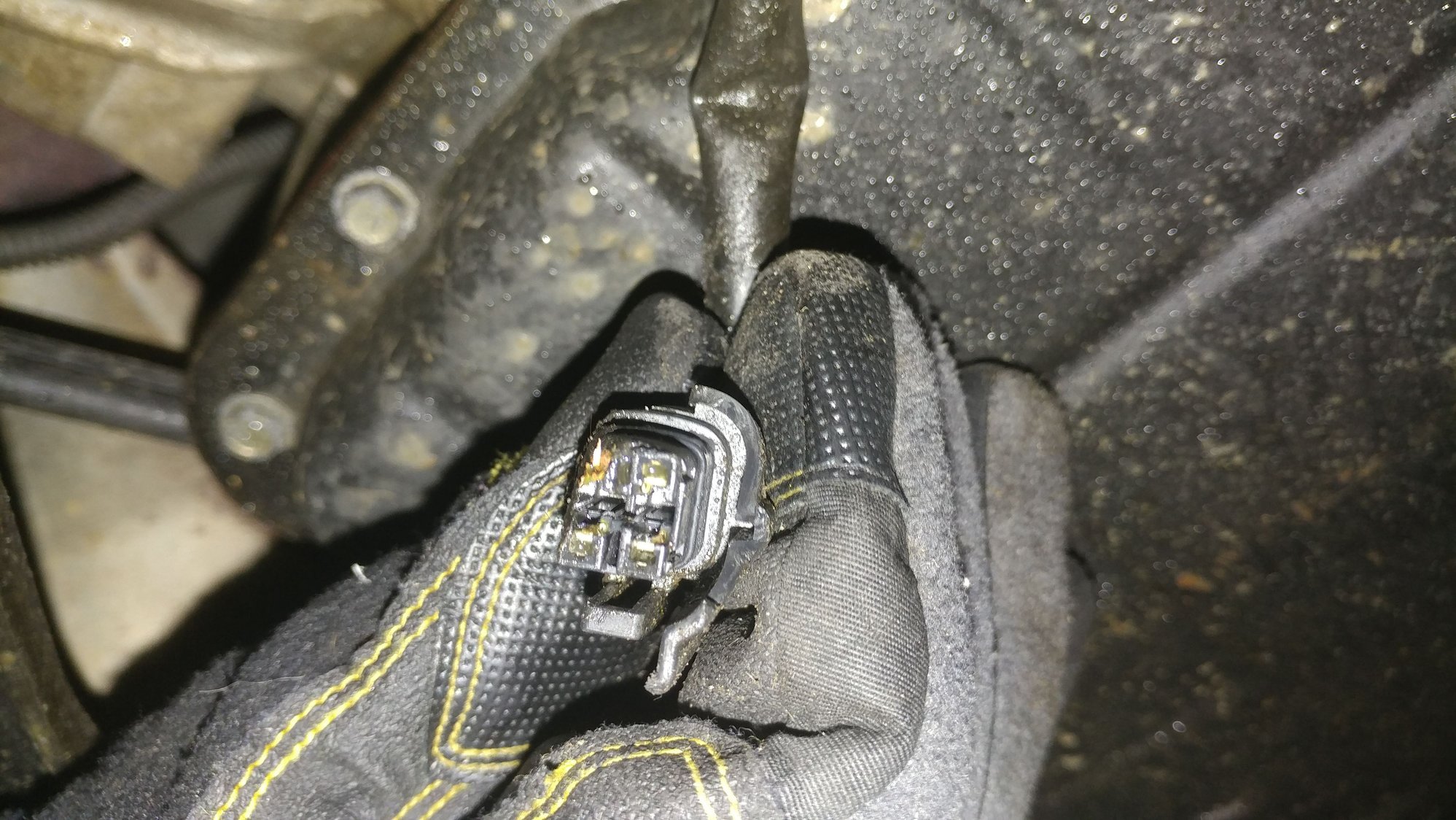

The connector at the end of the O2 sensor

The broken connector that the O2 sensor hooks into

  #2
Old 02-23-2019, 05:48 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 5,579
Thanked 605 Times in 564 Posts
Coupe 6MT Premium RAS
24012-AM803COUPE, AUTO TRANS, FROM 3-03

24012-AM802COUPE, MANUAL TRANS, TO 3-03

24012-AM804COUPE, MANUAL TRANS, FROM 3-03

24012-AM800COUPE, AUTO TRANS, TO 3-03


It's easier to just cut the harness off a donor vehicle and solder/shrink tube it onto your vehicle instead of replacing the ENTIRE wiring harness for the vehicle. And it saves you about $1000 dollars in parts, not to mention the 20+ hours of labor.

  #3
Old 02-24-2019, 01:26 PM
Registered User
Thread Starter
Join Date: Feb 2019
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Silver
I was looking at this part. I saw it recommended to someone with the next generation of G35's and I wasn't sure if the connector would match up. I wasn't planning on replacing the entire harness, just that connector.

https://www.nissantechmate.com/harne...r/product/9183

Thanks

  #4
Old 02-26-2019, 06:44 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 5,579
Thanked 605 Times in 564 Posts
Coupe 6MT Premium RAS
I don't THINK that's the correct harness. iirc the one on the G35 used a pin configuration that was in a straight line, not a stacked pin configuration like that. Unplug the other side and take a good clean look at it and compare those.

  #5
Old 02-26-2019, 06:46 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 5,579
Thanked 605 Times in 564 Posts
Coupe 6MT Premium RAS
Nevermind I can see in your original photos they are stacked. I still think the best action is to go to a pick-n-pull and find another G or a 350Z and cut the harness off a donor car.

  #6
Old 03-01-2019, 01:35 PM
Registered User
Thread Starter
Join Date: Feb 2019
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Silver
I appreciate the help. Just ordered this part:

https://www.ebay.com/itm/253705692026

It looks to be an exact match but I'll update once I get it and put it on in case anyone else runs into the same issue that I've had.

  #7
Old 03-01-2019, 02:48 PM
Registered User
iTrader: (1)
Join Date: Sep 2014
Location: Walpole MA
Posts: 138
Thanked 7 Times in 6 Posts
subbed. i did the same thing. just been running with it kinda stuck together. would like to know if there's an easy solution where i don't have to go find a donor to pull from.

  #8
Old 03-01-2019, 05:33 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 5,579
Thanked 605 Times in 564 Posts
Coupe 6MT Premium RAS
If it's an exact match DEFINITELY post the part number and who you ordered it through.

  #9
Old 03-09-2019, 02:59 PM
Registered User
Thread Starter
Join Date: Feb 2019
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Silver
Unfortunately, it wasn't an exact match. The plastic fins on the sides of the o2 sensor connector didn't line up with the slots on the connector I purchased, so I used a screwdriver to carve out a slot in the right location. It wasn't too difficult but you'd probably be better off getting the part from a scrapyard.
