Can someone hook it up with photos of their wiring harness that is connected to their IPDM?
I need to re-pin the connector because I accidentally pulled the wires out.
The photos are from a 2003 Infiniti G35 Coupe 6MT
THANKS!
2003 Infiniti G35 Coupe 6 Speed MT (E8) IPDM Layout 2003 Infiniti G35 Coupe 6 Speed MT (E8) Pins 2003 Infiniti G35 Coupe 6 Speed MT (E8) Connector
You should be able to find harness E8 in section PG - Power/Grounding of the FSM to get the color codes for each pin. The colors are listed somewhere on like page 17-18? of section GI - General Information.
How I found these is just scroll through the IPDM part of section PG - Power/Grounding and look for any schematics that have harness E8, write down the number and the color letter code. Then verify you got all the used circuits (lots of unused pins in a car) with the overall schematic later in the document on like page 24, the one that only lists circuits by description with no wire color. I was unable to find the color for circuit 38 in section PG but on page 24 it says it's for the front wipers so I went to section WW - Wipers and looked up the wiring schematic there which listed the color.
Almost 6 years ago I replaced a relay in the IPDM and took a photo.

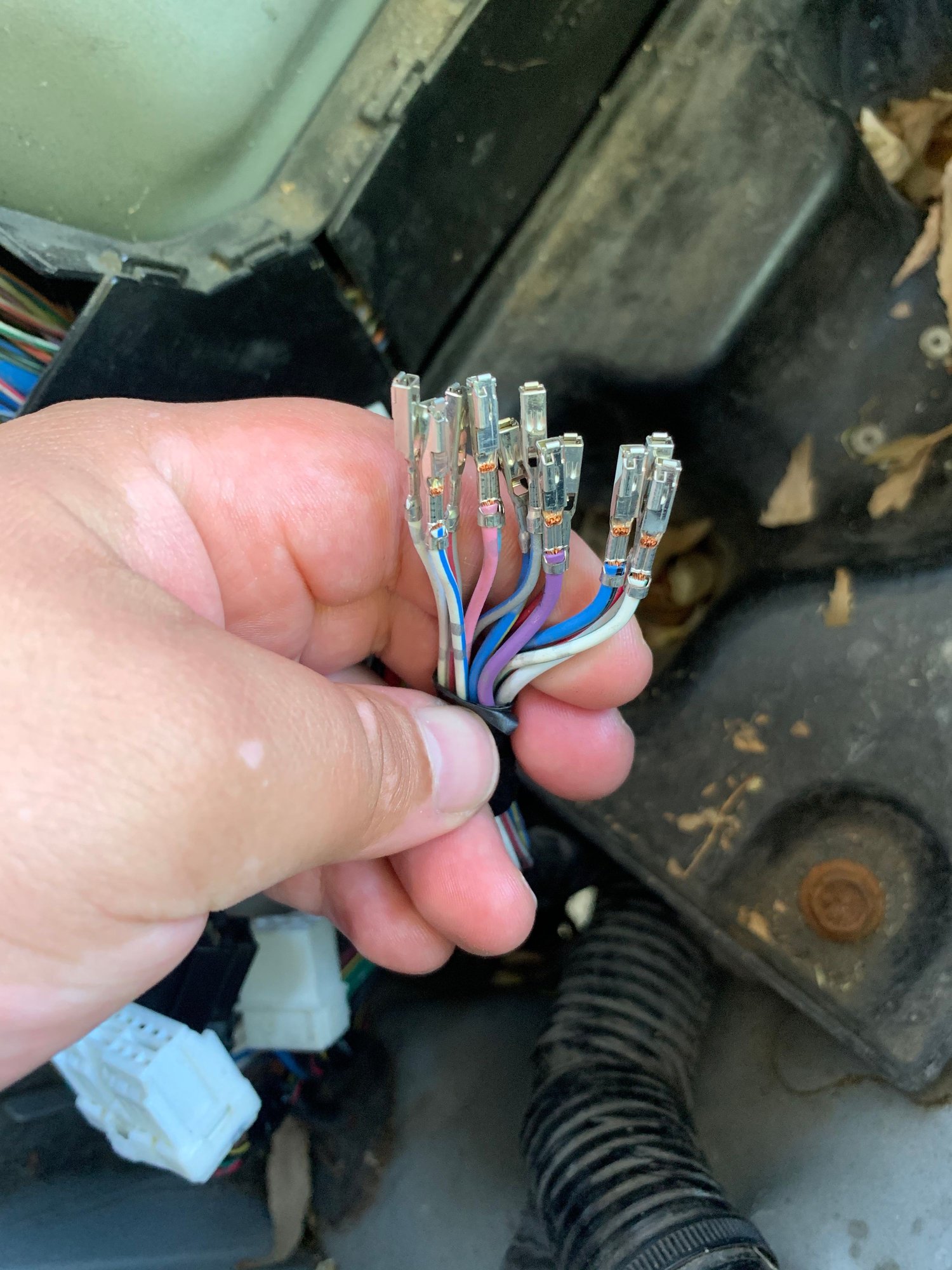

I had to charge all of my old phones to find it, but the bad part was that you can only see 9 / 12 of the wires.
Thanks to your help, I found the missing 3!
2003 INFINITI G35 6 SPEED MANUAL
CONNECTOR E8(REF. NICO CLUB - 2003 INFINTI G35 SERVICE MANUAL, PG POWER SUPPLY, GROUND, AND CIRCUIT ELEMENTS, pg. 24-25 - SCHEMATIC AND IPDM) * = EMPTY 44 - W
43 - GY / R (TRANSMISSION CONTROL MODULE A/T - CLUTCH INTERLOCK SWITCH M/T)
42 - *
41 - *
40 - GY / L
39 - *
38 - L / Y
37 - R / L
36 - W / R
35 - W / L
34 - *
33 - P
32 - SB
31 - PU
30 - L / B
29 - W / G
