Well, I cut up the G35’s body and took the opportunity to learn and share how Unibody car’s work:

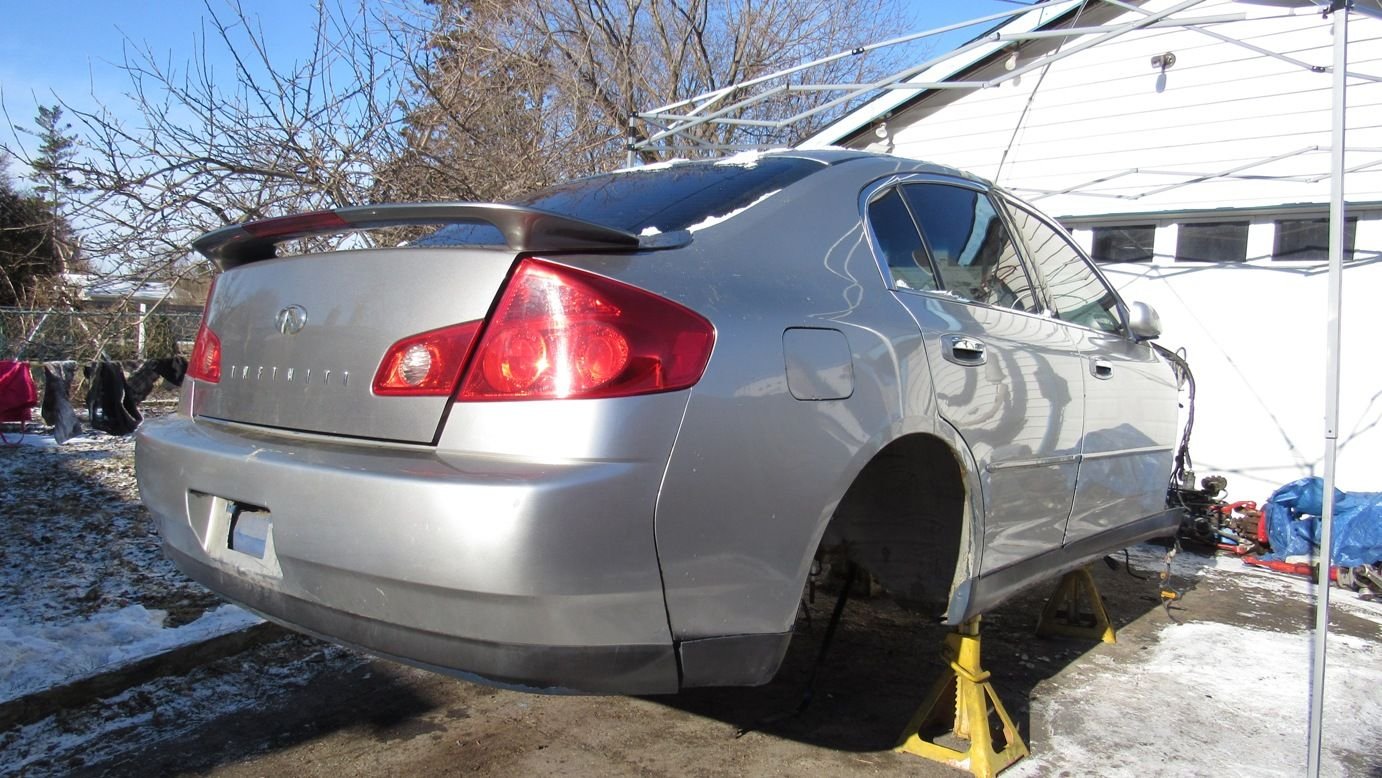

Here’s what I started with – the engine, transmission, subframe, suspension, fuel system and interior was removed.
I removed all the bolt on body panels to be left with the “body in white”:

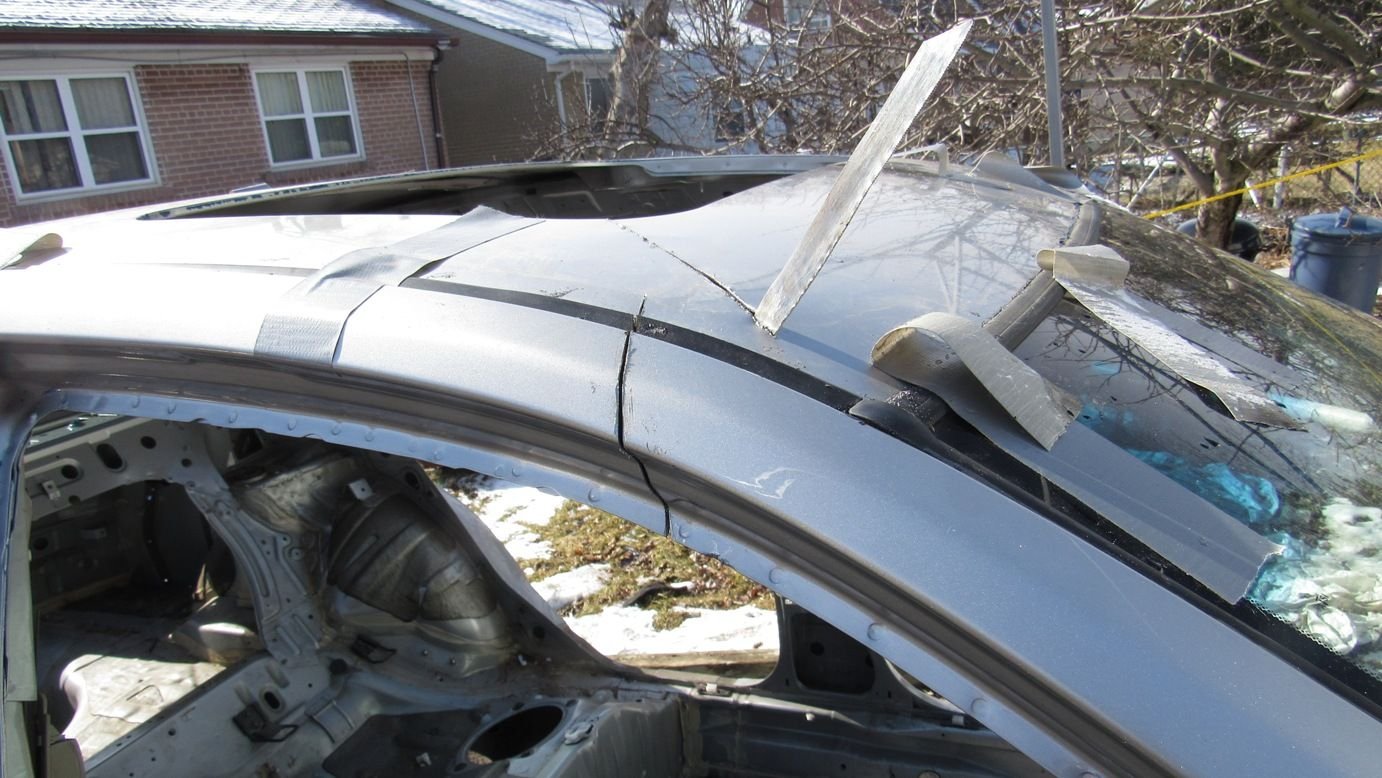

I started cutting the pillars with the sawzall:
This is a section of the B pillar. Notice how many layers have been folded to make it up, as it has to withstand side impact intrusion:
Convertible first gen G35!

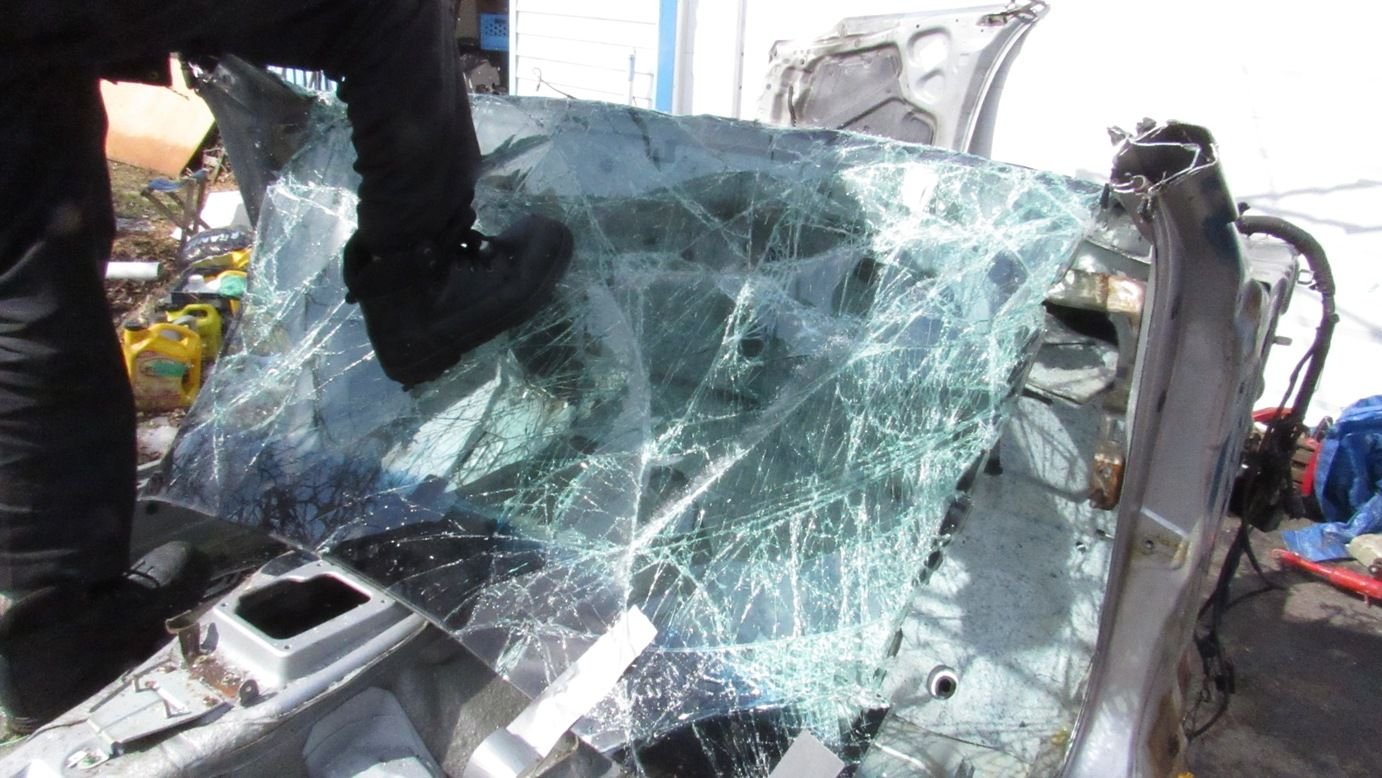

Windshield is pretty strong!
I started hacking the quarters using the angle grinder:
Rear section removed:
Floorboard was a tough one to get through, I really could have used a larger angle grinder:
Cross section of the floor pan. Notice how every few inches there is a reinforcement in the tubular structure.
Notice the rust. Like, a lot of hidden rust.
Here are all the pieces turned upsided down so you can see what the underbody of the car would look like:
Finale:
Common questions:
1. How long did it take? - Across a few days about 16-20 hours with filming.
2. How did I dispose of it? - Tossed it out on garbage night. Within 2 mins the scrap metal guy showed up and fit a G35 in his Dodge Caravan!
3. Would I do this again? - No, but it was a good learning experience.
4. How many blades did you go through? 3 sawzall, and 6 cut off wheels.
5 What was the hardest part? The firewall and floor board have the thickest and most intricately folded pieces of high strength steel!
Here’s what I started with – the engine, transmission, subframe, suspension, fuel system and interior was removed.
I removed all the bolt on body panels to be left with the “body in white”:
I started cutting the pillars with the sawzall:
This is a section of the B pillar. Notice how many layers have been folded to make it up, as it has to withstand side impact intrusion:
Convertible first gen G35!
Windshield is pretty strong!
I started hacking the quarters using the angle grinder:
Rear section removed:
Floorboard was a tough one to get through, I really could have used a larger angle grinder:
Cross section of the floor pan. Notice how every few inches there is a reinforcement in the tubular structure.
Notice the rust. Like, a lot of hidden rust.
Here are all the pieces turned upsided down so you can see what the underbody of the car would look like:
Finale:
Common questions:
1. How long did it take? - Across a few days about 16-20 hours with filming.
2. How did I dispose of it? - Tossed it out on garbage night. Within 2 mins the scrap metal guy showed up and fit a G35 in his Dodge Caravan!
3. Would I do this again? - No, but it was a good learning experience.
4. How many blades did you go through? 3 sawzall, and 6 cut off wheels.
5 What was the hardest part? The firewall and floor board have the thickest and most intricately folded pieces of high strength steel!
