Greetings,

My poor baby has been beat up once again. Twice I've had the front end torn off and to be frank I'm kind of getting a little tired of it.



Anyway, I got the check from insurance and I'm sourcing parts. Managed to shave off about $250 bucks from the estimate... however I need help.

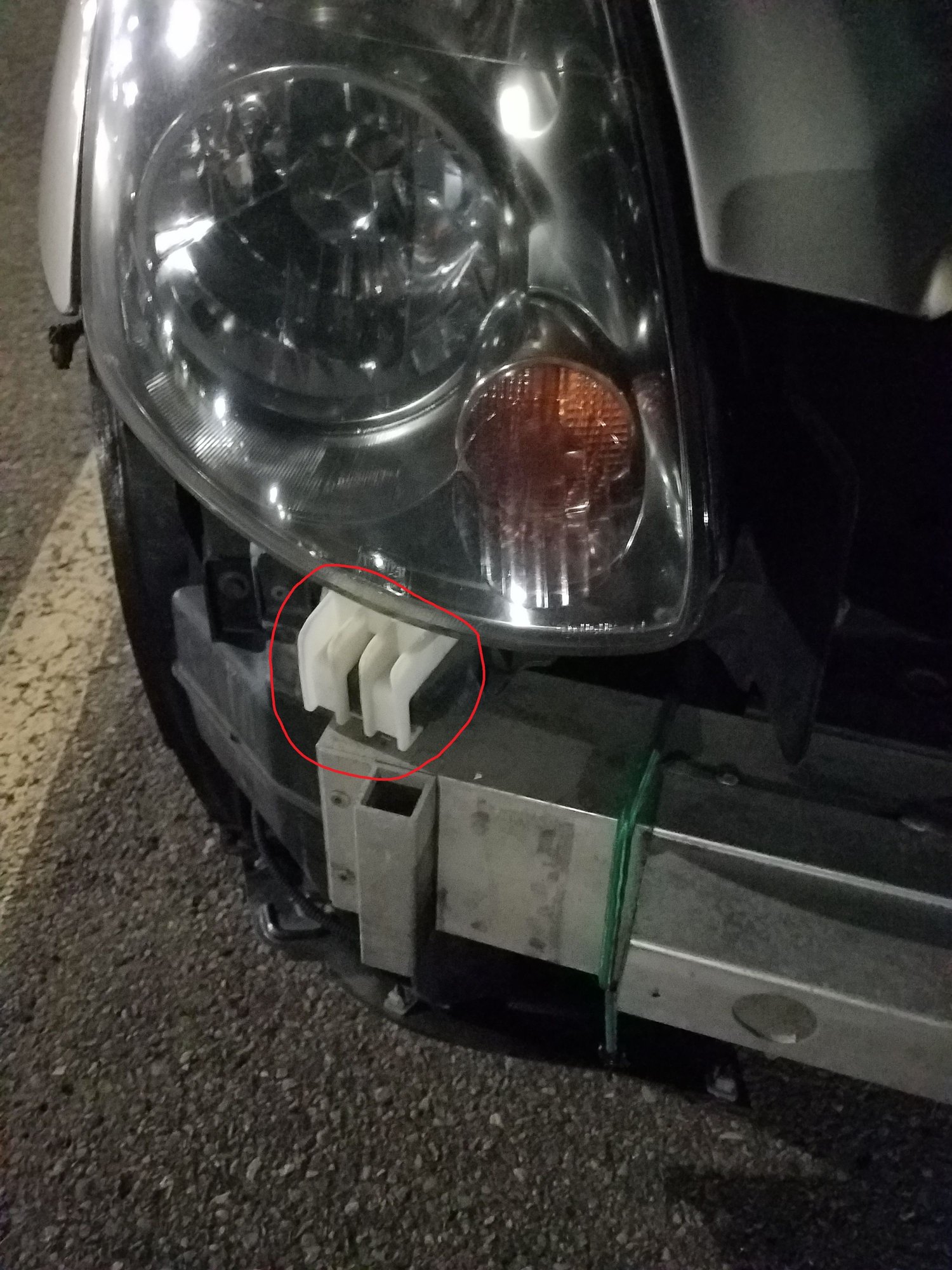

Anybody know what this part # is in the picture. And what function/purpose it serves? Is it a sub part of another part number? I.E. included in one of the other parts I'm ordering?


Here's my cart so far:
Bumper Cover Mount Bracket
Product ID: 62223-AL500
Remove $14.37 Quantity
Mount Cushion
Product ID: 62092-AM600
Remove $29.84 Quantity
Mount Cushion
Product ID: 62093-AM600
Remove $29.84 Quantity
Energy Absorber
Product ID: 62090-AM600
Remove $56.79 Quantity

Sorry for the formatting the table didn't copy over correctly. In any event... any help or feedback would be much appreciated!

Thanks!

Page EI-15 in the FSM refers to it as "bumper clip", but I don't see it in any of the parts diagrams that I looked at.

Ok, your first part with no photo is the bracket under the cover where the bumper cover meets the fender. Your part number is for the driver's side but I'd replace them both if the cover was torn away. All the rest of the parts go under the cover to give it more stability. If you don't install them it doesn't loose any actual structural strength, you still have the steel or aluminum rebar(don't remember what it's made of)but it will want to sag and/or "suck in" in the front.
BTW, the mount cushions go left and right on top of the rebar on each side of the grille.

Thanks man. I won't be doing the work myself, insurance is paying for everything so it's going through the body shop. But I'm sourcing parts because I can do it cheaper than them.

I got on the horn with the dealership that I purchased the navigation **** and rev-up airbox cover from. They gave me this info:

Radiator Support Clip
Product ID: 62228-AL510

Same for the driver's and passenger's sides. Just in case anyone should ever need this info.

Thanks for the attention and replies!
