Finished my DIY LED corners!!

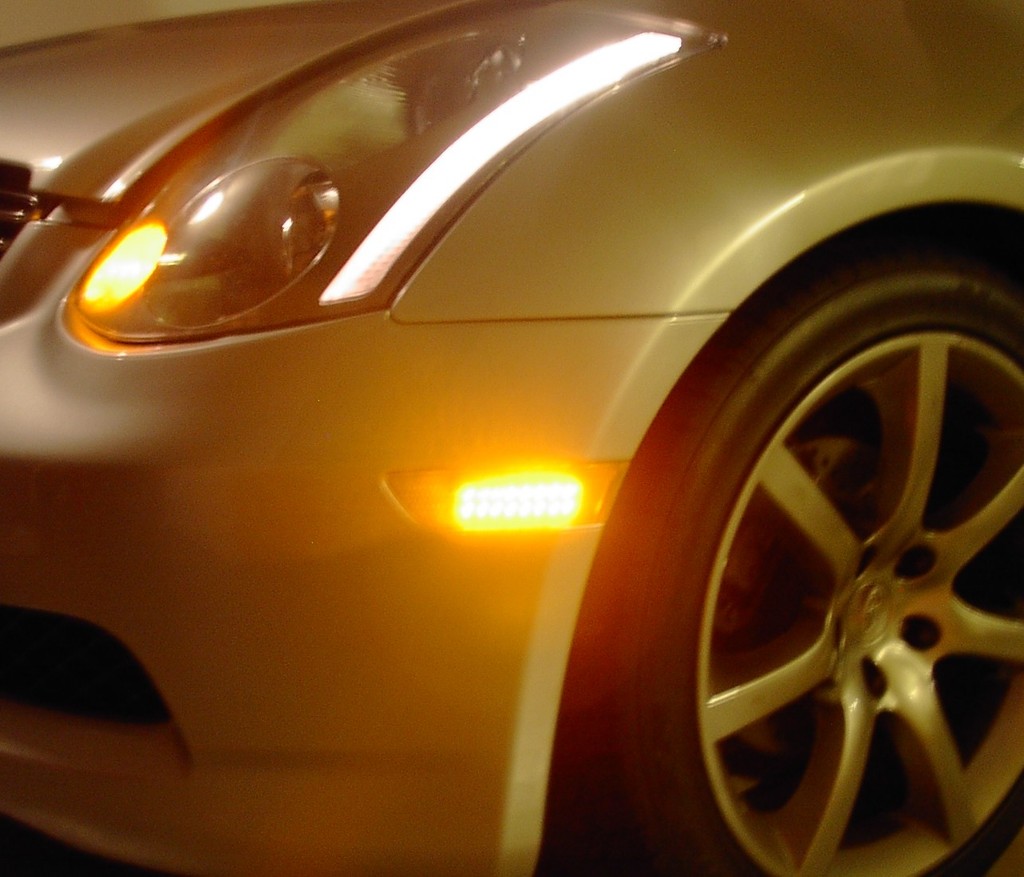

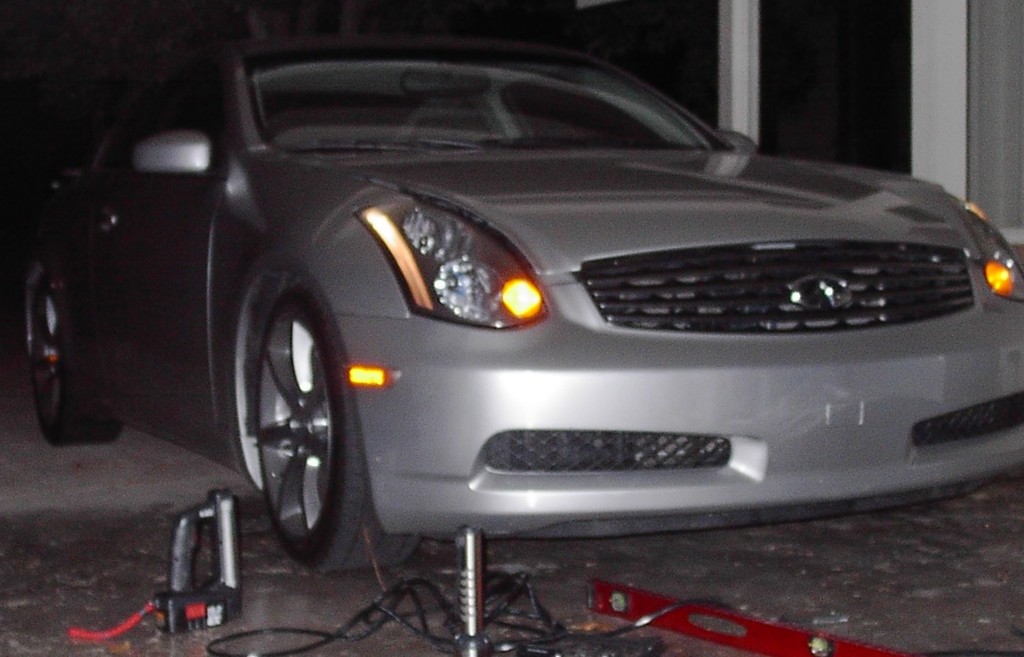

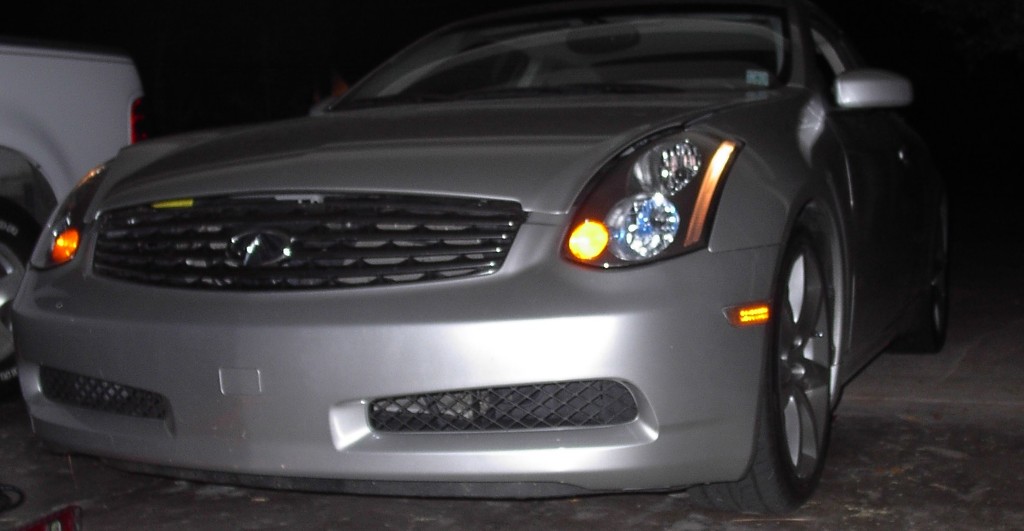

Thanks to the DIY article here. I made my own true LED corners. I'm not done with them yet. I'm going to disassemble them and paint the backing of the light housing to match the color I painted the circuit board.
Registered User
Joined: Dec 2004
Posts: 264
Likes: 0
From: Rowland Heights, CA
Originally Posted by brianmfournier
Looks good. Even looking at that DIY I can't imagine myself having the patience to do this
The LED's look great. It feels great knowing you did it all on your own doesn't it?
where did you find this diy? i tried lookin in the diy section but didnt find it. maybe i did look hard enough it was late at night
edit: never mind i found it.
have another question though, how much room is there inside of the clear corners to work with? i was thinking of putting a CCFL tube in the clearance strip and wondered if i could put a smaller one in the clear corners what do you think?? would it be possible?
edit: never mind i found it.
have another question though, how much room is there inside of the clear corners to work with? i was thinking of putting a CCFL tube in the clearance strip and wondered if i could put a smaller one in the clear corners what do you think?? would it be possible?
Last edited by SFLG35; Oct 15, 2006 at 08:38 AM.
this is what im talking about: http://svc.com/logisys-kit.html
do you think the 4" tube would fit in there?
do you think the 4" tube would fit in there?
Joined: Jun 2006
Posts: 1,359
Likes: 2
From: Atlanta, GA
I doubt it. The lens housing has, I'd imagine, about 7-8mm of clearance at the rear of the housing, but the lens slants downward to about 2mm clearance as it goes toward the front. Think of a doorstop. I actually had to disassemble the first one I completed because I could not get the front of the lens to stay sealed due to the front two LEDs preventing the lens from sealing.
Originally Posted by SFLG35
where did you find this diy? i tried lookin in the diy section but didnt find it. maybe i did look hard enough it was late at night
edit: never mind i found it.
have another question though, how much room is there inside of the clear corners to work with? i was thinking of putting a CCFL tube in the clearance strip and wondered if i could put a smaller one in the clear corners what do you think?? would it be possible?
edit: never mind i found it.
have another question though, how much room is there inside of the clear corners to work with? i was thinking of putting a CCFL tube in the clearance strip and wondered if i could put a smaller one in the clear corners what do you think?? would it be possible?
he put a ccfl tube in his side marker. looks great, ive seen it in person.
i know for a fact he posted pics of it too. i think he may have even written up a short DIY but im not sure. good luck.
Trending Topics
heres some pics of yume's clear corner
he also used a ccfl tube for the license plate light..looks great!
btw, heres his thread:
https://g35driver.com/forums/lighting/88192-my-clear-corners.html
he also used a ccfl tube for the license plate light..looks great!
btw, heres his thread:
https://g35driver.com/forums/lighting/88192-my-clear-corners.html
Joined: Jun 2006
Posts: 1,359
Likes: 2
From: Atlanta, GA
That ccfl mod is awesome. I wonder why he didn't just run the wiring through the bulb hole then seal it up. I also like that he took it out of the tube. That looks like a much easier mod to do than making the LED circuit board.
