Angry Power window not working

Ok so now I have a little issue that maybe you guys can help me with. I noticed that when it is could outside I have to hold the switch to get the windows to roll up. When I try to us the auto up it stops and returns down which I assume is a safety feature. Earlier this week I washed the car good and while I was waxing had the windows down. I got in it today to roll the window up and the drivers side window is completely non responsive. I can hear the relay clicking but no motor. Do you think the motor burnt up or is there a fuse that I am unaware of. I had the door halfway tore apart but did not get into it to far because I am unsure as to how everything bolts together with the window. Any ideas?

Reply
Old Jan 3, 2010 | 08:30 AM
  #2
g-adabout's Avatar
Registered User
iTrader: (1)
Joined: Mar 2005
Posts: 4,454
Likes: 30
From: Pickerington, Ohio
wow, that sucks. I dont know much about our G's set ups. Good luck bro...

Reply
Old Jan 3, 2010 | 10:20 AM
  #3
Jomanchu's Avatar
Ohio G Club Member
iTrader: (6)
Joined: Apr 2008
Posts: 291
Likes: 4
I had the same issue about a month ago...My window got stuck in the down position though...and would NOT come back up.

I tore the door apart and pulled the motor out. What you do is take the motor apart. You will need to separate the two halves and pull out the armature. You will see two metal contacts inside where you pulled out the armature. They are called brushes. You will need to make sure they are clean of debris (mine was really gunked up). Do a good job cleaning it up and and spray some lithium grease back down into the gear and put it all back together. There is a procedure on how to reset the anti pinch mechanism once you get it all back together. if you search you will find it...I don't remember off the top of my head but it was easy. Get in there and go for it!

Reply
Old Jan 3, 2010 | 10:25 AM
  #4
Jomanchu's Avatar
Ohio G Club Member
iTrader: (6)
Joined: Apr 2008
Posts: 291
Likes: 4
I forgot to mention....My window works as good as new. It even sounds stronger when its operating. Save yourself the $200 and do it!

Reply
Old Jan 3, 2010 | 11:56 AM
  #5
plumber78's Avatar
Thread Starter
|
Registered User
Joined: Aug 2009
Posts: 991
Likes: 11
From: Massillon, Ohio
Thanks!!! That sounds exactly like what is going on. I will have to try and get into it today.

Reply
Old Jan 3, 2010 | 11:59 AM
  #6
O HELLA OEM's Avatar
Registered User
iTrader: (129)
Joined: Aug 2007
Posts: 22,421
Likes: 67
From: Monroeville,PA
yea its quite a problem with 03-04 G35 coupes

My drivers side window doesnt go down when its super cold outside.
it goes down and up when it wants to lol. i already purchased a new
window motor i just dont want to fork out what the dealer is going to
charge me to install lol. ill wait until the spring time to get it fixed.

Reply
Old Jan 3, 2010 | 12:02 PM
  #7
Rodrigo's Avatar
Registered User
iTrader: (14)
Joined: Oct 2007
Posts: 957
Likes: 2
From: South Florida
thats a strange thing , anyone have this happen on sedans ?

Reply
Old Jan 3, 2010 | 12:13 PM
  #8
plumber78's Avatar
Thread Starter
|
Registered User
Joined: Aug 2009
Posts: 991
Likes: 11
From: Massillon, Ohio
Originally Posted by O HELLA OEM
yea its quite a problem with 03-04 G35 coupes

My drivers side window doesnt go down when its super cold outside.
it goes down and up when it wants to lol. i already purchased a new
window motor i just dont want to fork out what the dealer is going to
charge me to install lol. ill wait until the spring time to get it fixed.
Well if all goes well with mine, I can help you install yours Brian. I will let you know in the next couple of days how I fared lol. Hopefully no broken window! I need to get this done so I can get my car over to the shop and get my exhaust on...I am looking forward to hearing it!

Reply
Old Jan 3, 2010 | 12:13 PM
  #9
Jomanchu's Avatar
Ohio G Club Member
iTrader: (6)
Joined: Apr 2008
Posts: 291
Likes: 4
From what I understand it is really only a problem on the coupes. Some people think its because coupes have heavier glass but use the same motor.

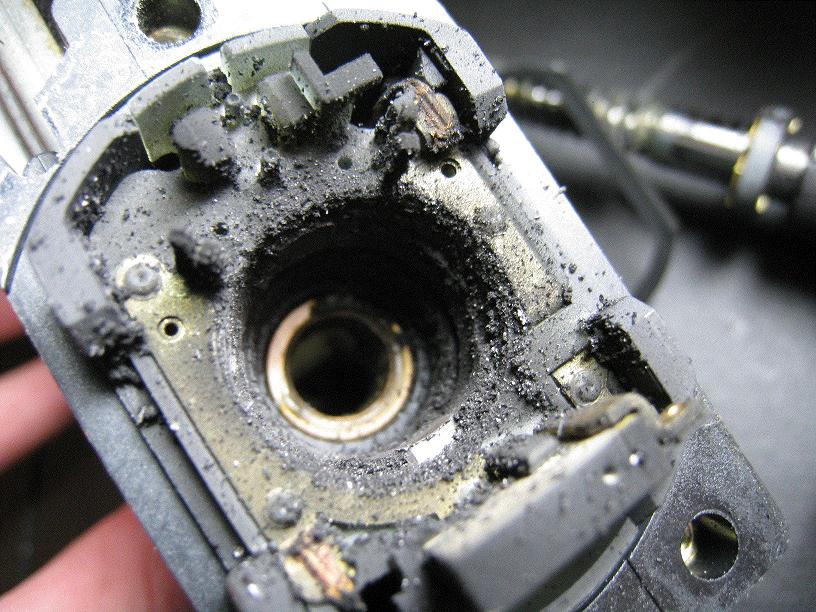

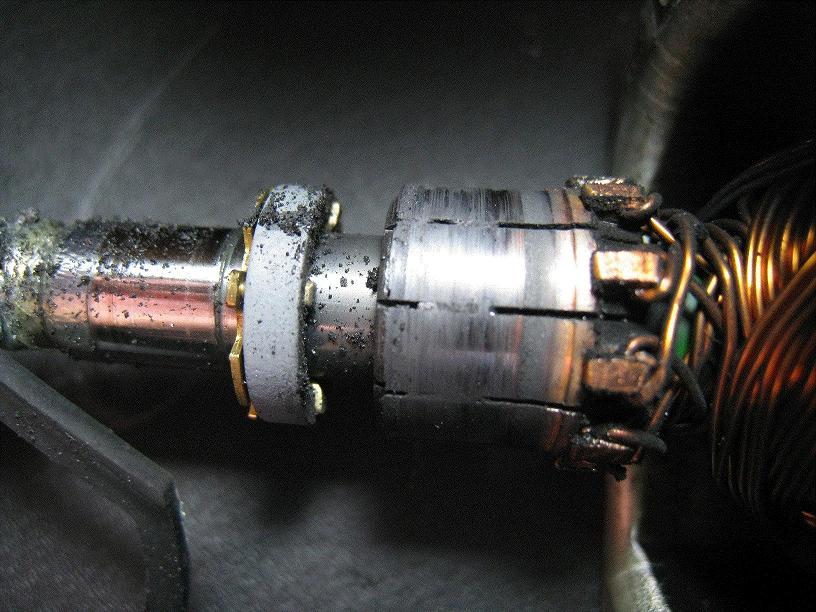

Attached Thumbnails Power window not working-003.jpg   Power window not working-004.jpg
Reply
Old Jan 3, 2010 | 12:17 PM
  #10
plumber78's Avatar
Thread Starter
|
Registered User
Joined: Aug 2009
Posts: 991
Likes: 11
From: Massillon, Ohio
Actually Brian the more I think about it, your problem may be the switch relay. I noticed mine was acting a little funny when I had it pulled out...almost like there was a bad connection. If it is that, that is super easy to change out. I am not sure how much it costs though. Don't quote me on that...I am a plumber, not an mechanic lol.

Reply
Old Jan 3, 2010 | 12:18 PM
  #11
plumber78's Avatar
Thread Starter
|
Registered User
Joined: Aug 2009
Posts: 991
Likes: 11
From: Massillon, Ohio
Sweet! That would make sense. Now I just have to figure out which nuts to take off inside the door panel!

Reply
Old Jan 3, 2010 | 12:20 PM
  #12
Jomanchu's Avatar
Ohio G Club Member
iTrader: (6)
Joined: Apr 2008
Posts: 291
Likes: 4
Originally Posted by plumber78
Sweet! That would make sense. Now I just have to figure out which nuts to take off inside the door panel!
all of them

Reply
Old Jan 3, 2010 | 12:29 PM
  #13
plumber78's Avatar
Thread Starter
|
Registered User
Joined: Aug 2009
Posts: 991
Likes: 11
From: Massillon, Ohio
https://g35driver.com/forums/body-in...l-removal.html Here is an awesome DIY I just found.

Reply
Old Jan 3, 2010 | 12:30 PM
  #14
plumber78's Avatar
Thread Starter
|
Registered User
Joined: Aug 2009
Posts: 991
Likes: 11
From: Massillon, Ohio
Originally Posted by Jomanchu
all of them
Yeah I just saw that. I was half afraid something would fall off inside if I un-bolted the wrong ones.

Reply
Old Jan 3, 2010 | 01:16 PM
  #15
O HELLA OEM's Avatar
Registered User
iTrader: (129)
Joined: Aug 2007
Posts: 22,421
Likes: 67
From: Monroeville,PA
nice Grant!
let me know how this whole DIY turns out for you!
