Talking Full MotorDyne Bolt On Dyno and Osiris tune, On An 07 Coupe

my list of mods are:
Ztube
JWT PopCharger
MotorDyne MREV2
MotorDyne 5/16 spacer
MotorDyne v1 Art Pipes
MotorDyne xyz pipe w/straight pipe
MotorDyne shockwave dual v1
Motordyne 4.5" ti rolled tips
JDM Battery Cover
all amsoil fluid
Weapon R Engine Damper

for the tune i went to hills garage in MD, really great people there and i would recommend them to anyone.

now for a few pics

Name:  mms_picture-1.jpg
Views: 631
Size:  79.3 KB

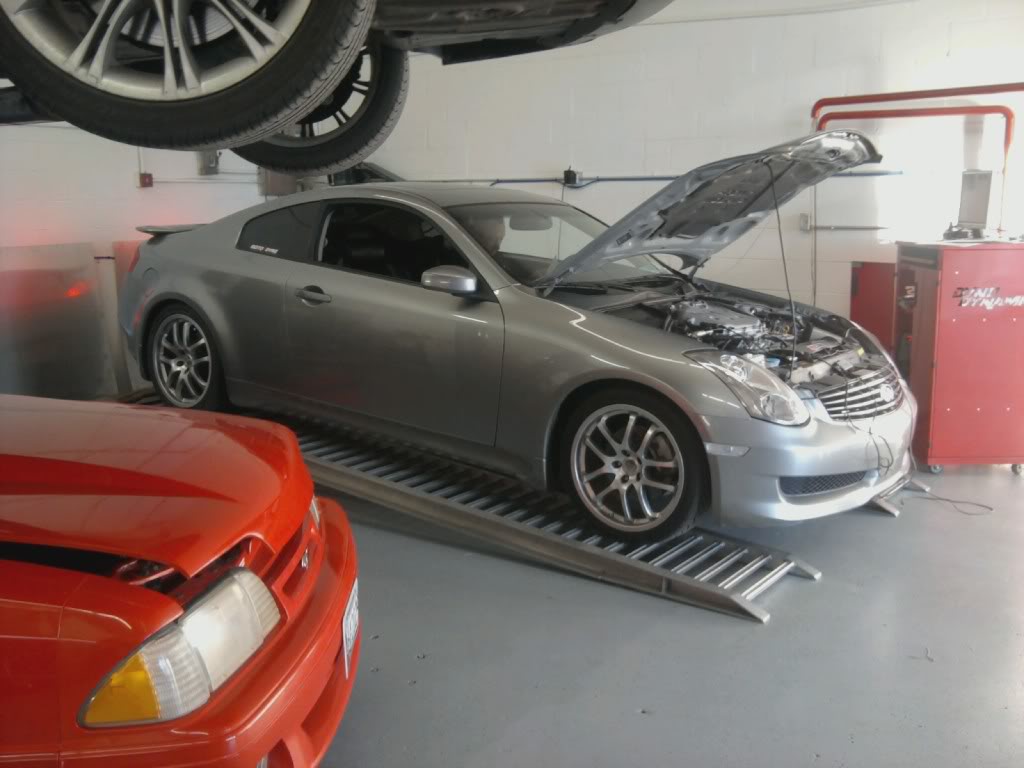

this was the base line.

Name:  mms_picture1-1.jpg
Views: 15
Size:  44.9 KB

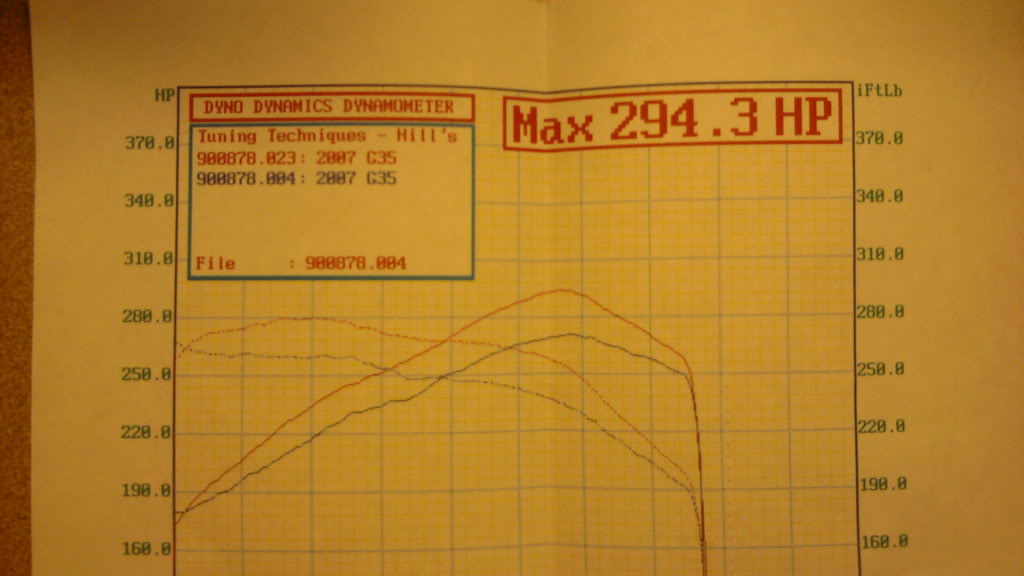

and this was after osiris tune.

Name:  0222120838.jpg
Views: 643
Size:  53.1 KB

a stock 07 puts down about 235 to 245, so i bolted on about 60 whp
and i have to say, i was more than happy with the results 294.3 whp/ 280fb tq, thanks to all of the guys at hills garage, looking fwd to seeing you guys again.:
and i would also like to thank tony from MotorDyne for all of his great products, thanks tony!


Last edited by Shanes_G; Feb 25, 2012 at 08:44 PM.
Reply
Old Feb 22, 2012 | 10:02 AM
  #2
broke_as_ajoke's Avatar
Registered User
iTrader: (8)
Joined: Jun 2007
Posts: 3,625
Likes: 71
From: South Florida
so u spent about 1000 plus to get 60 rwhp.. 294rwhp aint bad at all.. i think the tune did more than anything else

Reply
Old Feb 22, 2012 | 10:08 AM
  #3
antodiaz's Avatar
Registered User
iTrader: (1)
Joined: Apr 2010
Posts: 613
Likes: 12
From: Miami, FL
Thats more like $3000 plus!

Reply
Old Feb 22, 2012 | 10:12 AM
  #4
Shanes_G's Avatar
Thread Starter
|
Registered User
iTrader: (22)
Joined: Aug 2011
Posts: 6,869
Likes: 820
From: virginia beach
yea i have about 3k in the car.

Reply
Old Feb 22, 2012 | 10:16 AM
  #5
antodiaz's Avatar
Registered User
iTrader: (1)
Joined: Apr 2010
Posts: 613
Likes: 12
From: Miami, FL
Great numbers!! I can't wait to get mine Osiris tuned. Money well spent.

Reply
Old Feb 22, 2012 | 10:42 AM
  #6
broke_as_ajoke's Avatar
Registered User
iTrader: (8)
Joined: Jun 2007
Posts: 3,625
Likes: 71
From: South Florida
so it cost about 50 dollars for 1 gain in power?

Reply
Old Feb 22, 2012 | 11:02 AM
  #7
SDGenius's Avatar
Registered User
iTrader: (15)
Joined: Jan 2008
Posts: 12,810
Likes: 911
From: Oside, SoCal
have you looked in to a 1pc drive-shaft? also some mild headers would benefit the RevUp nicely, i say mild because i'm sure you don't wanna trade too much low-end for high-end.

Reply
Old Feb 22, 2012 | 11:42 AM
  #8
Dsskyline's Avatar
Registered User
iTrader: (15)
Joined: Oct 2003
Posts: 2,729
Likes: 84
From: Owings Mills MD
Originally Posted by SDGenius
have you looked in to a 1pc drive-shaft? also some mild headers would benefit the RevUp nicely, i say mild because i'm sure you don't wanna trade too much low-end for high-end.
+1 Funny though my lowend loss doesn't show on this same exact dyno I pulled 289.

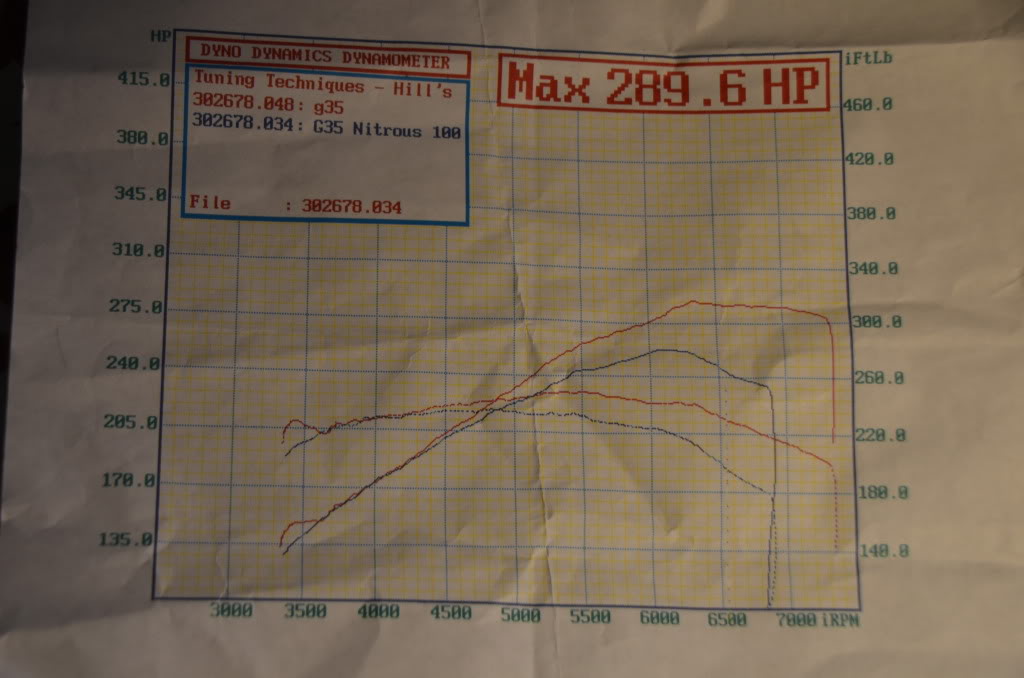

I always thought the crossover for hp/tq was 5250 on a dyno. Here is a copy of mine on the same dyno.

Name:  DDW_1693.jpg
Views: 570
Size:  77.4 KB


Good numbers OP bet it's a blast to drive compared to before. Wish my TQ was like yours maybe a lighter DS will help with that since I'm AT less drivetrain loss.


Last edited by Dsskyline; Feb 22, 2012 at 11:56 AM.
Reply
Old Feb 22, 2012 | 11:48 AM
  #9
HenryLee's Avatar
Registered User
iTrader: (48)
Joined: Oct 2006
Posts: 6,233
Likes: 168
From: SoCal & Florida
Wow impressive numbers. I have the same setup except just need ART pipes and tune!

Reply
Old Feb 22, 2012 | 01:02 PM
  #10
Shanes_G's Avatar
Thread Starter
|
Registered User
iTrader: (22)
Joined: Aug 2011
Posts: 6,869
Likes: 820
From: virginia beach
Originally Posted by SDGenius
have you looked in to a 1pc drive-shaft? also some mild headers would benefit the RevUp nicely, i say mild because i'm sure you don't wanna trade too much low-end for high-end.
yes frank the owner acctually recommended a light weight drive shaft. thats next on my list.

Reply
Old Feb 22, 2012 | 01:11 PM
  #11
Shanes_G's Avatar
Thread Starter
|
Registered User
iTrader: (22)
Joined: Aug 2011
Posts: 6,869
Likes: 820
From: virginia beach
Originally Posted by broke_as_ajoke
so it cost about 50 dollars for 1 gain in power?
you can put it that way i guess lol

Reply
Old Feb 22, 2012 | 01:17 PM
  #12
JaE35's Avatar
Moderator
iTrader: (37)
Joined: Jul 2010
Posts: 8,318
Likes: 802
From: DFW, TX
G35 Sedan
Premier Member

lol great gains indeed...i think 300 NA is fairly impressive, 3k in i probably would've went supercharger :P

Reply
Old Feb 22, 2012 | 01:19 PM
  #13
Shanes_G's Avatar
Thread Starter
|
Registered User
iTrader: (22)
Joined: Aug 2011
Posts: 6,869
Likes: 820
From: virginia beach
i dont think im going to go the FI path, ive been looking in to the bc stoker kit, NA all the way lol.

Reply
Old Feb 22, 2012 | 01:32 PM
  #14
Dsskyline's Avatar
Registered User
iTrader: (15)
Joined: Oct 2003
Posts: 2,729
Likes: 84
From: Owings Mills MD
Originally Posted by shane11
yes frank the owner acctually recommended a light weight drive shaft. thats next on my list.
said the same thing to me also. Aluminum or CF? Hopefully it will get me over the 300hp hump non built.

Reply
Old Feb 22, 2012 | 01:36 PM
  #15
Shanes_G's Avatar
Thread Starter
|
Registered User
iTrader: (22)
Joined: Aug 2011
Posts: 6,869
Likes: 820
From: virginia beach
Originally Posted by Dsskyline
said the same thing to me also. Aluminum or CF? Hopefully it will get me over the 300hp hump non built.
he recommended the aluminum one from z1, its half the price of the cf one. and maybe some light weight pullys. i think i can get around 305 whp with that.
