DIY: Replacing Fog Lights
#1
DIY: Replacing Fog Lights
MODS & ADMIN: feel free to sticky this if you get a chance
There's been a few people asking how to change their foglights and i've changed mine twice now so for all you guys out there that dont know where the hell to start and you want to change your fog's here you go.
Tools:
flat head Stubby screwdriver
philips Stubby screwdriver
adjustable wrench (or 10mm socket if you have one)
Step 1.
Turn the wheel all the way in
Step 2.
Use the stubby flat head to take out the 3 clips on the inner fender liner.

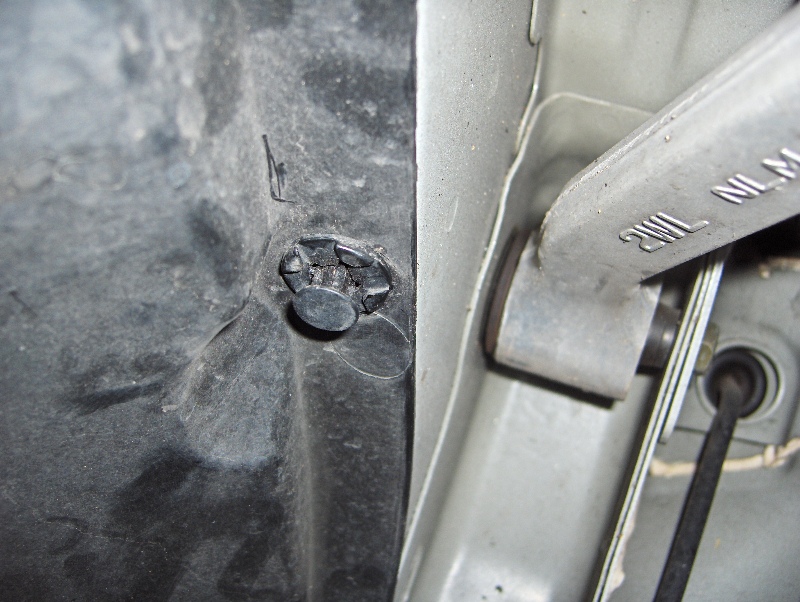

This is the clip directly below the upper control arm.
Proceed to take out the other two clips, one directly above the tire and the other one is about a foot below the first one.
Step 3.
Remove the screw above the corner light with your philips stubby
-GP-
There's been a few people asking how to change their foglights and i've changed mine twice now so for all you guys out there that dont know where the hell to start and you want to change your fog's here you go.
Tools:
flat head Stubby screwdriver
philips Stubby screwdriver
adjustable wrench (or 10mm socket if you have one)
Step 1.
Turn the wheel all the way in
Step 2.
Use the stubby flat head to take out the 3 clips on the inner fender liner.
This is the clip directly below the upper control arm.
Proceed to take out the other two clips, one directly above the tire and the other one is about a foot below the first one.
Step 3.
Remove the screw above the corner light with your philips stubby
-GP-
Last edited by Gdup35sedan; 02-20-2006 at 05:28 PM.
#2
Step 4.

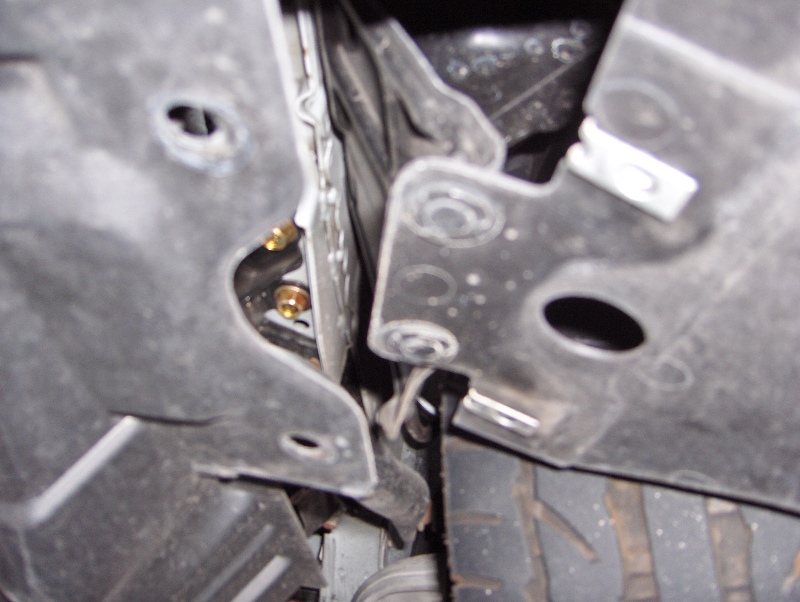

Get under the car and remove the 5 10mm bolts with your 10mm socket or adjustable wrench (you can do it with a philips but they might be too tight so i loosened them with the wrench then took them out with the philips.
Step 5.
Once all 5 bolts are out pull the fender out from the wheel well like so.
Step 6.

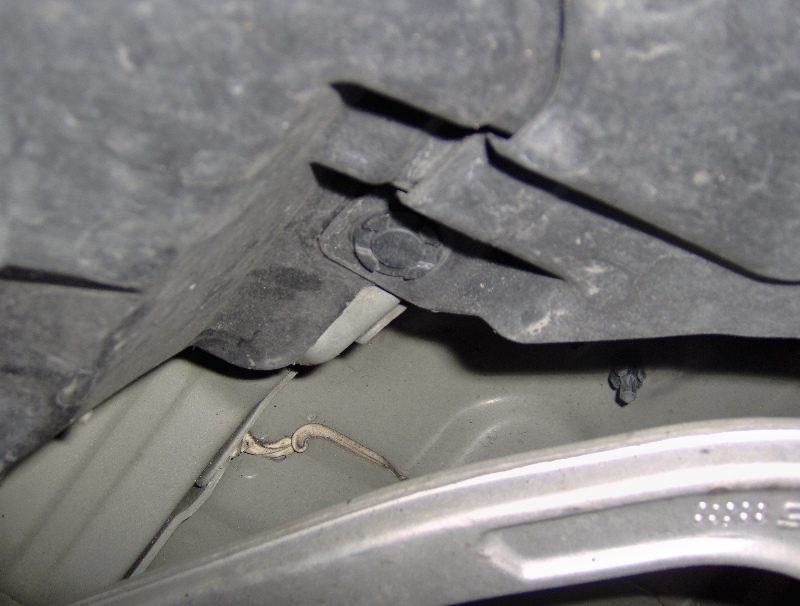

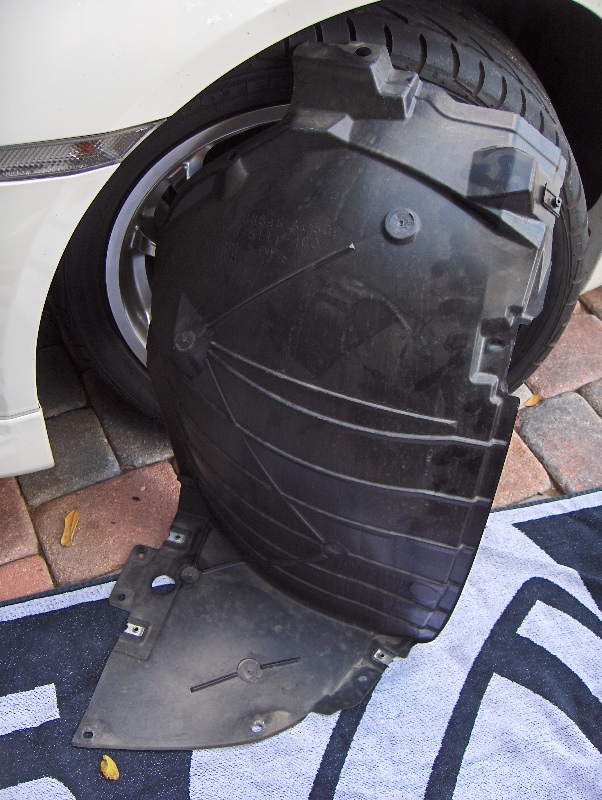

Go back under the car and take out the remaining 2 clips that hold the fender in the wheel well. then pull the fender liner out all the way.
-GP-
Get under the car and remove the 5 10mm bolts with your 10mm socket or adjustable wrench (you can do it with a philips but they might be too tight so i loosened them with the wrench then took them out with the philips.
Step 5.
Once all 5 bolts are out pull the fender out from the wheel well like so.
Step 6.
Go back under the car and take out the remaining 2 clips that hold the fender in the wheel well. then pull the fender liner out all the way.
-GP-
#3
#4
Step 9.

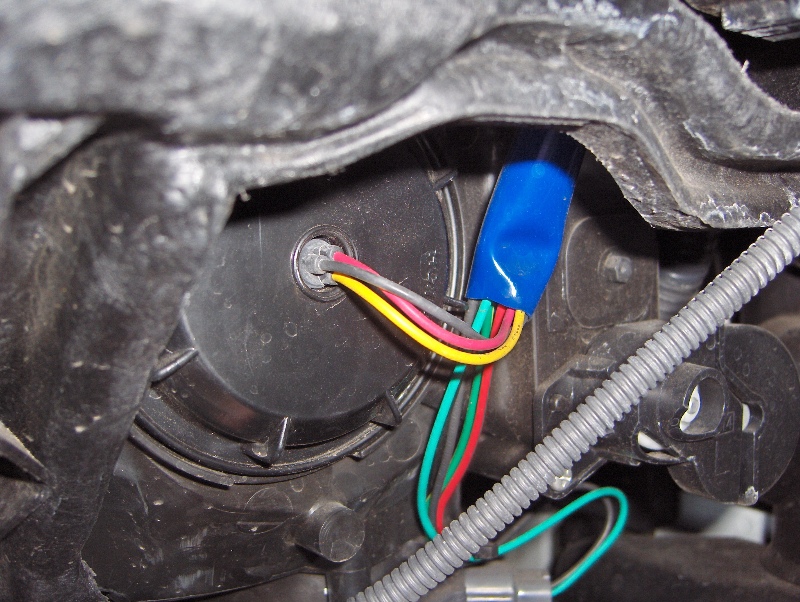

Now that the back of the bulb is visible, pinch the silver hold down on either sides with your fingers and pull it back.
Step 10.
Remove the stock bulb and replace it with your new one.
Now all you have to do is reverse the process and put everything back together... follow the 10 steps in reverse order
Now that the back of the bulb is visible, pinch the silver hold down on either sides with your fingers and pull it back.
Step 10.
Remove the stock bulb and replace it with your new one.
Now all you have to do is reverse the process and put everything back together... follow the 10 steps in reverse order
#5
The particular bulbs i used are Luminics H4 6000K Pure Blue fog lights.

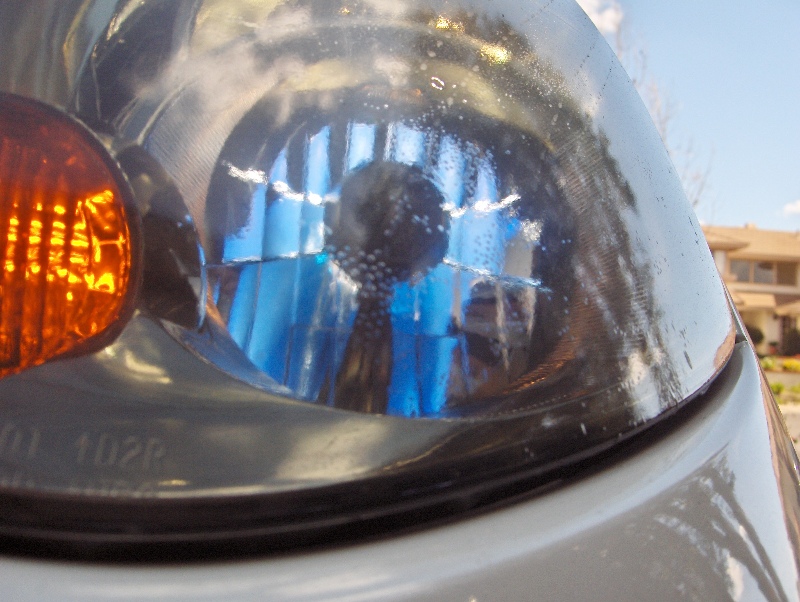

Here's what they look like after being installed.
If you have any questions at all or you need pictures with arrows or something feel free to ask. Hopefully this will help a couple people out that dont know what they're doing. This took all of 30 mins with snapping the pictures in between. So it would only take about 10-15 mins each side if you follow the directions and dont run into any problems.
Good Luck with your fog light installs.
-GP-
Here's what they look like after being installed.
If you have any questions at all or you need pictures with arrows or something feel free to ask. Hopefully this will help a couple people out that dont know what they're doing. This took all of 30 mins with snapping the pictures in between. So it would only take about 10-15 mins each side if you follow the directions and dont run into any problems.
Good Luck with your fog light installs.
-GP-
#7
Trending Topics
#8
#11
They are good at night, pretty bright down low, they have high beams but they're not very good (i used to have the luminics 3750K ultra golden bulbs and the highs on those were awesome, they lit up everything), they light up signs very well though. dont know the temp of the high's. I dont have any night pics, i tried taking some but they didnt come out right (i dont know how to take good night pics)
-GP-
-GP-
#15
Originally Posted by slateg35_05
WOW 8k 10k? dont you think thats a litte much? you wont have geat output and youll look really purple... not a good idea...maybe 8k but no 10k just my 2 cents.
-GP-
