Anyone ever done CV shafts on an AWD?
#16

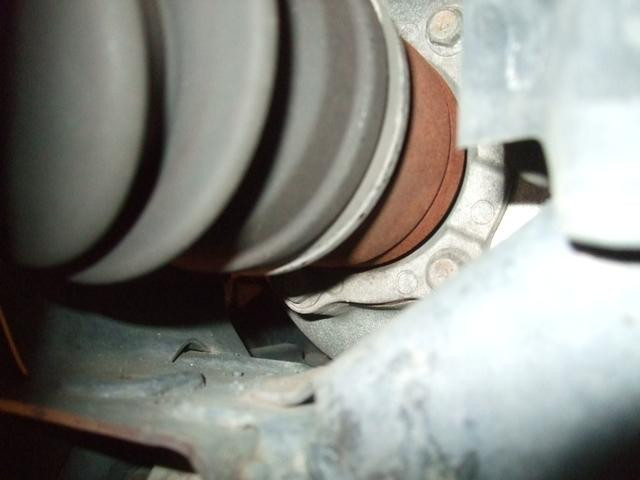

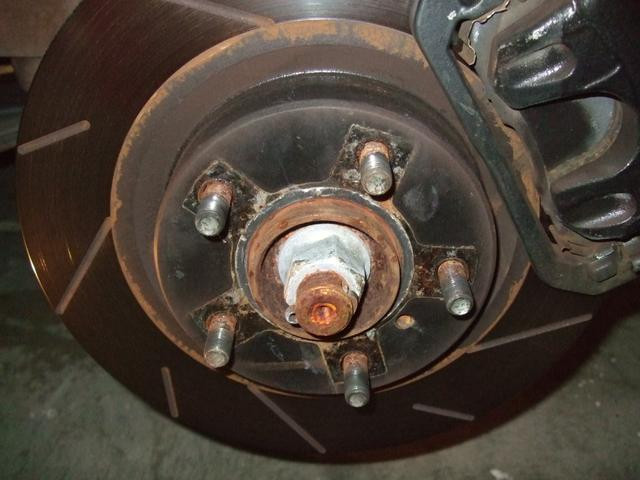

Tomorrow I will jack up my ride and remove the front wheel to snap some pics. Any and all instructions you can provide would be great. I;ve never done this before but I do consider myself mechanically inclined.
#17
should be exactly the same as any CV axle on a FWD car.
you need a large 30-36mm socket to remove the axle nut, disconnect the tie rod end from spindle. pending if there is more stuff blocking you might be able to pull it out from there. tap the axle out of the spindle and yank out of the front diff.
you need a large 30-36mm socket to remove the axle nut, disconnect the tie rod end from spindle. pending if there is more stuff blocking you might be able to pull it out from there. tap the axle out of the spindle and yank out of the front diff.
#18
Machine if you snap pics i can tell you exactly how to do it
Turtle you need more than a yank lol the first time i did it thats what i thought too, but i can you use 2 screwdrivers/crowbars from both sides to pop it out. They are like locked in by a clip so you have to pop it out.
Very easy job though
Turtle you need more than a yank lol the first time i did it thats what i thought too, but i can you use 2 screwdrivers/crowbars from both sides to pop it out. They are like locked in by a clip so you have to pop it out.
Very easy job though
#19
^ the end that goes into the trans has a C-clip. 1 pry bar normally gets that end out. If not a couple of smashes on the pry bar.
The end in the spindle normally gives me trouble because i'm scared of mushrooming the end when i hit it out. But now that i have a air hammer, its all gravy.
In my mind its a fair easy job that just requires a little common sense plus some muscle.
The end in the spindle normally gives me trouble because i'm scared of mushrooming the end when i hit it out. But now that i have a air hammer, its all gravy.
In my mind its a fair easy job that just requires a little common sense plus some muscle.
#20
#21
#23
Ill do my best to explain it from memory:
1. Jack up and take off wheel
2.Remove axle nut
3.Remove 2 bolts holding caliper on
4.Remove rotor

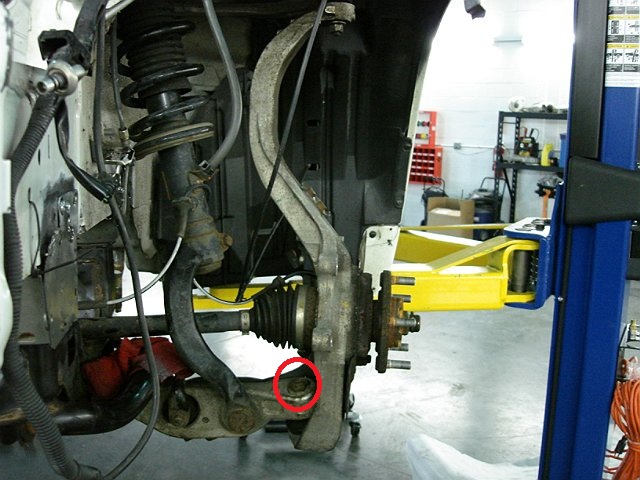

5.Look on the knucle somewhere there should be a nut facing upwards(circled red in pic #1). Remove this nut and if i remember correctly you should be able to manuver that end of the axle out while rotating the knuckle.
6.If the knuckle doesnt rotate yet then remove the nut thats connected to the upper control arm.
7. Once you get the axle out of the wheel bearing end, you then have to try and "pop" the other end out of the front diff. For this i used 2 pry bars/ screwdrivers and used them at the same time to pop it out. Takes some force and is kind of a PITA but it will come out
And thats about all. I know its not perfect but its off the top of my head, so i cant remeber everything without having it in front of me
1. Jack up and take off wheel
2.Remove axle nut
3.Remove 2 bolts holding caliper on
4.Remove rotor
5.Look on the knucle somewhere there should be a nut facing upwards(circled red in pic #1). Remove this nut and if i remember correctly you should be able to manuver that end of the axle out while rotating the knuckle.
6.If the knuckle doesnt rotate yet then remove the nut thats connected to the upper control arm.
7. Once you get the axle out of the wheel bearing end, you then have to try and "pop" the other end out of the front diff. For this i used 2 pry bars/ screwdrivers and used them at the same time to pop it out. Takes some force and is kind of a PITA but it will come out
And thats about all. I know its not perfect but its off the top of my head, so i cant remeber everything without having it in front of me
#24
#25
#26
Hopefully you can get it done with that lil explaination.

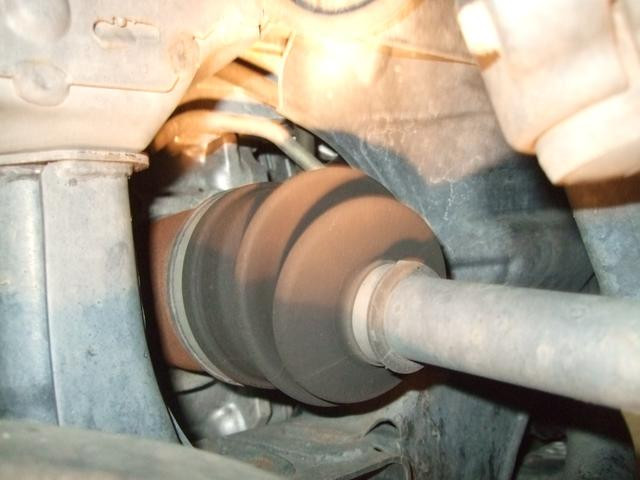

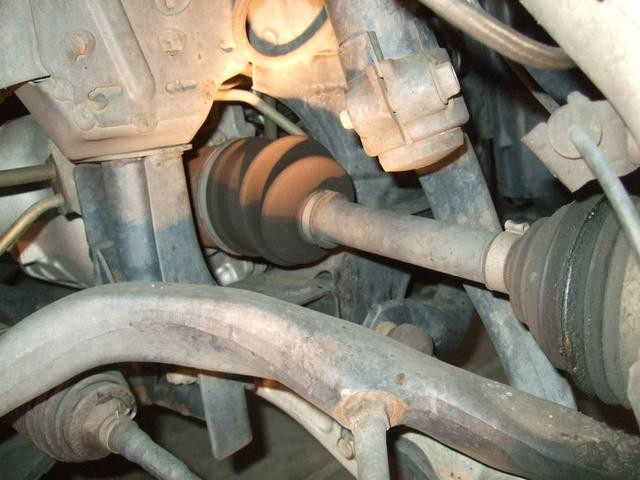

Anyways as you see the the picture you should be able to pry right where the arrow it pointed, there should be a space there. Just try popping the axle, you will know when its out then you just grab the axle in your hand and the whole assembly will come right out
Again these directions are off my head, if your stuck anywhere just let me know
Anyways as you see the the picture you should be able to pry right where the arrow it pointed, there should be a space there. Just try popping the axle, you will know when its out then you just grab the axle in your hand and the whole assembly will come right out
Again these directions are off my head, if your stuck anywhere just let me know
#27
Finally, an explanation of how to remove the front shafts.
I think I need to do two new wheel bearings on my x come spring time....amazing....toast at 70k miles
One question...does front diff need to be drained when popping the shafts out?
Does shaft even need to fully come out to change the bearings? Is there enough play to swing it to the side?
I'm sure more guys will need to know this info as our cars become up there in age and costs of replacing those bearings are still high
I think I need to do two new wheel bearings on my x come spring time....amazing....toast at 70k miles
One question...does front diff need to be drained when popping the shafts out?
Does shaft even need to fully come out to change the bearings? Is there enough play to swing it to the side?
I'm sure more guys will need to know this info as our cars become up there in age and costs of replacing those bearings are still high
#28
ive done the front wheel bearings on mine also.
No the front diff does not need to be drained, when you pop the axle out, NO fluid comes out.
When just doing the front wheel bearing, you can just pop is out one end, and swing it aside (not taking it out of the front diff) but its so simple to just take it out all together and just gets one more thing out of your way to get the front wheel bearing out
No the front diff does not need to be drained, when you pop the axle out, NO fluid comes out.
When just doing the front wheel bearing, you can just pop is out one end, and swing it aside (not taking it out of the front diff) but its so simple to just take it out all together and just gets one more thing out of your way to get the front wheel bearing out
#29
#30
its very simple...except when the wheel bearing is corroded onto the knuckle and is nearing impossible to get off.....like mine.
In this case i rented a side hammer, bolted it up to my wheel hub and started going at it. This worked just enough to pull the hub assebly out about 1/2 inch (while separating the actual wheel bearing from the hub) I then tried a crob bar, it was bending, so i took a hammer, used the other end and pryed the hell out of it
In this case i rented a side hammer, bolted it up to my wheel hub and started going at it. This worked just enough to pull the hub assebly out about 1/2 inch (while separating the actual wheel bearing from the hub) I then tried a crob bar, it was bending, so i took a hammer, used the other end and pryed the hell out of it
