Forced Induction Discussion of turbos , superchargers , and nitrous upgrades on the G35

Oil Pan removal question

Thread Tools

Search this Thread

Rate Thread

Old Jul 31, 2007 | 02:55 PM
  #1
Drewer's Avatar
Thread Starter
|
Registered User
iTrader: (9)
Joined: May 2003
Posts: 1,820
Likes: 3
From: Warshington
Oil Pan removal question

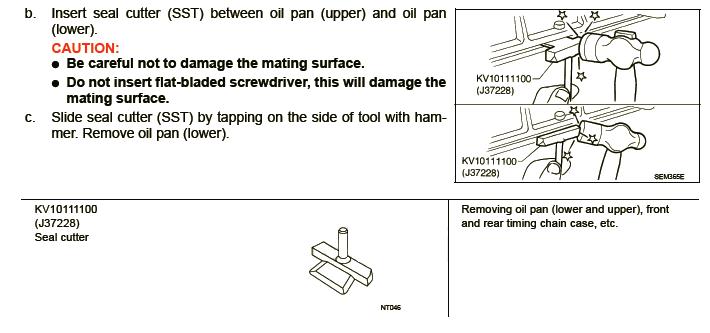

For those that have done it before, did you follow the service manual's recommendation to use a seal cutter? I haven't had any luck finding this tool at any of the auto parts stores I've looked. . .I'll try home depot next. I guess I wonder if it's really necessary? I'm thinking yes since it specifically calls out not to use a flathead screwdriver. What have you guys done? Just chance it?

Here's the tool:

Attached Thumbnails Oil Pan removal question-splitter.jpg
Reply
Old Jul 31, 2007 | 02:57 PM
  #2
JdM_G35's Avatar
Registered User
iTrader: (8)
Joined: Aug 2005
Posts: 3,462
Likes: 2
From: orange county, ca
i just carefully pryed mine.

Reply
Old Jul 31, 2007 | 02:59 PM
  #3
Voodoo's Avatar
CCT-we call down the rain
Joined: Apr 2007
Posts: 1,179
Likes: 0
From: Avondale, AZ
I've used a flat metal 3" putty knife. Worked just fine, also used it to clean off the remaining gasket on the pan and block.

Reply
Old Jul 31, 2007 | 03:02 PM
  #4
JdM_G35's Avatar
Registered User
iTrader: (8)
Joined: Aug 2005
Posts: 3,462
Likes: 2
From: orange county, ca
i used a razor blade to clean up all that silicon

Reply
Old Jul 31, 2007 | 03:06 PM
  #5
Drewer's Avatar
Thread Starter
|
Registered User
iTrader: (9)
Joined: May 2003
Posts: 1,820
Likes: 3
From: Warshington
Sweet. Thanks guys! I've had a gasket scraper lying around for years, so it'll finally get put to use. I think I'll get a putty knife too and do a combo "pull gently" and attack it with the putty knife.

-andrew

Reply
Old Jul 31, 2007 | 03:08 PM
  #6
FastDontLie's Avatar
...we dont need roads...
iTrader: (17)
Joined: Jan 2006
Posts: 2,816
Likes: 0
From: San Antonio, Texas
Premier Member

Yup, just use the putty knife to get it loose. Then just carefully pry it off. Its just a tight fit under the car. Good luck!!

Reply
Old Dec 31, 2008 | 05:15 PM
  #7
Knowledge35's Avatar
Registered User
Joined: Apr 2007
Posts: 111
Likes: 0
From: Los Angeles CA
what happens if you use a oil pan gasket from an auto part store? or do you only use the ones from the dealer?

Reply
Old Dec 31, 2008 | 05:58 PM
  #8
str8dum1's Avatar
Registered User
iTrader: (1)
Joined: Feb 2006
Posts: 1,241
Likes: 5
From: raleigh-wood NC
there's no pre-made oil pan gasket. You use Ultra Grey sealant in a tube to put it back together.

Reply
Old Dec 31, 2008 | 06:46 PM
  #9
clifftrail's Avatar
Registered User
iTrader: (12)
Joined: Oct 2005
Posts: 411
Likes: 0
From: ABQ, NM.
Originally Posted by str8dum1
there's no pre-made oil pan gasket. You use Ultra Grey sealant in a tube to put it back together.
I don't know about that, I bought two from autozone when I got a 1" spacer. Worked and fit fine.

Reply
Old Jan 1, 2009 | 09:13 AM
  #10
superchargedg's Avatar
Registered User
iTrader: (2)
Joined: Nov 2005
Posts: 4,451
Likes: 65
From: maryland
Originally Posted by str8dum1
there's no pre-made oil pan gasket. You use Ultra Grey sealant in a tube to put it back together.
Yes there are and NAPA sells them.

Reply
Old Jan 4, 2009 | 03:45 AM
  #11
bythabay's Avatar
Registered User
iTrader: (5)
Joined: May 2005
Posts: 2,174
Likes: 77
From: Santa Clara, CA
so by using one of these gaskets, no sealant needs to be used??

Reply
Old Jan 4, 2009 | 03:53 AM
  #12
Gdup35sedan's Avatar
ENVautoDetailing.com
iTrader: (47)
Joined: Sep 2005
Posts: 9,257
Likes: 136
From: San Diego/Redondo Beach
Premier Member

Originally Posted by bythabay
so by using one of these gaskets, no sealant needs to be used??
correct.... NO sealant if you use a gasket. If you put sealant on, and a gasket, it's like double gasketing and it WILL more than likely cause a leak.
-GP-

Reply
Old Jan 7, 2009 | 07:31 PM
  #13
QuadCam's Avatar
Registered User
iTrader: (7)
Joined: Oct 2002
Posts: 2,474
Likes: 11
From: Vero Beach, FL
Originally Posted by superchargedg
Yes there are and NAPA sells them.

here it is. $7.99:


Reply
Old Jan 8, 2009 | 12:44 AM
  #14
str8dum1's Avatar
Registered User
iTrader: (1)
Joined: Feb 2006
Posts: 1,241
Likes: 5
From: raleigh-wood NC
^^thats pretty nice then. will have to remember that next time i pull my pan.

Reply
Old Jan 8, 2009 | 01:16 AM
  #15
Scrooge's Avatar
Registered User
iTrader: (3)
Joined: Aug 2007
Posts: 1,265
Likes: 0
From: Palmdale Ca
I would use the razor blade to cut the seal around the oil pan and then use a thick guage putty knife to slowly start prying around the oil pan. After that I would use the gasket scraper and remove all the RTV. Last I would prep the surface by wipe both seal areas with brake cleaner (Make sure you use the brake cleaner that leaves no residue) to remove and film of oil and to have a nice surface to adhere to.

Also if you use Permatex Ultra grey. You have 5 minutes to have surface together and you have to wait 24 hrs for the RTV to cure. After that, put in the oil and filter and start the car and check for leaks.

Reply
