G35 Coupe V35 2003 - 07 Discussion about the 1st Generation V35 G35 Coupe

Coupe window gap?

  #1
Old 05-21-2019, 07:12 PM
Registered User
Thread Starter
Join Date: Jan 2015
Posts: 269
Likes: 0
Received 9 Likes on 8 Posts
Coupe window gap?

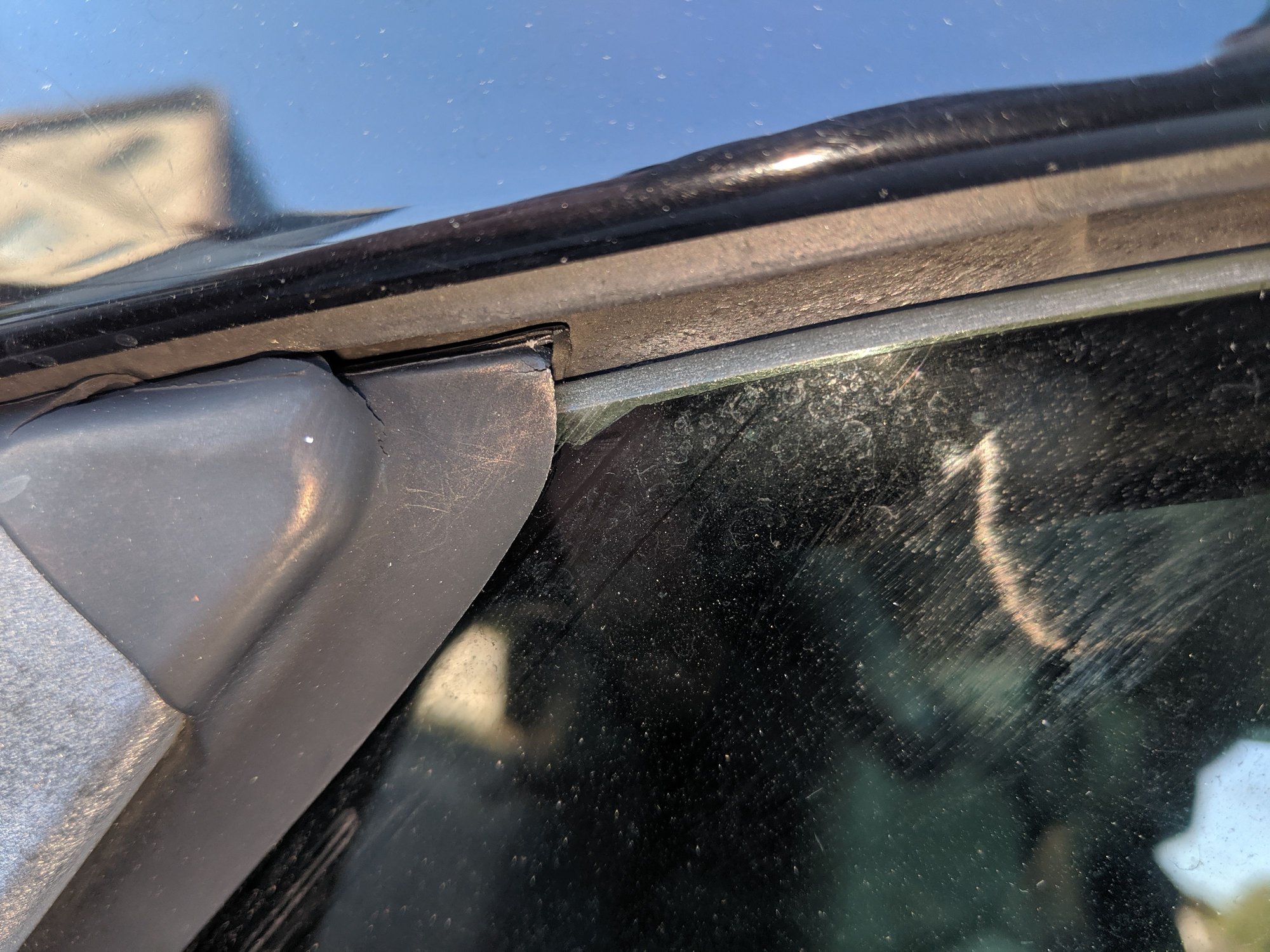

Not sure if u see the gap . Last time I changed the window motor I noticed a gap when I put everything together. I changed the motor again and I have everything apart .

How do I adjust this? Seems like every thing is fixed in place and I don't see many options

  #2
Old 05-21-2019, 07:34 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 7,005
Received 821 Likes on 755 Posts
Coupe 6MT Premium RAS
Are you doing the window motor recalibration as well. It's not just the motor that needs to be replaced, you must also calibrate it for the upper stop limit.

  #3
Old 05-21-2019, 08:17 PM
Registered User
Thread Starter
Join Date: Jan 2015
Posts: 269
Likes: 0
Received 9 Likes on 8 Posts
After doing the reset my window now goes up about 6 inches and drops down . Can't get it to go up farther

  #4
Old 05-21-2019, 08:45 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 7,005
Received 821 Likes on 755 Posts
Coupe 6MT Premium RAS
Make sure you are following the directions EXACTLY.


  #5
Old 05-21-2019, 08:45 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 7,005
Received 821 Likes on 755 Posts
Coupe 6MT Premium RAS
You might have to perform the recal a couple of times to get it to work perfectly.

  #6
Old 05-21-2019, 08:52 PM
Registered User
Thread Starter
Join Date: Jan 2015
Posts: 269
Likes: 0
Received 9 Likes on 8 Posts
Yeah the problem is I cannot get it all the way up. I took the motor off and raise the window manually again back to square one I will try again tomorrow LOL

  #7
Old 05-21-2019, 08:55 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 7,005
Received 821 Likes on 755 Posts
Coupe 6MT Premium RAS
Ok, just make sure you have the door closed and that you are NOT pulling the button all the way back to the second click (auto up).

  #8
Old 05-21-2019, 08:57 PM
cleric670@gmail's Avatar
BANNED!!!
Join Date: May 2017
Location: Washington State
Posts: 7,005
Received 821 Likes on 755 Posts
Coupe 6MT Premium RAS
And make sure you are only depressing the calibration button while the window travels down, then you manually raise the window (first click, not auto-up) all the way to the top and then OPEN THE DOOR. You're programming these settings into the BCM and the input from things like hte door switch are necessary for it to work.

  #9
Old 05-25-2019, 04:32 PM
Registered User
Thread Starter
Join Date: Jan 2015
Posts: 269
Likes: 0
Received 9 Likes on 8 Posts
I got the gap fixed. If u Google it they say there's 2 nuts where u adjust the gap with a slot tip. That didn't work
What worked for a 03 was the 3 screws that hold the window to the regulator. If u close the window you can get to these screws with the silver panel on. Take off the black covers that seal the holes , loosen those and adjust from there .

Just have to do the reset now
