Hey there guys!

Pretty new to this forum and not sure on exactly how to navigate it lol I hope I’m in the right place. Anyways I know it’s been spoken about many times but I’ve been having a headache with this light. I’ve tried generic resistors, Recaro brand resistors, reset procedure, as well as letting the capacitors drain before trying these methods. Still I cannot seem to get the airbag light off I don’t know why btw it’s a 06 coupe 6mt with the power leather seats and sports suspension. Please let me know what you think!



There are multiple circuits, are you sure you got them all? Pressure switch, airbag module.



Sooo I didn’t know bout the pressure one ill try it again lol. Which one is it picture would be great!



It's called the "occupant classification sensor" it's embedded in the seat, if you dig it out and plug it in that should be good enough. Follow those 3 wires in the SRS schematic, green, yellow/red stripe, orange. It will be a 3 wire harness on the seat.



Thank you so much I’ll update when I try.

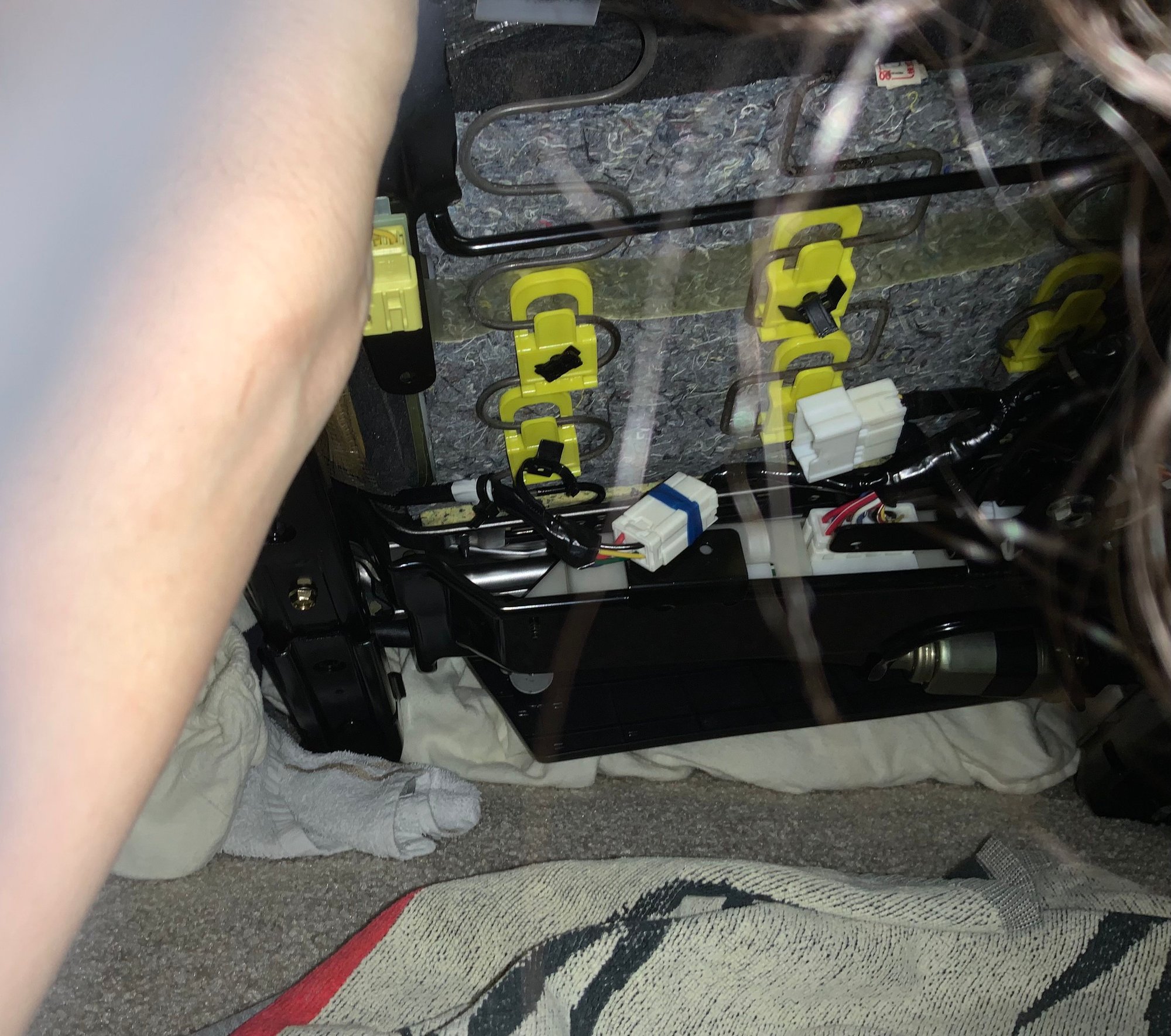

Which ones are they? So here is the only wires under my seat besides the one for the seat belt which is still functioning.

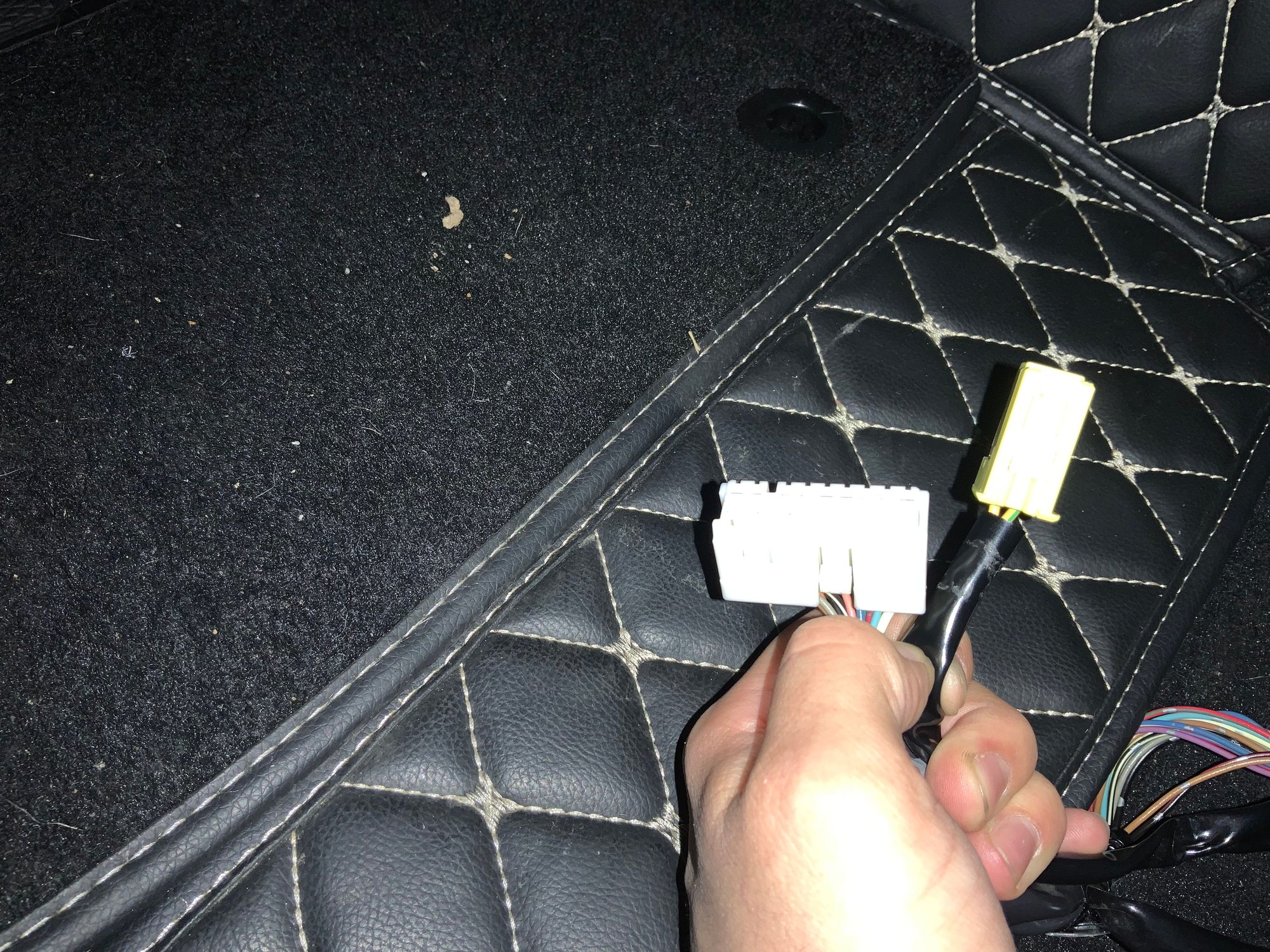

And here are the ones under the seat



His diagram specifically shows Green, Yellow with seed, and Orange. Look for a 3 wire plug that isn’t plugged in down there, and that is where your resistor goes.
