G35 Sedan V35 2003-06 Discussion about the 1st Generation V35 G35 Sedan

brake lights NOT WORKING

Thread Tools

Search this Thread

Rate Thread

Old Jun 24, 2022 | 04:17 PM
  #1
J Doloz's Avatar
Thread Starter
|
Registered User
Joined: Aug 2019
Posts: 18
Likes: 0
05 G35 6mt sedan
Brakes brake lights NOT WORKING

i have a 05 g35 sedan and ALL brake lights do not work when i step on the brakes. my " vdc " and " slip" light have been on for like 2 yrs but it never affected the cars performance. i checked my brake fluid its full. i HAVENT checked the fuses yet though...where are they located? just the other day the ' ABS " light came on by itself and thats when my brake lights didnt work at all. so i did some reading and saw something about the brake light switch by the brake pedal. i ordered it put it in and still doesnt work. ok g35 forum peeps could u tell me what are the other possibilites. i cant even drive my car cuz of this. ur feedback is greatly apprecitated....thanks everyone.


Last edited by J Doloz; Jun 24, 2022 at 04:22 PM.
Reply
Old Jun 24, 2022 | 04:29 PM
  #2
cleric670's Avatar
BANNED!!!
Joined: May 2017
Posts: 14,837
Likes: 2,497
From: Washington State
Coupe 6MT Premium RAS
Premier Member

Fuse 20 in the cabin Fuse Block - J/B.

Probably blew the fuse due to some other reason like the trunk wire harness flexible section which is prone to breaking wires on the sedan.

Reply
Old Jun 24, 2022 | 05:48 PM
  #3
J Doloz's Avatar
Thread Starter
|
Registered User
Joined: Aug 2019
Posts: 18
Likes: 0
05 G35 6mt sedan
Can u pls tell me more about the wire harness ? Flexible section ? Where is that located ? Oh and which fuse should I check? Location? Thanks

Reply
Old Jun 24, 2022 | 06:08 PM
  #4
05_SkylineSedan's Avatar
Registered User
20 Year Member
Joined: Apr 2005
Posts: 649
Likes: 112
"my " vdc " and " slip" light have been on for like 2 yrs"

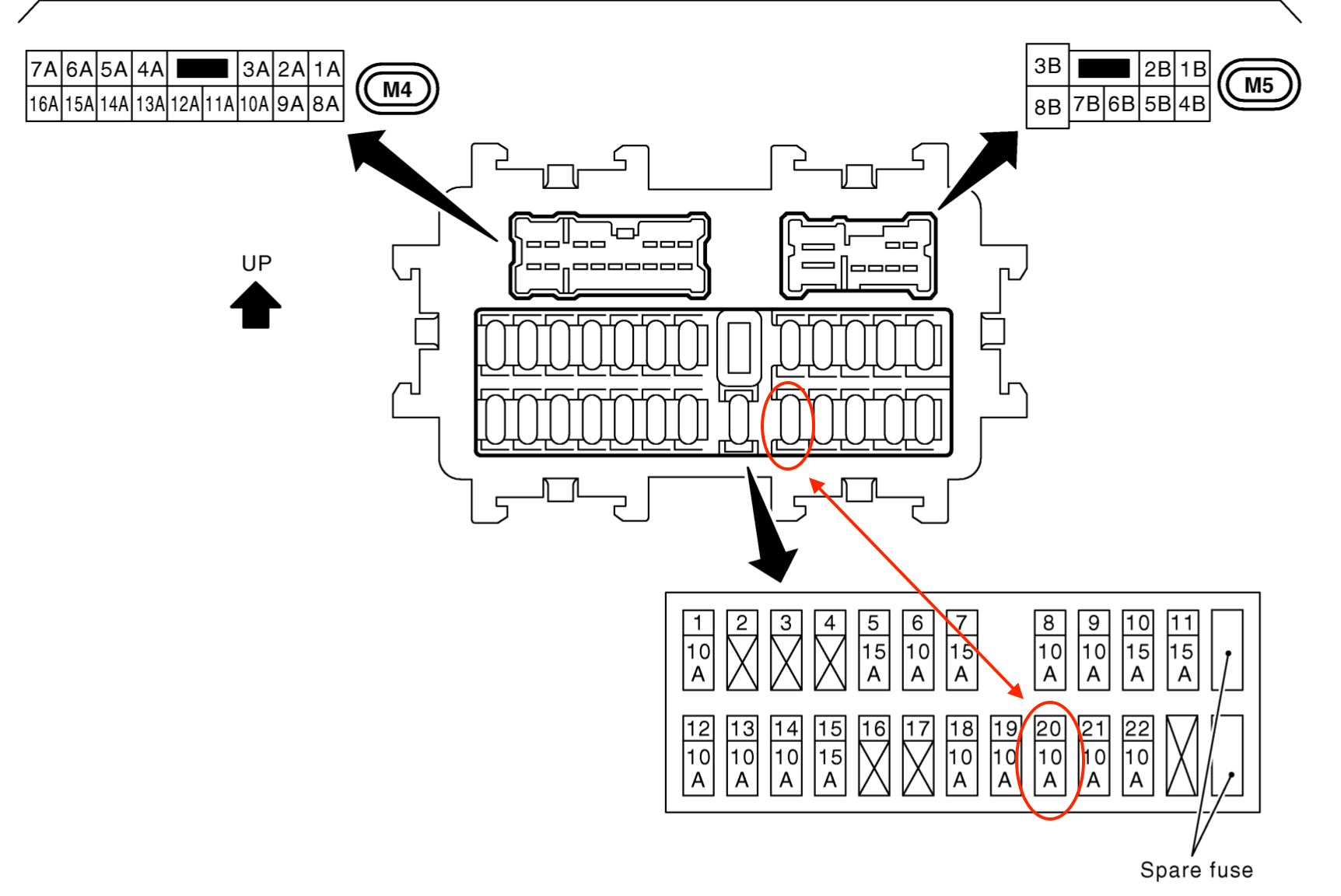

It sounds like you have other problems ... but yeah, you want those brake lights to work. As cleric said; first check fuse #20 in the cabin fuseblock. That's the fuse block inside the car by the driver's left leg. It should resemble the illustration below.

The wiring harness he's talking about is where the wires travel through the rubber boot from your car's main body into your trunk lid. They get bent back and forth every time you open the trunk so they can eventually fray and either break or short. To check those you can pull the rubber boot away from one side or another and see if you can spot any problems.





Reply
